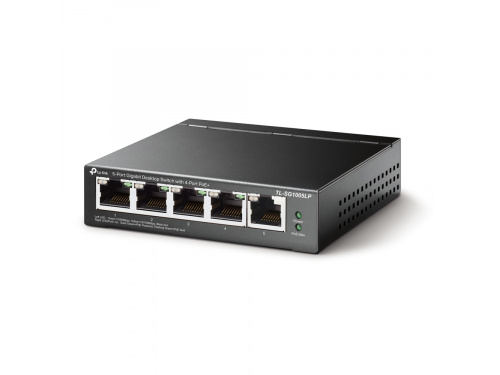

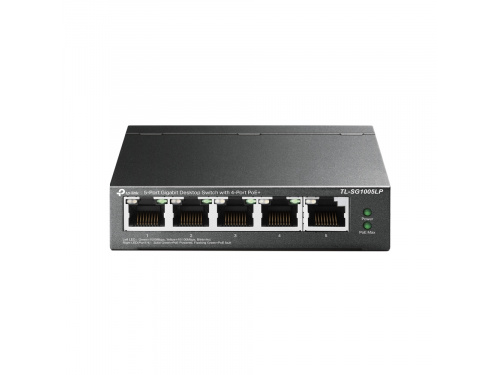

TP-LINK TL-SG1005LP 5-Port RETAIL BOX 4 PoE+ Ports (Power Over Ethernet) Gigabit Desktop Switch neTLtl_sg1005lp

tl-sg1005lp_un_1_0_09_large_1594115188417l

tl-sg1005lp_un_1_0_02_large_1594115121859b

tl-sg1005lp_un_1_0_01_large_1594115114026u

tl-sg1005lp_un_1_0_08_large_1594115143012s

tl-sg1005lp_un_1_0_04_large_1594115155513c

tl-sg1005lp_un_1_0_07_large_1594115180579k

tl-sg1005lp_un_1_0_03_large_1594115132483u

tl-sg1005lp_un_1_0_05_large_1594115164346x

RRP: $85.00
Our price: $82.00 each
Brand: TP-LINK

Contact us for more information

85

OVERVIEW
SPECIFICATIONS

OVERVIEW

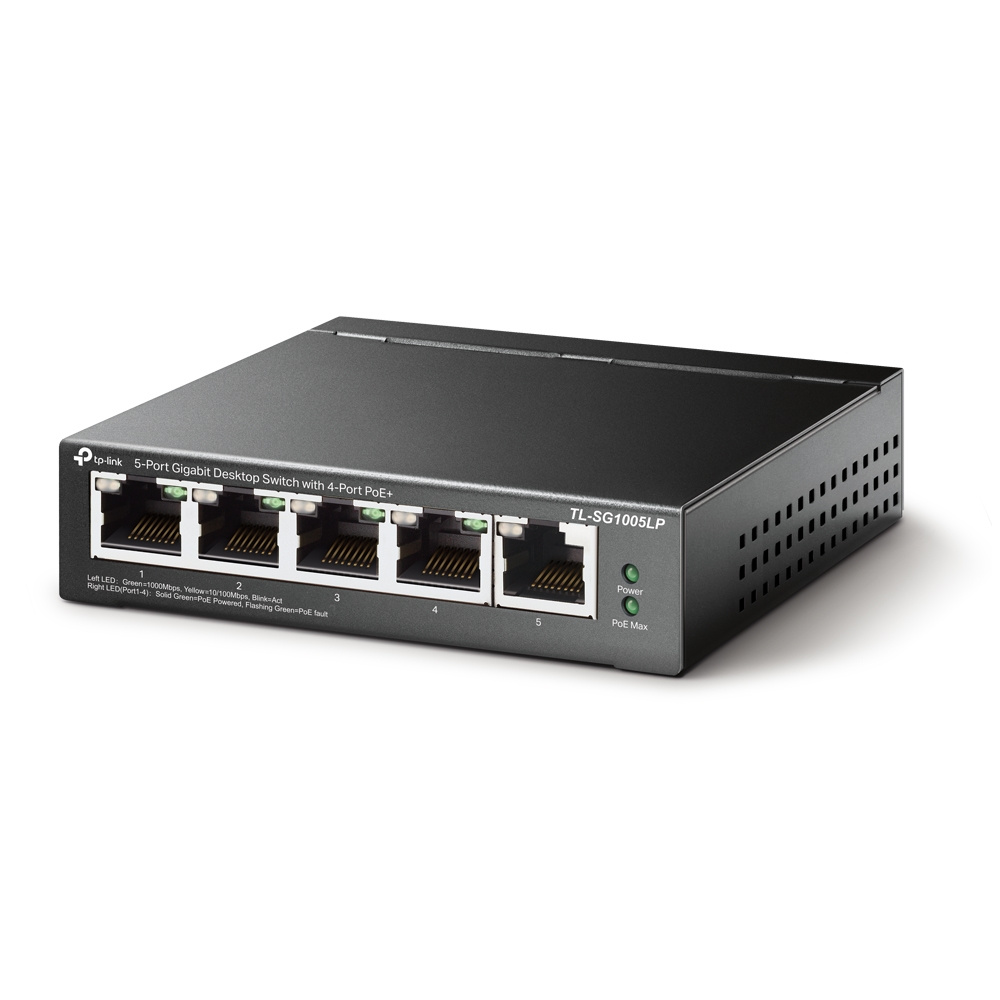

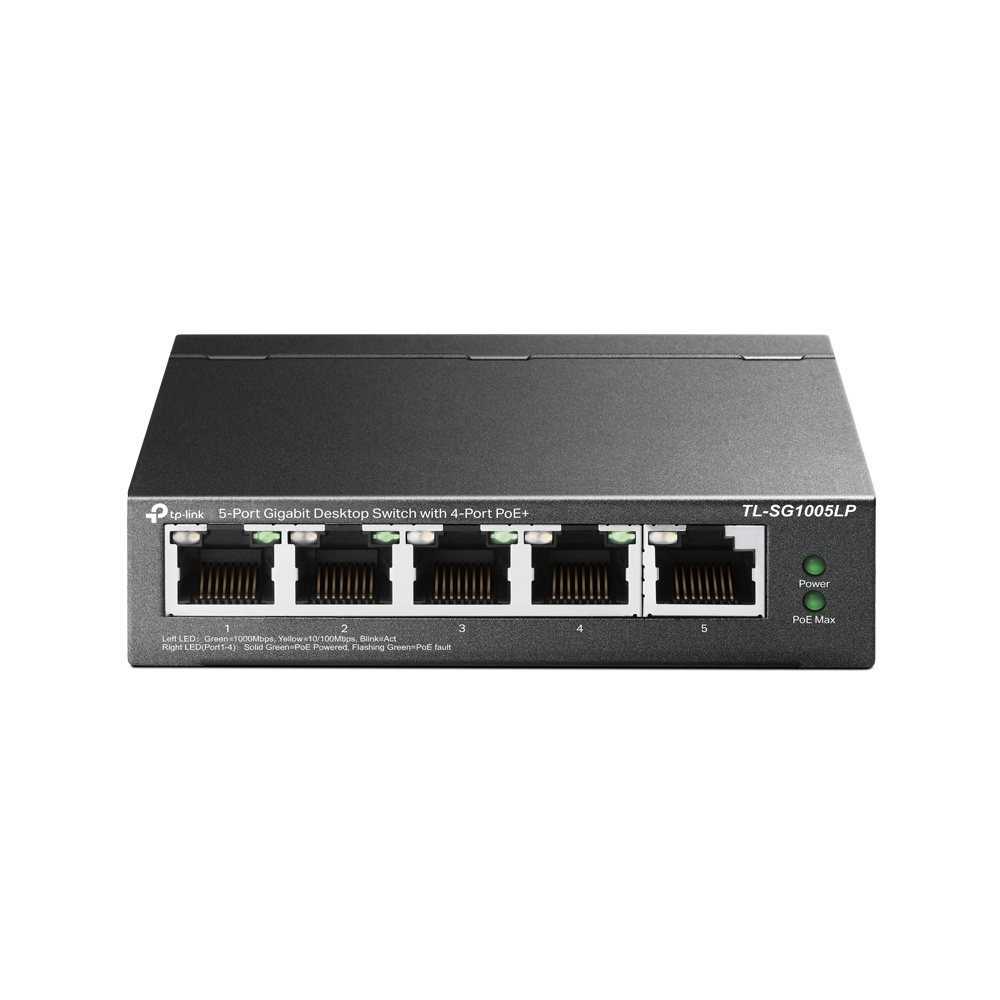

5-Port Gigabit Desktop Switch with 4-Port PoE+

5× 10/100/1000 Mbps RJ45 ports

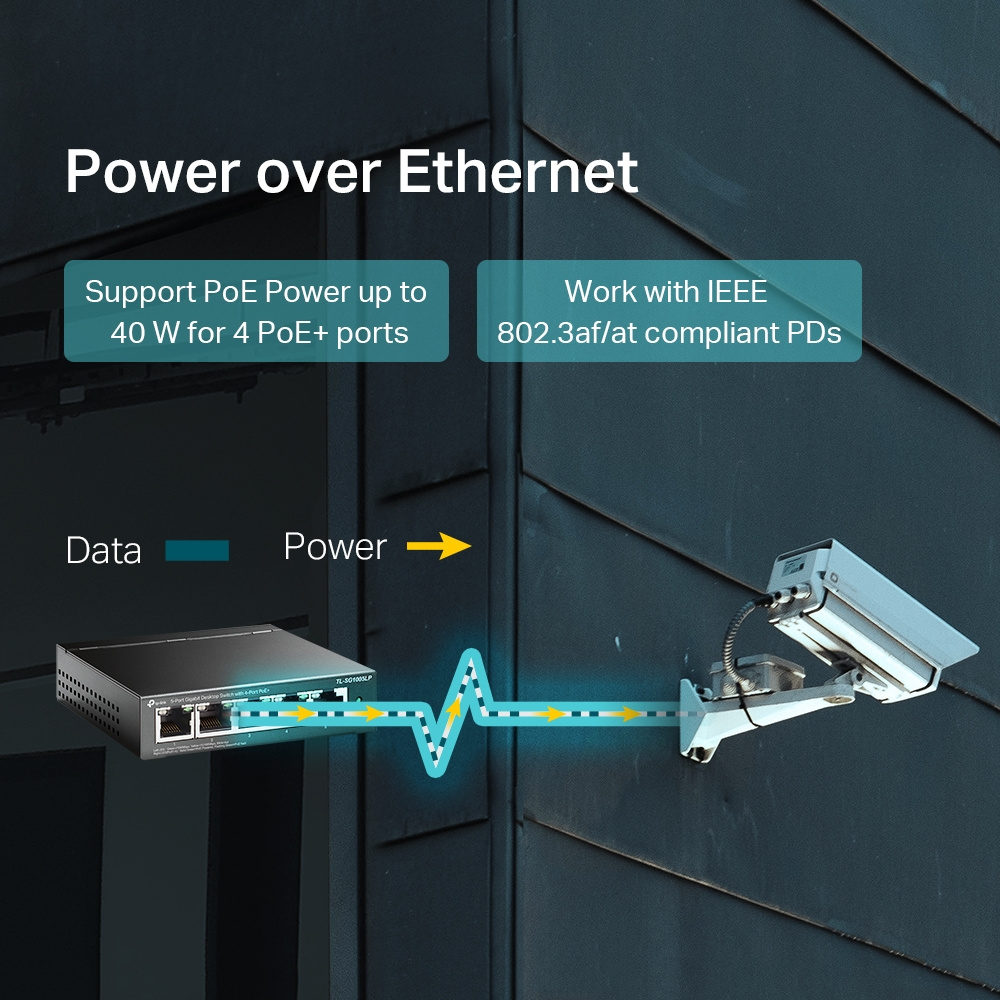

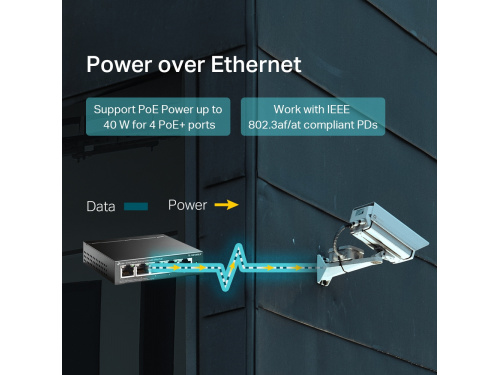

With four PoE+ ports, transfers data and power on one single cable
Works with IEEE 802.3af/at compliant PDs
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 40 W for all PoE ports^*

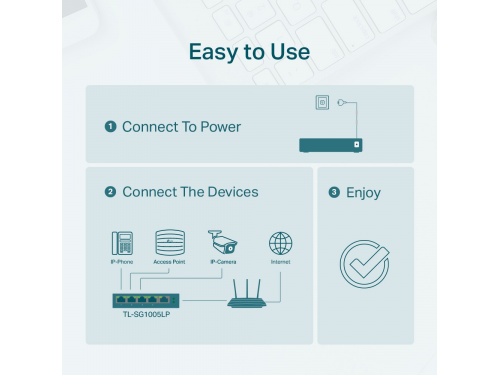

Plug and play, no configuration and installation required

SPECIFICATIONS

HARDWARE FEATURES
Interface	• 5× 10/100/1000Mbps RJ45 Ports • AUTO Negotiation • AUTO MDI/MDIX
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	Fanless
External Power Supply	External Power Adapter (Output: 53.5 VDC / 0.81 A)
Packet Forwarding Rate	7.44 Mpps
PoE Ports (RJ45)	• Standard: 802.3 af/at compliant • PoE Ports: Ports 1–4 • Power Supply: 40 W
Mac Address Table	2K
Jumbo Frame	16 KB
Switching Capacity	10 Gbps
Dimensions ( W x D x H )	3.9×3.9×1.0 in (99.8×98×25 mm)
Max Power Consumption	• 4.12 W (220/50 Hz. no PD connected) • 47.5 W (220/50 Hz. with 40 W PD connected)
Max Heat Dissipation	• 14.05 BTU/h (no PD connected) • 161.98 BTU/h (with 40 W PD connected)

SOFTWARE FEATURES
Advanced Features	• Compatible With IEEE 802.3af/at Compliant PDs • Mac Address Auto-Learning And Auto-Aging • IEEE 802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping
Transfer Method	Store-And-Forward

OTHERS
Certification	FCC, CE, RoHS
Package Contents	• TL-SG1005LP • Power Adapter • Installation Guide
Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
