TP-LINK TL-SF1006P 6-Port RETAIL BOX 10/100Mpbs 4x PoE+ Port Desktop Switch neTLtl_sf1006p

tl-sf1006p_un_1_0_08_large_1593342555702p

tl-sf1006p_un_1_0_02_large_1593342487150w

tl-sf1006p_un_1_0_01_large_1593342478543z

tl-sf1006p_un_1_0_06_large_1593342536986o

tl-sf1006p_un_1_0_07_large_1593342513278c

tl-sf1006p_un_1_0_05_large_1593342546751n

tl-sf1006p_un_1_0_04_large_1593342526952b

tl-sf1006p_un_1_0_03_large_1593342499454c

RRP: $75.00
Our price: $58.00 each
Brand: TP-LINK

2 items in stock

Add to cart

Contact us for more information

OVERVIEW
SPECIFICATIONS

OVERVIEW

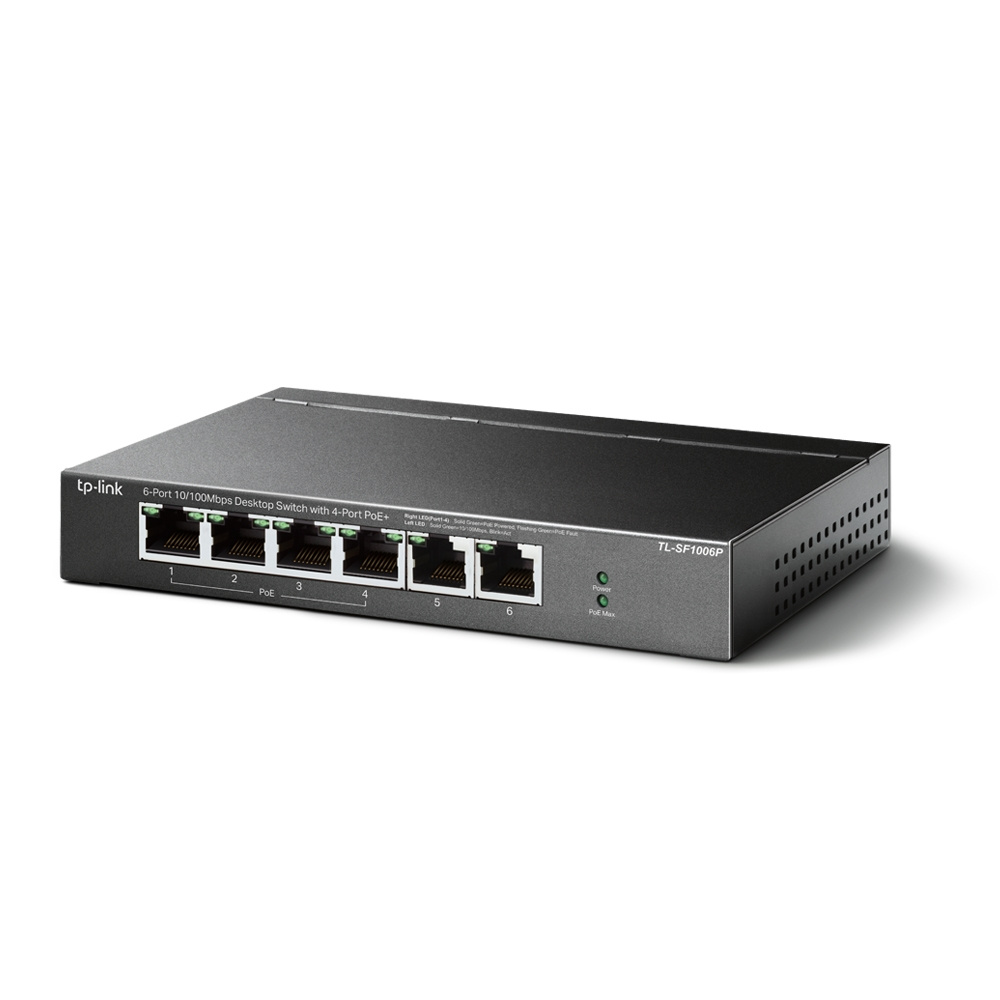

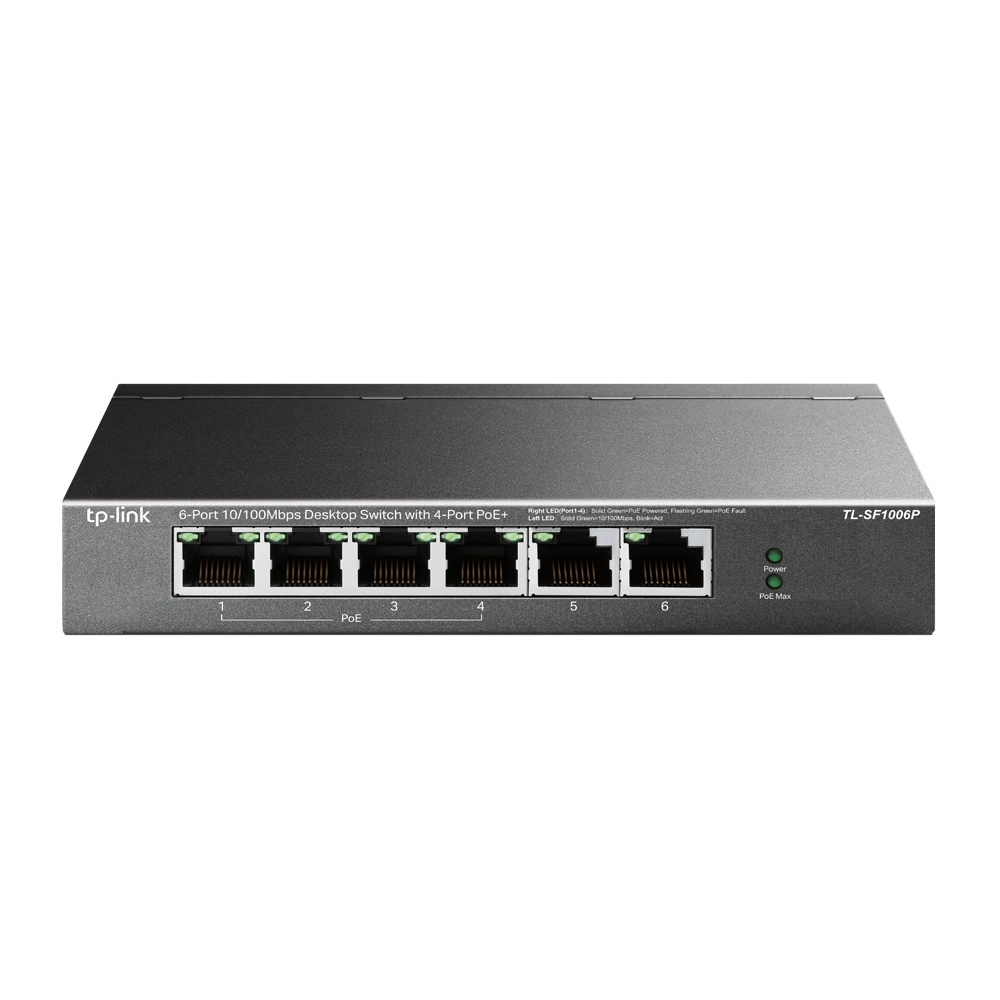

6-Port 10/100Mbps Desktop Switch with 4-Port PoE+

6× 10/100 Mbps RJ45 ports

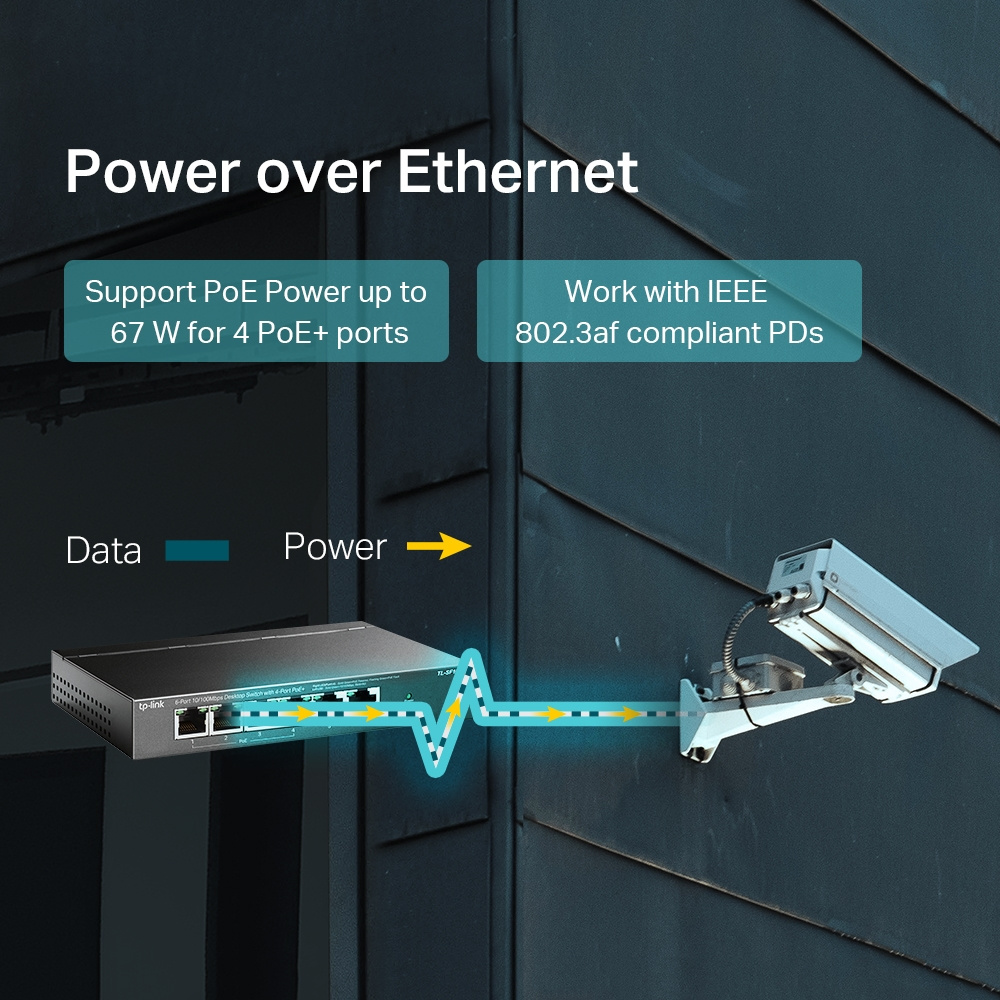

4× PoE+ ports transfer data and power on individual cables
Works with IEEE 802.3af/at compliant PDs
Up to 250m data and power transmitting range under Extend Mode**
Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
Supports PoE Power up to 30 W for each PoE port

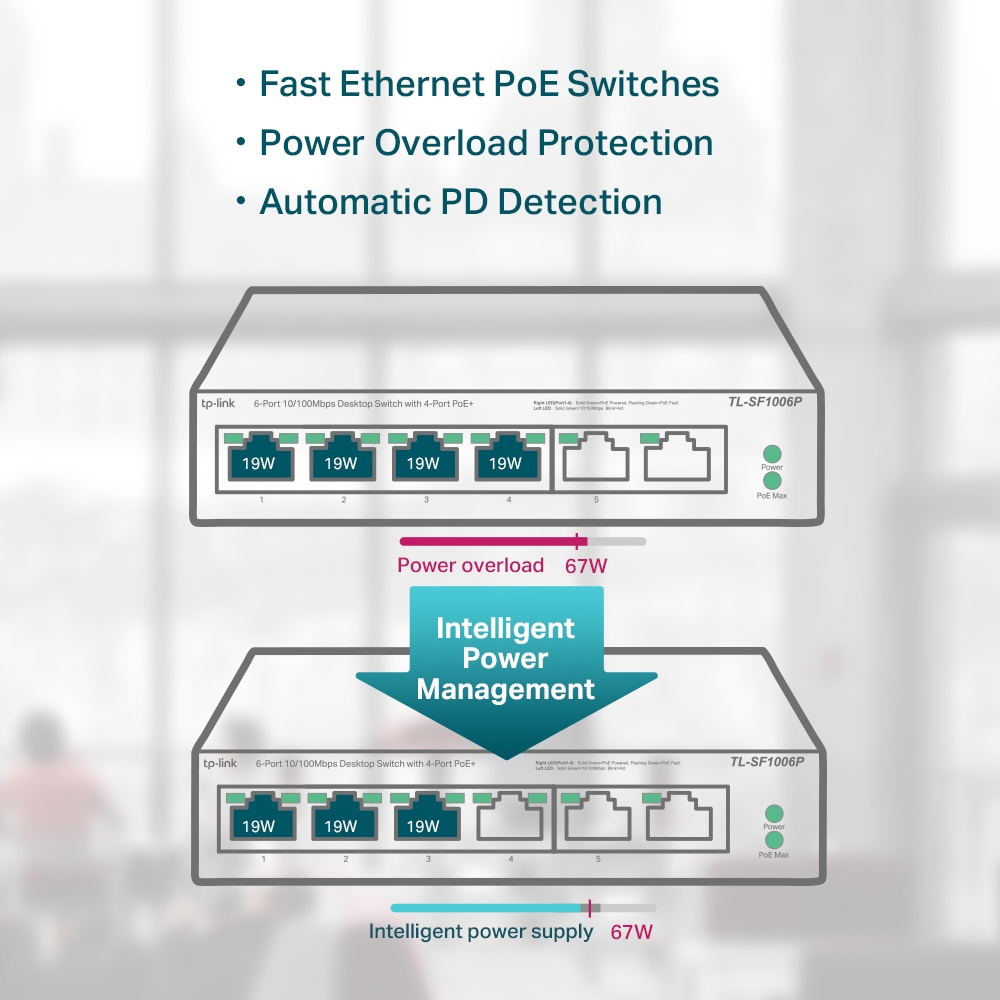

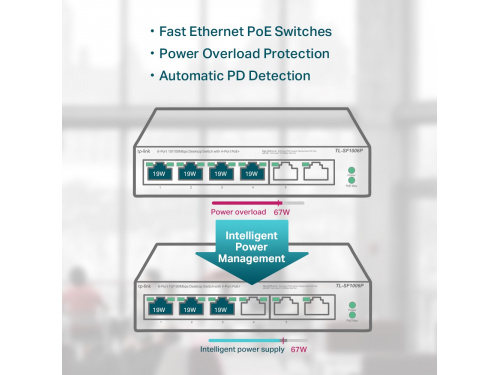

Supports PoE Power up to 67 W for all PoE ports*

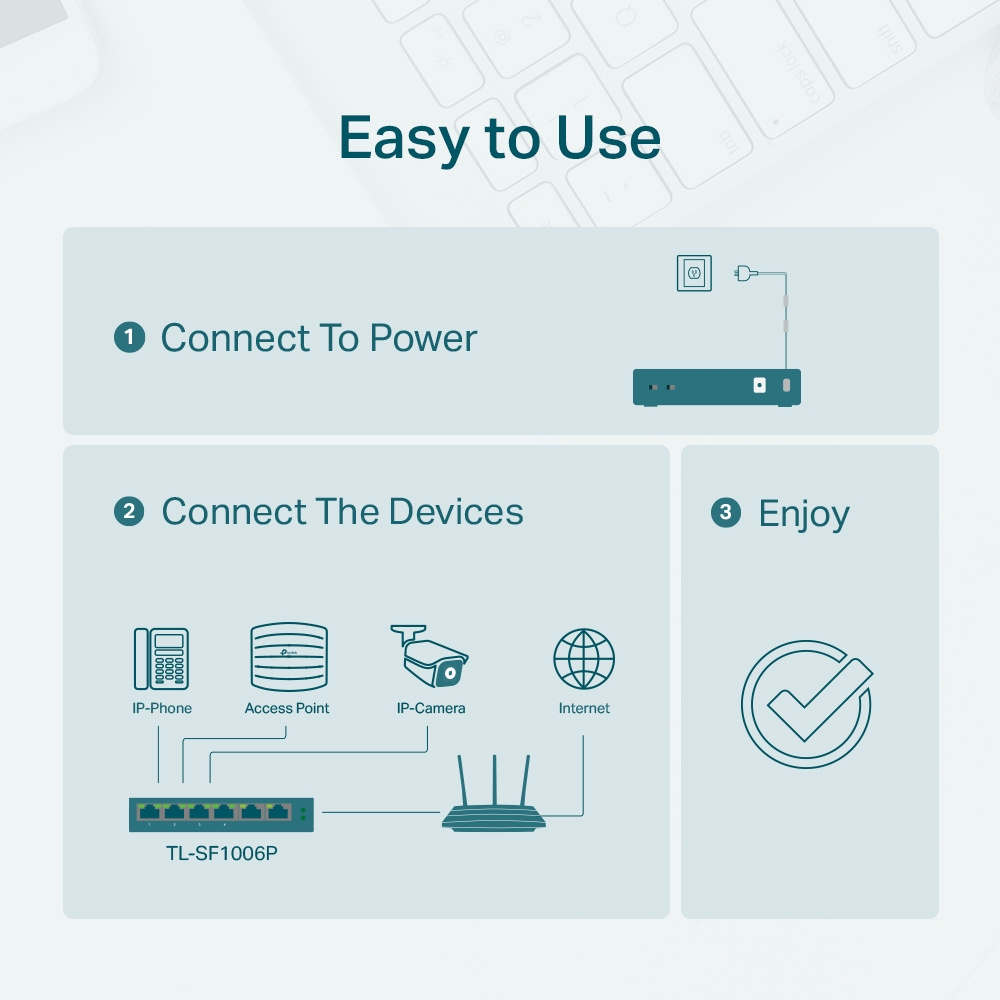

Plug and play with no configuration required

SPECIFICATIONS

HARDWARE FEATURES
Interface	• 6× 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+) • AUTO Negotiation • AUTO MDI/MDIX
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	Fanless
Physical Security Lock	Yes
External Power Supply	External Power Adapter (Output: 53.5 V DC / 1.31 A)
Packet Forwarding Rate	0.8928 Mpps
PoE Ports (RJ45)	• Standard: 802.3 af/at compliant • PoE Ports: Ports 1–4 • Power Supply: 67 W
Mac Address Table	2K
Jumbo Frame	2 KB
Switching Capacity	1.2 Gbps
Dimensions ( W x D x H )	6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm)
Max Power Consumption	• 1.9 W (220 V / 50 Hz, no PD connected) • 74 W (220 V / 50 Hz, with 67 W PD connected)
Max Heat Dissipation	• 6.48 BTU/h(no PD connected) • 252.34 BTU/h(with 67 W PD connected)

SOFTWARE FEATURES
Transmission Method	Store-And-Forward
Advanced Functions	• Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode Button (Ports 1–4) • Priority Mode Button (Ports 1–2) • Mac Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode

OTHERS
Certification	FCC, CE, RoHS
Package Contents	• TL-SF1006P • Power Adapter • Installation Guide
Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
