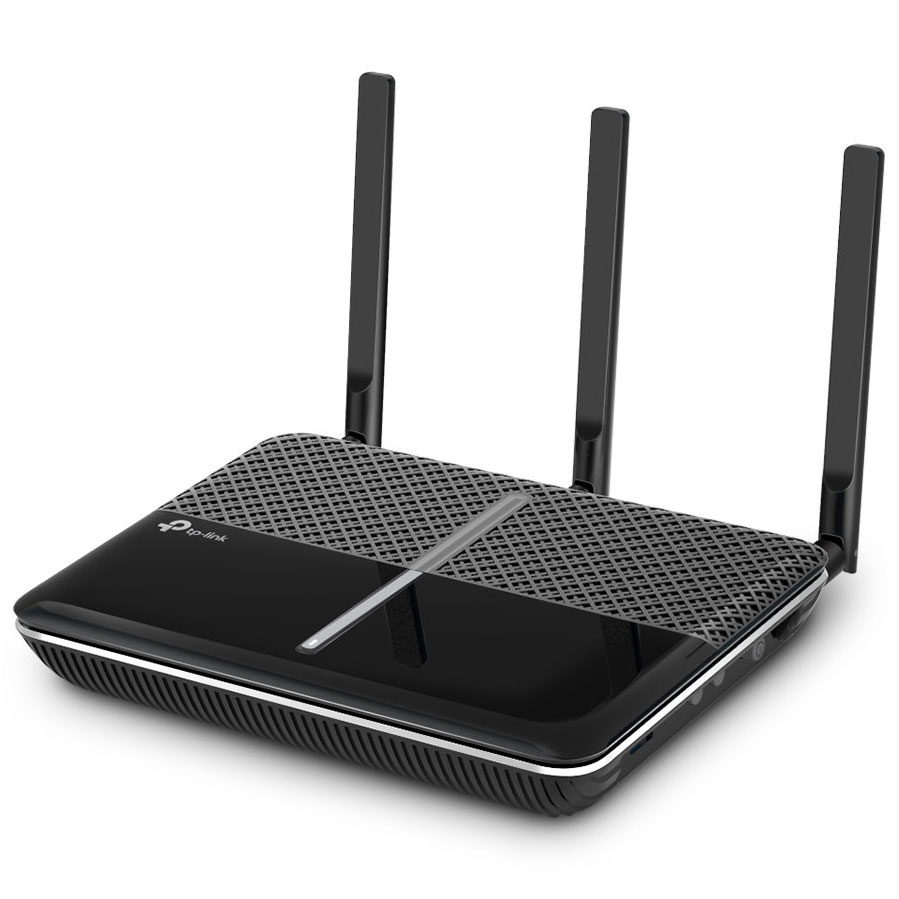

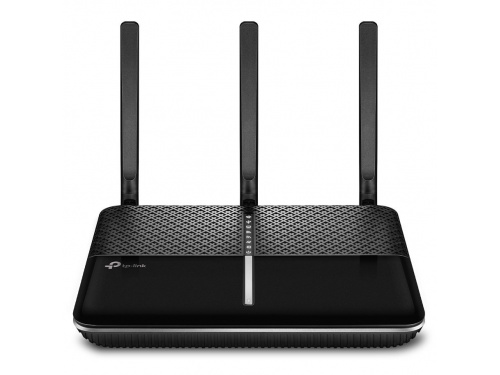

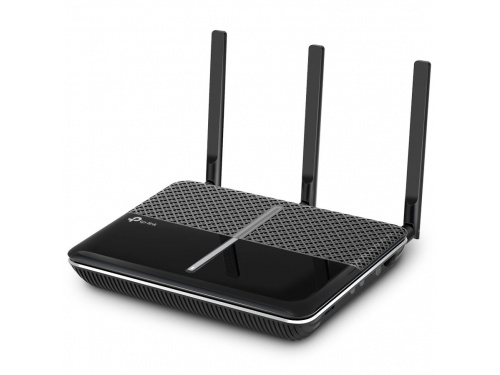

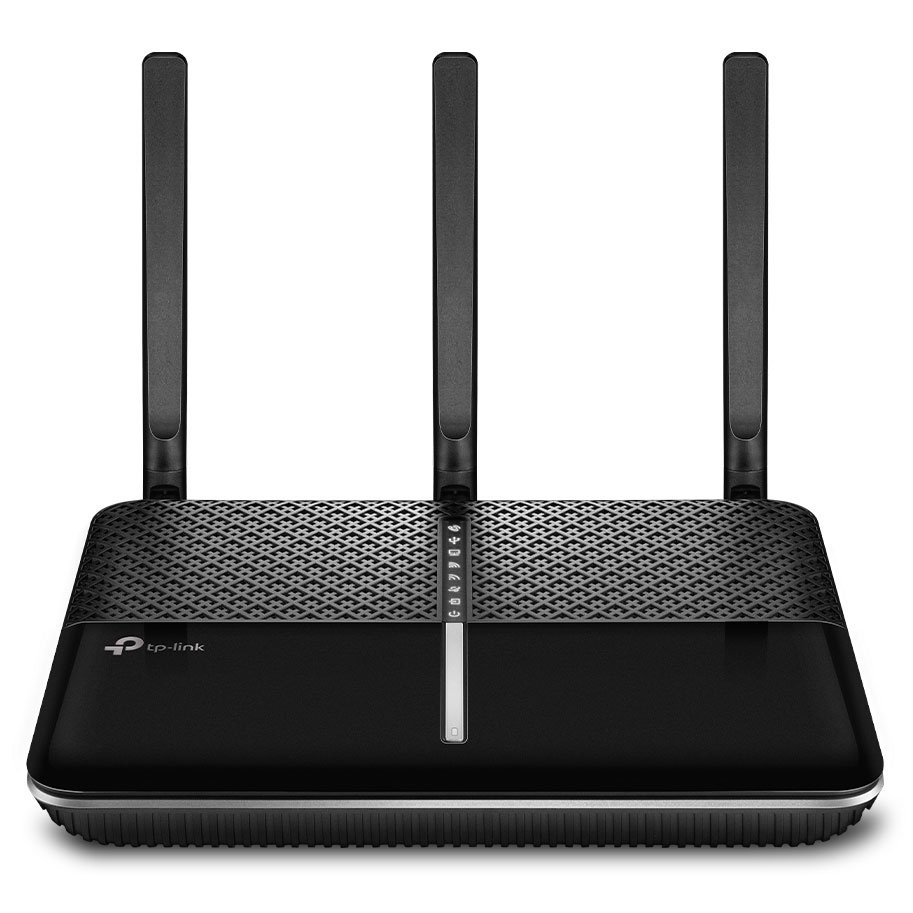

10The TP-Link Archer VR2100v Wireless MU-MIMO VDSL/ADSL Modem Router features Super VDSL technology that delivers internet speeds of up to 350MB/s, ultra-fast Wi-Fi speeds of up to 1733MB/s on the 5GHz band, and up to 300MB/s on the 2.4GHz band, HD telephony, MU-MIMO technology, whole-home coverage with OneMesh, and can easily be accessed and managed via the TP-Link Tether app.
Specifications
Hardware Features

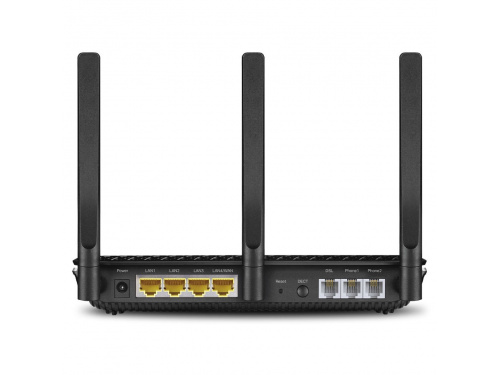

| Ports |
1× 10/100/1000Mbit/s RJ45 WAN/LAN Port
3× 10/100/1000Mbit/s RJ45 LAN Ports
3× RJ11 Ports (DSL, Phone1/2), 1× USB 3.0 Port |
| Button |
WPS, Wi-Fi On/Off , Reset, LED, Power On/Off, DECT |
| External Power Supply |
12V/2A |
| IEEE Standards |
IEEE 802.3, IEEE 802.3u, 802.3ab |
| VDSL2 Standards |
ITU-T G.993.2, ITU-T G.993.5 (G.vector), ITU-T G.998.4 (G.INP) |
| ADSL Standards |
ull-rate-ANSI T1.413 Issue 2, ITU-T G.992.1 (G.DMT), ITU-TG.992.2 (G.Lite), ITU-T G.994.1 (G.hs), ITU-T G.995.11 |
| ADSL2 Standards |
ITU-T G.992.3 (G.DMT.bis), ITU-T G.992.4 (G.lite.bis) |
| ADSL2+ Standards |
TU-T G.992.5(Annex A/L/M) |
| Dimensions ( W x D x H ) |
216 × 163.7 × 36.8 mm |
| Antenna |
3× external antennas + 1× Internal antenna |
Wireless Features
| Wireless Standards |
IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Frequency |
.4 GHz and 5 GHz |
| Signal Rate |
1733 Mbps at 5 GHz, 300 Mbps at 2.4 GHz |
| Transmit Power |
< 20 dBm (2.4 GHz), < 23 dBm (5 GHz) |
| Wireless Functions |
nable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
| Wireless Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions |
| Wireless Schedule |
Supports 2.4 GHz and 5 GHz Wireless Schedule |
VoIP Features
| VoIP Standards |
SIP(RFC3261)/RTP(RFC1889/3550), G.711A/u, G.722, G.729AB, G.726 |
| DECT Function |
DECT base station for up to 6 cordless phones, Compatible with CAT-iq and GAP, Supports paging function |
| Integrated Answering Machine |
Stores 300 minutes long voice messages internally on the modem router or store voice messages externally on USB storage devices |
| Advanced Telephone Functions |
Call Forwarding, Call Transfer, Call Back on Busy, Call Blocking, Anonymous Call Blocks, Speed Dial, Emergency Number |
| tpPhone |
Make internet calls via smartphones or tablets |
Software Features
| Security |
NAT Firewall, SPI Firewall, Access Control, Service Filtering, Denial of Service (DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding |
| Operating Modes |
VDSL/ADSL Modem Router, Wireless Router |
| Management |
Web-Based Configuration (HTTP / HTTPS ), Remote management, Command Line Interface, SSL for TR-069, SNMP v1/2c, Firmware Upgrade, Diagnostic Tools, Free Online Firmware Update |
| DHCP |
Server, Client, DHCP Client List, Address Reservation, DHCP Relay |
| Port Forwarding |
Virtual Server, Port Triggering, DMZ, ALG, UPnP |
| Dynamic DNS |
TP-Link / Dyndns / noip |
| VPN |
OpenVPN, PPTP VPN, IPSec VPN |
| Protocols |
Support IPv4 and IPv6 |
| ATM/PPP Protocols |
ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MERIPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs |
| Advanced Functions |
IP TV, Parental Controls, Network Address Translation (NAT), Port Mapping (Grouping), Static Routing, RIP v1/v2 (optional), DNS Relay, DDNS, IGMP V1/V2/V3 |
| USB Sharing |
Support Samba (Storage) / FTP Server / Media Server / 3G/4G Modem / SFTP Server / Web Storage |
| Guest Network |
2.4 GHz guest network, 5 GHz guest network |
| IPSec VPN |
Support up to 10 IPSec VPN tunnels |
Others
| Package Contents |
AC2100 Wireless MU-MIMO VDSL/ADSL Telephony Modem Router
RJ11 Cable
RJ45 Ethernet Cable
Power Adapter
Quick Installation Guide
Telephony Feature Guide |
| System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, VistaTM or Windows 7, 8, 8.1, 10, Mac OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser |
| Certifications |
CE, RoHS |
| Environment |
Operating Temperature: 0℃ ~40℃ (32℉ ~104℉ )
Operating Humidity: 10%~90% nicht kondensierend |
