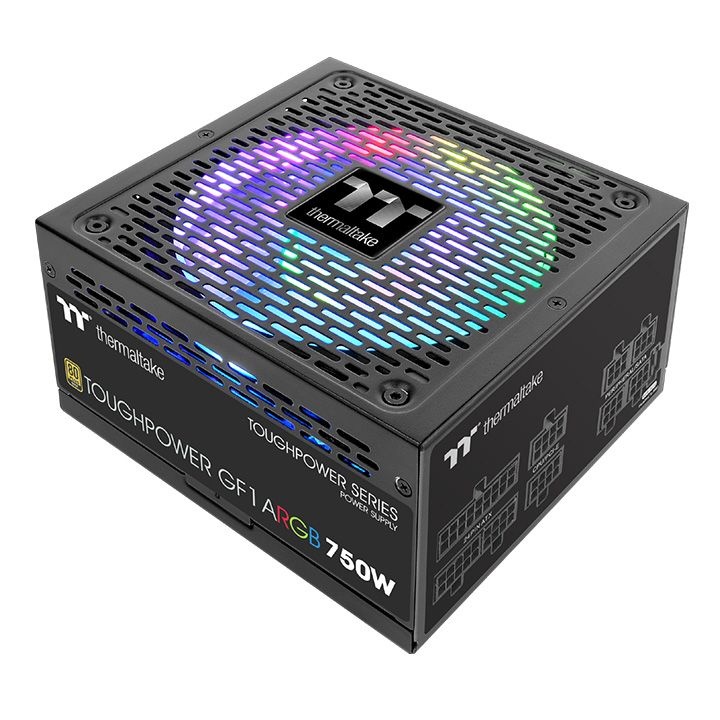

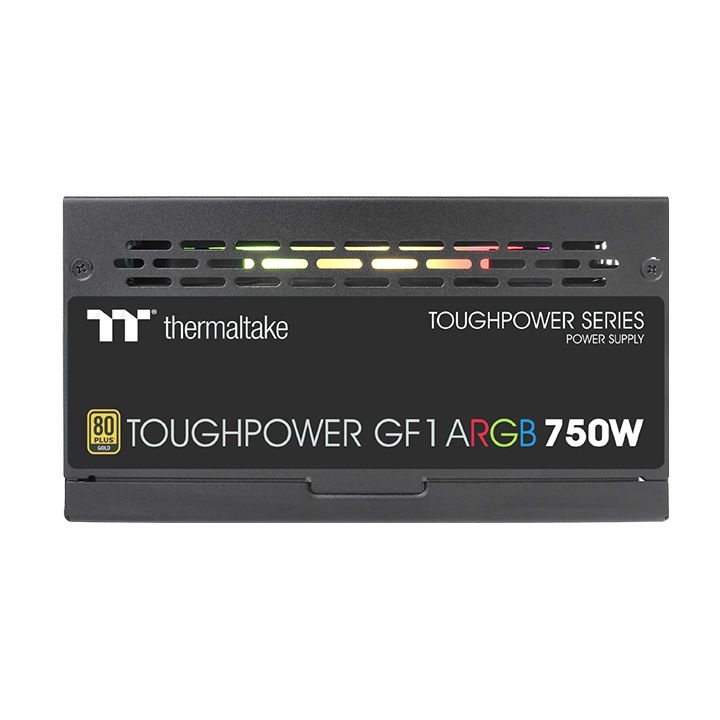

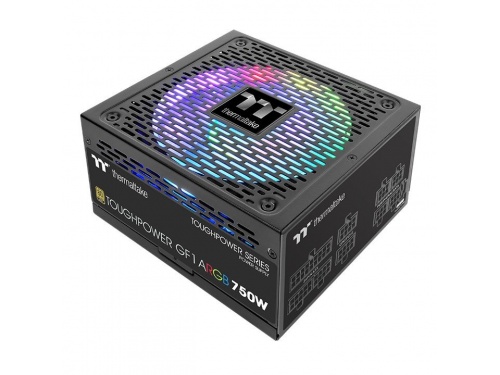

Toughpower GF1 ARGB 750W Gold - TT Premium Edition
Toughpower GF1 ARGB Gold Series (650W/750W/850W) is crafted by using cutting-edge technology and materials to become the fusion of aesthetics and performance. The patented 16.8 million-color Riing Duo 14 RGB fan with 18 LEDs preinstalled helps deliver brighter and stunning light effect. The meticulously designed ARGB side panels enable the light to glow through. The series supports synchronization with compatible RGB motherboards from ASUS, GIGABYTE, MSI, and ASRock for countless illumination possibilities. With the most stable but silent operation, the Toughpower GF1 ARGB Gold meets and even exceeds the demanding specification of the overclocker or enthusiastic PC user.

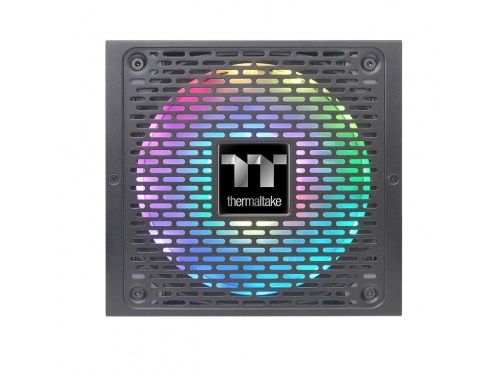

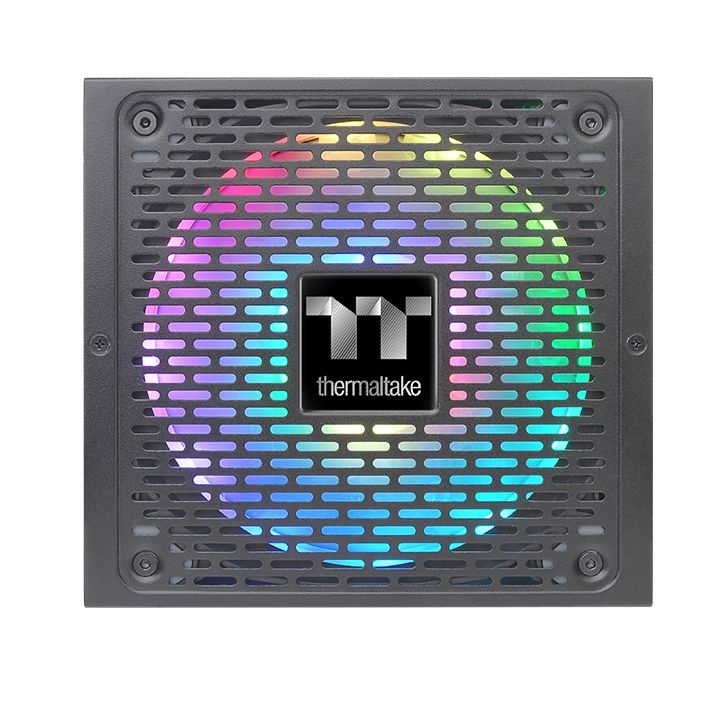

Illuminate with Twisting Blade
The built-in Riing Duo 14 RGB Fan features dual rings with 18 addressable LEDs, great light coverage, and uniform color and brightness to paint your build with 16.8 million colors.
Sync with Motherboard ARGB Software
To reach endless lighting customization, the Toughpower GF1 ARGB supports motherboards with a 5V addressable RGB header from ASUS, GIGABYTE, MSI, and ASRock. Users get to control the lights directly from the software released by those brands without enabling any additional lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI and ASRock official websites.

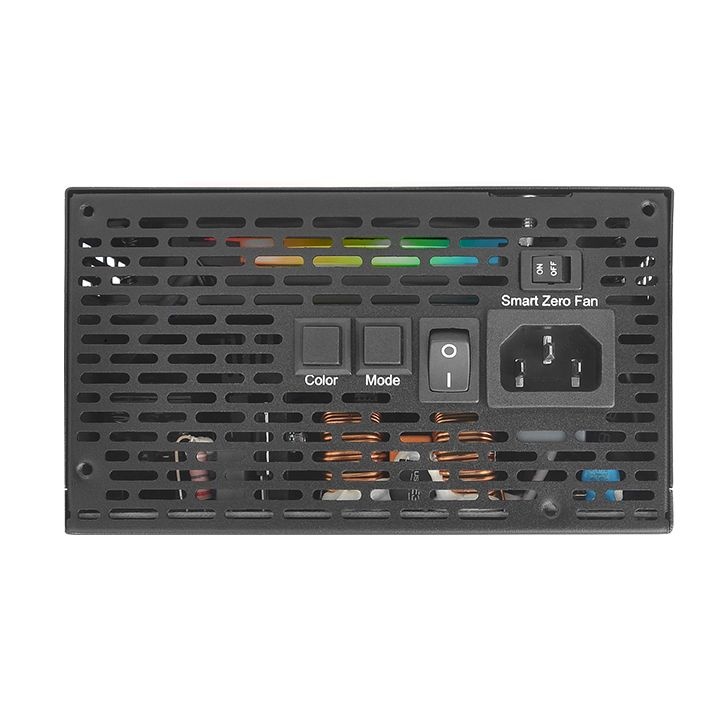

Ultra Quiet Smart Zero Fan

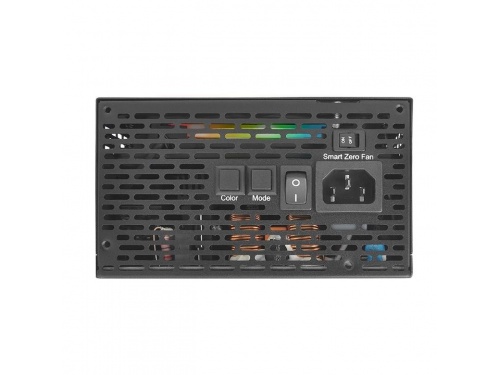

With Smart Zero Fan starting to operate when the power supply working load goes over 40%, the undesired noise will be minimized. A user-friendly switch is set on the back panel for those who prefer the fan to spin constantly.

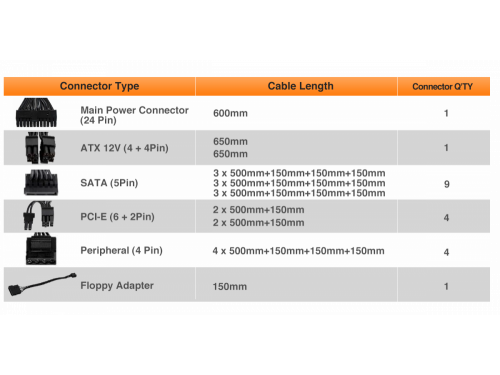

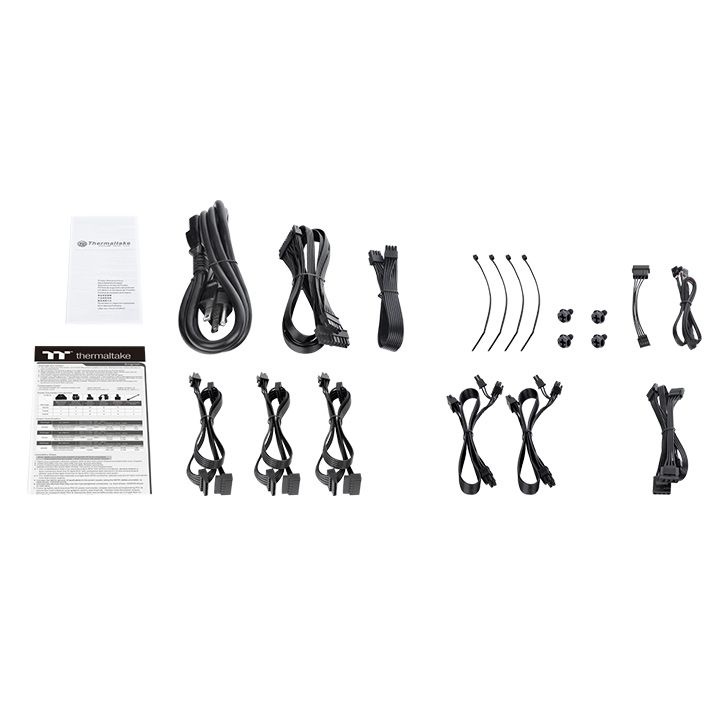

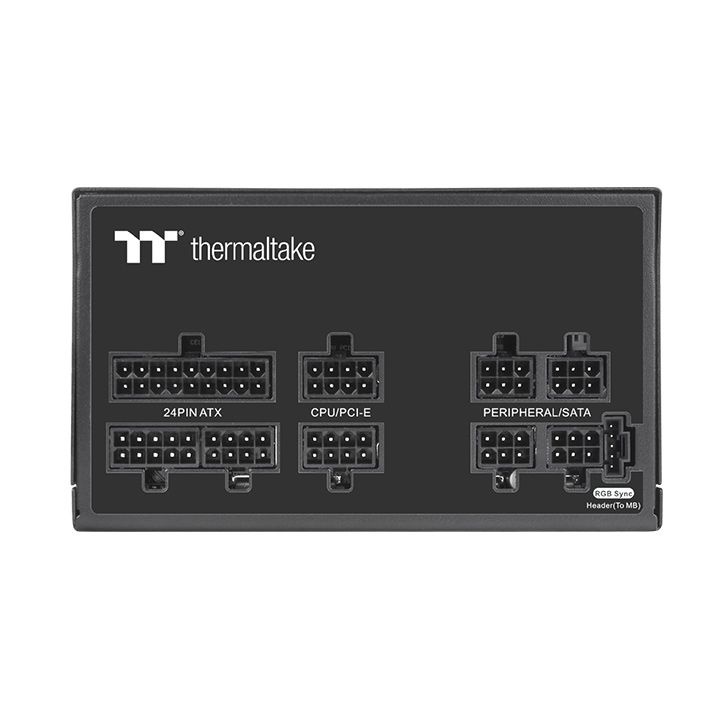

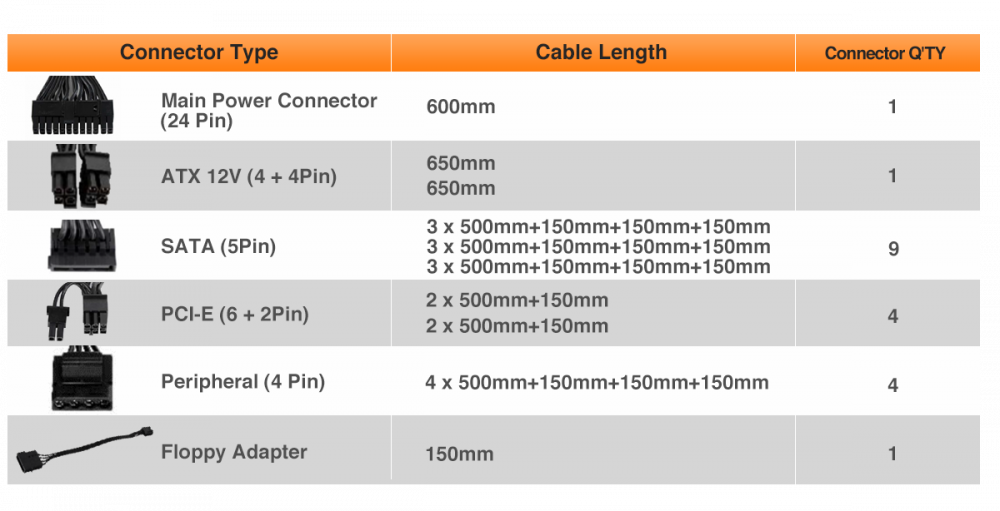

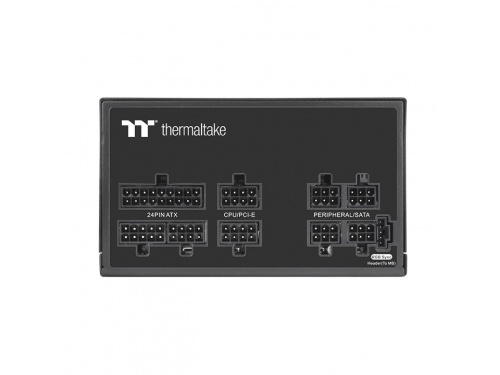

Fully Modular Low-profile Flat Black Cables
The series offers cable selection for users while powering the system at an advantageous voltage. The low-profile flat black cables make cable management easier, reduce clutter and increase airflow inside the chassis.
Specifications
P/N
- PS-TPD-0750F3FAGx-1
watts
- 750W
RGB Fan
- Yes
Form Factor
- ATX
Model
- TTP-750AH3FCG-U
Max. Output Capacity
- 750W
Peak Output Capacity
- 900W
Color
- Black
Dimension ( W / H / D )
- 150mm(W) x 86mm(H) x 160mm(D)
PFC (Power Factor Correction)
- Active PFC
Power Good Signal
- 100-500 msec
Hold Up Time
- > 16msec at 100% of full load
Input Current
- 10A
Input Frequency Range
- 50Hz - 60Hz
Input Voltage
- 100V – 240V~
Operating Temperature
- 0°C to + 50°C
Operating Humidity
- 20% to 90%,non-condensing
Storage Temperature
- -20°C to + 70°C
Storage Humidity
- 5% to 95%, non-condensing
Cooling System
- 14cm hydraulic bearing fan
Efficiency
- Meet 80 PLUS®Gold at 115Vac input.
MTBF
- 120,000 hrs minimum
Safety Approval
- CE/cTUVus/TÜV/FCC/BSMI/CCC/EAC/S-Mark
PCI-E 6+2pin
- 4
Protection
- OCP, OVP, UVP, OPP, SCP, OTP
