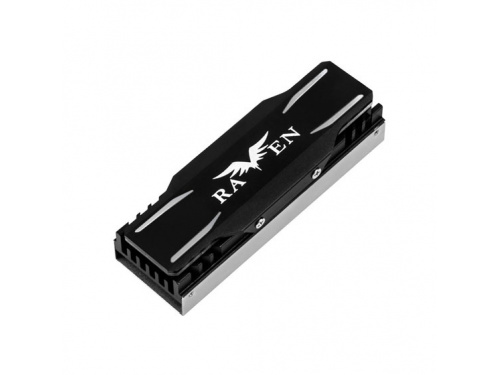

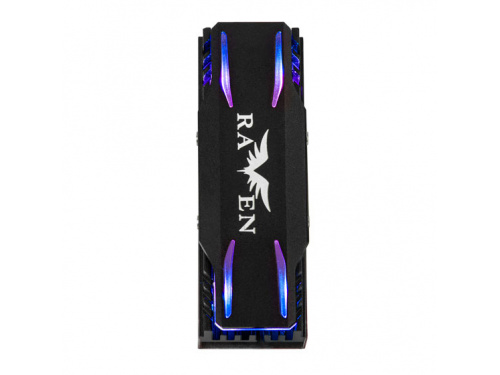

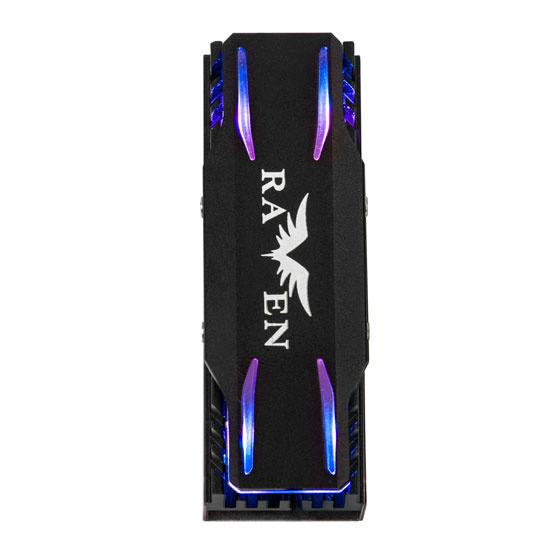

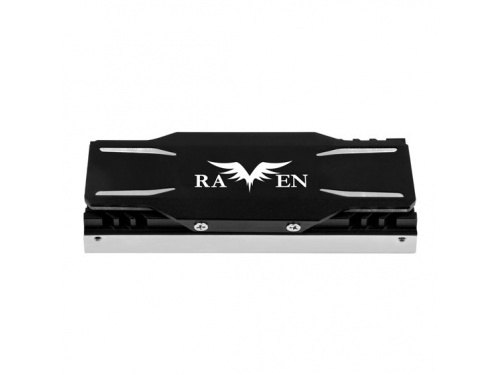

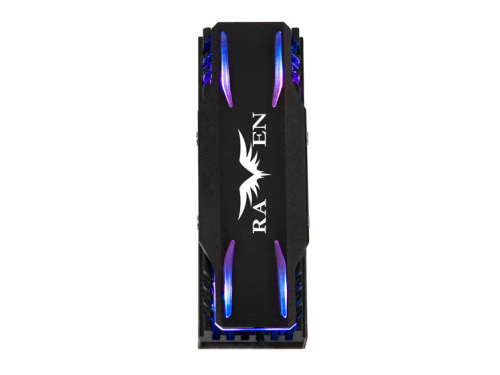

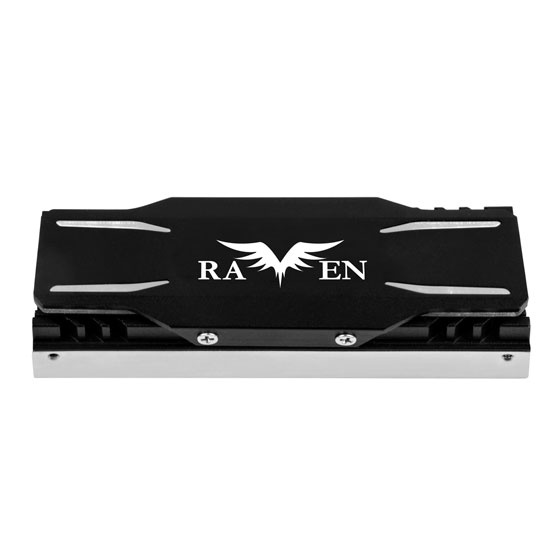

SilverStone TP03-ARGB M.2 SSD Cooling Kit with ARGB lighting for MODEL : SST-TP03-ARGB

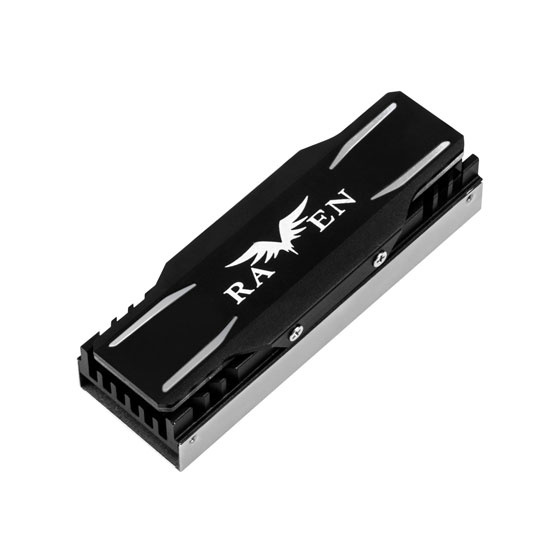

tp03-argb-side-lefttp03-argb-package-1tp03-argb-package-2tp03-argb-side-left-1tp03-argb-34right-toptp03-argb-side-righttp03-argb-side-right-1
$34.00 each
Brand: SilverstoneSilverstone

M.2 SSD cooling kit with ARGB lighting

■ Displays any color combination by use of an ARGB controller or capable motherboard
■ Aluminum alloy heatsink increases M.2 SSD cooling area
■ High efficiency thermal pads for reducing temperature
■ Double layer design enhances SSD cooling for stability and efficiency
■ Supports 2280 length M.2 SSD
■ Easy to install with included thermal pads and cover without damaging M.2 SSD



SPECIFICATIONS
Model No. SST-TP03-ARGB
Color Black
Material Aluminum, stainless steel
M.2 length support 2280 (22mm x 80mm)
Operating temperature -20°C ~ 90°C
Thermal pad thickness 1.0mm
1.5mm
Thermal conductivity 1.5W/m.k
Net Weight and dimension Gross weight: 70mm (W) x 15.4mm (H) x 22.8mm (D), 40g
Blue pad 1: 70mm (W) x 1.5mm (H) x 20mm (D), 3.25g
Blue pad 2 : 70mm (W) X 1mm (H) X 20mm (D), 2.8g



Remark :
* Includes two blue colored thermal pads with different thickness. For single sided M.2 SSD (flat back without component), please use 1.5mm thick pad; for double sided M.2 SSD (both sides with components), please use 1mm thick pad.
** If the M.2 slot on the motherboard is situated next to a PCIe slot, the height of the TP03-ARGB ‘s heat sink may interfere with graphic card or expansion card installation, we recommended installing TP03-ARGB onto other available M.2 slots on the motherboard to avoid interference issue.
