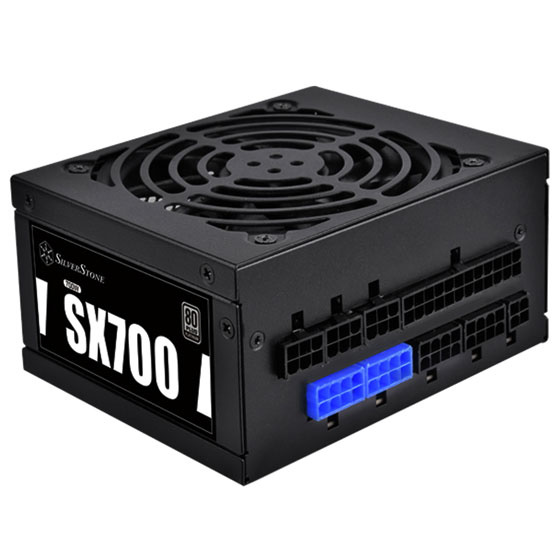

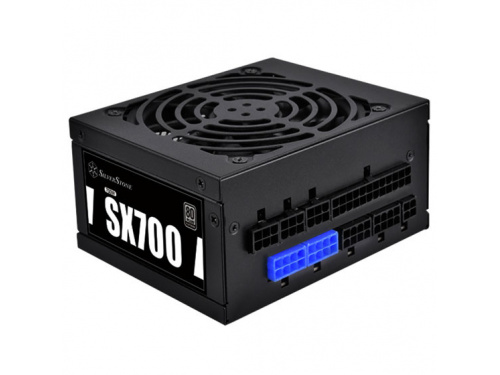

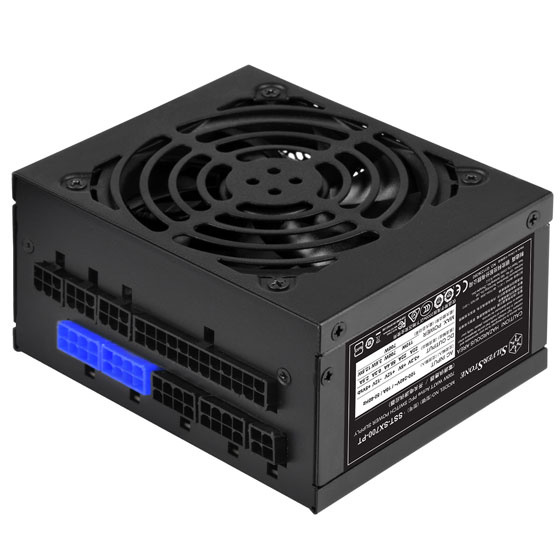

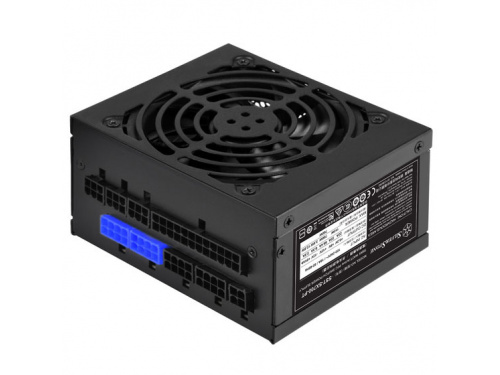

Designed for 80 PLUS Platinum level of efficiency to reduce wasted heat and save on electricity.
Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking.
All Japanese electrolytic capacitors

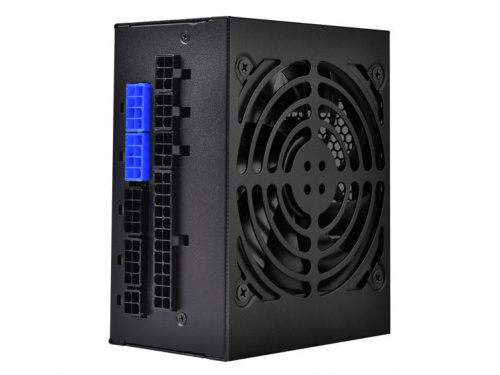

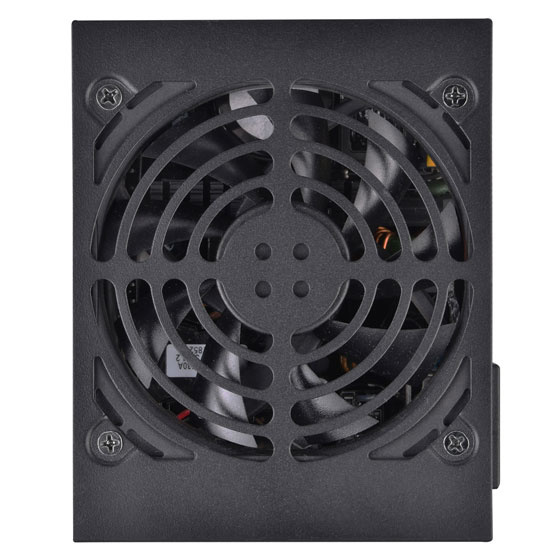

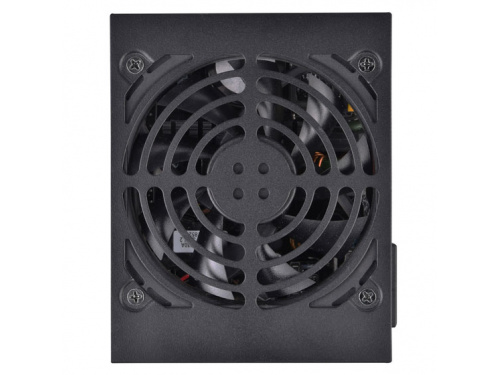

Built-in 92mm FDB fan has excellent airflow and low noise, perfect for quiet home or office use
100% modular cable design for easy removal in a case with cable routed and tied down
Description
￭ Support standard SFX form factor
￭ Silent running 92mm FDB fan with 18 dBA minimum
￭ All Japanese capacitors
￭ High efficiency with 80 PLUS Platinum certification
￭ Class-leading single +12V rail
￭ Strict ±3% voltage regulation and low ripple & noise
￭ 100% modular cables
￭ All cable with flexible flat arrays
Specifications
| Model No. |
SST-SX700-PT
|
| Max. DC Output |
700W
|
| Power density |
882W per liter
|
| Load Range |
|
|
+3.3V |
+5V |
+12V |
+5VSB |
-12V |
|
Max.(Amps)
|
22A |
22A |
58.4A |
2.5A |
0.3A |
|
Peak (Amps)
|
/ |
/ |
/ |
/ |
/ |
|
Min.(Amps)
|
0A |
0A |
0A |
0A |
0A |
|
Range (%)
|
±3% |
±3% |
±3% |
±5% |
±10% |
|
Line Reg.(%)
|
±1% |
±1% |
±1% |
±1% |
±1% |
|
Ripple(mVp-p)
|
50mA |
50mA |
120mV |
50mV |
120mV |
|
| Color |
Black（Lead-Free Paint）
|
| Combined +3.3V & +5V |
110W
|
| Combined +12V |
700W
|

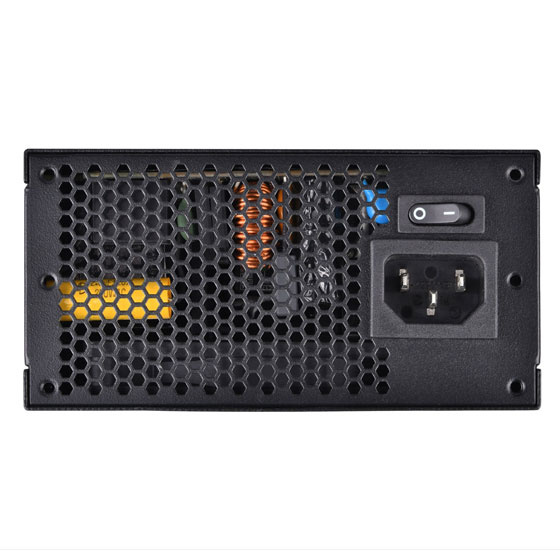

| Input Voltage |
90V ~ 264V
|
| Input Frequency Range |
47Hz ~ 63Hz
|
| PFC |
Active PFC（PF>0.9 at full load）
|
| Efficiency |
87% ~ 90% at 20% ~ 100% loading
|
| MTBF |
100,000 hours
|
| Operating temperature |
0°C ~ 40°C
|
| Protection |
Over current protection
Over power protection
Over voltage protection
Short circuit protection
Under voltage protection
Over temperature protection
|

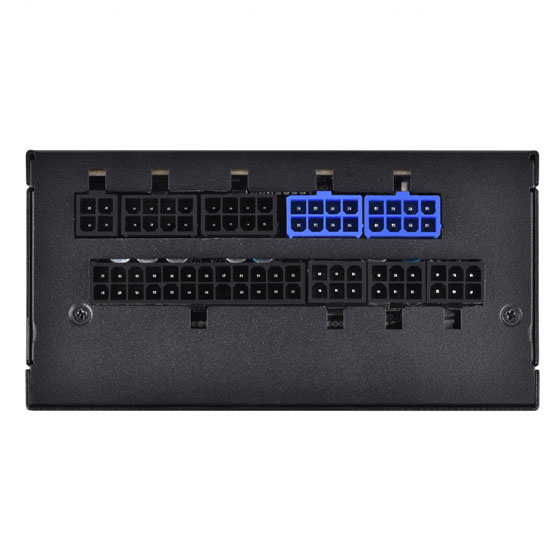

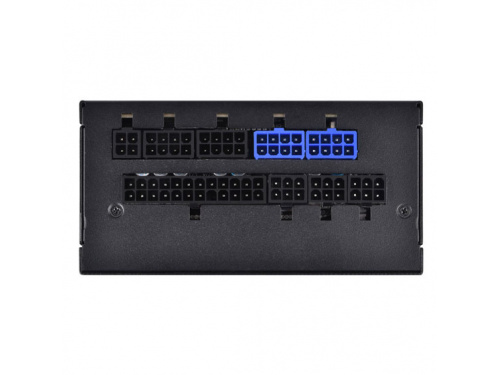

| Connectors |
1 x 24 / 20-Pin motherboard connector (300mm)
1 x 8 / 4-Pin EPS / ATX 12V connector (400mm)
1 x 8 / 4-Pin EPS / ATX 12V connector (550mm)
2 x 8 / 6-Pin PCIE connector (400mm / 150mm)
2 x 8 / 6-Pin PCIE connector (550mm / 150mm)
6 x SATA connector ("300mm / 220mm / 100mm" x 2)
3 x 4-Pin Peripheral connector (300mm / 200mm / 200mm)
1 x 4-Pin Floppy connector (100mm)
|
| Cooling System |
Single 92mm FDB fan
|
| Form factor |
SFX
|
| Noise Level |
18 dBA minimum
|
| Dimension |
125 mm (W) x 63.5 mm (H) x 100 mm (D)
4.92" (W) x 2.5" (H) x 3.94" (D)
|
| Weight |
0.96 Kg
|
| Certification |
80 PLUS Platinum
|
| Other |
GPU Support list
Compatible with ATX12V v2.4
|
| ● Specifications presented on this page contains most recent revisions and may differ from those printed on retail boxes or manuals. |
