SilverStone FS305-12G Trayless Hot Swap Cage 3x 5.25" Bay to 5x 3.5" SAS/SATA Bay MODEL : SST-FS305B-12G cadSIfs305_12g

tweet_button SilverStone FS305-12G Trayless Hot Swap Cage 3x 5.25" Bay to 5x 3.5" SAS/SATA Bay MODEL : SST-FS305B-12G - GameDude Computers
SilverStone FS305-12G Trayless Hot Swap Cage 3x 5.25" Bay to 5x 3.5" SAS/SATA Bay MODEL : SST-FS305B-12G

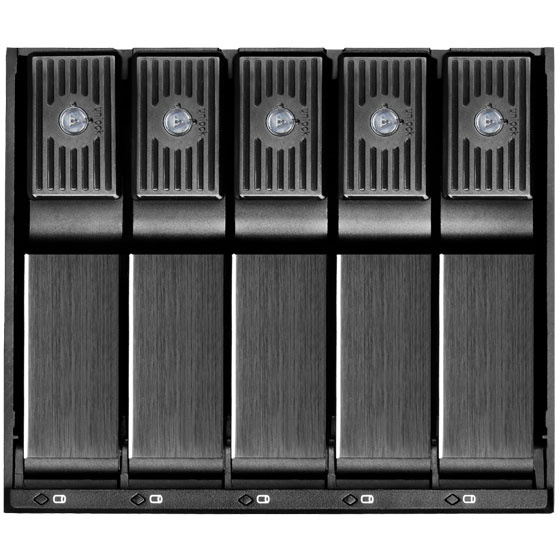

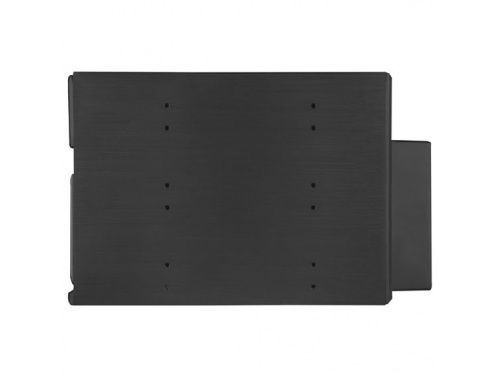

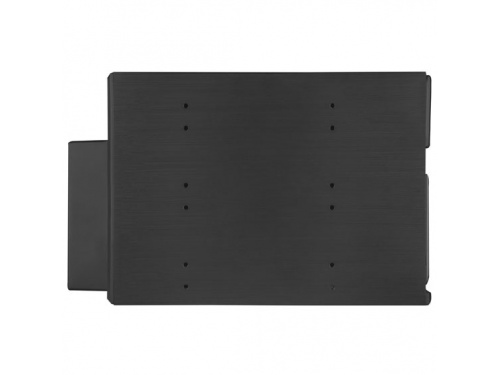

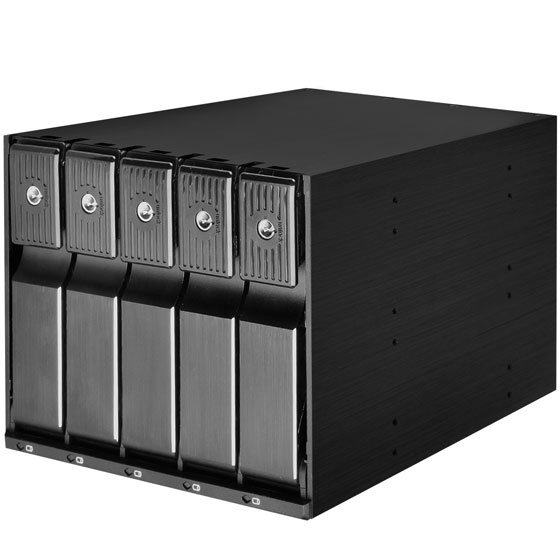

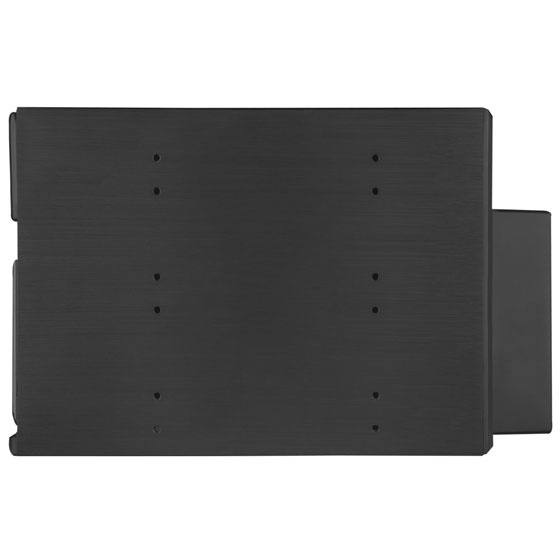

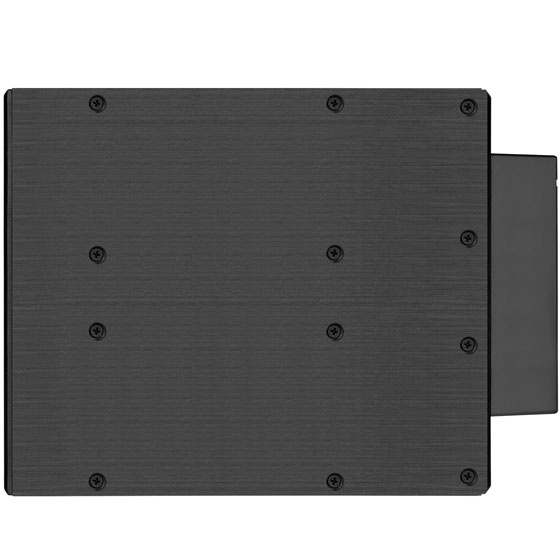

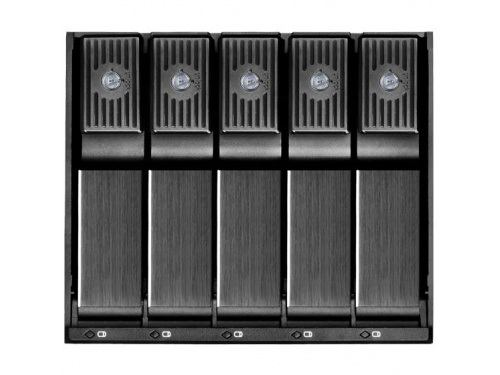

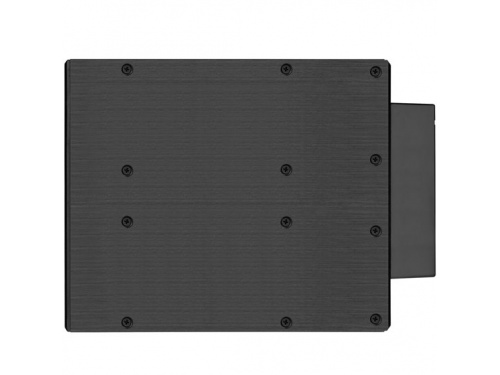

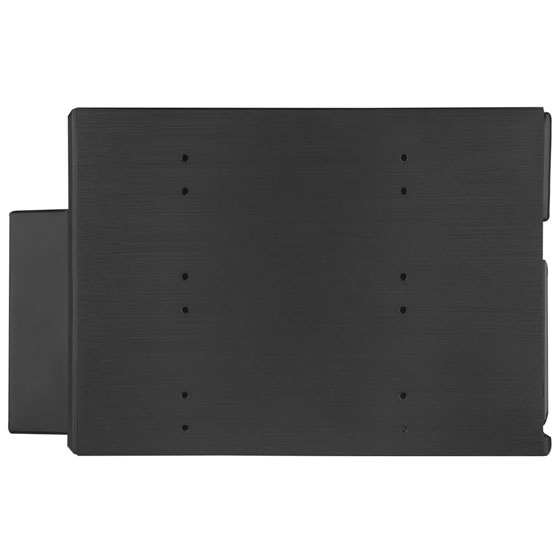

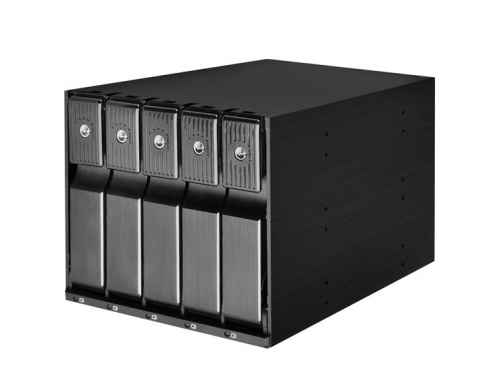

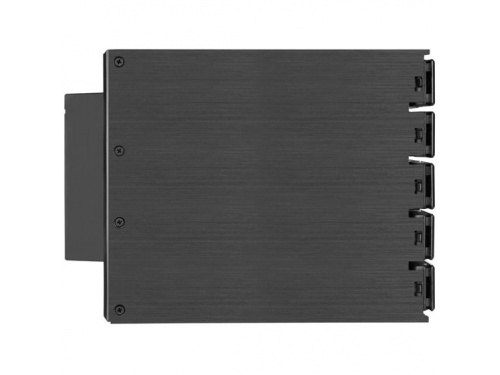

fs305-12g-34right-topfs305-12g-bottomfs305-12g-frontfs305-12g-packagefs305-12g-side-leftfs305-12g-side-rightfs305-12g-top
$175.00 each
Brand: SilverstoneSilverstone

0FS305-12G
Three 5.25" device bay to five 3.5" SAS-12G / SATA-6Gbit/s trayless hot-swap cage

- Fits five 3.5" SAS-12G/SATA-6Gbit/s drives in three 5.25" device bay
- Adjustable drive status LED and fan control system
- Trayless & screwless design
- Individual metal key lock for each drive for extra security
- All aluminum body with beautiful hairline brushed finish
- Independent drive status LED
- Built-in cooling fan for excellent heat dissipation
- Fully supports Hot-Swap function

SPECIFICATIONS
Model No.
- SST-FS305B-12G
Color
- Black
Material
- Aluminum and front bezel with plastic clip button
Form factor
- 5.25” drive bay x 3**
Drive support
- 5 x 3.5” SAS*/SATA HDD or SSD
Transfer rate
- Up to 12 Gbit/s (dependent on drive speed)
Host interface
- 7-Pin SATA connector x 5 or SAS* primary channel connection
Power connector
- SATA 15-Pin x 2
Drive tray security
- Triangle metal key lock design
LED indicator
- Power ON : Blue
- Accessing : Purple blinking
Number of key
- 2
Switch button
- Fan speed:High/Low
- HDD LED:ON/OFF
Cooling fan
- 80mm fan x 1, 3000rpm
Net weight
- 1.40kg
Dimension
- 146mm (W) x 126mm (H) x 199mm (D)
- 5.75" (W) x 4.96" (H) x 7.83" (D)

Remark
* Your system must have SAS controller if you want to use SAS HDD.
* Hard drive capacity and RAID support is dependent on SAS or SATA controller used.
** FS305-12G is designed for maximum space utilization. In order for it to fit five 3.5” drive bays into the space of three 5.25” bays, its sides are flat with no cutouts for fitting between 5.25” bays with protruding lip or brackets. Therefore, please make sure your case has 5.25” bays that are also flat on the inside with no protrusions. If not, please consider using FS303 or FS304 instead.
