0FARA H1M
Stylish and distinct Micro-ATX gaming chassis

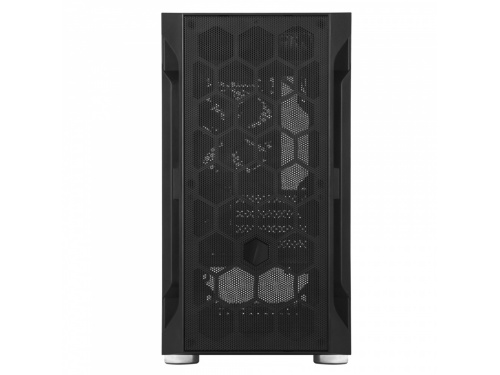

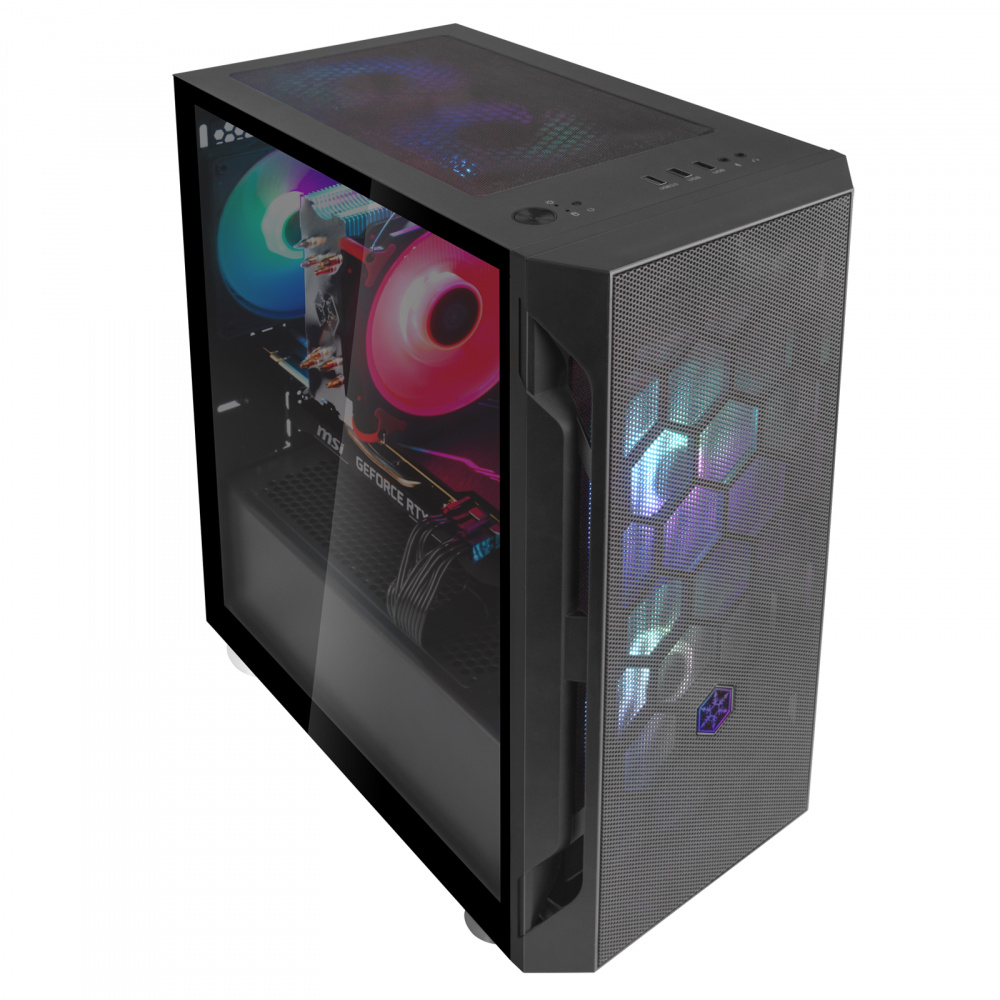

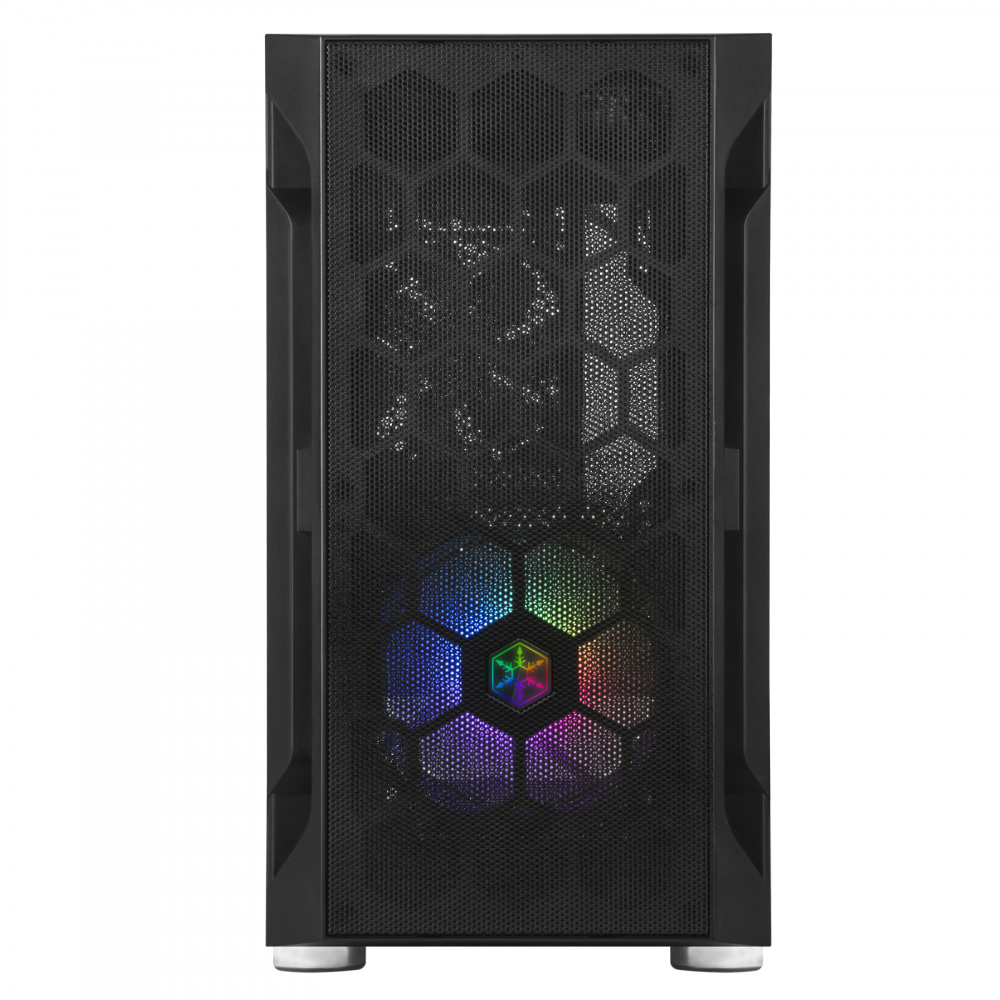

￭ Steel honeycomb mesh design providing superior intake volume to cool internal components

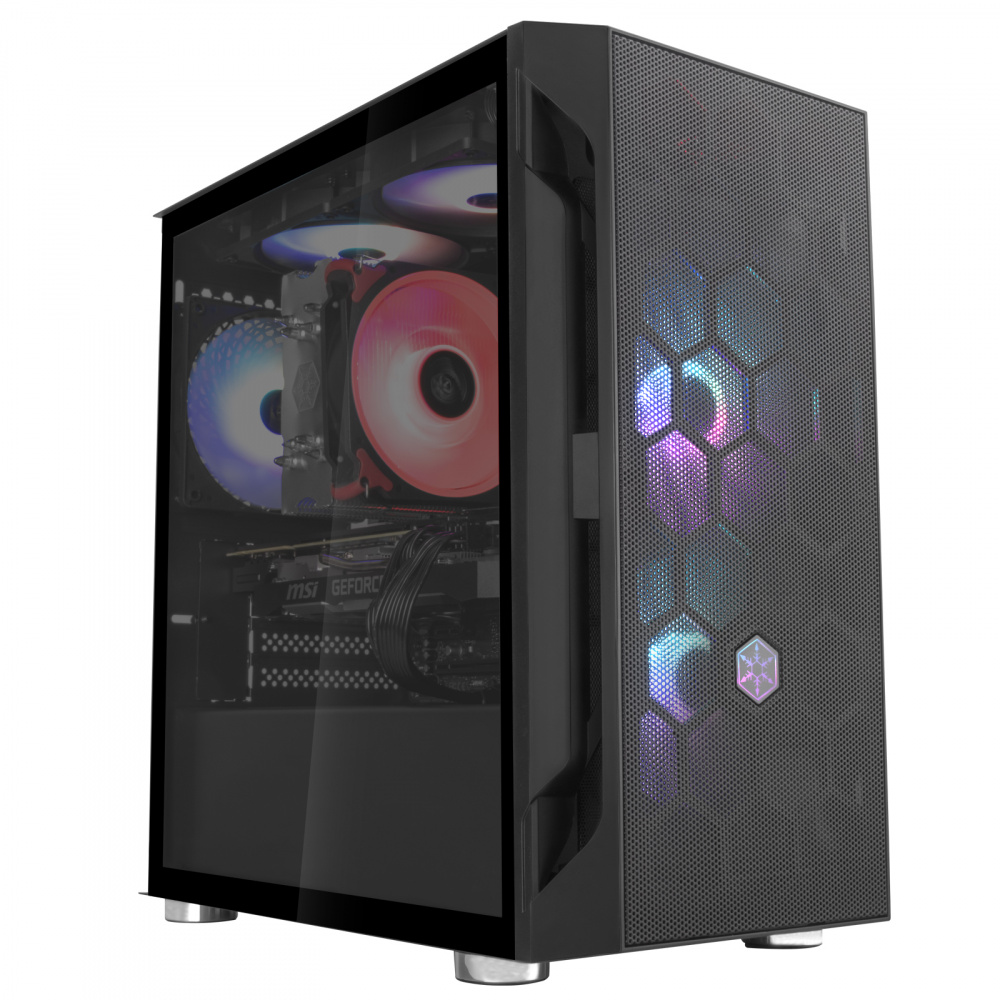

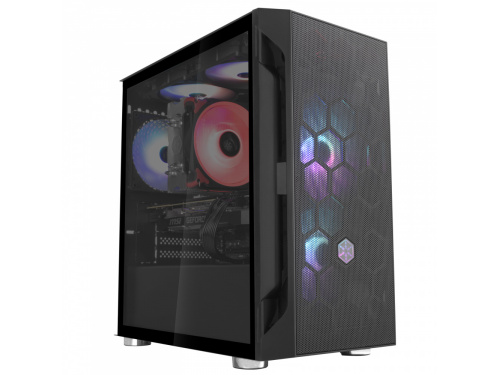

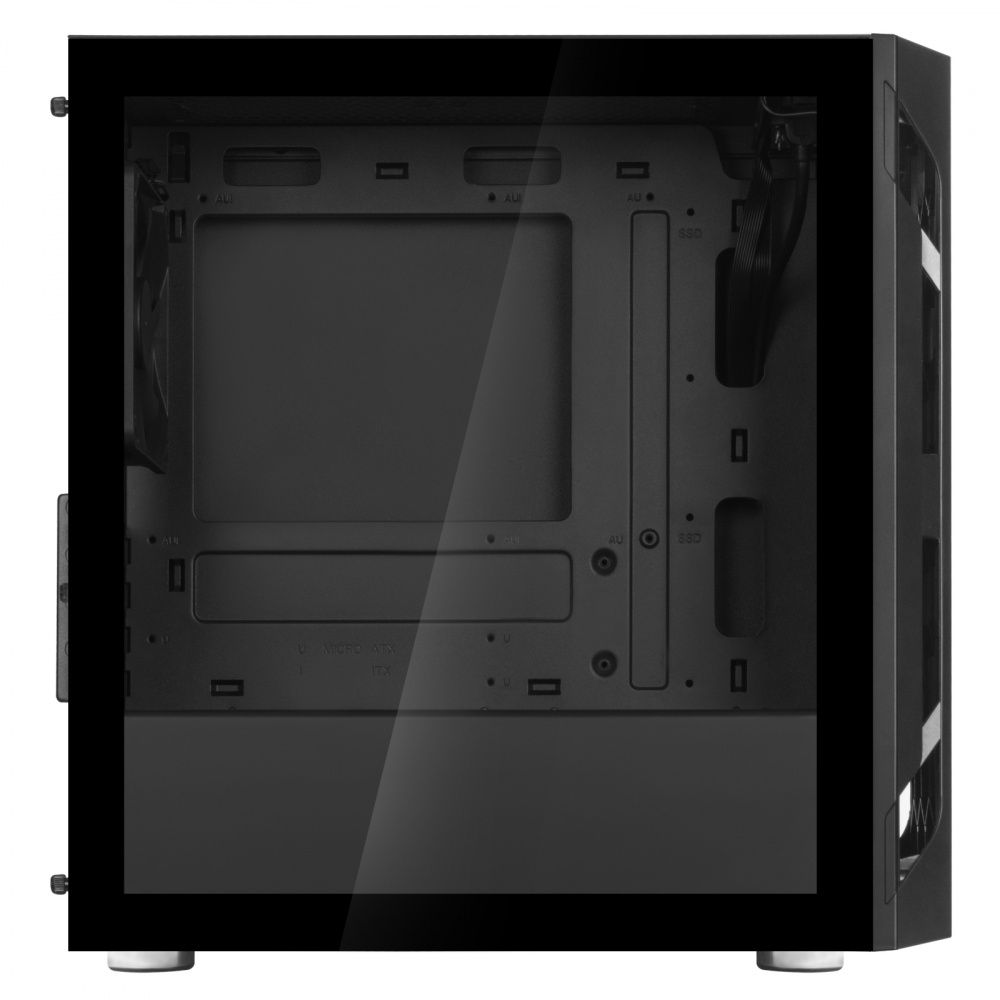

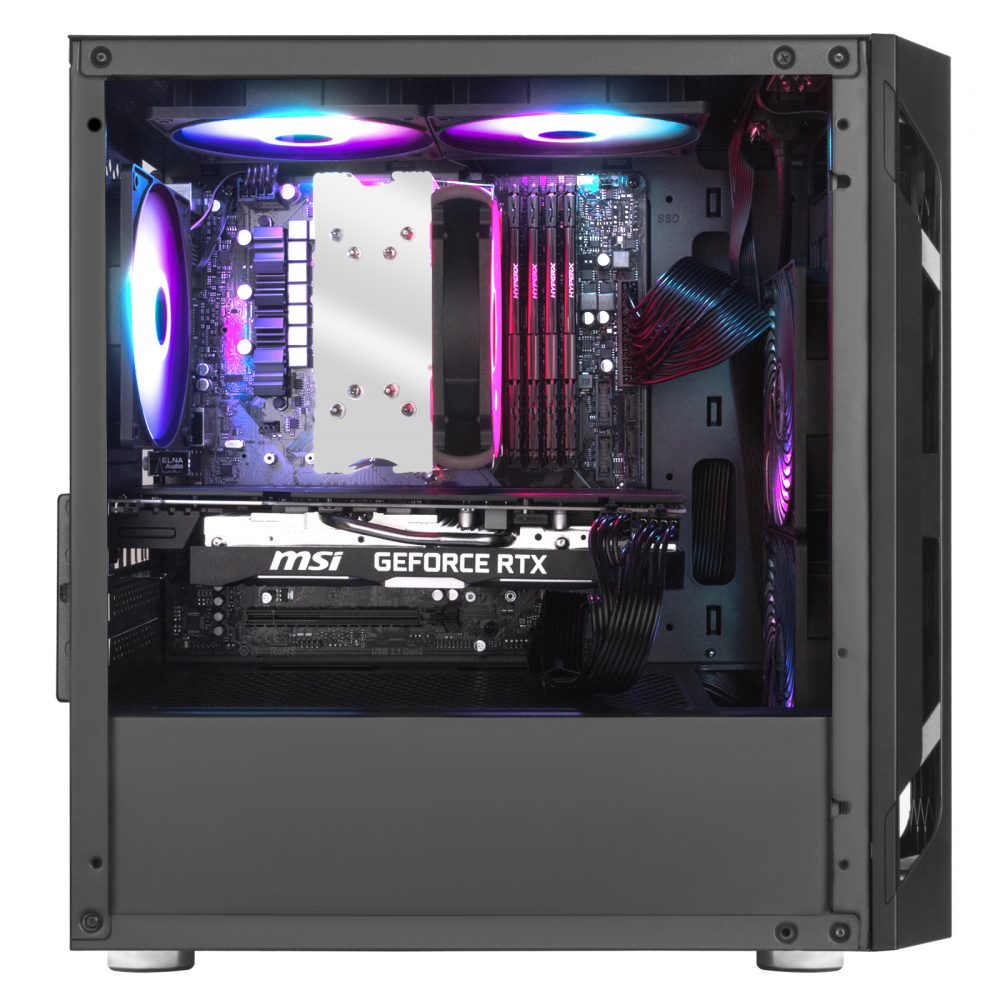

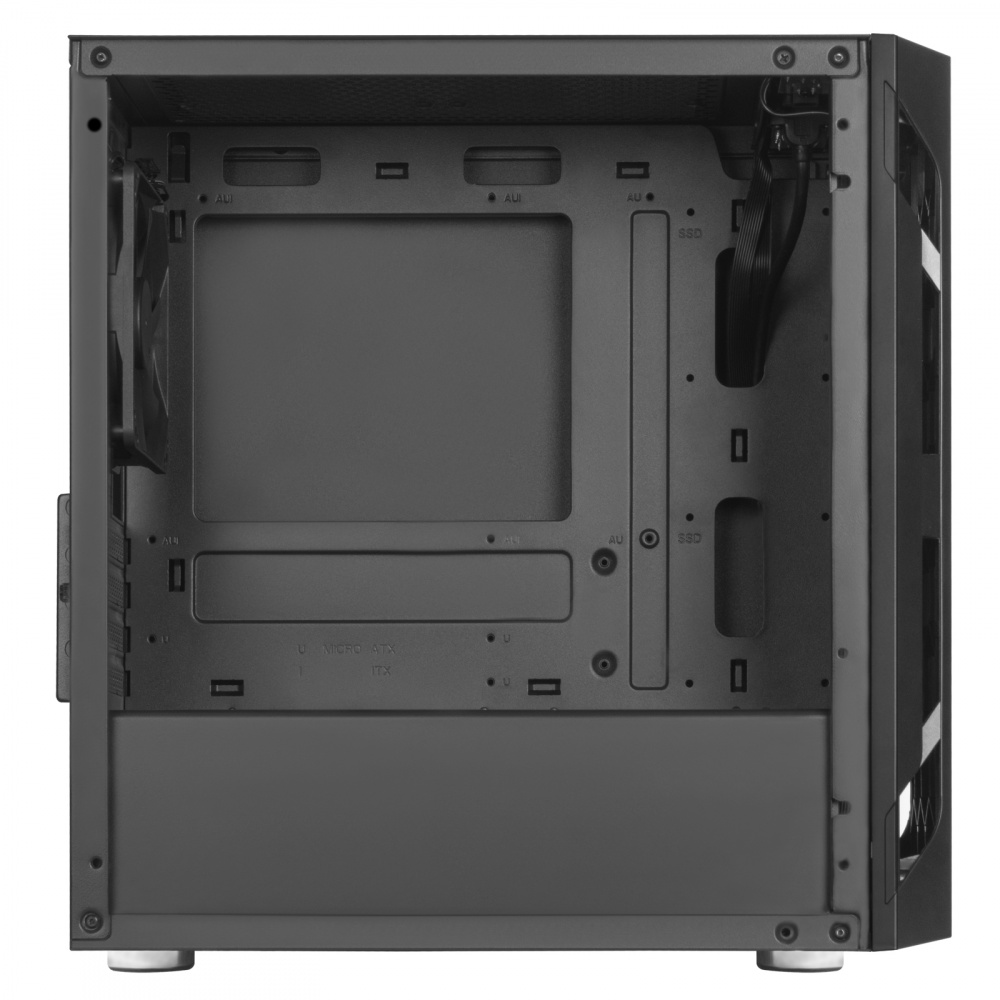

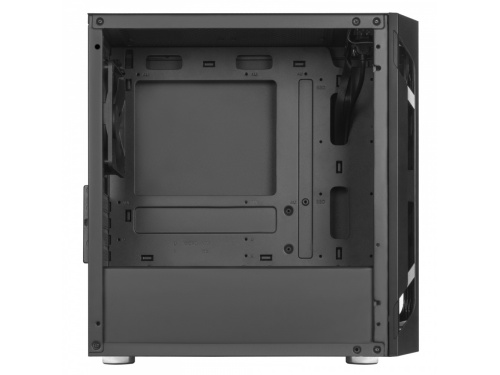

￭ Precisely designed interior provides sufficient space for high end graphics card and multiple cooling options
￭ Adjustable drive cage allows flexibility in PSU size and cable management space

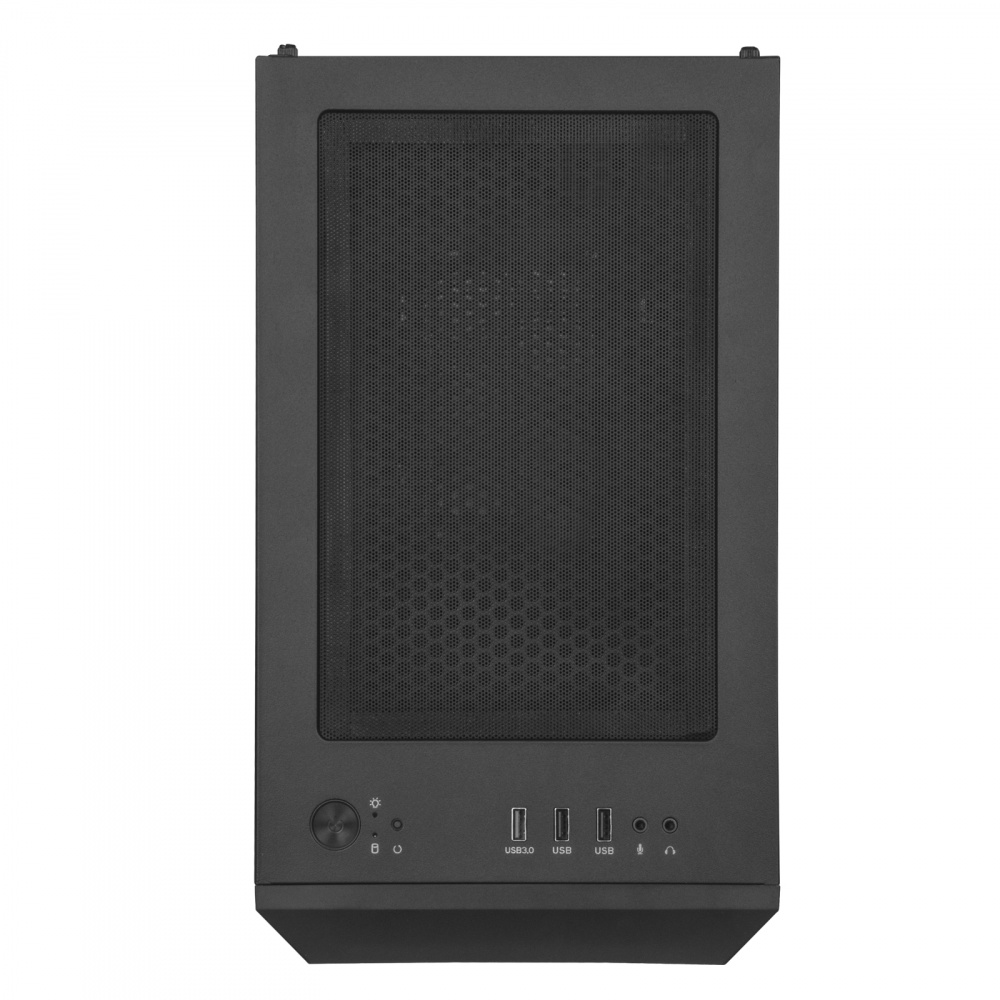

￭ I/O ports includes USB 3.0 x 1, USB 2.0 x 2, Audio x 1 and MIC x 1

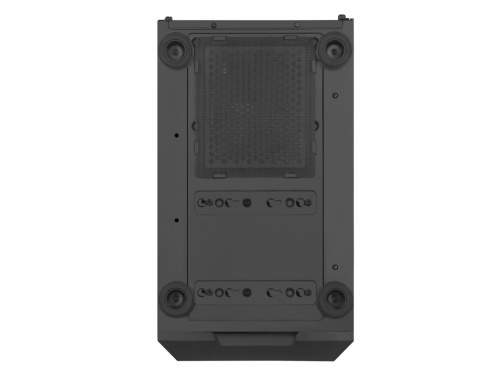

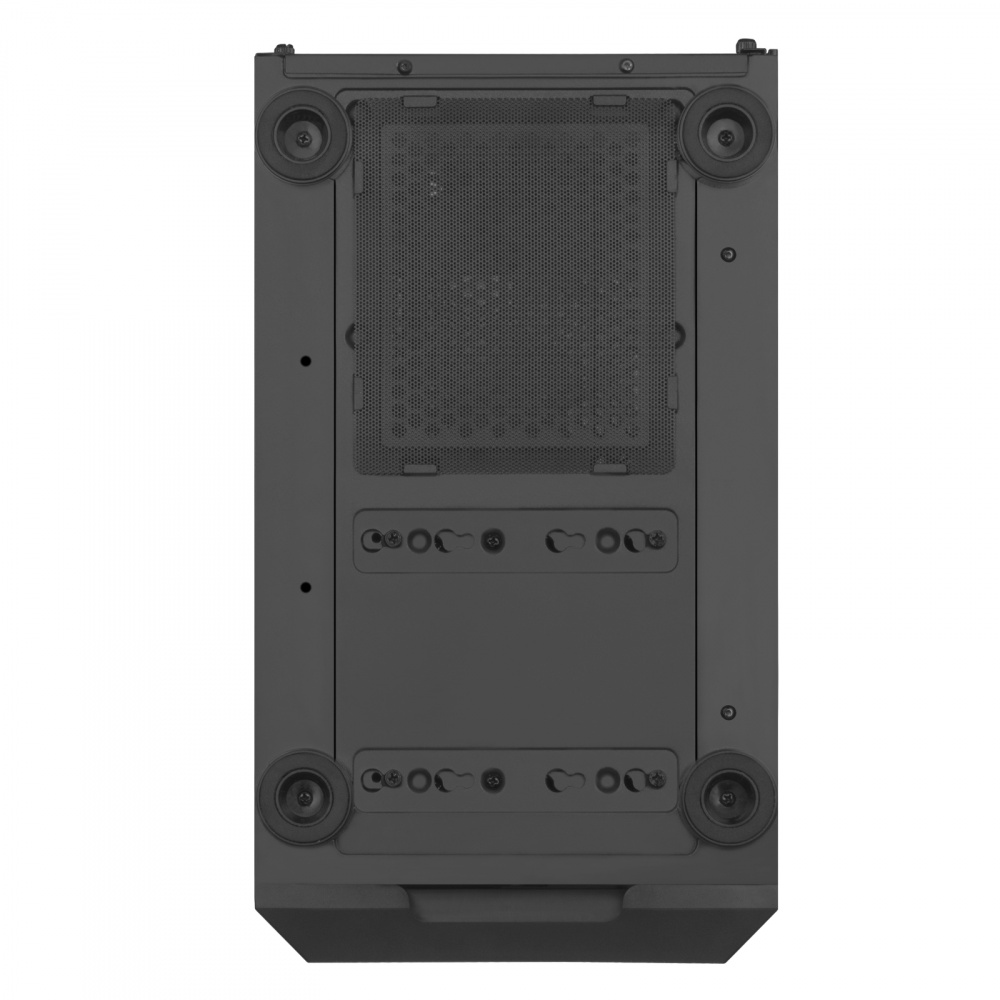

￭ Removable filters on top and bottom make cleaning out dust a breeze
SPECIFICATIONS
| Model No. |
SST-FAH1MW-G (White, tempered glass)
SST-FAH1MB (Black, steel panel)
SST-FAH1MB-G (Black, tempered glass) |
| Material |
Steel mesh, plastic front panel, steel body |
| Motherboard |
Micro-ATX, Mini-DTX, Mini-ITX |
| Drive bay |
External |
-- |
| Internal |
3.5" x 2 (compatible with 2.5" x 1)
2.5" x 2 |
| Cooling system |
Front |
120mm x 2 / 140mm x 2 |
| Rear |
120mm x 1 (120mm fan x 1 included) |
| Side |
-- |
| Top |
120mm x 2 |
| Bottom |
-- |
| Internal |
120mm x 2 |
| Radiator support |
Front |
120mm / 240mm |
| Rear |
120mm |
| Top |
-- |
| Bottom |
-- |
| Internal |
-- |
| Expansion slot |
4 |
| Front I/O port |
USB 3.0 x 1
USB 2.0 x 2
Audio x 1
MIC x 1 |
| Power supply |
Standard PS2(ATX) |
| Limitation of expansion card |
Length : 320mm without front fan installed
Width : 160mm |
| Limitation of CPU cooler |
160mm |
| Limitation of PSU |
160mm with 3.5" cage installed
250mm without 3.5" cage installed |
| Net weight |
4.24 kg (SST-FAH1MB-G, SST-FAH1MW-G)
3.49 kg (SST-FAH1MB) |
| Dimension |
210mm (W) x 392mm (H) x 366mm (D), 30.13 liters
8.27" (W) x 15.43" (H) x 14.41" (D), 30.13 liters |
