SilverStone Extreme 500 Bronze 80 PLUS Bronze 500W SFX power supply Model:SST-EX500-B psSI500_extreme

tweet_button SilverStone Extreme 500 Bronze 80 PLUS Bronze 500W SFX power supply Model:SST-EX500-B - GameDude Computers

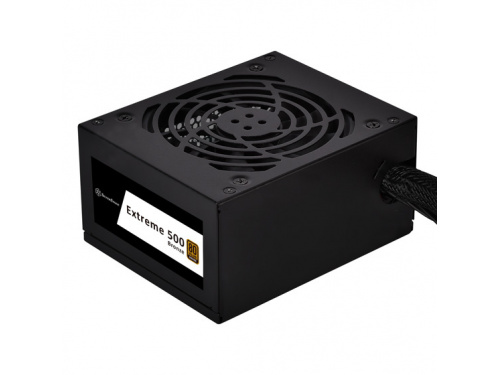

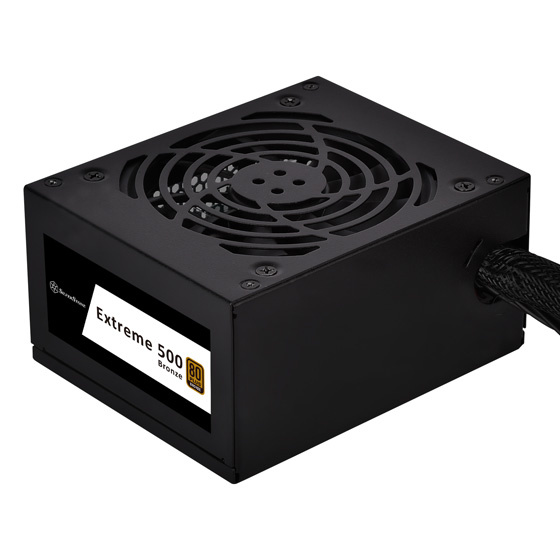

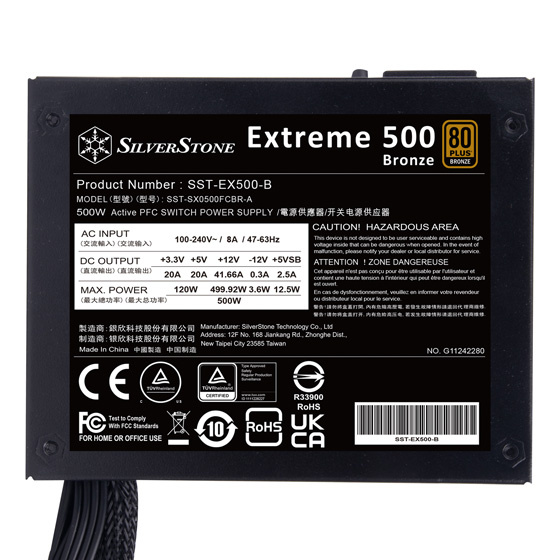

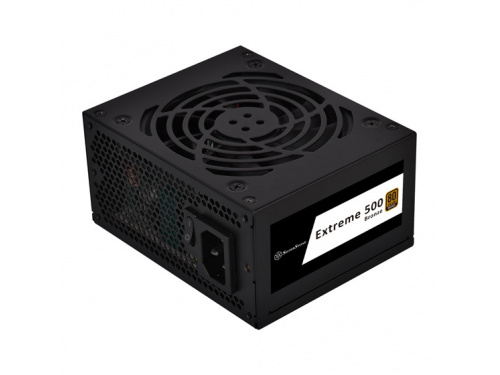

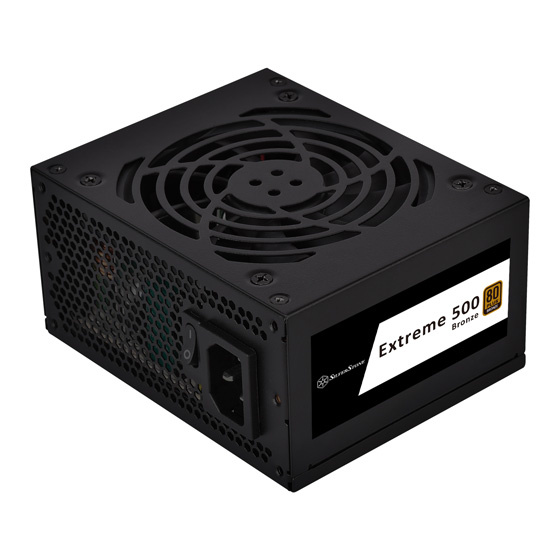

SilverStone Extreme 500 Bronze 80 PLUS Bronze 500W SFX power supply Model:SST-EX500-B
ex500-b-34-frontex500-b-34-backex500-b-buttom
$99.00 each
Brand: SilverstoneSilverstone

Extreme 500 Bronze
80 PLUS Bronze 500W SFX power supply
  • Supports standard SFX form factor and ATX via included bracket
  • 500W 24/7 continuous power output with 40℃ operating temperature
  • Silent running 92 mm fan with 18dBA minimum
  • Japanese primary capacitor
  • High efficiency with 80 PLUS Bronze certification
  • Class-leading single +12V rail
  • PCIe 8-Pin and PCIe 6-Pin connectors support
Product Specifications
Product No.
- SST-EX500-B
Model (safety certification)
- SST-SX0500FCBR-A
Color
- Black (lead-free paint)
Max. DC Output
- 500W
Power density
- 630W per liter
Load Range
Output +3.3V +5V +12V +5VSB -12V
Max.(Amps) 20A 20A 41.66A 2.5A 0.3A
Min.(Amps) 0.0A 0.0A 0.0A 0.0A 0.0A
Range (%) ±5% ±5% ±5% ±5% ±10%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 50mV 50mV 120mV 50mV 120mV
Combined +3.3V & +5V
- 120W
Combined +12V
- 499.2W
Input Voltage
- 90 ~ 264 Vrms
Input Frequency Range
- 47Hz ~ 63Hz
PFC
- Active PFC（PF>0.9 at Full Load）
Efficiency
- 82% ~ 85% at 20% ~ 100% loading
MTBF
- 100,000 hours
Operating temperature
- 0°C ~ 40°C
Protection
- Over Current Protection
- Over Power Protection
- Over Voltage Protection
- Short Circuit Protection
- Over Temperature Protection
Connectors
- 1 x 24 / 20-Pin motherboard connector
- 1 x 8-Pin EPS / ATX 12V connector
- 1 x 8 / 4-Pin EPS / ATX 12V connector
- 2 x 8 / 6-Pin PCIe connectors
- 3 x SATA connectors
- 2 x 4-Pin Peripheral connectors
- 1 x 4-Pin Floppy connector
Cooling System
- Silent 92mm fan
Noise Level
- 18 dBA minimum
Certification
- 80 PLUS Bronze
Form factor
- SFX
Dimension
- 125 mm (W) x 63.5 mm (H) x 100 mm (D)
Weight
- 1.02 kg
Other
- GPU Support list
- Compatible with ATX12V v2.4
