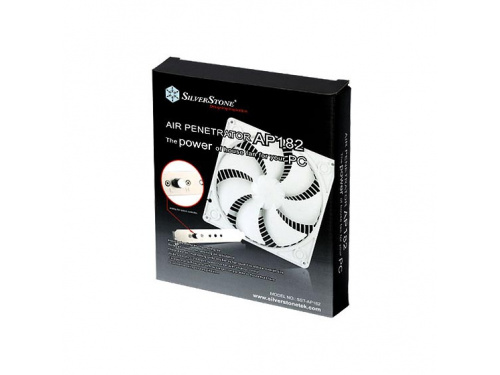

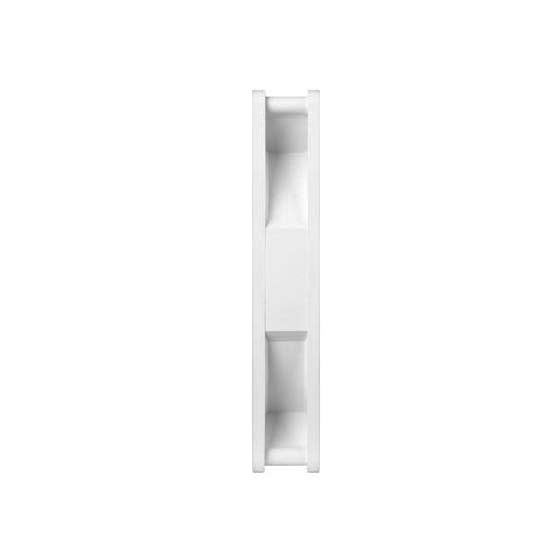

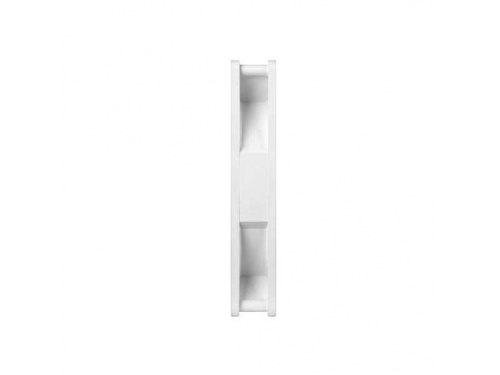

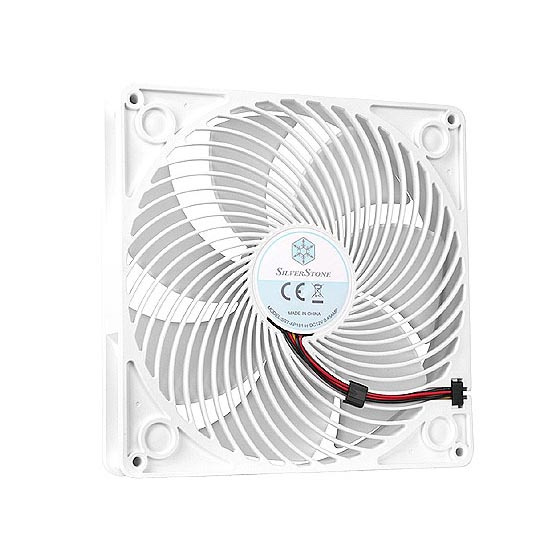

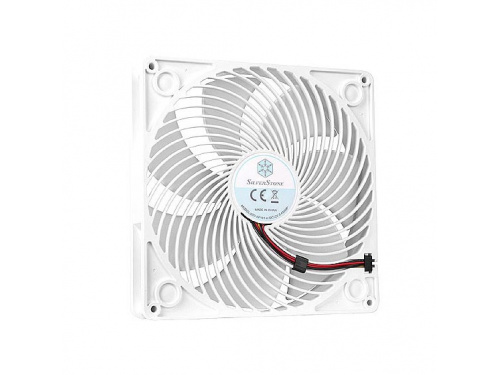

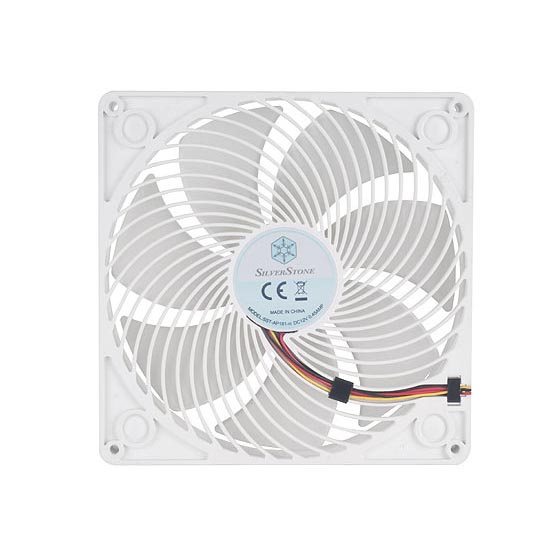

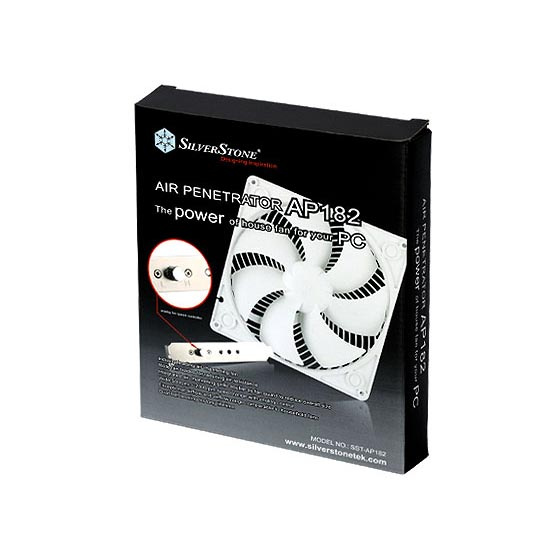

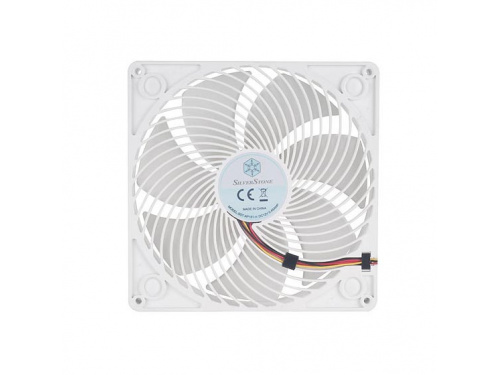

SilverStone 180mm Air Penetrator WHITE 180mm x 25mm - Dual Ball Bearing - 500~2000rpm SST-AP182 coSIap182_180_air_pen_white

1- Industry leading air channeling fan
- Wide fan blades for reducing air resistance
- Integrated air channeling grille double as fan guard to reduce overall size
- Wide 500rpm ~ 2000rpm speed range with analog control
- Exceptional airflow and airflow range comparable to household fans
- Dual ball bearing for long lifetime

SPECIFICATIONS

Model No.
- SST-AP182
Color
- White
Bearing
- Dual ball bearing
Connectors
- 3pin
Rated Voltage
- 12V DC
Start Voltage
- ≦8V (w/ fan control at lowest rpm)
- ≦8V (w/ fan control at highest rpm)
Rated Current
- 0.07A (500rpm) ~1.2A (2000rpm)
Rated Power
- 0.84W (500rpm)~15.6W (2000rpm)
Speed 500 ~ 2000rpm
Airflow
- 41.3CFM (500rpm) / 80CFM (700rpm) / 130CFM (1200rpm) / 167.2CFM (2000rpm)
Effective Airflow Range
- 1.2M (700rpm) / 3M (1200rpm) / 4.5M (2000rpm)
Static Pressure
- 0.7mmH2O (500rpm) / 1.1mmH2O (700rpm) / 2.45mmH2O (1200rpm) / 6.1mmH2O (2000rpm)
Air speed at fan edge
- 1.9m/s ; 3.1m/s (measured at fan exit)
Noise Level
- 20dBA (500rpm) / 25dBA (700rpm) / 34dBA (1200rpm) / 40dBA (2000rpm)
Life Time
- 50,000 hours
Dimension
- 180mm (L) x 180mm (W) x 32mm (H)
- 7.09" (L) x 7.09" (W) x 1.26" (H)
Weight
- 431g
