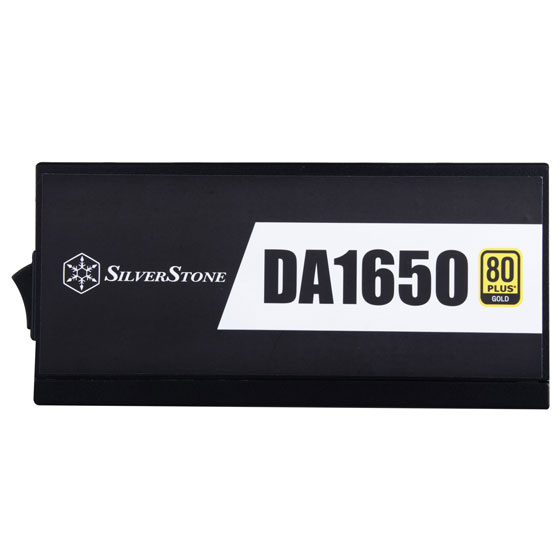

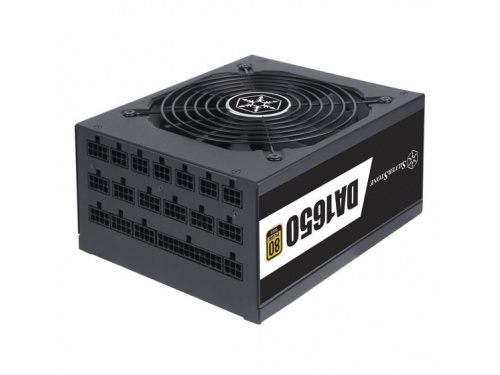

- 80 PLUS Gold 1650W fully modular ATX power supply
- High efficiency with 80 PLUS Gold certification
- 24/7 continuous power output with 50℃ operating temperature
- 100% modular design with universal EPS / PCIe connector interface for maximum flexibility

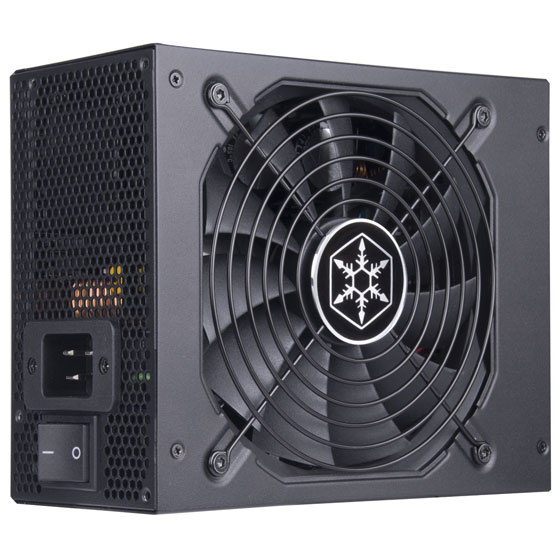

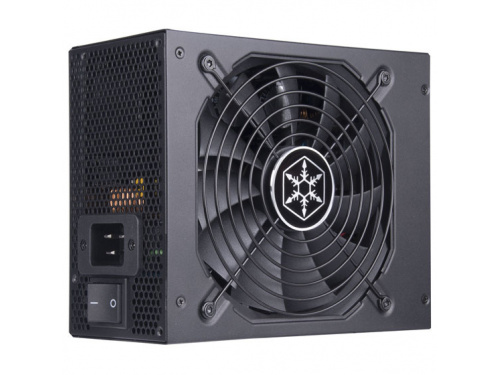

- Ultra silent 135mm FDB fan with semi-fanless and delayed shut-off function
- Strict ±2% voltage regulation and low ripple & noise
- All Japanese capacitors
SPECIFICATIONS
Model No.
- SST-DA1650-G
Max. DC Output
- 1650W
Power density
- 711W per liter
Load Range
+3.3V +5V +12V +5VSB -12V
25A 25A 137.5A 3.0A 0.3A
Color
- Black.（Lead-Free Paint）
Combined +3.3V & +5V
- 130W
Combined +12V
- 1650W
Input Voltage
- 90V~264V
Input Frequency Range
- 47Hz ~ 63Hz
PFC
- Active PFC（PF>0.9 at Full Load）
Efficiency
- 87% ~ 90% (at 20% ~ 100% loading)
MTBF
- 100,000 hours
Operating temperature
- 0°C ~ 50°C
Protection
- Over current protection
- Over power protection
- Over voltage protection
- Short circuit protection
- Under voltage protection
- Over temperature protection

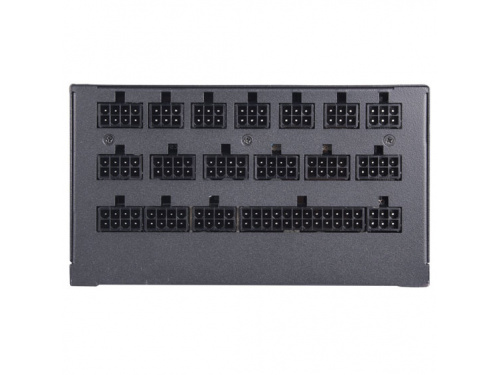

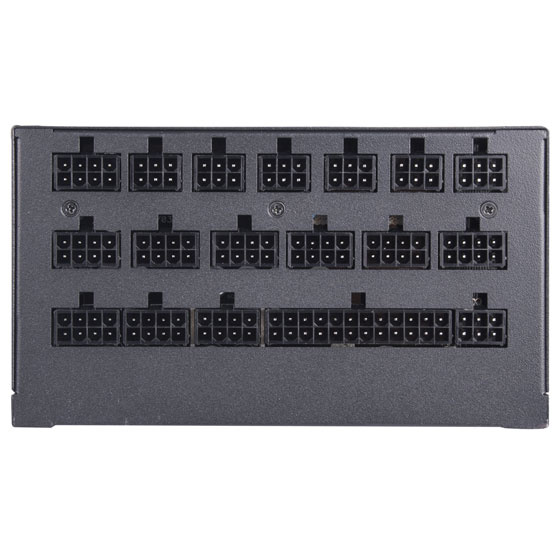

Connectors
- 1 x 24 / 20-Pin motherboard connector (600mm)
- 4 x 8 / 4-Pin EPS / ATX 12V connector ("750mm" x 4)
- 8 x 8 / 6-Pin PCIe connector ("600mm / 150mm" x 4)
- 4 x 8 / 6-Pin PCIe connector ("600mm" x 4)
- 16 x SATA connector ("600mm / 150mm / 150mm / 150mm" x 4)
- 6 x 4-Pin Peripheral connector ("600mm / 150mm / 150mm" x 2)
- 1 x 4-Pin Floppy adapter connector (100mm)
Cooling System
- Single 135mm FDB fan
Form factor
- ATX / PS/2
Noise Level
- 0dBA ~ 36dBA
Dimension
- 150 mm (W) x 86 mm (H) x 180 mm (D)
- 5.91" (W) x 3.39" (H) x 7.09" (D)
Weight
- 2.09 kg
Certification
- 80 PLUS Gold
Other
- Compatible with ATX12V v2.4
