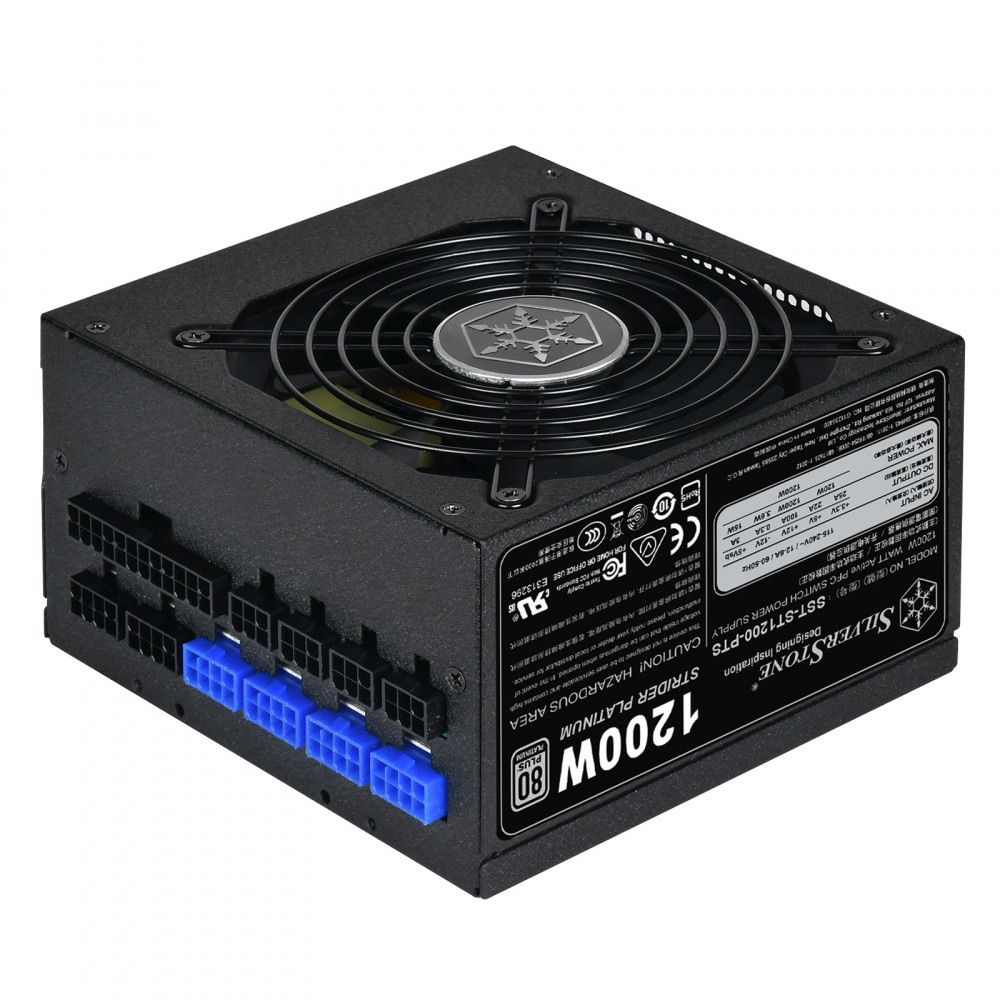

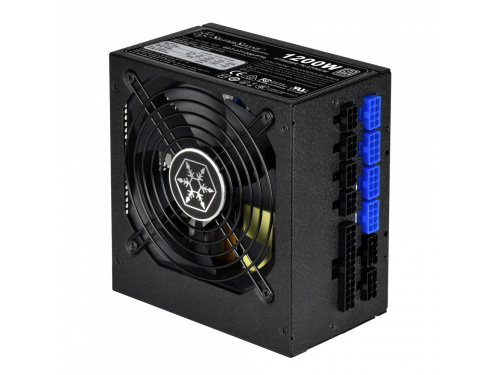

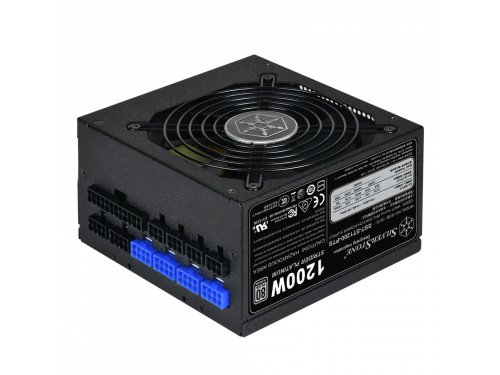

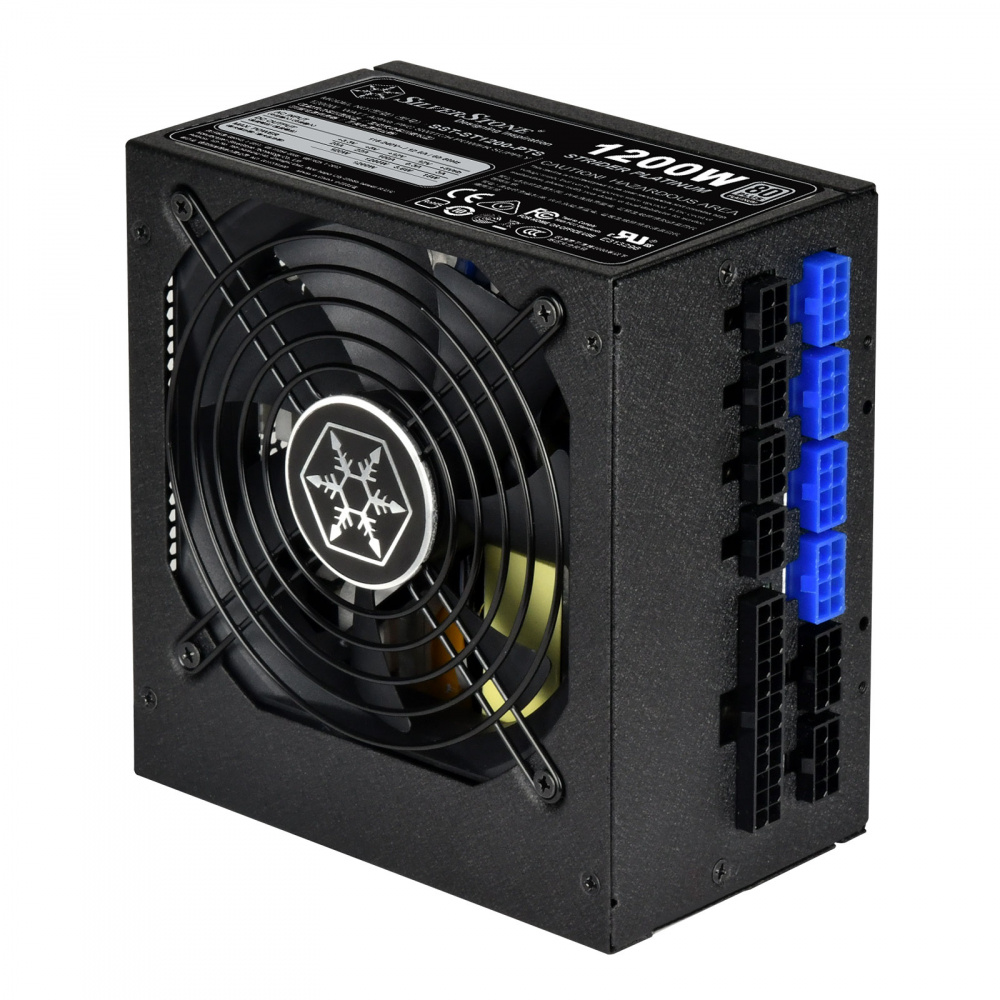

ST1200-PTS
￭ Compact design with a depth of 140mm for easy integration
￭ High efficiency with 80 PLUS Platinum certification

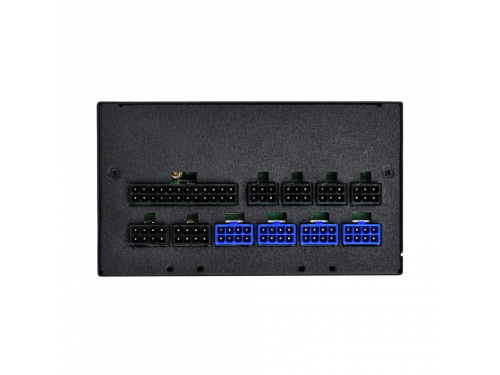

￭ 100% modular cables
￭ 24/7 continuous power output with 40℃ operating temperature
￭ Class-leading single +12V rail
￭ Strict ±3% voltage regulation and low ripple & noise

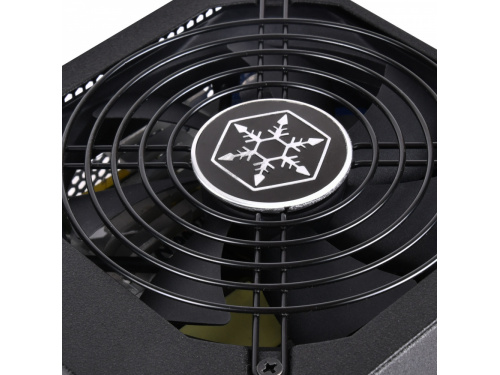

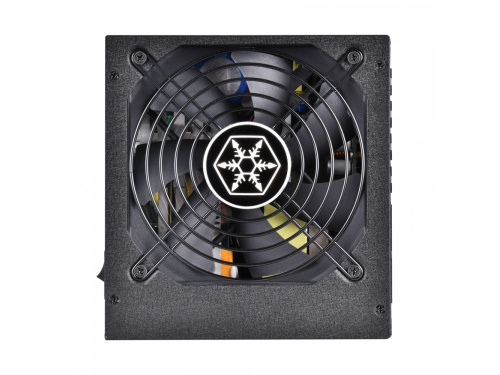

￭ Built-in silent & durable HYB fan
￭ FF122 magnetized fan filter included
SPECIFICATIONS
| Model No. |
SST-ST1200-PTS
|
| Max. DC Output |
1200W
|
| Power density |
664W per liter
|

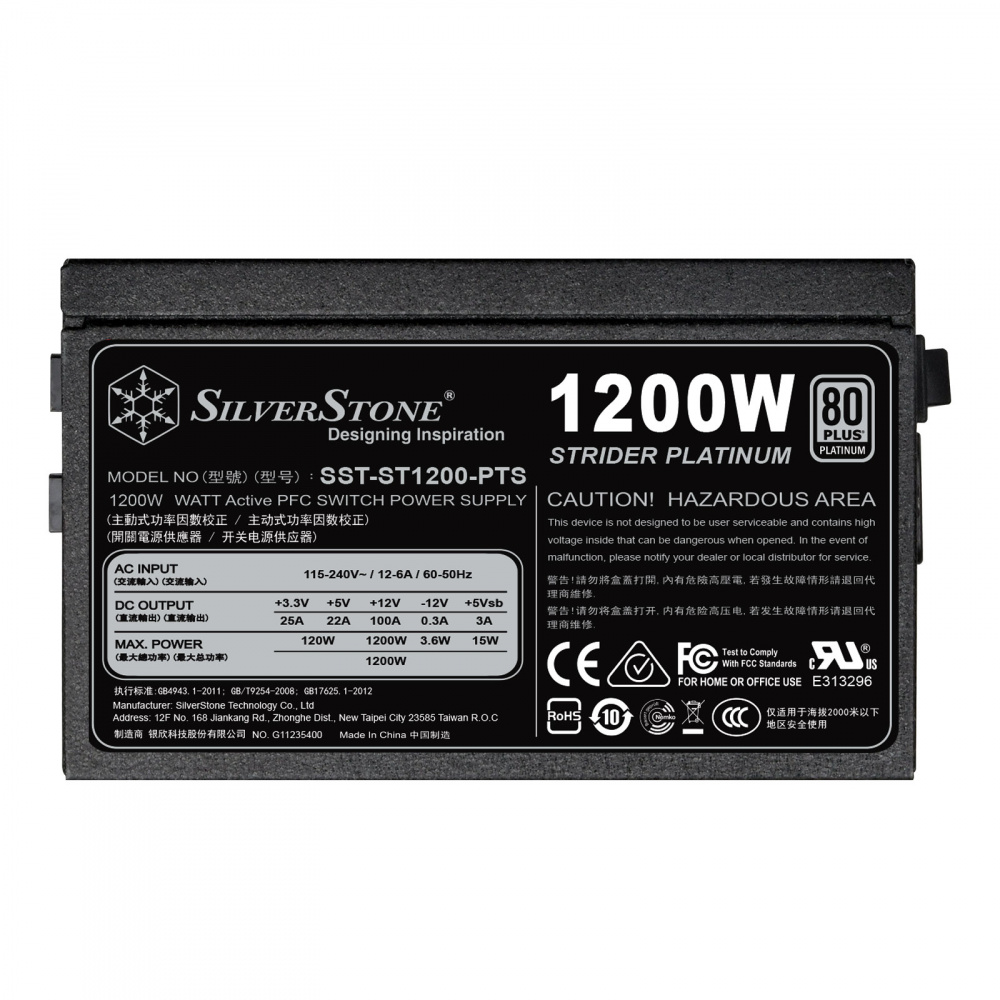

| Load Range |
|
|
+3.3V |
+5V |
+12V |
+5VSB |
-12V |
|
Max.(Amps)
|
25A |
22A |
100A |
3A |
0.3A |
|
Min.(Amps)
|
0A |
0A |
0.15A |
0A |
0A |
|
Range (%)
|
±3% |
±3% |
±3% |
±5% |
±10% |
|
Line Reg.(%)
|
±1% |
±1% |
±1% |
±1% |
±1% |
|
Ripple(mVp-p)
|
50mV |
50mV |
120mV |
50mV |
120mV |
|
| Color |
Black（Lead-Free Paint）
|
| Combined +3.3V & +5V |
120W
|
| Combined +12V |
1200W
|
| Input Voltage |
100V~264V
|
| Input Frequency Range |
47Hz~63Hz
|
| PFC |
Active PFC（PF>0.9 at full load）
|
| Efficiency |
89%~92% at 20%~100% loading
|
| MTBF |
100,000 hours
|
| Operating temperature |
0°C ~ 40°C
|
| Protection |
Over power protection
Over current protection
Over voltage protection
Over Temperature protection
Under voltage protection
Short circuit protection
|

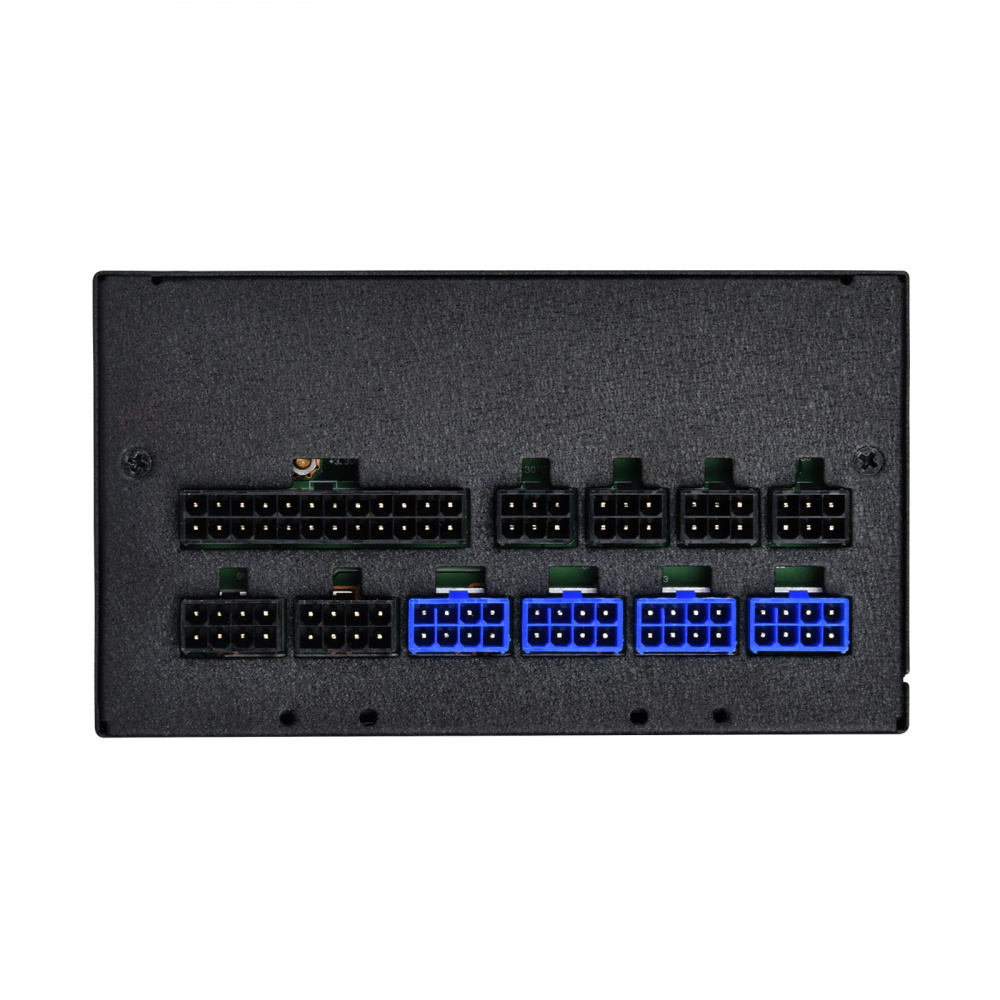

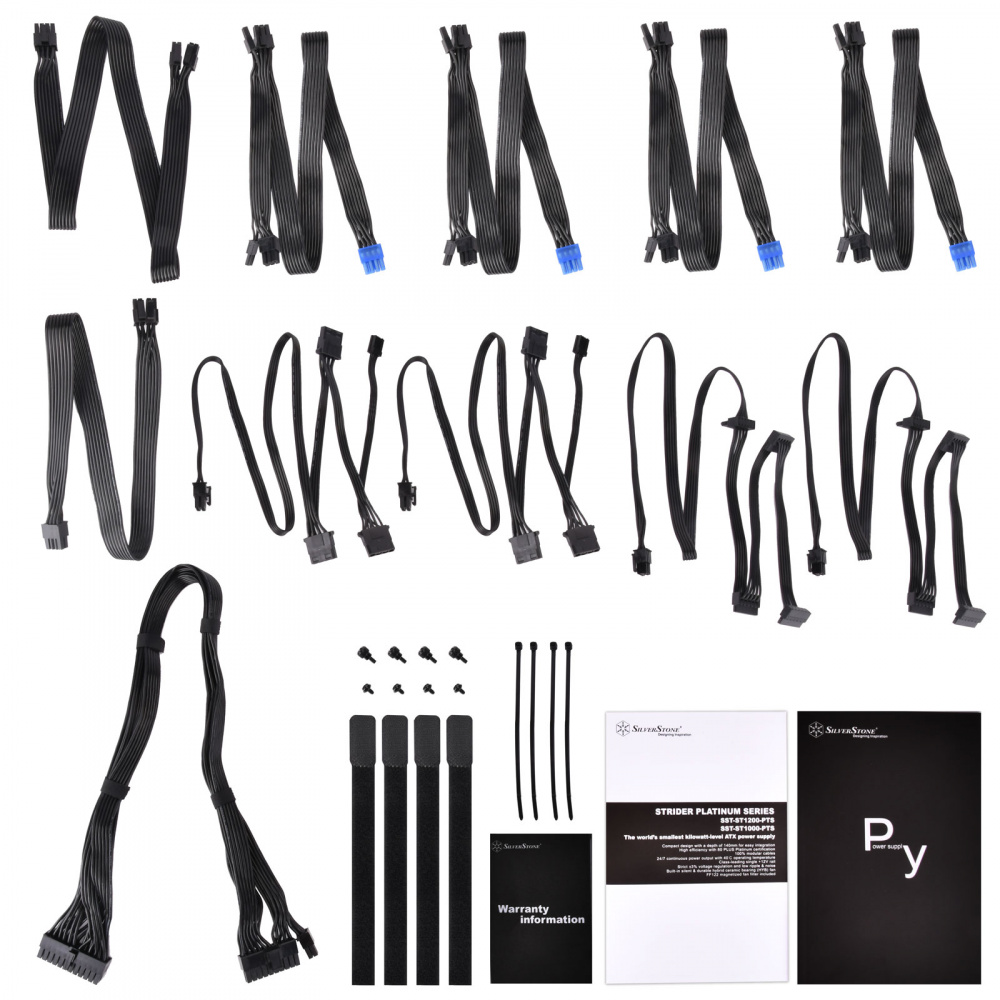

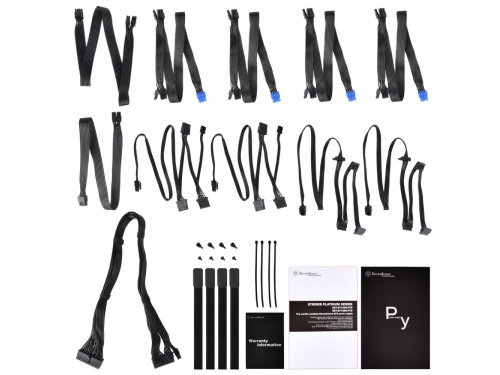

| Connectors |

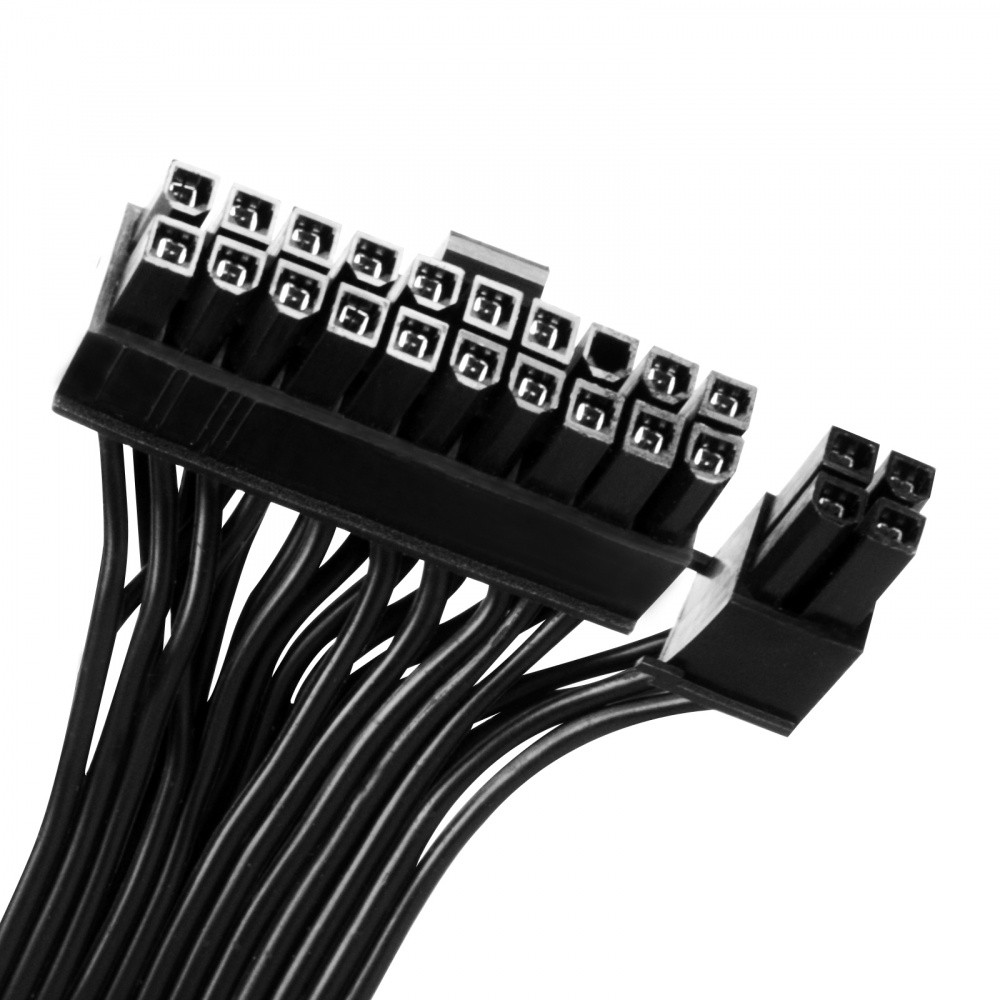

1 x 24 / 20-Pin motherboard connector（”600mm”）

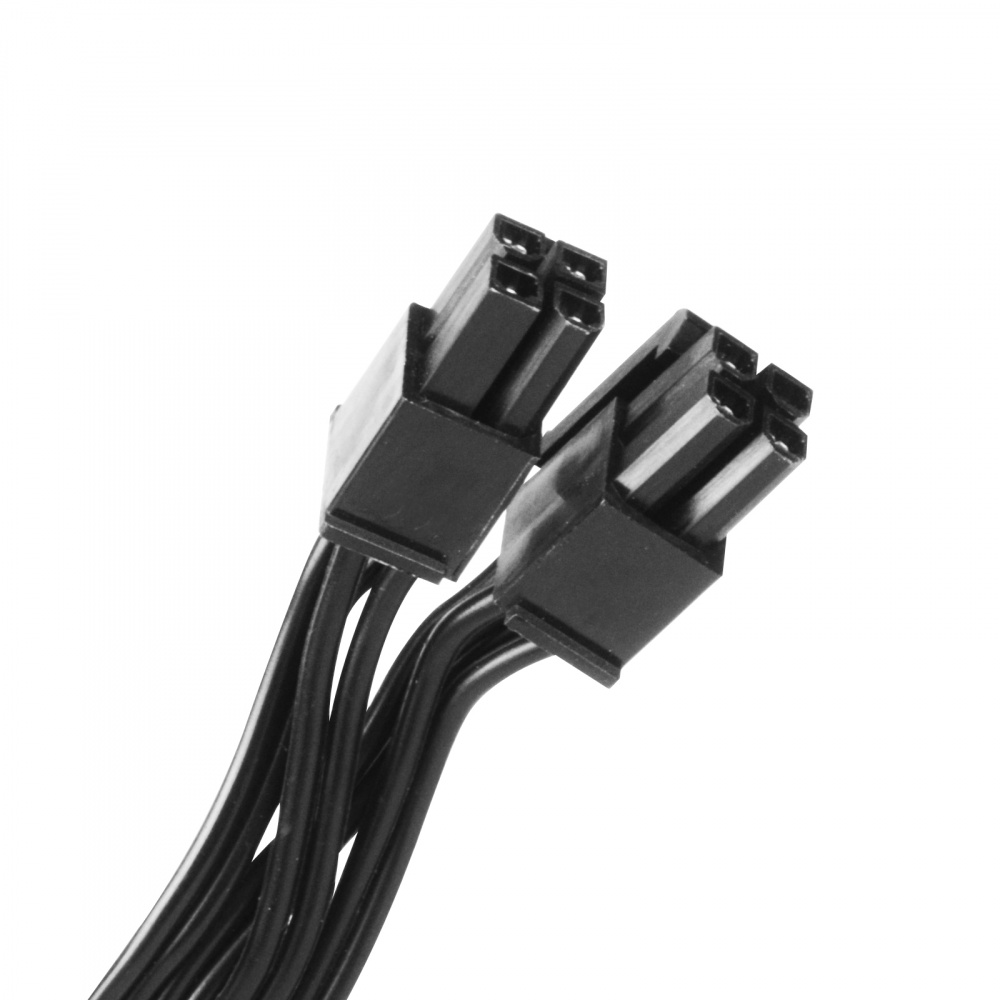

1 x 8 / 4-Pin EPS / ATX 12V connector（”550mm”）
1 x 8 / 4-Pin EPS / ATX 12V connector（”750mm”）

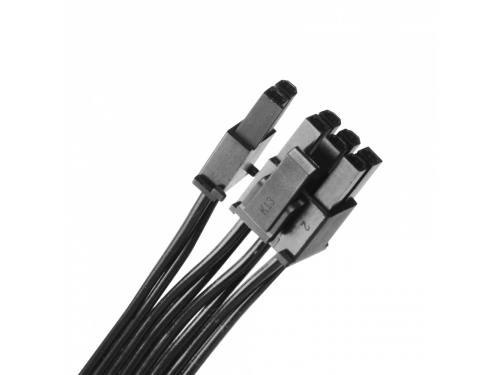

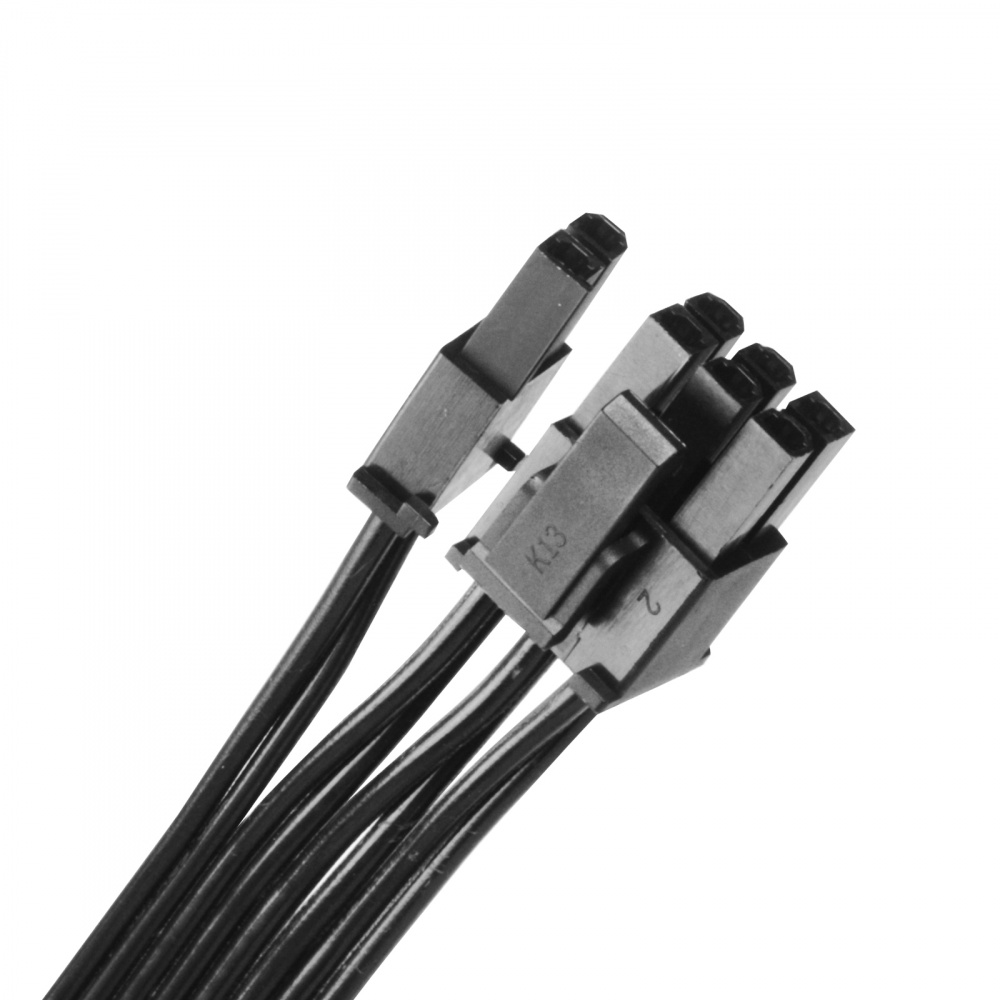

8 x 8 / 6-Pin PCIE connector（”550mm/150mm” X4）

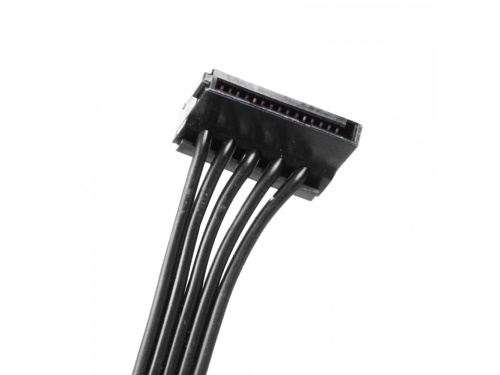

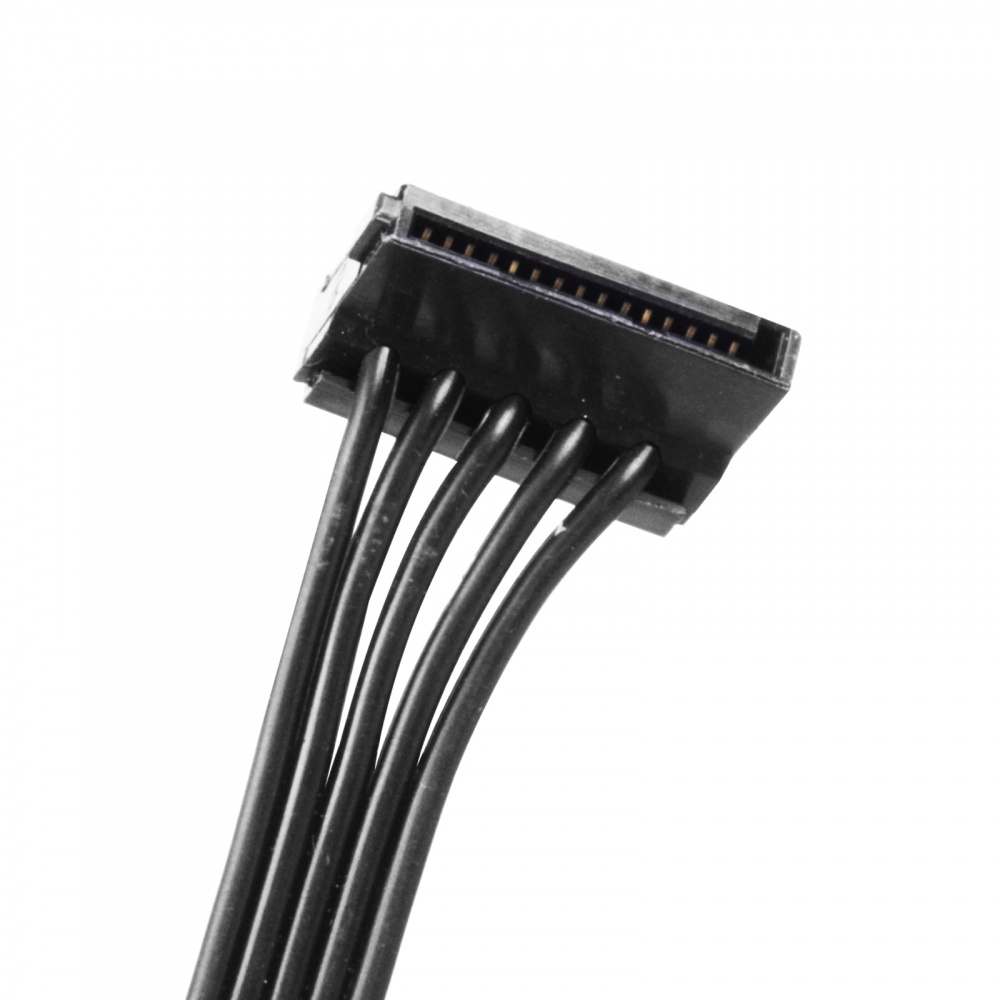

8 x SATA connector（"600mm /150mm / 150mm / 150mm" X2）

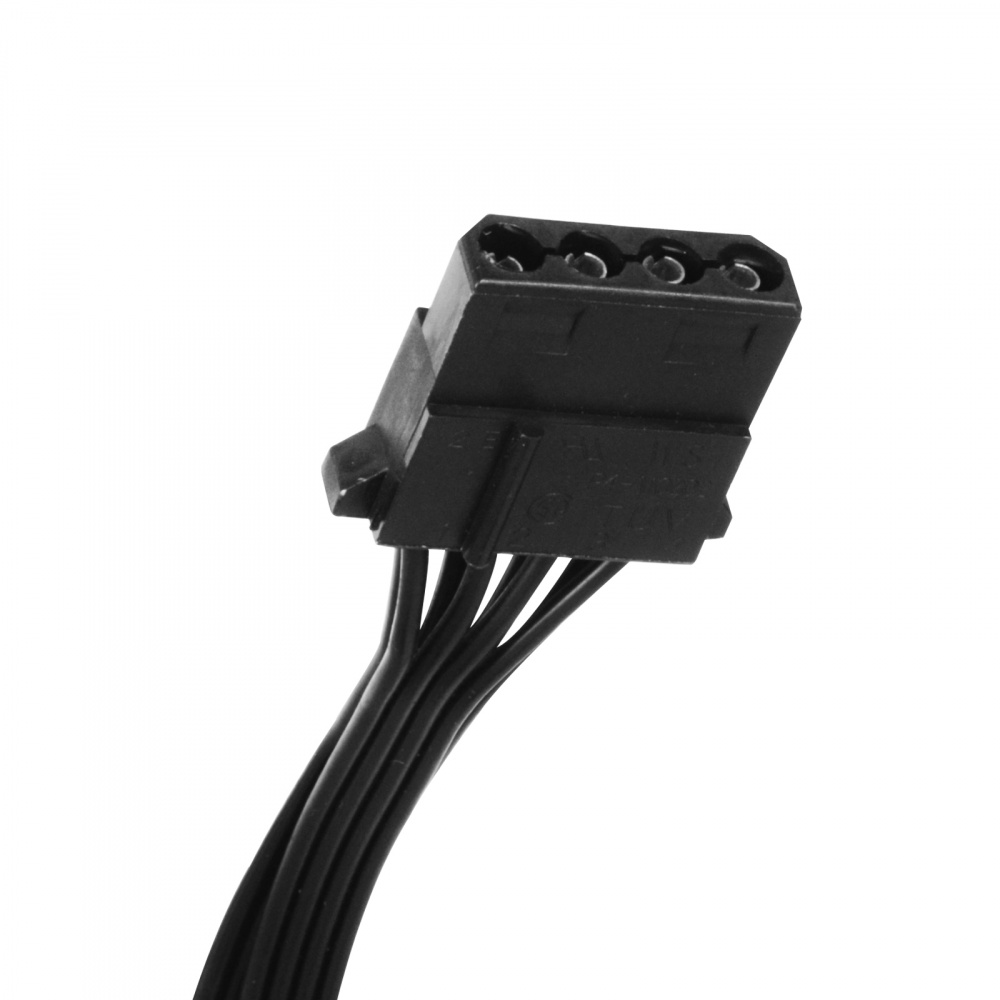

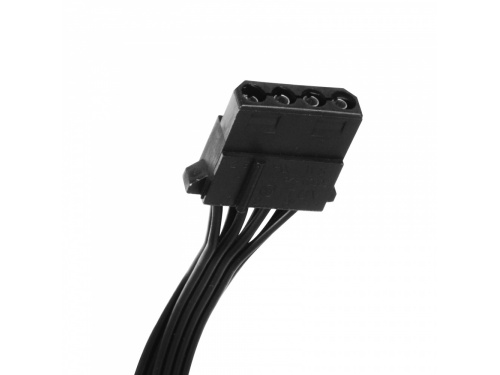

6 x 4-Pin Peripheral connector（”600mm / 150mm / 150mm” X2）

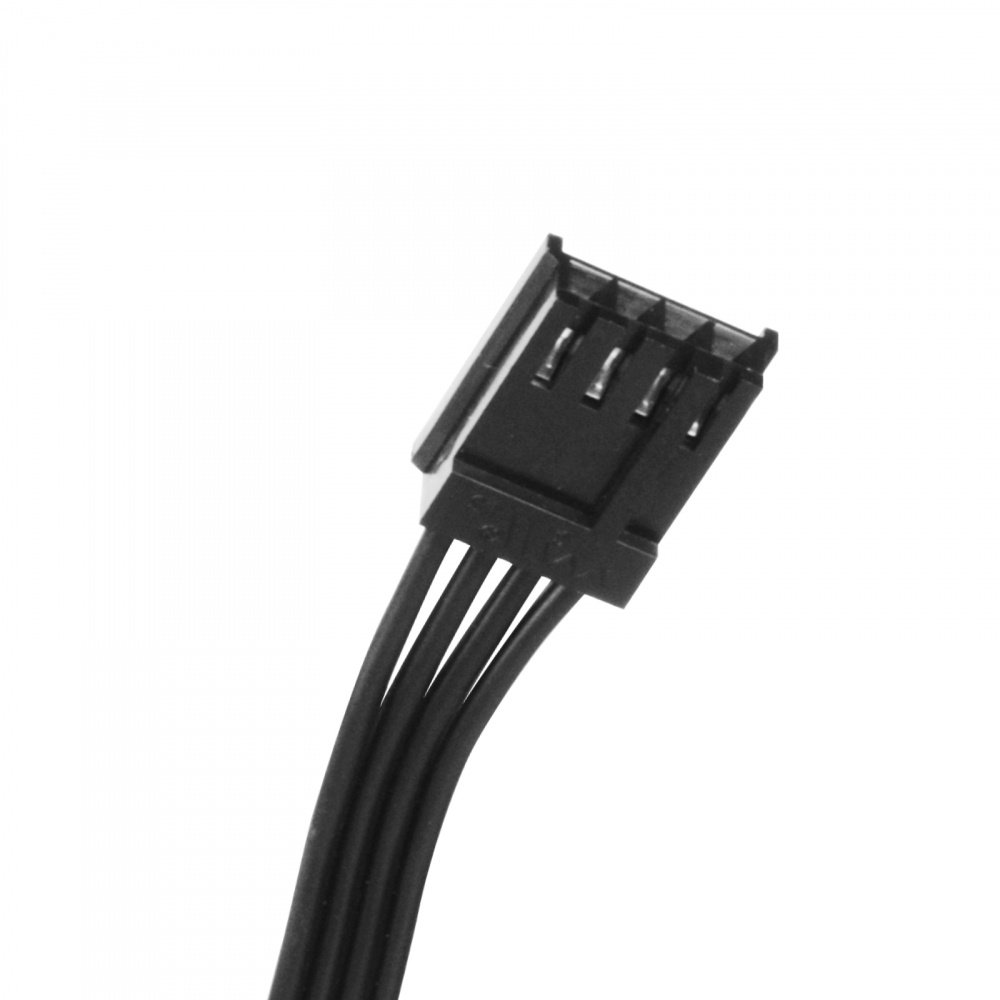

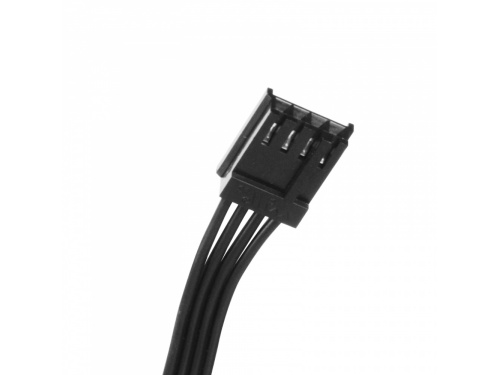

2 x 4-Pin Floppy connector（”150mm” X2）
|
| Cooling System |

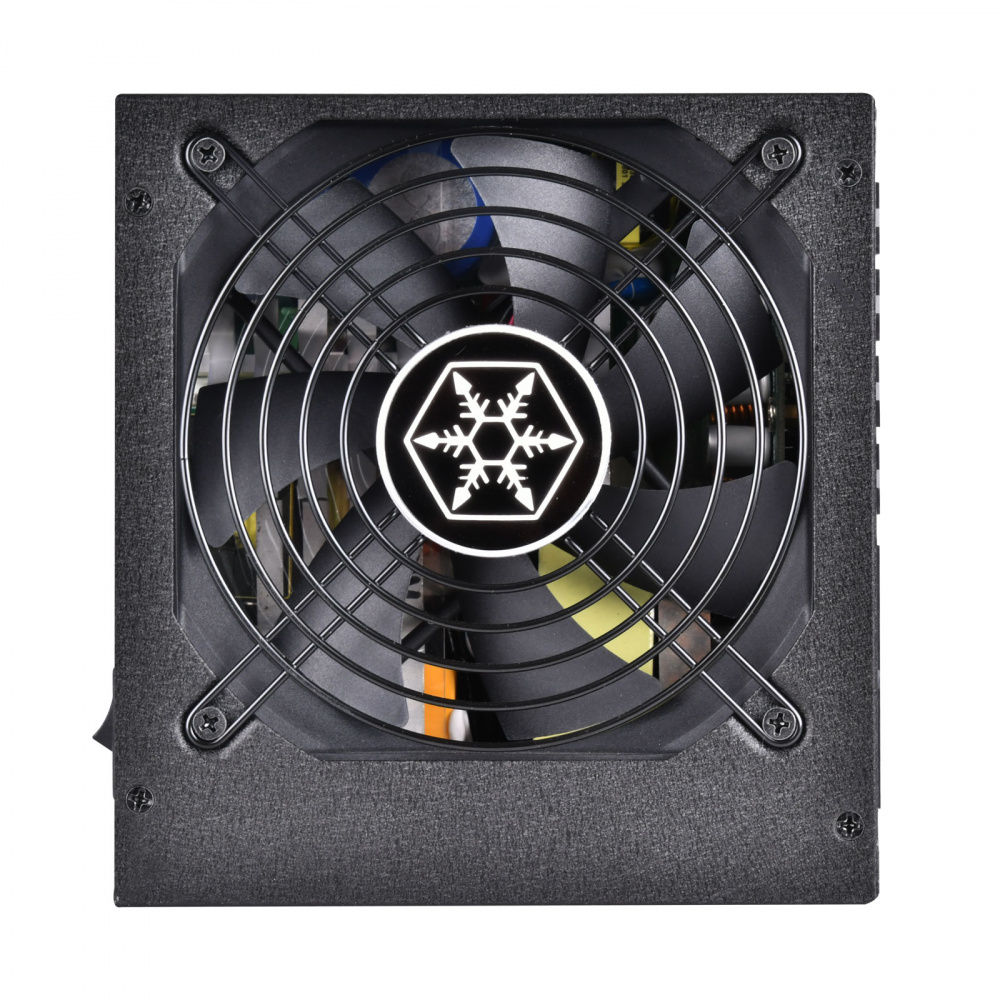

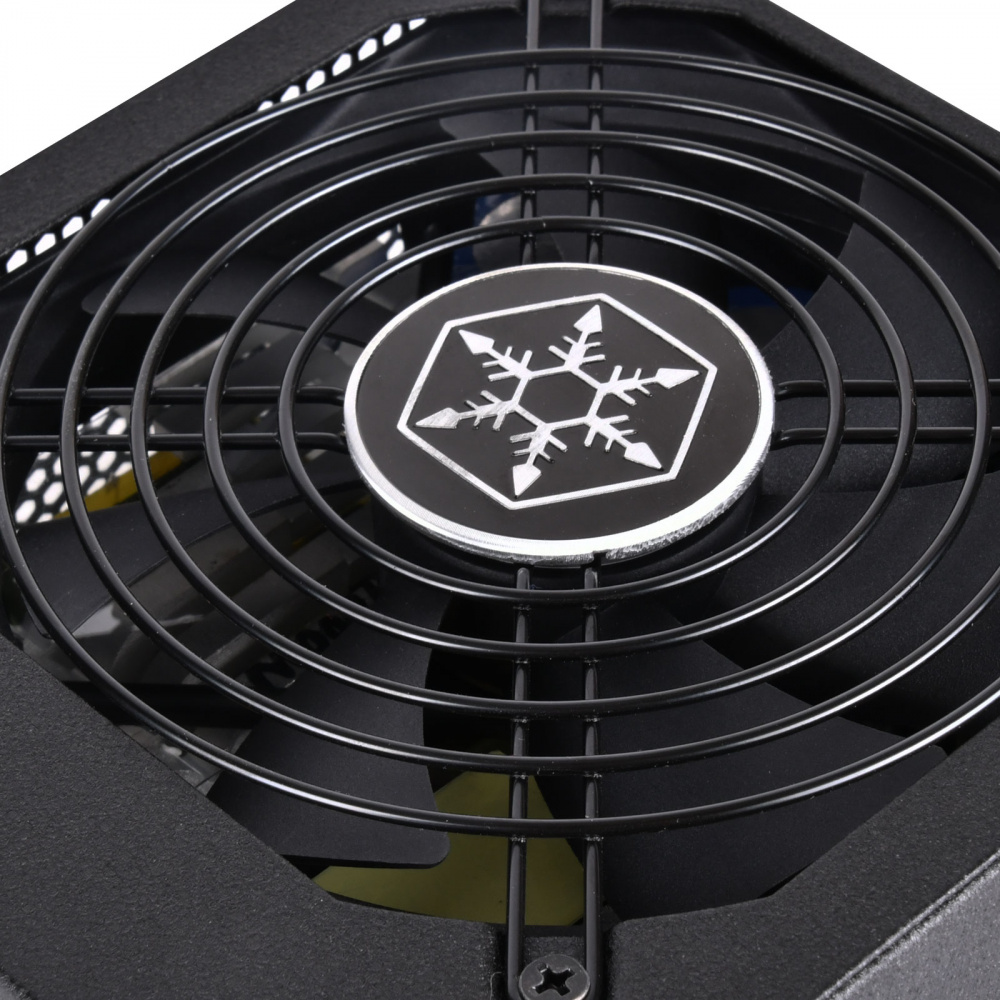

Single 120mm HYB fan
|
| Form factor |
|
| Noise Level |
18 dBA minimum
|
| Dimension |
150 mm (W) x 86 mm (H) x 140 mm (D)
5.91" (W) x 3.39" (H) x 5.51" (D)
|
| Weight |
2kg
|
| Certification |
80 PLUS Platinum
|
| Other |
|
