Samsung 1TB 980 PRO M.2 NVMe PCIe SSD MZ-V8P1T0BW ssdSAm2_980pro_1tb

tweet_button Samsung 1TB 980 PRO M.2 NVMe PCIe SSD MZ-V8P1T0BW - GameDude Computers

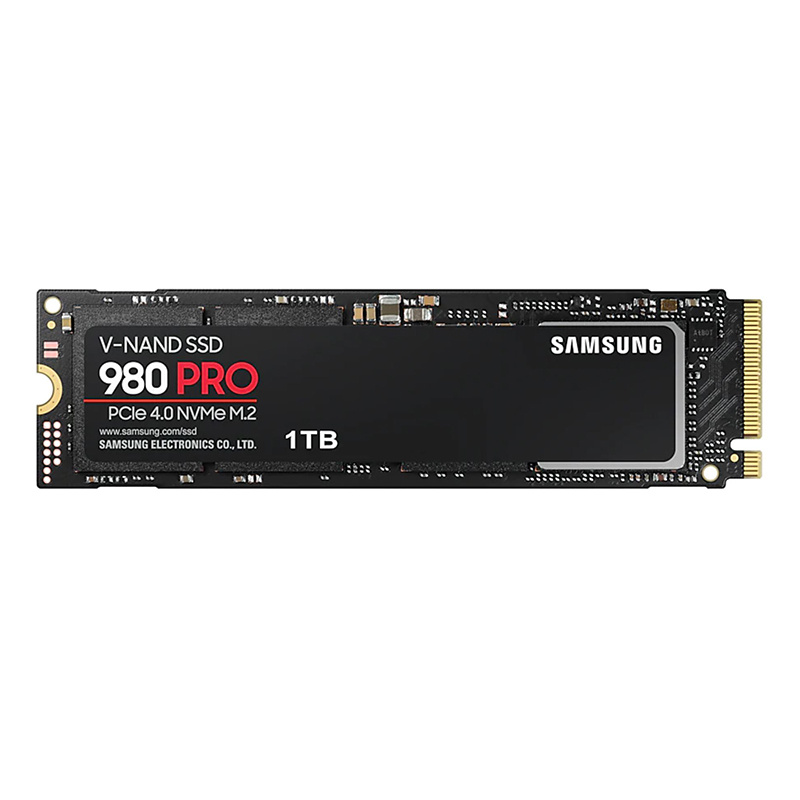

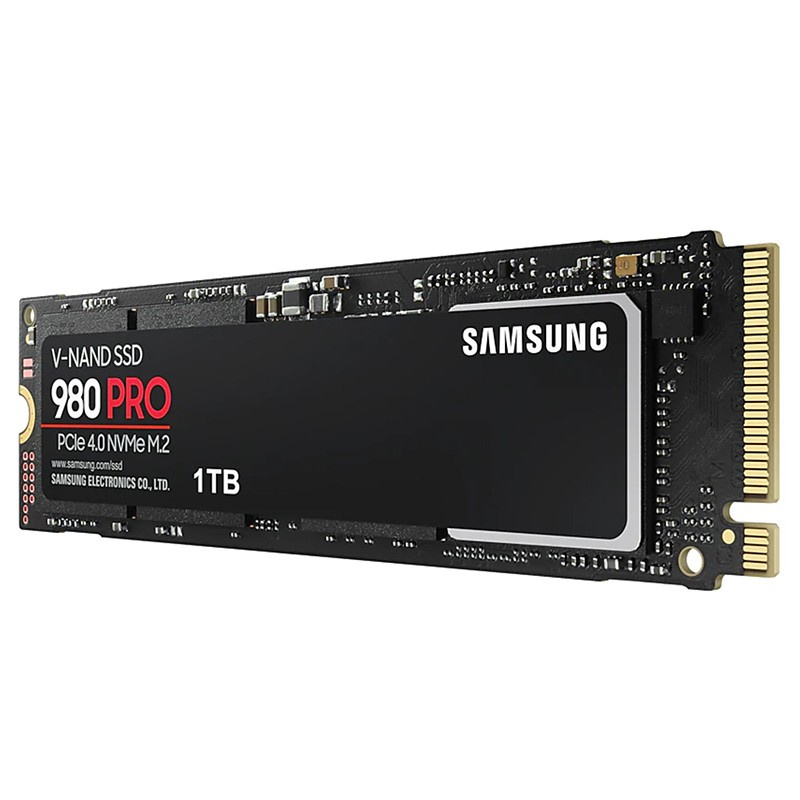

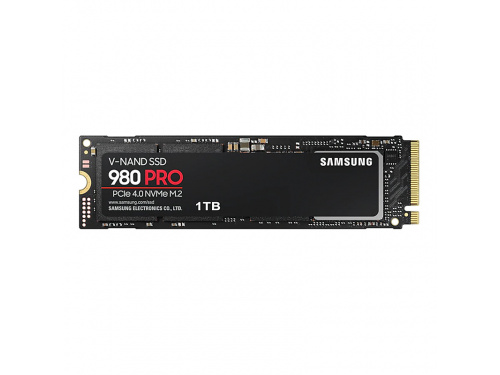

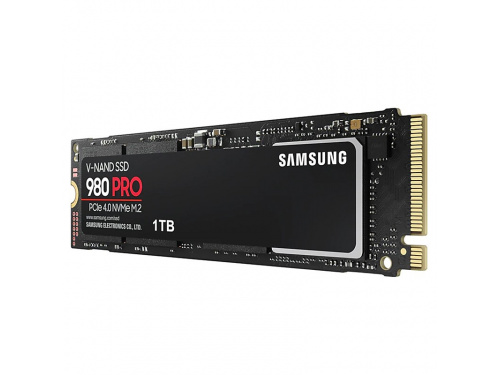

Samsung 1TB 980 PRO M.2 NVMe PCIe SSD MZ-V8P1T0BW
980pro980pro1
$199.00 each
Brand: SamsungSamsung

Specifications

Interface
PCIe Gen 4.0 x4, NVMe 1.3c
Sequential Read
Up to 7,000 MB/s *

* Performance may vary based on system hardware & configuration

Sequential Write
Up to 5,000 MB/s *

* Performance may vary based on system hardware & configuration

Warranty
5-Year Limited Warranty or 600 TBW Limited Warranty
Application
Client PCs
Weight
Max 9.0 g Weight

General Feature

Application

Client PCs

Rated Capacity

1,000GB (1GB=1 Billion byte by IDEMA)

* Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

Form Factor

M.2 (2280)

Interface

PCIe Gen 4.0 x4, NVMe 1.3c

Dimension (WxHxD)

80.15 x 22.15 x 2.38 (mm)

Weight

Max 9.0 g Weight

Storage Memory

Samsung V-NAND 3-bit MLC

Controller

Samsung Elpis Controller

Cache Memory

Samsung 1GB Low Power DDR4 SDRAM

Special Feature

TRIM Support

Supported

S.M.A.R.T Support

Supported

GC (Garbage Collection)

Auto Garbage Collection Algorithm

Encryption Support

AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)

WWN Support

Not supported

Device Sleep Mode Support

Yes

Performance

Sequential Read

Up to 7,000 MB/s *

Sequential Write

Up to 5,000 MB/s *

Random Read (4KB, QD32)

Up to 1,000,000 IOPS *

Random Write (4KB, QD32)

Up to 1,000,000 IOPS *

Random Read (4KB, QD1)

Up to 22,000 IOPS *

Random Write (4KB, QD1)

Up to 60,000 IOPS *

* Performance may vary based on system hardware & configuration

Environment

Power Consumption

Average: 6.2 W* Maximum: 8.9 W (Burst mode)*

Power Consumption (Idle)

Max. 35 mW *

Allowable Voltage

3.3 V ± 5 % Allowable voltage

Reliability (MTBF)

1.5 Million Hours Reliability (MTBF)

Operating Temperature

0 - 70°C Operating Temperature

Shock

1,500 G & 0.5 ms (Half sine)

* Actual power consumption may vary depending on system hardware & configuration

Accessories

Installation Kit

Not Available

Software

Management SW

Magician Software for SSD management

Warranty

5-Year Limited Warranty or 600 TBW Limited Warranty

Payment Options

We accept CASH, EFTPOS, VISA or Master Card.
Credit cards incur 2% surcharge and are in store only.

We accept Direct Deposit for orders being freighted.

Important Information

Prices and specifications are subject to change.
Images are for illustration purposes and may be different to final product.

Please check the manufacturer's website for up to date specifications
