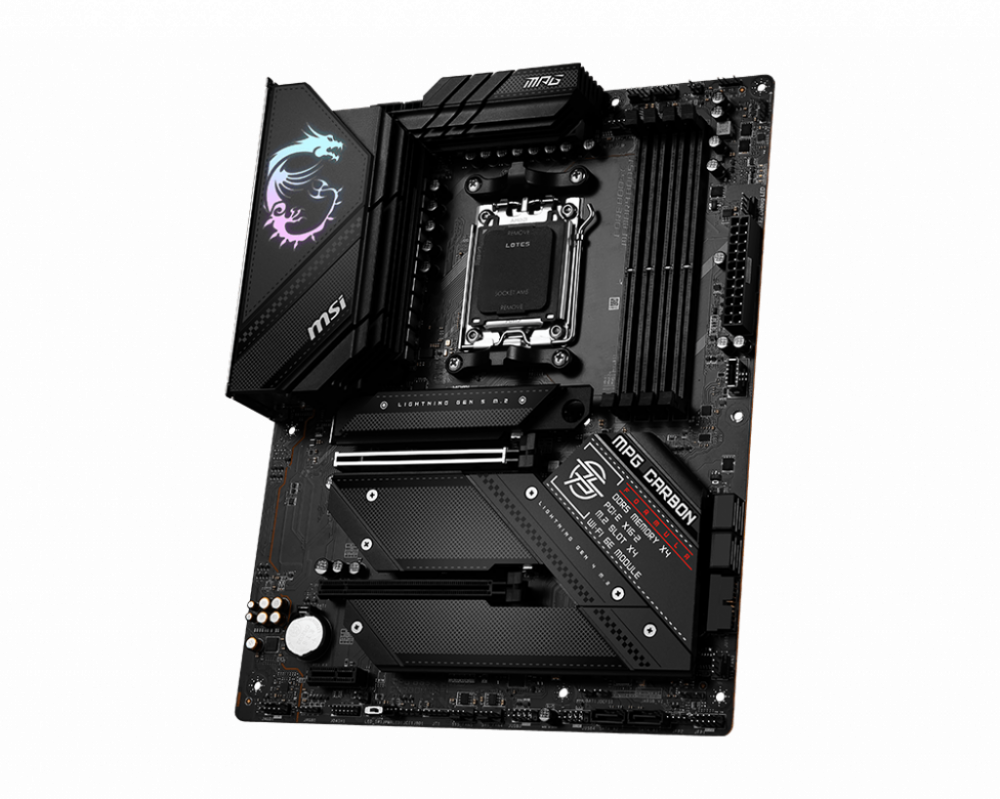

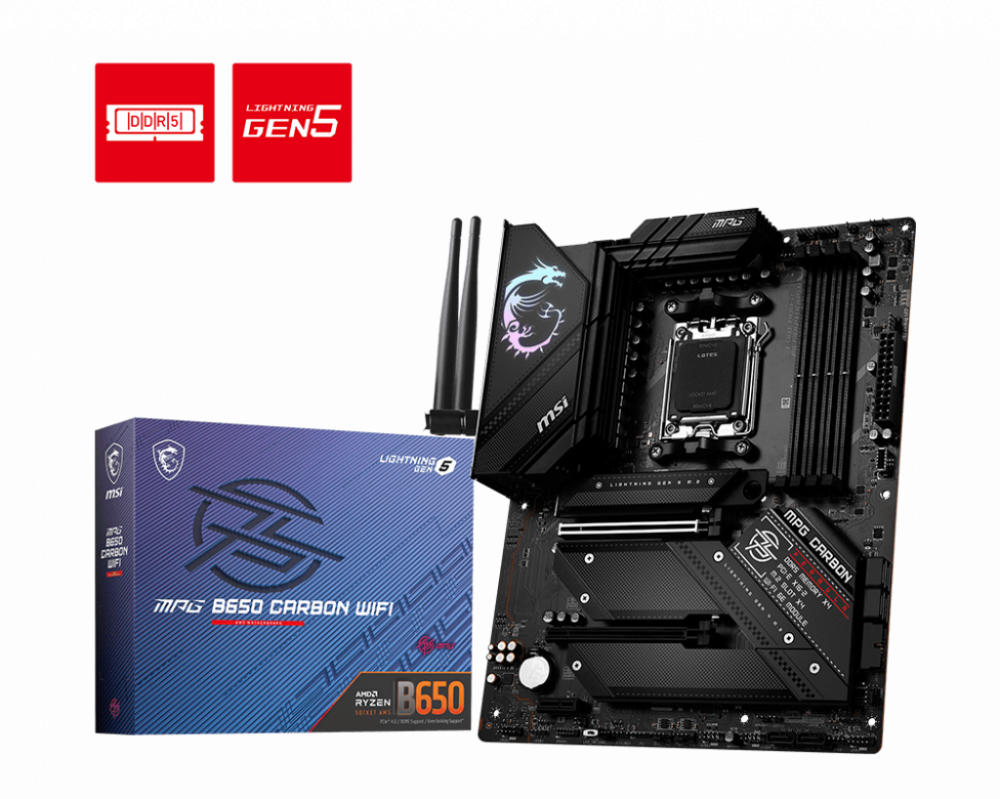

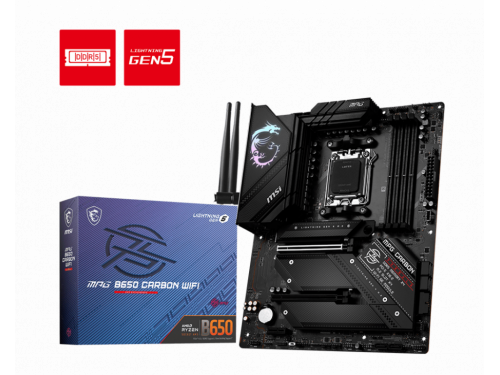

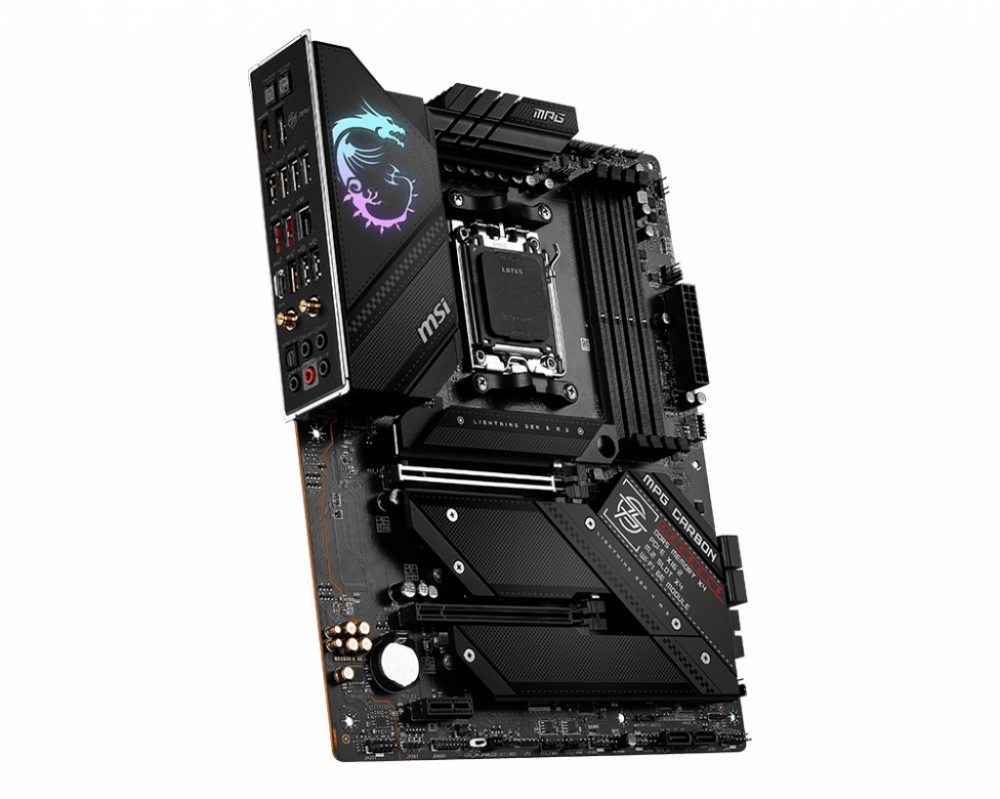

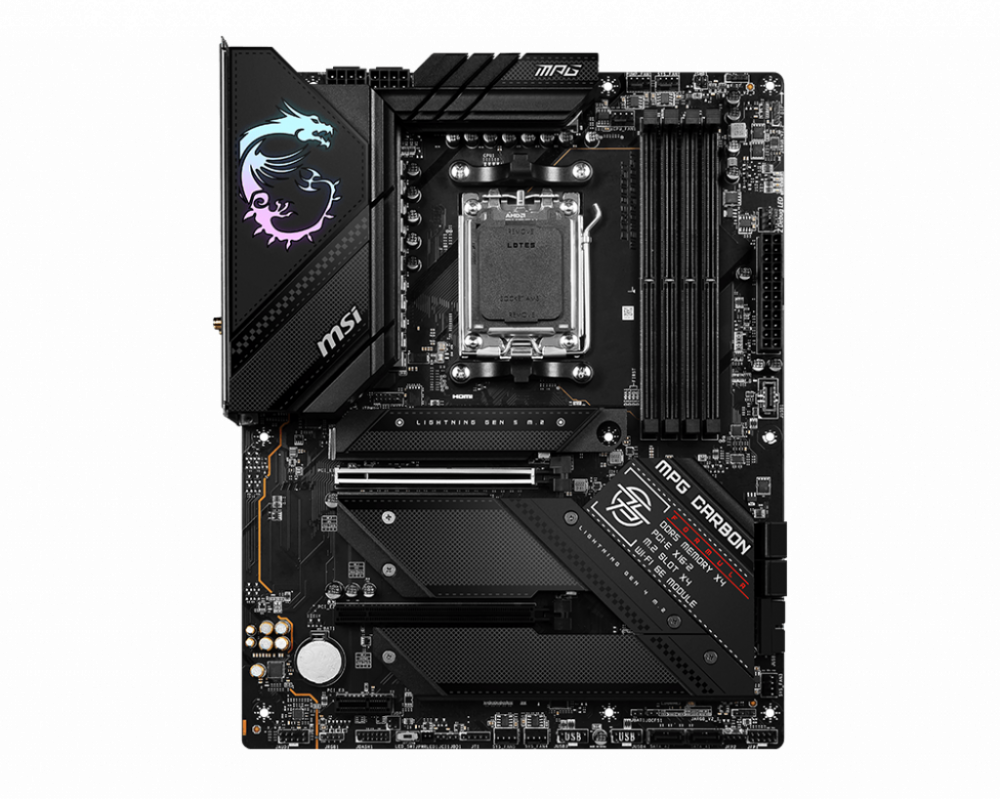

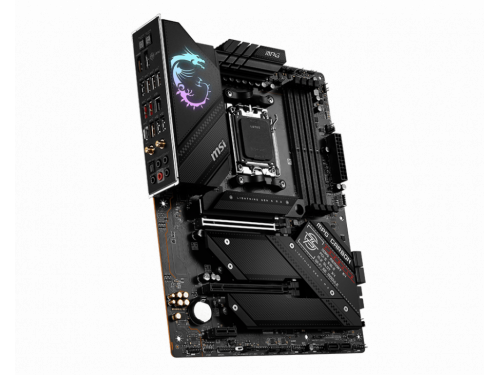

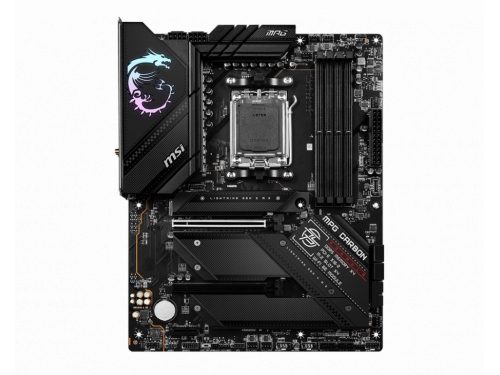

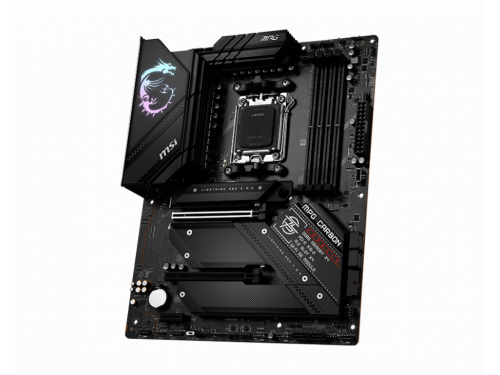

MSI MPG B650 CARBON WIFI MOTHERBOARD AMD B650, Socket AM5, ATX, DDR5, 2.5G LAN, WiFi 6E mbMSb650_carbon_wifi

tweet_button MSI MPG B650 CARBON WIFI MOTHERBOARD AMD B650, Socket AM5, ATX, DDR5, 2.5G LAN, WiFi 6E - GameDude Computers
MSI MPG B650 CARBON WIFI MOTHERBOARD AMD B650, Socket AM5, ATX, DDR5, 2.5G LAN, WiFi 6E
mpg_b650_carbon_wifi_01mpg_b650_carbon_wifi_03mpg_b650_carbon_wifi_02mpg_b650_carbon_wifi_04mpg_b650_carbon_wifi_06mpg_b650_carbon_wifi_05
$499.00 each
Brand: MSIMSI

SPECIFICATIONS & DETAILS
Model Name
  MPG B650 CARBON WIFI
Specifications
CHIPSET AMD B650
CPU SUPPORT Supports AMD Ryzen™ 7000 Series Desktop Processors
Socket AM5
MEMORY 4x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 6600+(OC)/6400(OC)/ 6200(OC)/6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max. speed up to 6600+ MHz
• 1DPC 2R Max. speed up to 6000+ MHz
• 2DPC 1R Max. speed up to 6400+ MHz
• 2DPC 2R Max. speed up to 4000+ MHz

Support Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO™
ONBOARD GRAPHICS 1x HDMI™
1x DisplayPort
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
Support DP 1.4, maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT 2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 PCIe 4.0 supports up to x4 (From CPU)
PCI_E3 PCIe 3.0 supports up to x1 (From Chipset)
* PCI_E1, M2_2 & M2_3 share the bandwidth. PCI_E1 will run at x8 speed when installing devices in M2_2 or M2_3 slots. Please see manual for more details.
MULTI-GPU Supports AMD MULTI-GPU
STORAGE 4x M.2 slot
M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
6x SATA 6G port
* PCI_E1, M2_2 & M2_3 share the bandwidth. PCI_E1 will run at x8 speed when installing devices in M2_2 or M2_3 slots. Please see manual for more details.
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
* SATA_A1~A2 do not support RAID function.
USB 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Front)
7x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN Realtek® RTL8125 2.5Gbps LAN
WIRELESS / BLUETOOTH AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.2**

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.
** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.
AUDIO Realtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
INTERNAL I/O 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0
2x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C
LED FEATURE 4x EZ Debug LED
1x EZ LED Control switch

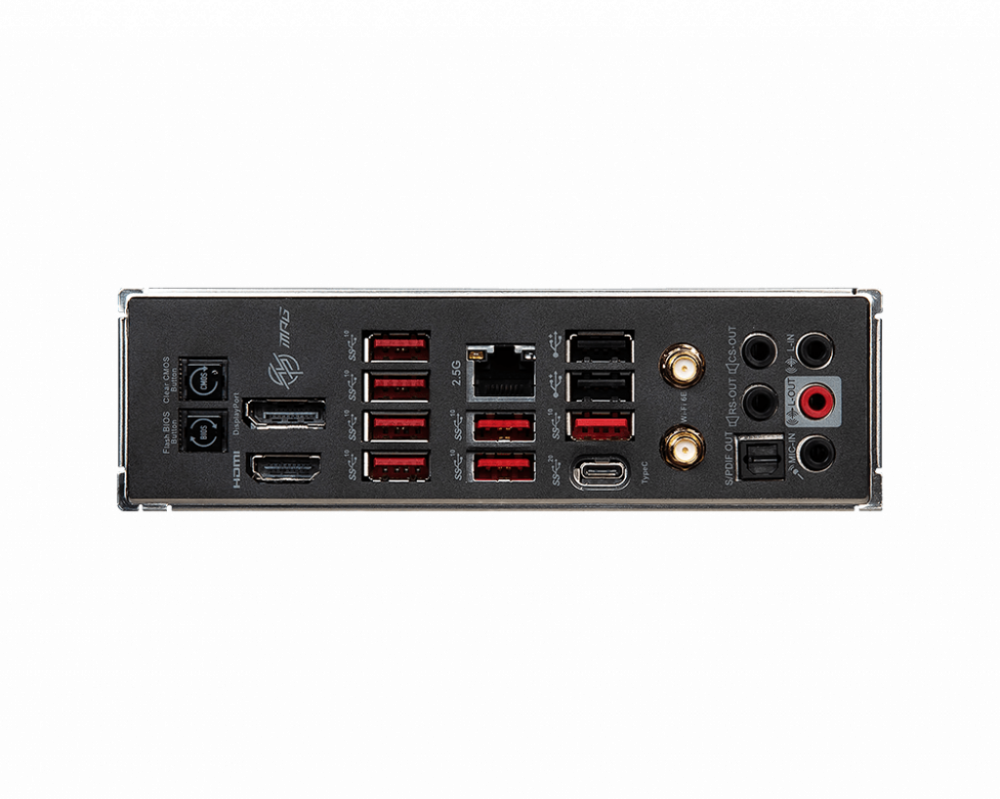

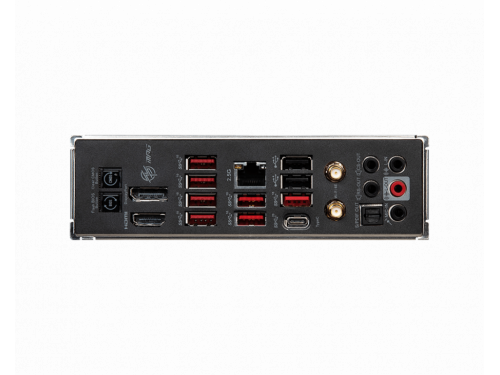

BACK PANEL PORTS Clear CMOS / Flash BIOS
Display Port
2.5G LAN
USB 2.0 (Type-A)
Audio Connectors
HDMI™
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 2x2 20Gbps (Type-C)
Wi-Fi / Bluetooth
Optical S/PDIF Out
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB DIMENSION ATX
243.84mmx304.8mm
