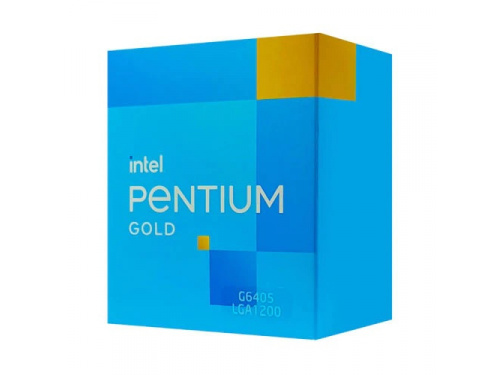

INTEL Pentium Gold G6405 4.1Ghz LGA1200 2Core / 4Thread - Intel® UHD Graphics 610 cpINpentium_g6405

Processor

Processor manufacturer: Intel

Processor model: G6405

Processor base frequency: 4.1 GHz

Processor family: Intel® Pentium® Gold

Processor cores: 2

Processor socket: LGA 1200 (Socket H5)

Component for: PC

Processor lithography: 14 nm

Processor threads: 4

System bus rate: 8 GT/s

Processor operating modes: 64-bit

Processor cache: 4 MB

Processor cache type: Smart Cache

Thermal Design Power TDP: 58 W

Box: Y

Memory bandwidth supported by processor max: 41.6 GB/s

Processor codename: Comet Lake

Processor ARK ID: 201901

Memory

Maximum internal memory supported by processor: 128 GB

Memory types supported by processor: DDR4-SDRAM

Memory clock speeds supported by processor: 2666 MHz

Memory channels: Dual-channel

Memory bandwidth max: 41.6 GB/s

Graphics

On-board graphics card: Y

Discrete graphics card: N

On-board graphics card model: Intel® UHD Graphics 610

Maximum on-board graphics card memory: 64 GB

On-board graphics card base frequency: 350 MHz

On-board graphics card dynamic frequency max: 1050 MHz

Number of displays supported on-board graphics: 3

On-board graphics card 4K support: Y

On-board graphics card DirectX version: 12.0

On-board graphics card OpenGL version: 4.5

On-board graphics card maximum resolution DisplayPort: 4096 x 2304 pixels

On-board graphics card maximum resolution eDP - Integrated Flat Panel: 4096 x 2304 pixels

On-board graphics card maximum resolution HDMI: 4096 x 2160 pixels

On-board graphics card refresh rate at maximum resolution DisplayPort: 60 Hz

On-board graphics card refresh rate at maximum resolution eDP - Integrated Flat Panel: 60 Hz

On-board graphics card refresh rate at maximum resolution HDMI: 30 Hz

On-board graphics card ID: 0x9BA8

Discrete graphics card model: Not available

Features

Execute Disable Bit: Y

Idle States: Y

Thermal Monitoring Technologies: Y

Market segment: Desktop

Use conditions: PC/Client/Tablet

Maximum number of PCI Express lanes: 16

PCI Express slots version: 3.0

PCI Express configurations: 1x16,2x8,1x8+2x4

Supported instruction sets: SSE4.1,SSE4.2

Scalability: 1S

CPU configuration max: 1

Embedded options available: N

Thermal solution specification: PCG 2015C

Harmonized System HS code: 8542310001

Export Control Classification Number ECCN: 5A992C

Commodity Classification Automated Tracking System CCATS: G077159

Processor special features

Intel Hyper Threading Technology Intel HT Technology: Y

Intel Identity Protection Technology Intel IPT: Y

Intel Turbo Boost Technology: N

Intel Quick Sync Video Technology: Y

Intel InTru 3D Technology: Y

Intel Clear Video HD Technology Intel CVT HD: Y

Intel AES New Instructions Intel AES-NI: Y

Enhanced Intel SpeedStep Technology: Y

Intel Trusted Execution Technology: N

Intel Thermal Velocity Boost: N

Intel Transactional Synchronization Extensions: N

Intel VT-x with Extended Page Tables EPT: Y

Intel Secure Key: Y

Intel Stable Image Platform Program SIPP: N

Intel OS Guard: Y

Intel Clear Video Technology: Y

Intel Software Guard Extensions Intel SGX: Y

Intel 64: Y

Intel Virtualization Technology VT-x: Y

Intel Virtualization Technology for Directed IO VT-d: Y

Intel Turbo Boost Max Technology 3.0: N

Intel Optane Memory Ready: Y

Intel Boot Guard: Y

Intel vPro Platform Eligibility: N

Operational conditions

Tjunction: 100 °C

Technical details

Launch date: Q1'21

Status: Launched

Supported memory types: DDR4-SDRAM

Packaging data

Package type: Retail box

Weight dimensions

Processor package size: 37.5 x 37.5 mm

Other features

Maximum internal memory: 128 GB
