COUGAR BXM 700watt MODULAR 80Plus BRONZE psCGbxm700

tweet_button COUGAR BXM 700watt MODULAR 80Plus BRONZE - GameDude Computers

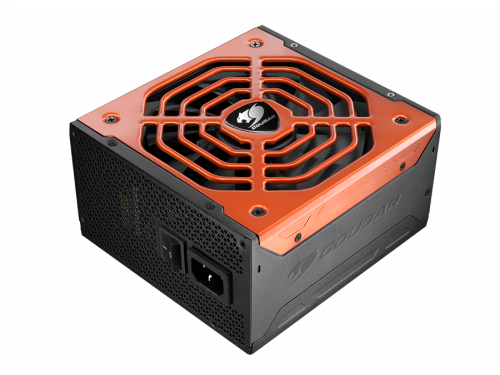

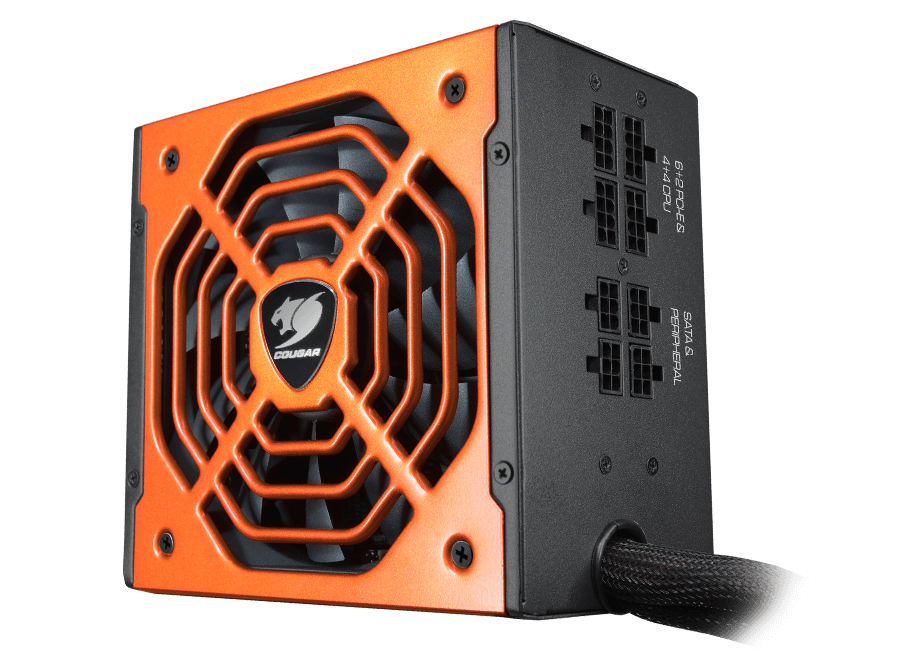

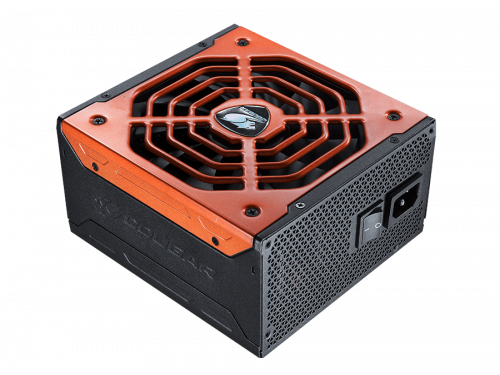

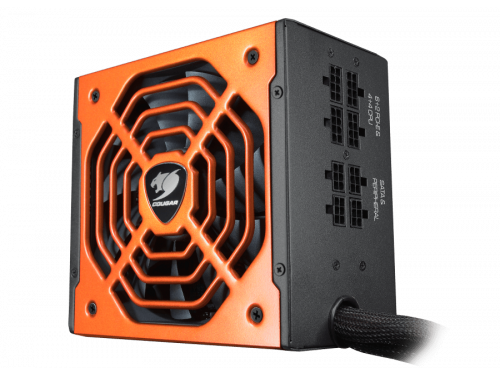

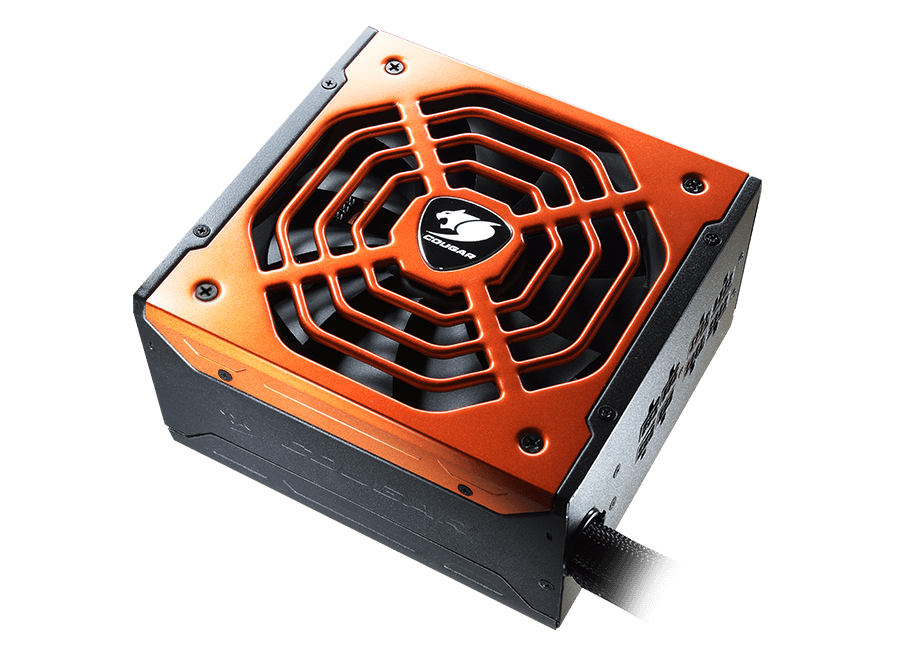

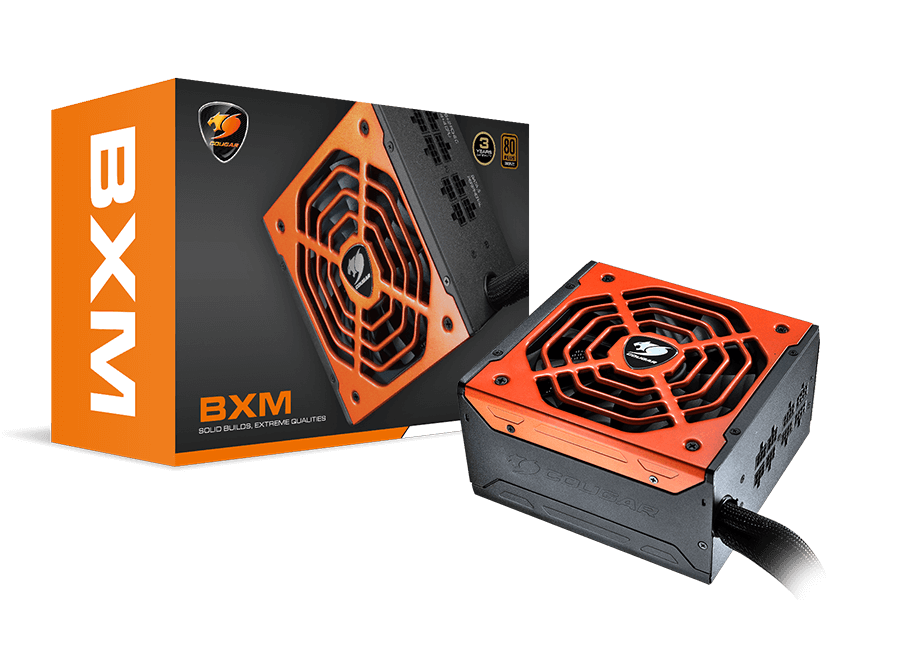

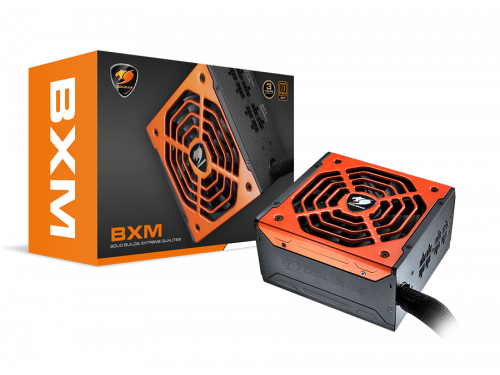

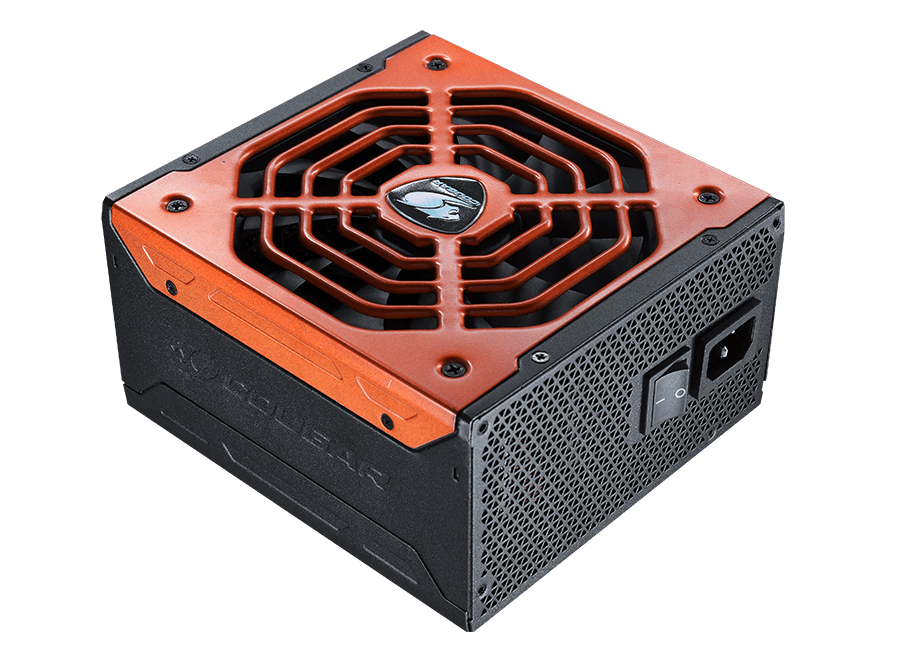

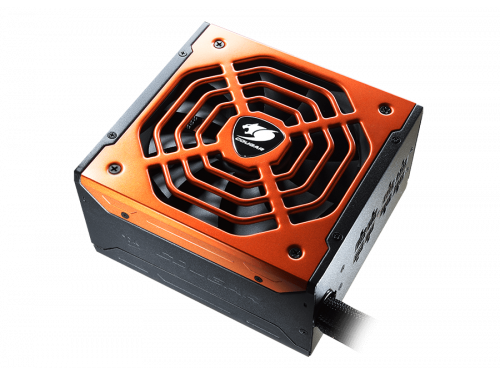

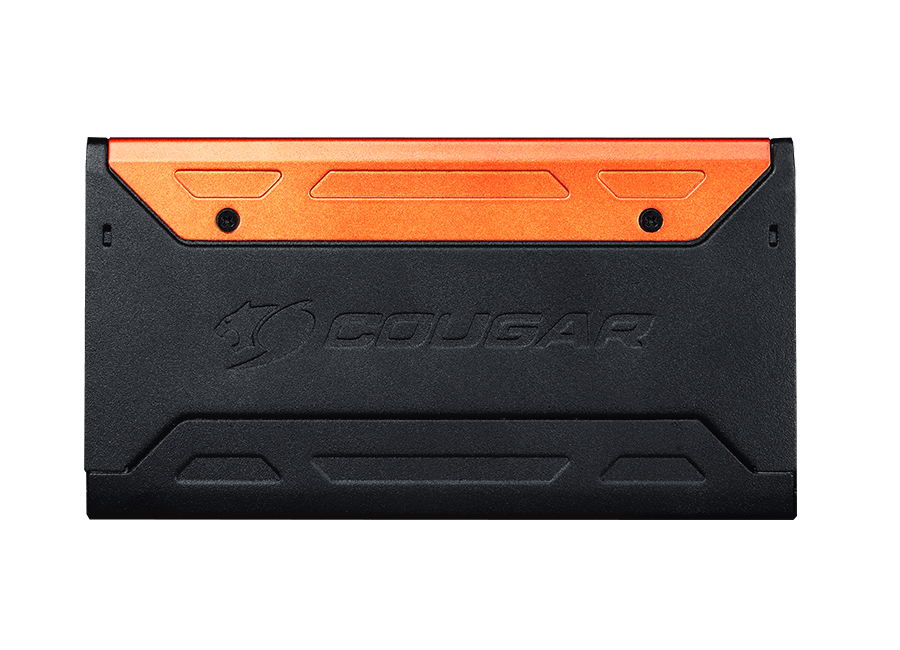

COUGAR BXM 700watt MODULAR 80Plus BRONZE
ON SALE
bmx700_2bmx700_1bmx700_5bmx700_7bmx700_3bmx700_6bmx700_8bmx700_4bmx700_9
RRP: $139.00
Our price: $115.00 each

Brand: COUGARCOUGAR

BXM

Solid Builds, Extreme Qualities

BXM is a high-reliability PSU with 80Plus Bronze efficiency certification. Its DC-DC structure plus durable HDB fan provide stable voltage output and smother cooling. BXM is the best value choice.

Features

80 PLUS Bronze Certified

Up to 86% efficiency power conversion to cut down your electricity bill

Semi-modular Power Supply Unit

Connect only the cables you need for less clutter and better airflow

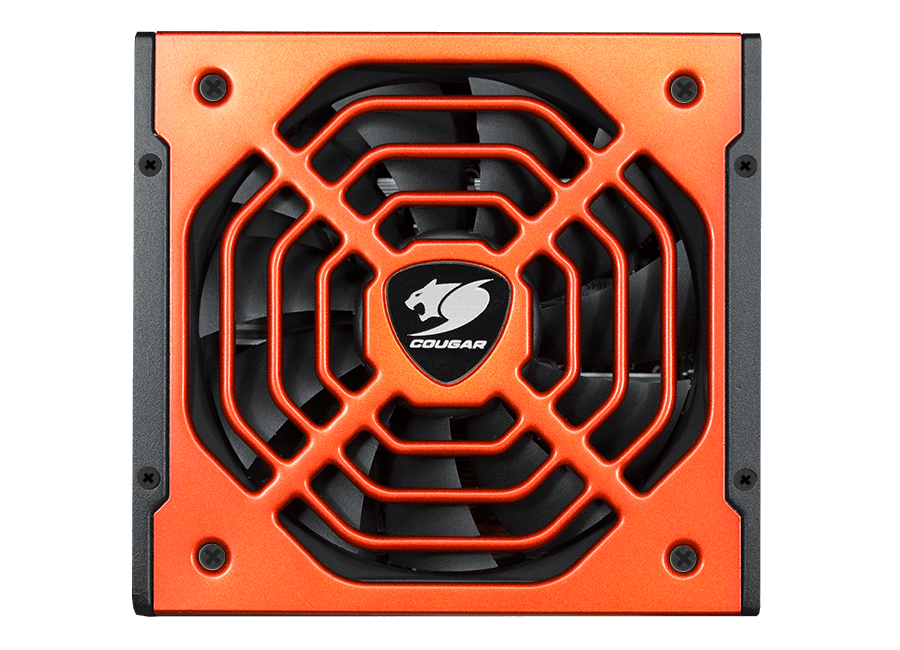

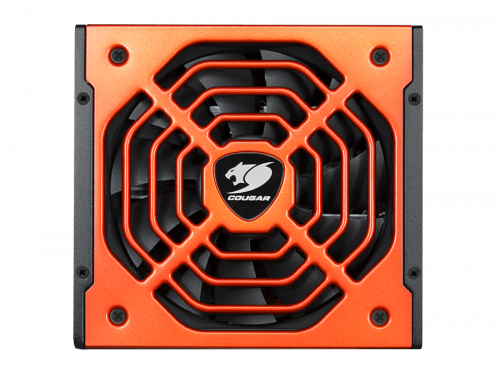

HDB Fan

Hydro Dynamic Bearing Fan: Extended durability and lower noise levels

Superior fan Curve Tuning

Advanced technology for noise minimization

Flawless Operation at 40°C

Powerful performance at 40°C ambient temperature

Ultra-stable Voltage Outputs

DC to DC technology for enhanced voltage stability

Dimension

160 x 150 x 86 (mm)

Strong Safeguards : OCP, OPP, OVP, UVP, SCP & OTP

Maximum safety for your key system components

Specifications

Model Name AC Input DC output
+3.3V +5V +12V -12V +5Vsb Total
BXM700 AC100-240V
50/60Hz 12A
24A 22A 58.3A 0.3A 3A 700W
140W 700W
BXM850 AC100-240V
50/60Hz 16A
25A 25A 70.8A 0.3A 3A 850W
150W 850W
Connector Main CPU Peripherals S-ATA PCI-E
Pin 24(20+4) Pins 8(4+4) Pins 4 Pins 5 Pins 8(6+2) Pins
BXM700 1 2 3 8 4
BXM850 1 2 3 8 6
