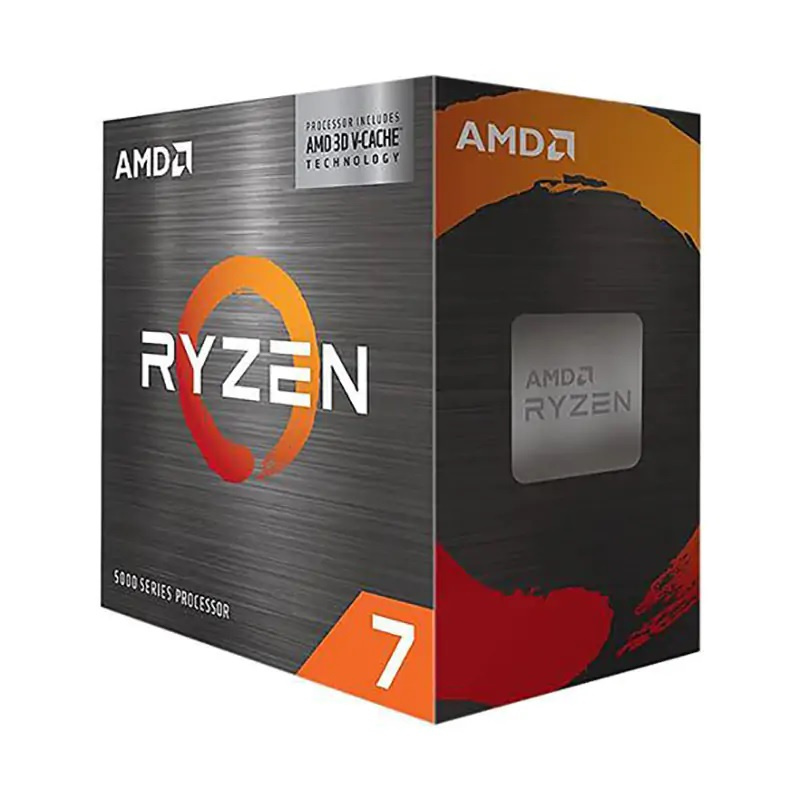

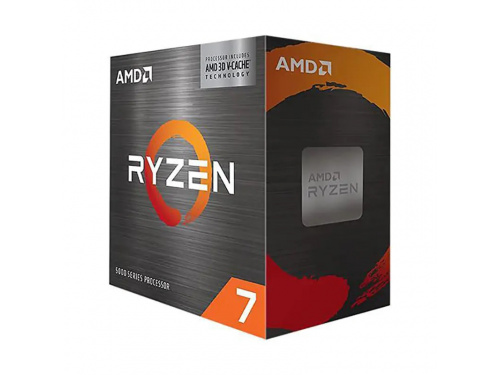

AMD Ryzen 7 5800X3D, 8 Core AM4 CPU, 4.5/3.4Ghz 105W, requires heatsink and fan (not included) cpAMryzen7_5800x3d

Platform

Desktop

Market Segment

Enthusiast Desktop

Product Family

AMD Ryzen™ Processors

Product Line

AMD Ryzen™ 7 Desktop   Processors

Commercial Use

No

Consumer Use

Yes

Regional Availability

Global, China, NA,   EMEA, APJ, LATAM

Former Codename

"Vermeer"

Architecture

"Zen 3"

# of CPU Cores

8

Multithreading (SMT)

Yes

# of Threads

16

Max. Boost Clock

Up to 4.5GHz

Base Clock

3.4GHz

L1 Cache

512KB

L2 Cache

4MB

L3 Cache

96MB

Default TDP

105W

Processor Technology for   CPU Cores

TSMC 7nm FinFET

Processor Technology for   I/O Die

12nm (Globalfoundries)

CPU Compute Die (CCD)   Size

74mm²

I/O Die (IOD) Size

125mm²

Package Die Count

1

CPU Socket

AM4

Socket Count

1P

Supporting Chipsets

X570

X470

B550

B450

A520

CPU Boost Technology

Precision Boost 2

Instruction Set

x86-64

Supported Extensions

AES, AMD-V, AVX, AVX2,   FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64

Thermal Solution (PIB)

Not included

Max. Operating   Temperature (Tjmax)

90°C

*OS Support

Windows 11 - 64-Bit   Edition

Windows 10 - 64-Bit   Edition

RHEL x86 64-Bit

Ubuntu x86 64-Bit

*Operating System (OS)   support will vary by manufacturer.

Connectivity

USB Type-C® Support

Yes

Native USB 3.2 Gen 2   (10Gbps) Ports

4

Native USB 3.2 Gen 1   (5Gbps) Ports

0

Native USB 2.0 (480Mbps)   Ports

0

Native SATA Ports

2

PCI Express® Version

PCIe 4.0

Native PCIe® Lanes   (Total/Usable)

24/20

Additional Usable PCIe   Lanes from Motherboard

AMD X570      16x Gen 4

AMD X470      2x Gen 3

AMD X470      8x Gen 2

NVMe Support

Boot, RAID0, RAID1,   RAID10

System Memory Type

DDR4

Memory Channels

2

Max. Memory

128GB

System Memory Subtype

UDIMM

Max Memory Speed

2x1R    DDR4-3200

2x2R    DDR4-3200

4x1R    DDR4-2933

4x2R   DDR4-2667

ECC Support

Yes (Requires mobo support)

Graphics Capabilities

Integrated Graphics

No

Graphics Model

Discrete Graphics Card   Required

Key Features

Supported Technologies

AMD 3D V-Cache™   Technology

Windows® 11 Gaming

AMD "Zen 3"   Core Architecture

AMD Ryzen™ VR-Ready   Premium
