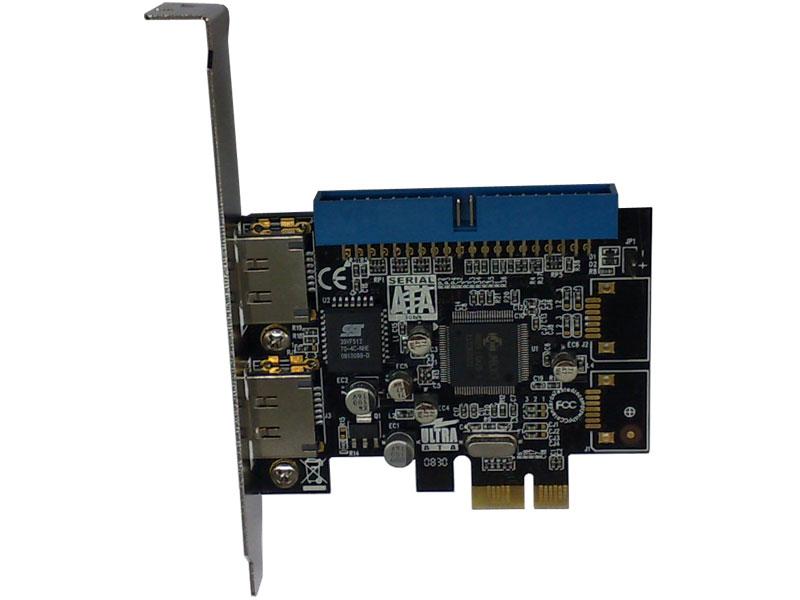

X-Sonic COMBO Card 1 x PATA 2 x E-SATA
MODEL : FG-EJ363-1A2E-A4-01-UN01
FEATURES
Compliant with Serial ATA AHCI (Advanced Host Controller Interface) Specification Rev 1.0
Compliant with Bus Master Programming interface for IDE ATA Controllers Revision 1.0
Compliant with PCI Express Base Spec. Revision 1.0a
Compliant with Serial ATA High Speed Serialized AT Attachment Spec. Revision 1.0a
Complaint with Serial ATA II Spec
1-Lane 2.5Gbps PCI Express bus
Supports 1 x PATA and 2 x E-SATA Channels
Supports Windows 2000, XP32/64-bit, Server2003 32/64-bit, and Vista32/64-bit operating systems
Supports RAID 0, 1, 0+1, JBOD (for RAID version only)
Parallel ATA (PATA) interface:
Support up to Ultra-DMA 6 transfer mode
Transfer rate up to 133MBps
Supports up to two PATA IDE drives
Serial ATA (SATA) interface:
Supports up to two 3.0Gbps SATA II storage devices
Supports Native Command Queue (NCQ) on SATA II port
Supports Port Multiplier with Command-based Switching on SATA II port
Supports Hot Plugging on SATA II port
