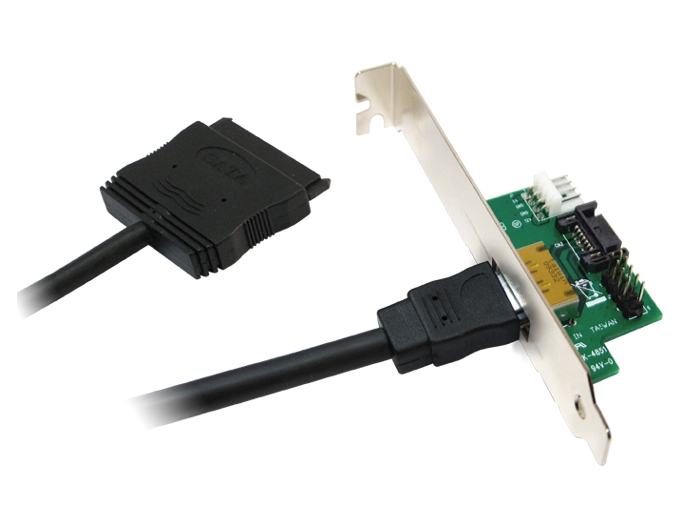

WELLAND EZSTOR EPC-101
External Port
1 x External Power over eSATA ( eSATAp) port
(Compatible with Power over eSATA / USB A Type / eSATA connector)
Form Factor
Standard 121mm Bracket
Bus Power Support
5V / 12V
Data Transfer Rates
USB2.0 up to 480 Mbps; eSATA up to 3Gbps
System Requirements Windows 2000 / Server 2000 / XP / Vista / 7 , MAC 10.4.6 or later, Linux
Motherboard with a free USB pin header
Available 12V power cable (with small 4 pin power plug)
Drive Support
2.5" / 3.5" SATA HDD or 5.25" SATA ODD
Connector Type SATA Male (22 pin) to Power over eSATA (eSATAp) Male
Cable Length 100cm (approximately 39 inches)
Transmission Rate eSATA up to 3Gbps
Hardware Requirements
Any PC or notebook with Power over eSATA ( eSATAp) port
Notebook with eSATAp built-in
