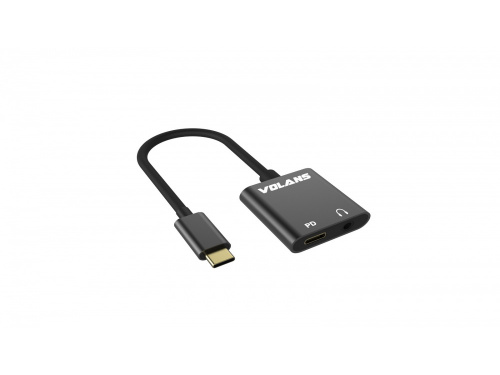

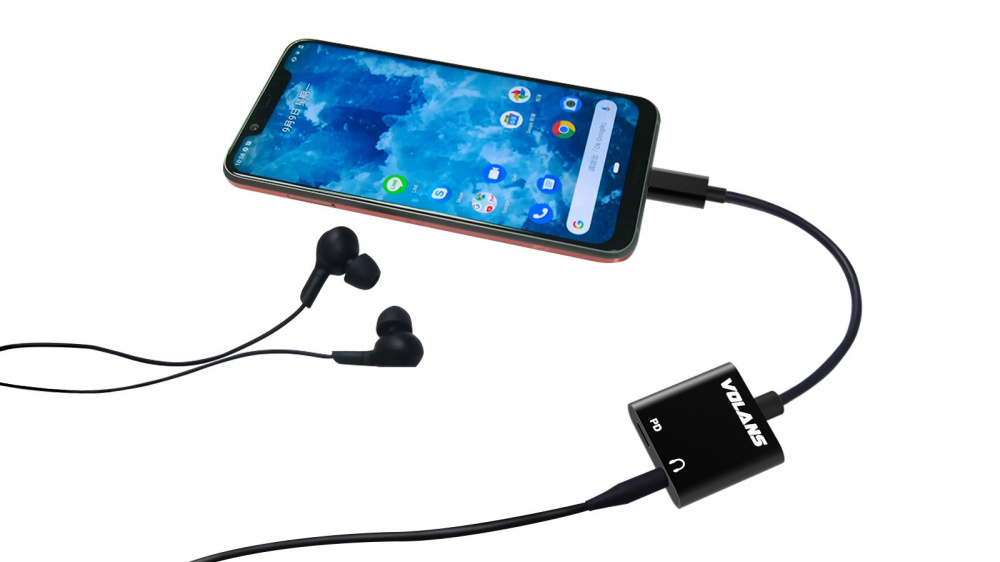

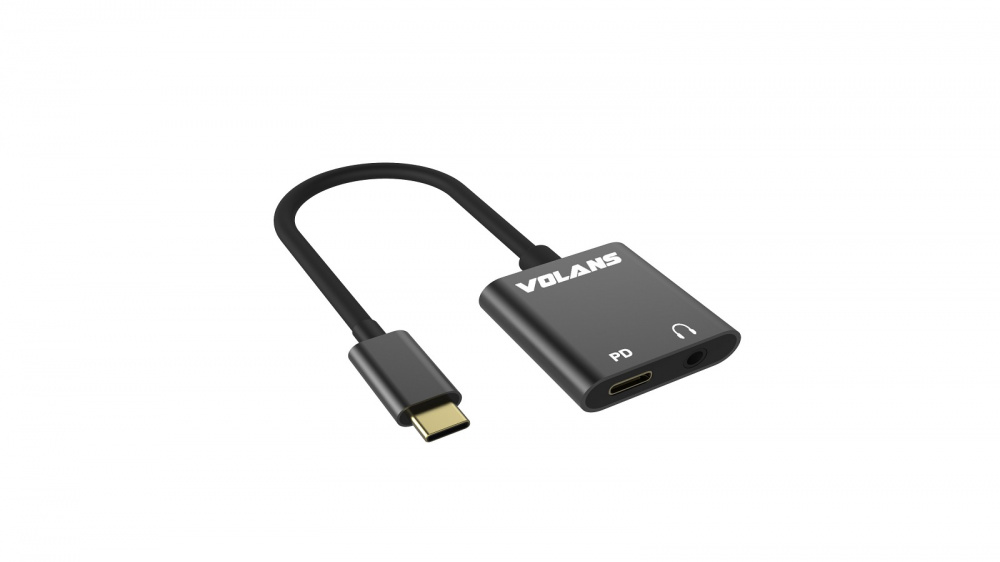

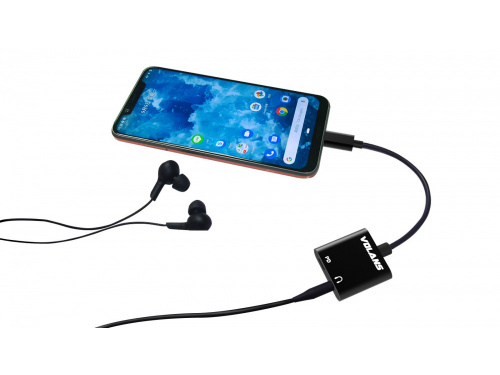

Volans USB-C to 3.5mm Audio Adaptor lets you connect your USB-C enabled device to a 3.5mm enabled device such as headphones, speakers or amplifiers while charging your device with up to 20V/5A of charging power. The adapter also supports mic function on the headphones with built in microphone.
- Compliant with USB-C Specification Revision 1.1
- Compliant with the latest Power Delivery Specifaction Revision 2.0
- Compliant USB 1.1/2.0 Full-speed and high-speed
- USB Audio class 1.0 and 2.0 compliant
- 3 channel ADC for audio and micphone input
- High-resolution audio (24-bit/48kHz)
- 48K/44.1KHz Sampling Rate for both Playback and Recording
- Embedded 16bit audio DAC with Earphone Phone Buffer
- PD2.0 (100W, 20V/5A)
- Protocol pass-through to control your music on the go
Specification
- Model: VL-UCAP
- Material: Aluminium
- Chipset: CH7213 (PD) + ATE1130 (Audio)
- Input: USB-C
- Output: 3.5mm stereo jack + USB-C (PD Only)
- Systems: Windows 7 / 8.x / 10 or Mac OS X / Linux / Andriod
