Specification
Front:

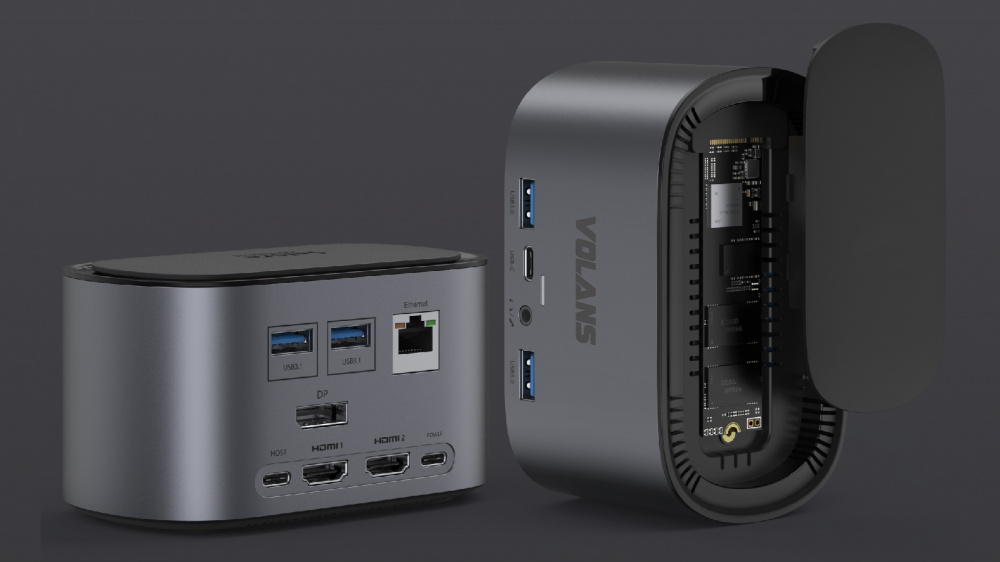

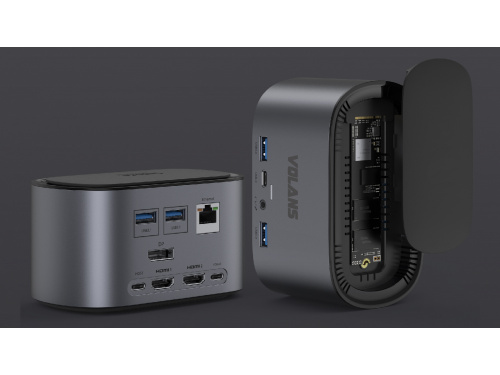

1. M.2 SSD Enclosure (*Note: SSD is not included)
Compatible SSD:
a. M.2 NVMe SSD (M Key and B&M Key) up to 10Gb/s
b. M.2 SATA (B&M Key) up to 5Gb/s
Applicable to sizes 80mm (2280), 60mm (2260), and 42mm (2242) M.2 form factor SSDs
*NOTE: Not compatible with M.2 SATA B Key SSDs, M.2 PCIe AHCI SSDs, M.2 PCIe devices such as WiFi and capture cards, mSATA SSDs, and other non-M.2 form factor SSDs.
2. LED indicator
3.USB-A 3.1 Gen 1 (Data): Data Transfer up to 5Gb/s data speed, backwards compatible with USB2.0/USB1.1
4.USB-C 3.1 Gen 1 (Data): Data Transfer up to 5Gb/s data speed, backwards compatible with USB2.0/USB1.1
5. 3.5mm Audio & Microphone (CTIA Standard)
6.USB-A 3.1 Gen 1 (Data): Data Transfer up to 5Gb/s data speed
Back:
1. USB-A 3.1 Gen 2 (Data): Data Transfer up to 10Gb/s data speed, backwards compatible with USB3.0/2.0/1.1
2. USB-A 3.1 Gen 2 (Data): Data Transfer up to 10Gb/s data speed, backwards compatible with USB3.0/2.0/1.1
3. RJ45 Gigabit Ethernet:
Up to 1000Mbps, stable wired access for high-speed connectivity. Connect to the internet instantly via a wired gigabit Ethernet port.
4. DP:
Up to 4K @60Hz resolution (work separately while the specification of your Laptop USB-C Port is DP1.4)
Up to 4K @30Hz resolution (work separately while the specification of your Laptop USB-C Port is DP1.2)
5. USB-C: connect to host (please do not connect the wrong USB-C Port)
6. HDMI 1:
Up to 4K @60Hz resolution (work separately while the specification of your Laptop USB-C Port is DP1.4)
Up to 4K @30Hz resolution (work separately while the specification of your Laptop USB-C Port is DP1.2)
7. HDMI 2: 4Kx2K 30Hz / 3840×2160 max
8. USB-C: PD 3.0 100W Max.
Upstream charging your host computer as well as power supply the docking station. Up to 100W upstream charging the source devices such as USB-C Laptop/MacBook. Please make sure your device support power delivery protocol
