USB3.0 to HDMI Video Capture Card 60fps 4K 1080p HD Recorder Game Live Stream
usb3_hdmi_cap_1usb3_hdmi_cap_2

Product Description
Material: metal shell
Size: 10.3*6.2*1.3cm
Chip: 1
Video output resolution: 1080P (maximum)
HDMI resolution: 4K (maximum)
Interface: USB
Frequency: 1080P/60Hz
HDMI input supports 4K/60Hz
Loop output 4K60HZ
Video output format: YUV, JPEG
Compatible: Windows 7, 8, 8.1, 10 or later, Linux OS, Mac OS operating system

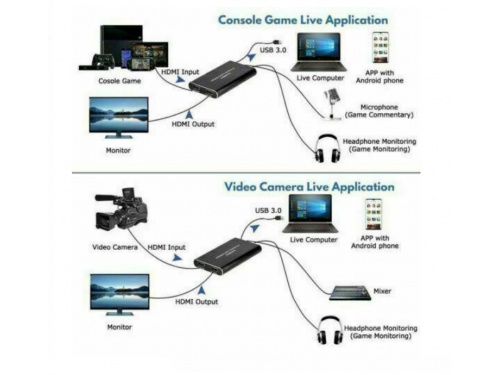

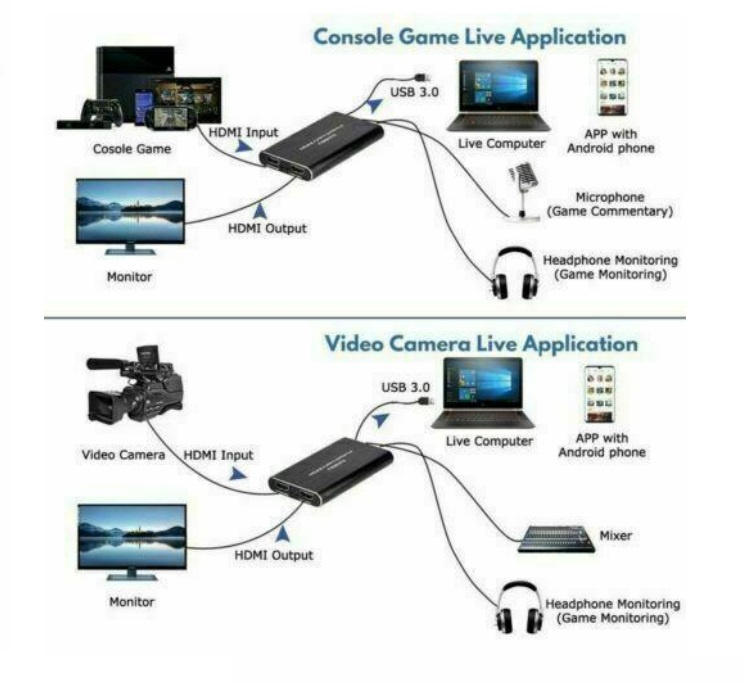

Function: Collect, live broadcast, and record video through HDMI interface
Operating temperature range: (-10 to +55°C)
Maximum working current: 0.4A/5V DC.
Input cable distance: ≤15m, AWG26 HDMI standard cable
Support audio format: L-PCM
Features:
1. USB3.0, 300~350MB/s bandwidth, compatible with USB 2.0;
2. With MIC microphone audio input; with headphone output
3. It can automatically detect the input video format and automatically adjust to the set output size and frame rate
4. It can automatically detect the input audio format and convert it to 48KHz PCM audio
5. Multiple capture sticks can be used on one PC
6. The picture quality is clearer, the RGB color range is 0~255, and the delay is better
7. Support all third-party player software compatible with UVC and UAC protocols

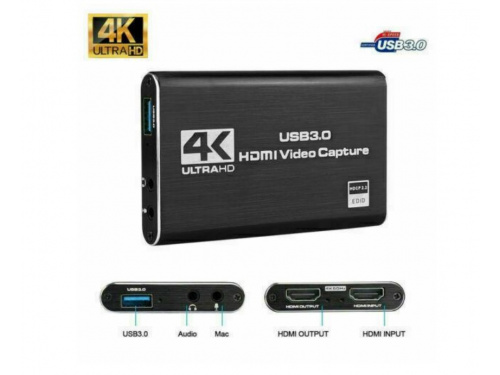

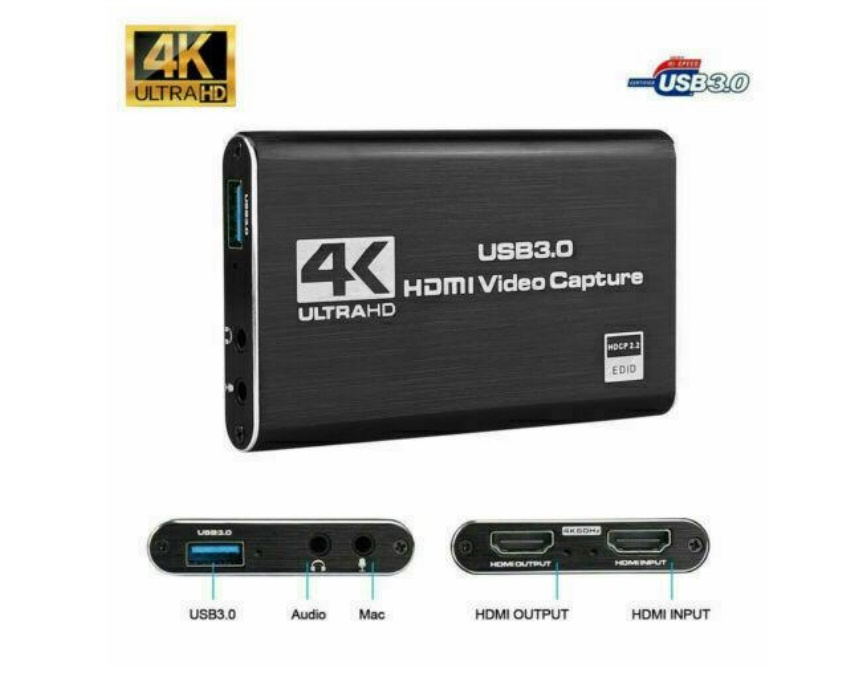

Interface Description:
1. Signal indicator: When the device captures video normally, the indicator lights up
2. Power indicator light: when the device is connected to the USB port of the computer, the indicator light is on
3. HDMI input: This slot is the location for connecting HDMI output sources such as cameras, camcorders, game
boxes, IPTV boxes, etc.
4. USB3.0 output: This slot is where you connect to the USB3.0 input of your computer or notebook
Product List:
1*Acquisition card
1*USB3.0 male to male extension cable (30cm)
1*English manual
