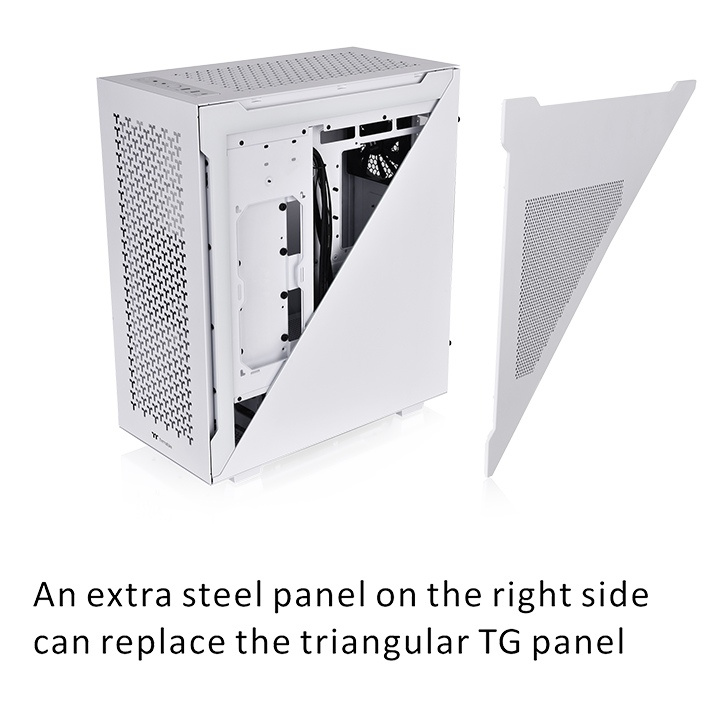

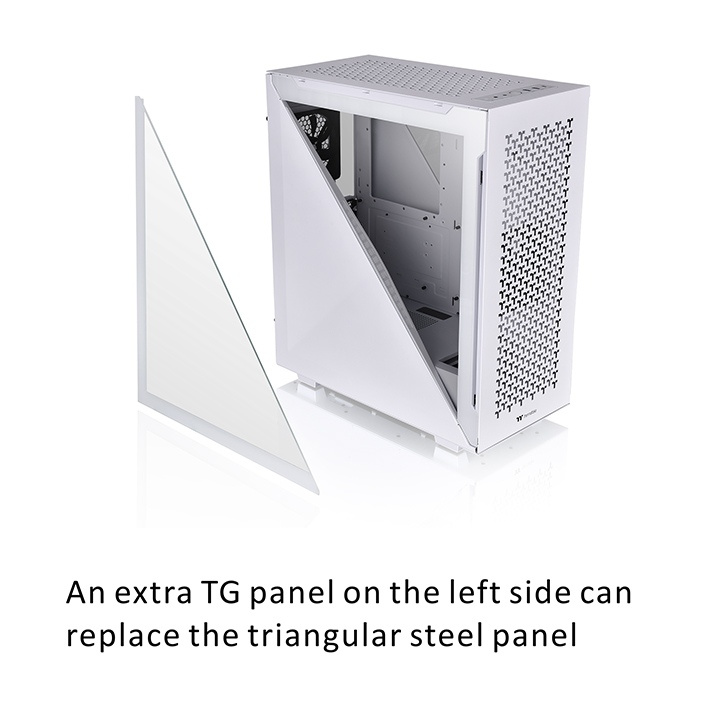

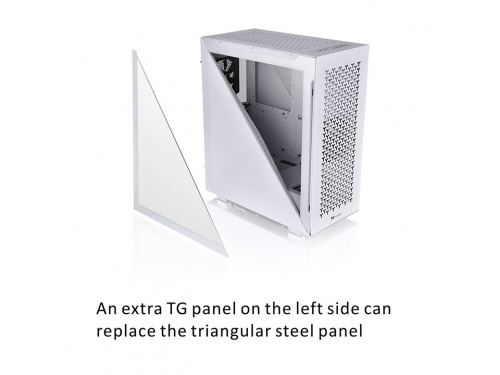

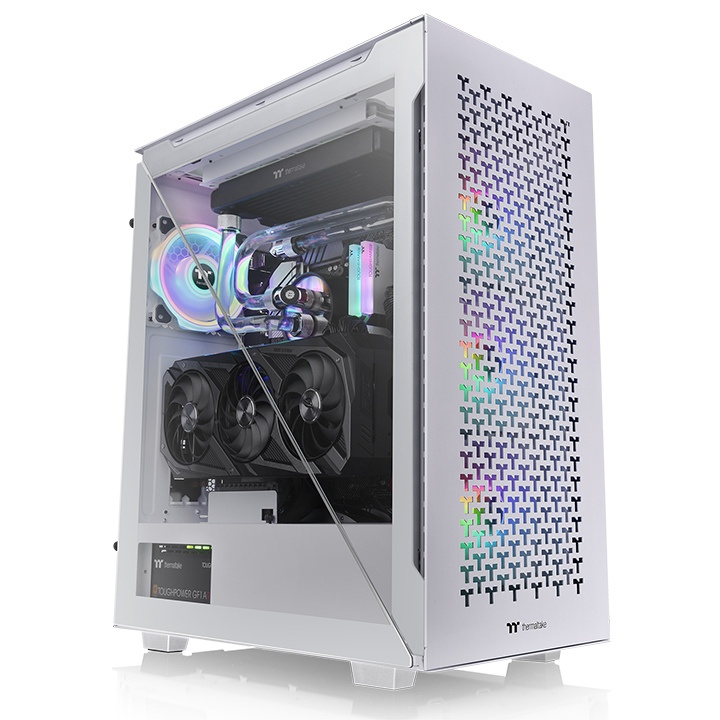

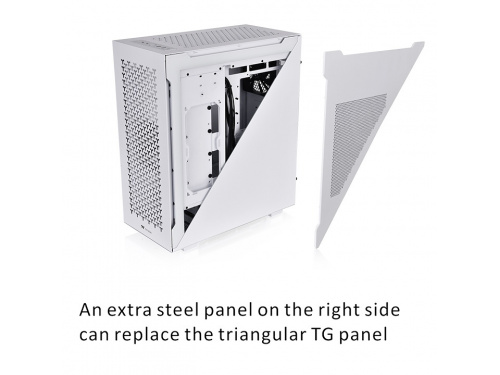

The Divider 500 TG Air Snow is an ATX mid-tower case that comes with one 120mm standard front fan, one 120mm standard rear fan, two airflow-optimized mesh panels at the front and top, two durable 3mm tempered glass windows on the left and right sides. Additionally, the case comes with two symmetrical triangular panels one in tempered glass and the other in steel which are available for more options.
| P/N |
CA-1T4-00M6WN-02 |
|---|
| Series |
Divider |
|---|
| Model |
Divider 500 TG Air Snow |
|---|
| Case Type |
Mid Tower |
|---|
| Dimension (H x W x D) |
530 x 230 x 466 mm
(20.9 x 9.1 x 18.3 inch) |
|---|
| Net Weight |
10.29 kg / 22.69 lbs. |
|---|
| Side Panel |
3mm Tempered Glass x 2 |
|---|
| Color |
White |
|---|
| Material |
SPCC |
|---|
| Cooling System |
Front(intake):
120 x 120 x 25 mm fan (1200rpm, 22 dBA) x 1
Rear(exhaust):
120 x 120 x 25 mm fan (1200rpm, 22 dBA) x 1 |
|---|
Drive Bays
-Accessible
-Hidden |
2 x 3.5”, 5 x 2.5”
or 7 x 2.5” |
|---|

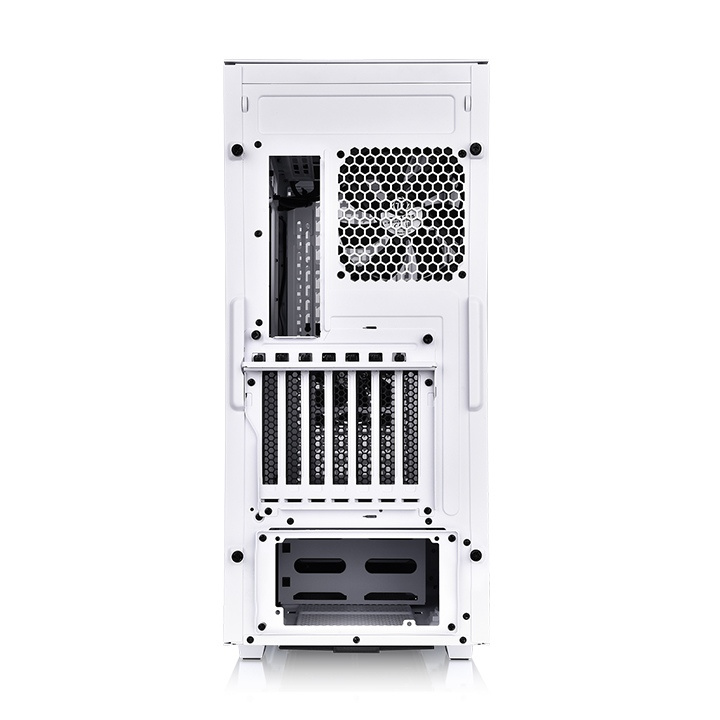

| Expansion Slots |
7 (Rotatable Patented Design) |
|---|
| Motherboards |
6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX) |
|---|
| I/O Port |
USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
|---|
| PSU |
Standard PS2 PSU (optional) |
|---|
| Fan Support |
Front:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm
Top:
2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Right (M/B Side):
2 x 120mm, 1 x 120mm
Rear:
1 x 120mm |
|---|
| Radiator Support |
Front:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Top:
1 x 280mm, 1 x 140mm
1 x 240mm, 1 x 120mm
Right (M/B Side):
1 x 240mm (vertical-installed GPU recommended),
1 x 120mm
Rear:
1 x 120mm |
|---|
| Clearance |
CPU cooler max height:
155mm (with one TG and one steel side panel)
170mm (with two TG)
VGA max length:
360mm (with radiator)
390mm (without radiator)
PSU max length:
180mm (with HDD Cage)
220mm (without HDD Cage) |
|---|
