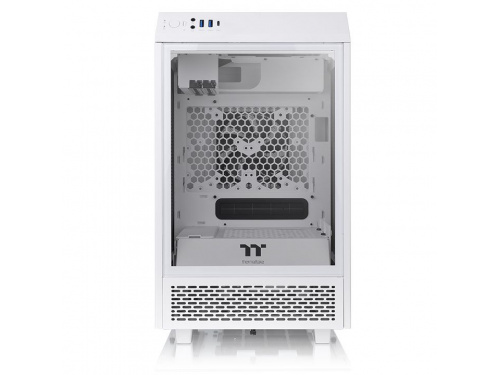

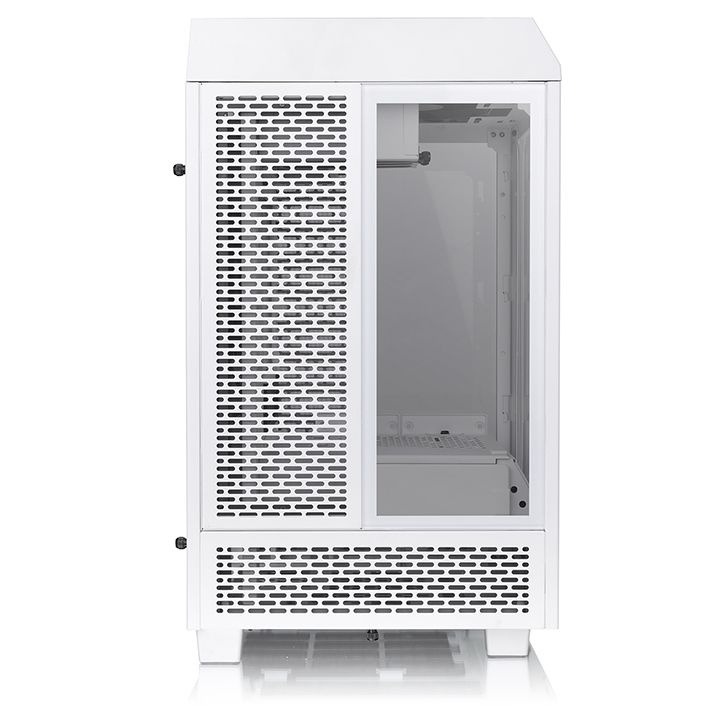

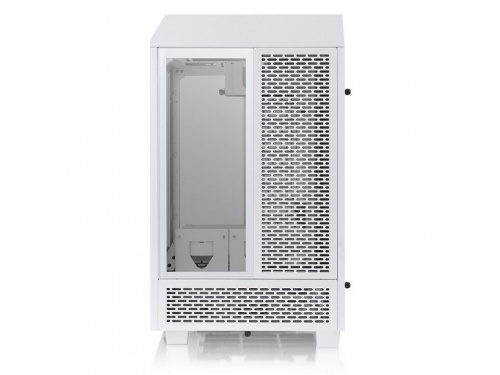

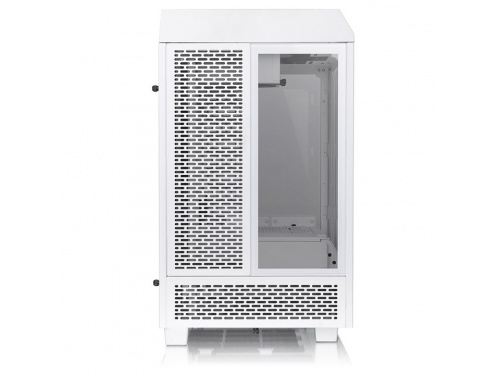

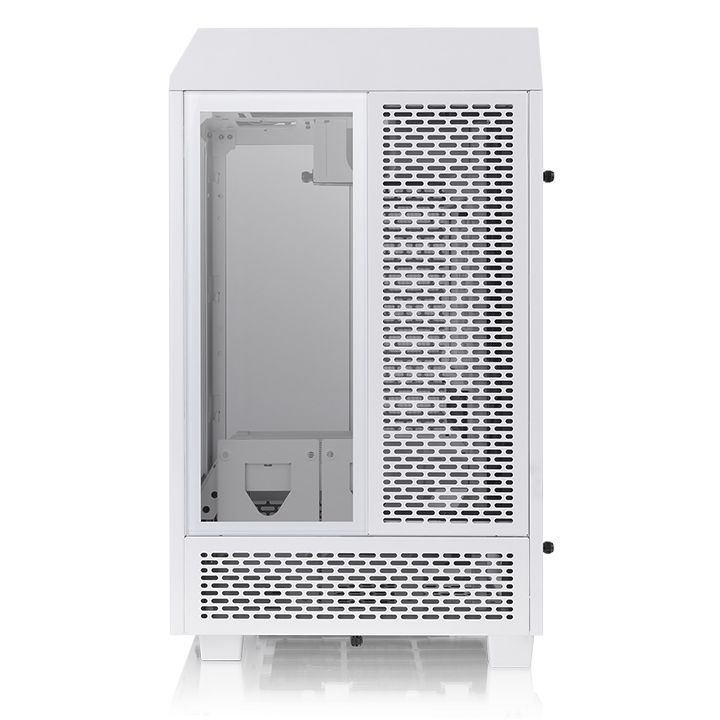

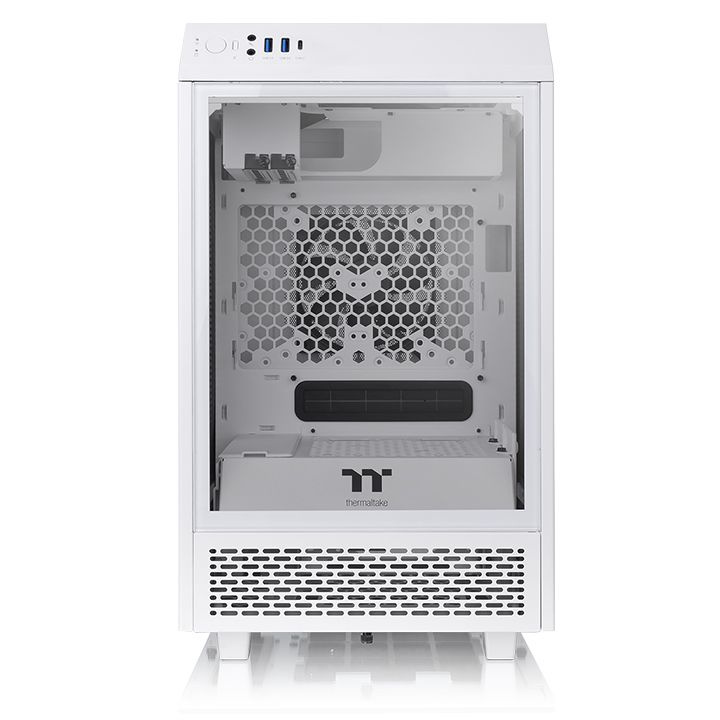

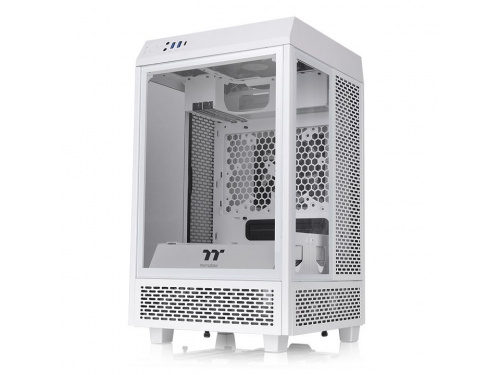

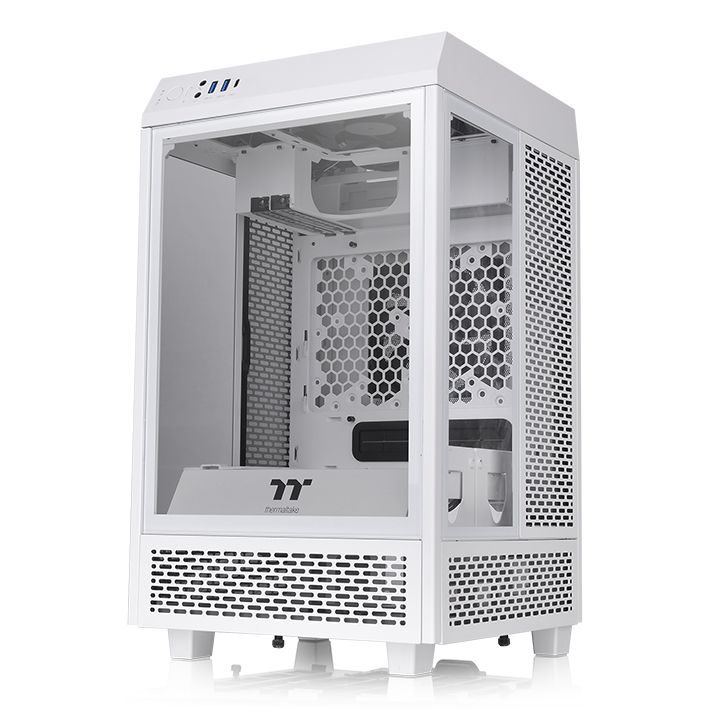

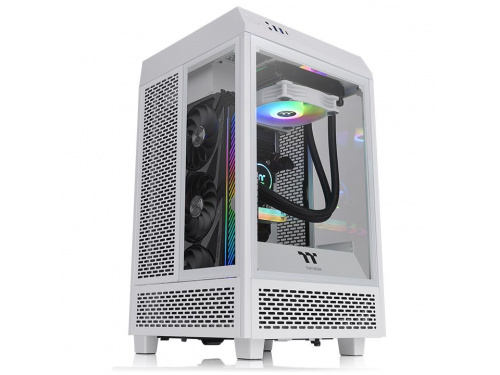

The Tower 100 is a vertically designed mini-ITX chassis with panoramic viewing. It comes with two preinstalled 120mm standard fans and three 4mm tempered glass windows at the front, on left and right side.
| P/N |
CA-1R3-00S6WN-00 |
|---|
| Series |
The Tower |
|---|
| Model |
The Tower 100 Snow |
|---|
| Case Type |
Mini Tower |
|---|
| Dimension (H x W x D) |
462.8 x 266 x 266 mm
(18.2 x 10.5 x 10.5 inch) |
|---|
| Net Weight |
6.1 kg / 13.45 lbs. |
|---|
| Side Panel |
Tempered Glass x 3 (4mm thickness) |
|---|
| Color |
White |
|---|
| Material |
SPCC |
|---|
| Cooling System |
Top(exhaust):
120 x 120 x 25 mm Turbo fan (1000rpm, 16 dBA) x 1
Rear(exhaust):
120 x 120 x 25 mm Turbo fan (1000rpm, 16 dBA) x 1 |
|---|
Drive Bays
-Accessible
-Hidden |
-
2 x 2.5“(with side bracket);
2 x 3.5” (without rear fan) |
|---|
| Expansion Slots |
2 |
|---|
| Motherboards |
6.7” x 6.7” (Mini ITX) |
|---|
| I/O Port |
USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 2 |
|---|
| PSU |
Standard PS2 PSU (optional) |
|---|
| Fan Support |
Top:
1 x 120mm, 1 x 140mm
Rear:
1 x 120mm, 1 x 140mm
Top of the PSU Cover:
1 x 120mm, 1 x 140mm |
|---|
| Radiator Support |
Top:
1 x 120mm |
|---|
| Clearance |
CPU cooler height limitation: 190mm
VGA length limitation: 330mm
PSU length limitation: 180mm |
|---|
