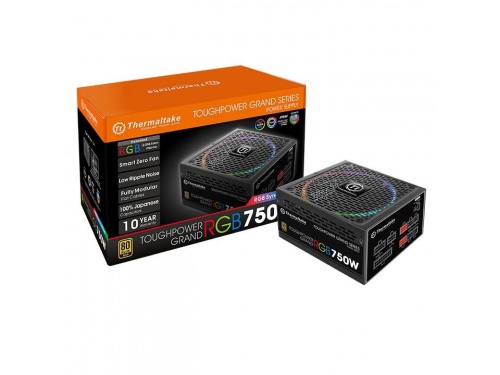

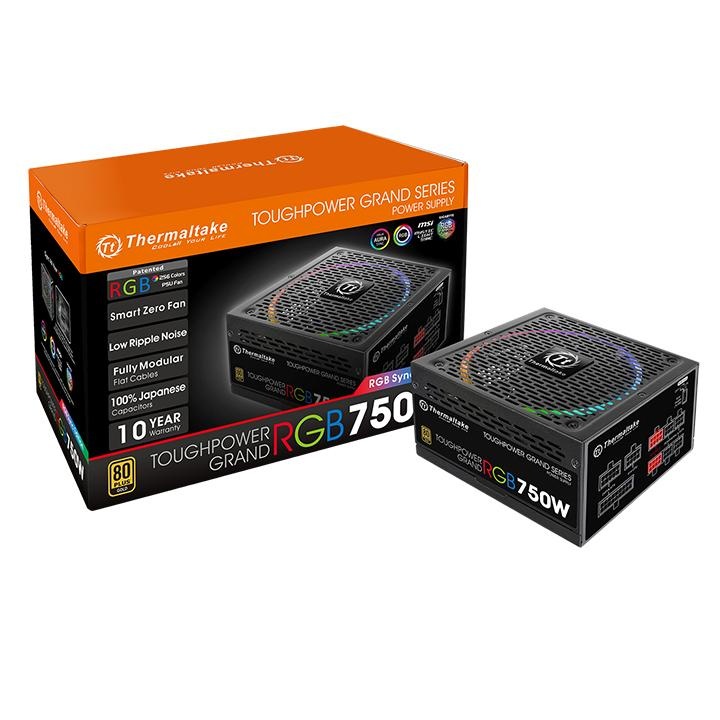

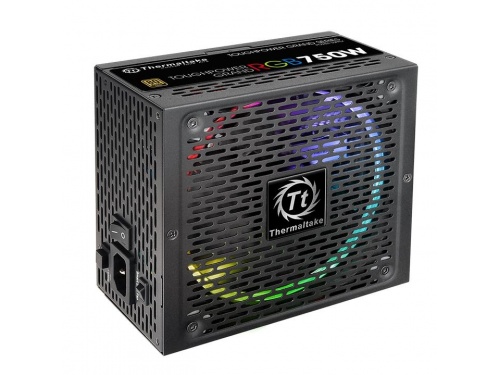

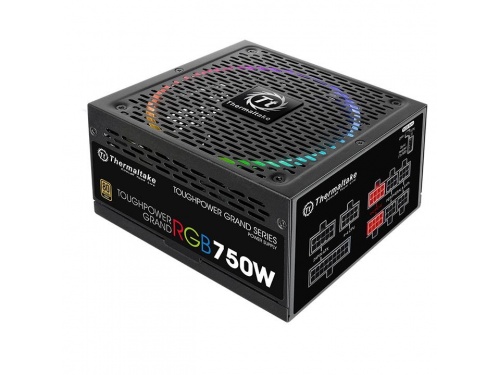

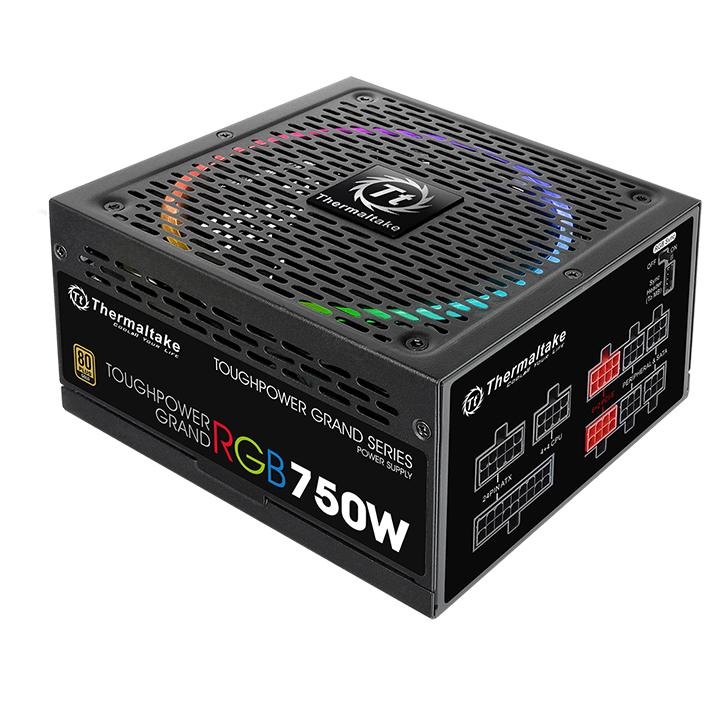

Thermaltake Toughpower Grand RGB 750W Gold (RGB Sync Edition)

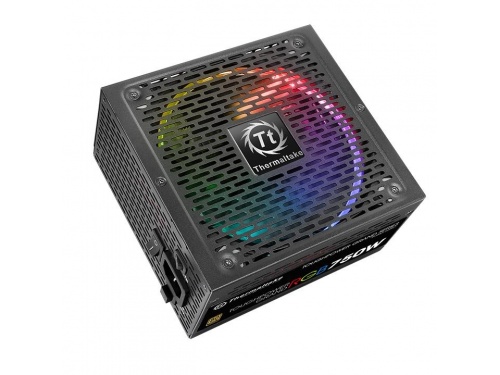

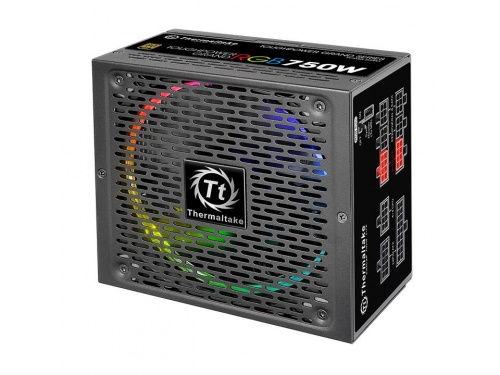

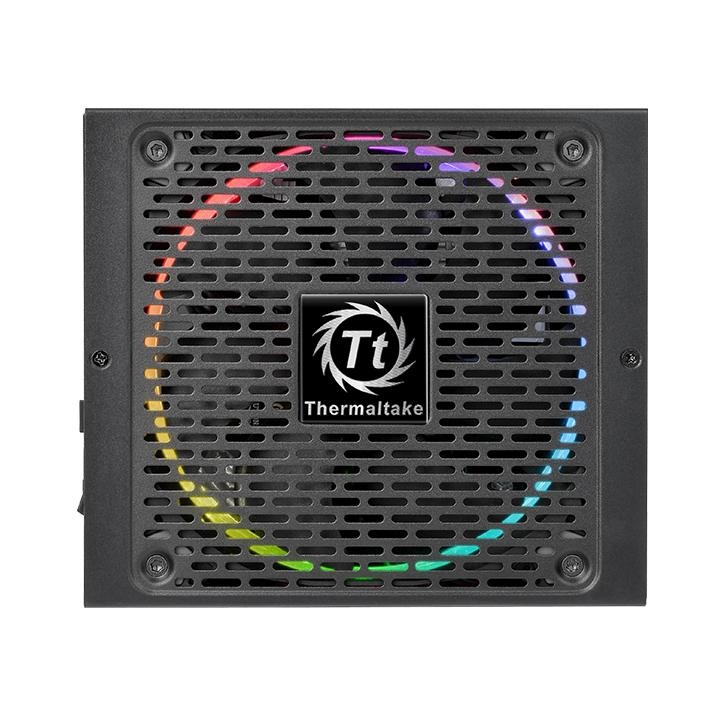

Built to deliver 80 PLUS Gold efficiency, Toughpower Grand RGB Gold (RGB Sync Edition) Series comes with capacities ranging from 650W to 850W. The preinstalled patented 256-color Riing 14 RGB fan allows 5 lighting modes and built-in memory function, and permits more custom RGB lighting possibilities thanks to the light synchronization with enthusiasts’ favorite RGB capable motherboard brands, including ASUS, GIGABYTE, msi, BIOSTAR and ASRock.
Constructed with premium components and ample 10-year warranty, this fully modular member’s near silent operation, trouble free installation and reliable performance have made itself satisfy the market where users are looking for a stylish power supply with advanced features and aesthetic appeal.
P/N
- PS-TPG-0750FPCGxx-S
Model
- TPG-0750FPCGAU-S
Type
- ATX 12V v2.4 and EPS v2.92
Max. Output Capacity
- 750W
Peak Output Capacity
- 900W
Color
- Black
Dimension （ W / H / D ）
- 150mm(W) x 86mm(H) x 160mm(D)
PFC （Power Factor Correction）
- Active PFC
Power Good Signal
- 100-500 msec
Hold Up Time
- > 16msec at 100% of full load
Input current
- 10A
Input Frequency Range
- 50Hz - 60Hz
Input Voltage
- 100V – 240V~
Operating Temperature
- 0°C to + 50°C
Operating Humidity
- 20% to 90%,non-condensing
Storage Temperature
- -40°C to + 70°C
Storage Humidity
- 20% to 95%, non-condensing

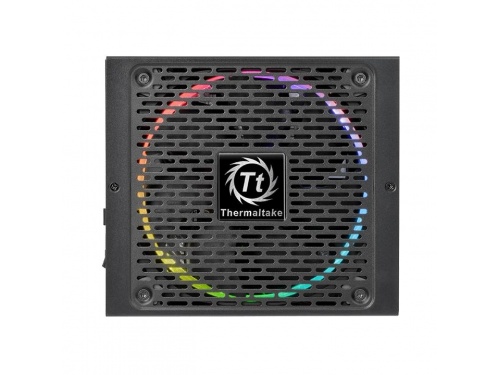

Cooling System
- 14cm hydraulic bearing fan
Efficiency
- Meet 80 PLUS®Gold at 115Vac input.
MTBF
- 120,000 hrs minimum
Safety Approval
- CE/cTUVus/TÜV SÜD/FCC/CCC/BSMI/EAC

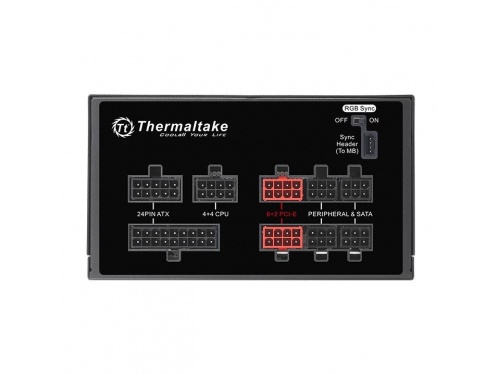

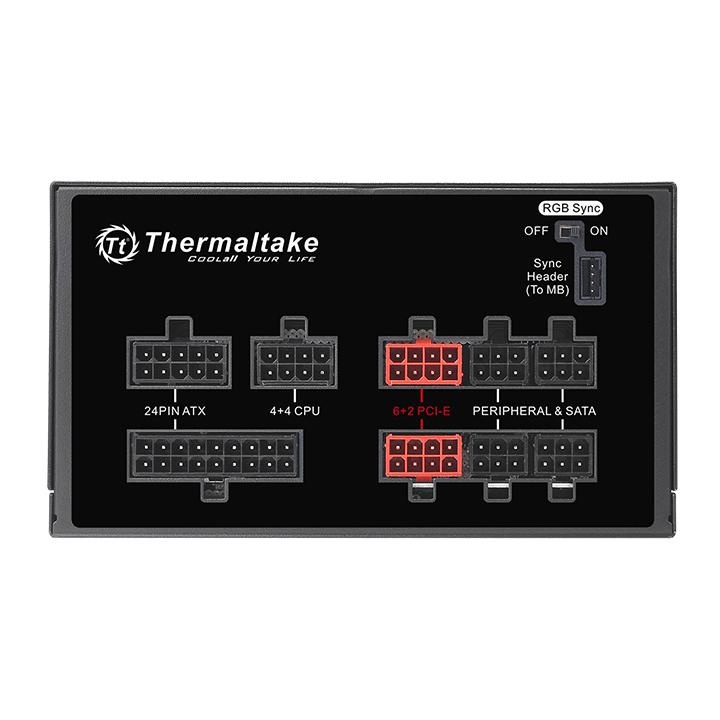

PCI-E 6+2pin
- 4
Protection
- OVP,SCP,OPP,UVP,OTP,OCP
