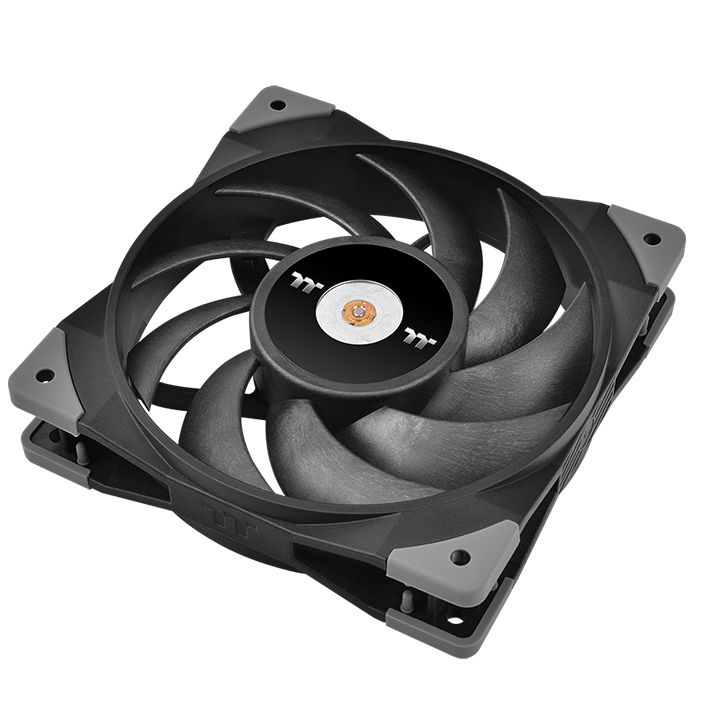

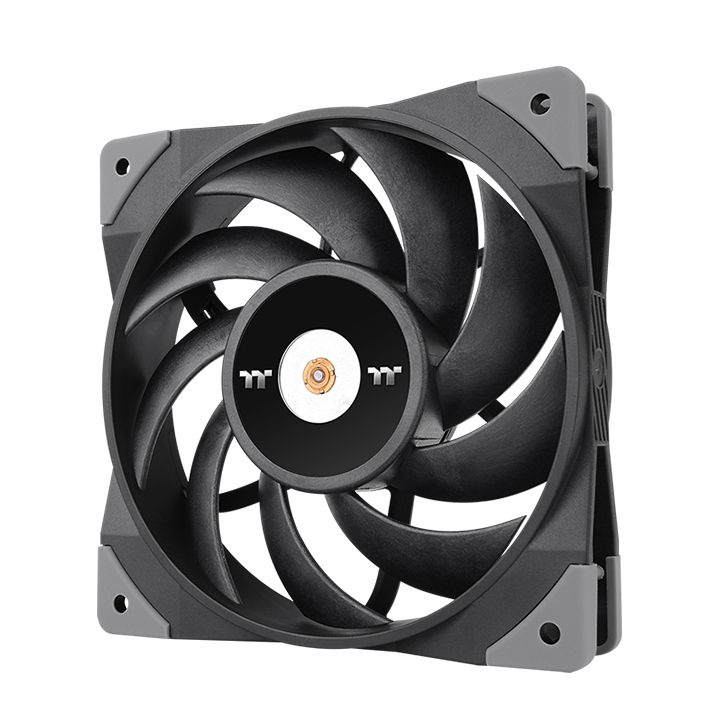

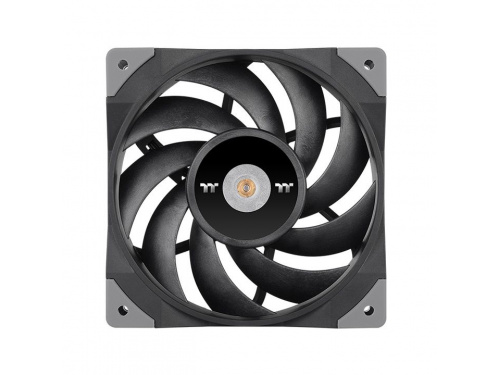

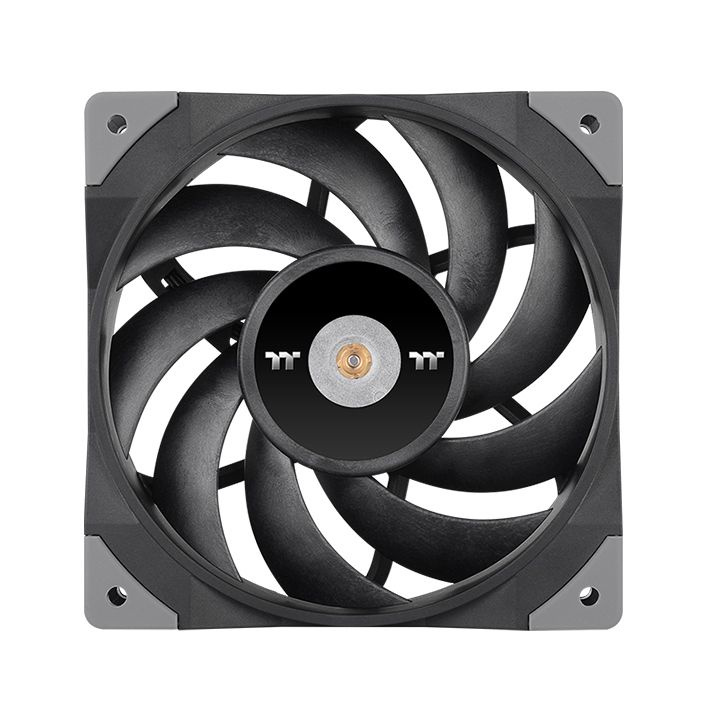

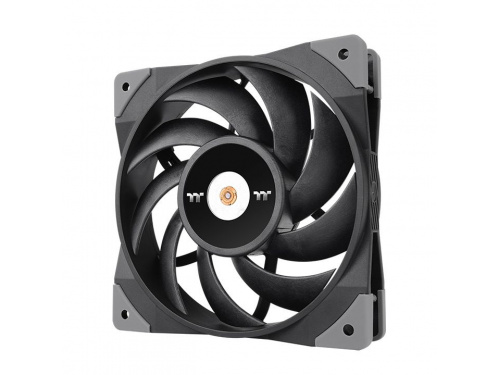

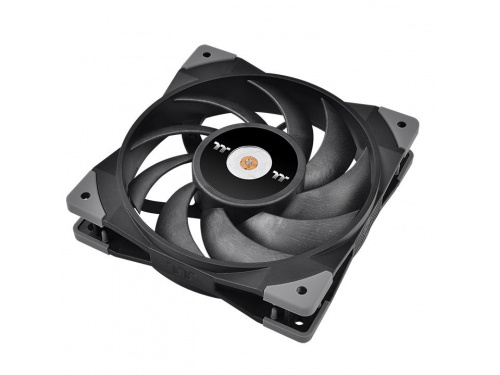

Thermaltake TOUGHFAN PWM-controlled high static pressure fan features an optimized structure to maximize high-end cooling needs.
The 2nd generation hydraulic bearing incorporates a new shaft design with inside etches allowing preservation of lubricant on both sides whilst reducing noise during operation. Lowering audible levels and extending lifespan.
| P/N |
CL-F117-PL12BL-A |
|---|
| Fan Dimension |
120 x 120 x 25 mm |
|---|
| Fan Started Voltage |
9.0 V |
|---|
| Fan Rated Voltage |
12 V |
|---|
| Rated Current |
0.12 A (Fan x1) |
|---|
| Power Input |
1.44 W (Fan x1) |
|---|
| Fan Speed |
500 ~ 2000 R.P.M
With L.N.C PWM 500~1500 R.P.M |
|---|
| MAX. STATIC PRESSURE |
2. 41mm-H2O |
|---|
| Max Air Flow |
58.35 CFM |
|---|
| NOISE LEVEL |
22.3 db-a (without L.N.C)
19.2 db-a (with L.N.C) |
|---|
| Bearing Type |
Hydraulic Bearing Gen. 2 |
|---|
| Life Expectation |
40,000 hrs, 25℃ |
|---|
| Connector |
4 PIN PWM |
|---|
| Weight |
212.5 g (Fan*1) |
|---|
