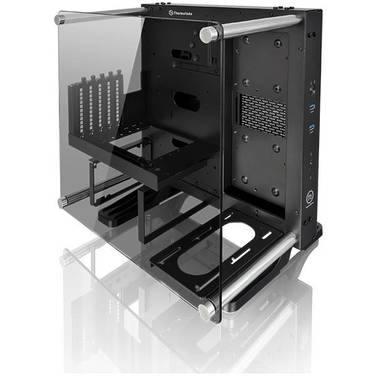

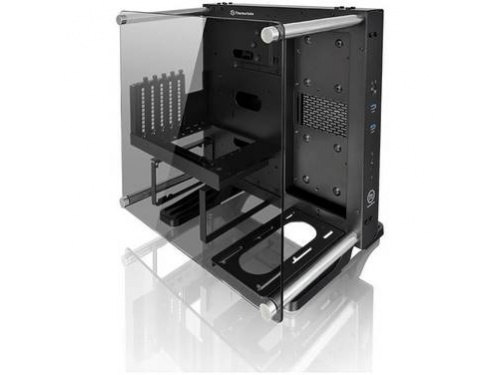

THERMALTAKE CA-1H9-00T1WN-00
P/N CA-1H9-00T1WN-00
Case Type Mini Case
Dimension (H x W x D) 422 x 332 x 380 mm
(16.6 x 13.1 x 15 inch)
Net Weight 9.5 kg / 20.9 lb
Side Panel Tempered Glass (5mm thickness)
Color Black
Material SPCC
Drive Bays -Accessible
2 x 2.5" (Outside the chassis)
-Hidden
1 x 3.5?? or 2.5?? (Inside the chassis)
1 x 2.5?? (Inside the chassis)
Expansion Slots 5
Motherboards 6.7? x 6.7? (Mini ITX)
I/O Ports USB 3.0 x 2 , HD Audio x 1
PSU Standard PS2 PSU (optional)
Fan Support Left Side:
2 x 120mm
Radiator Support Left Side:
1 x 240mm
Clearance CPU cooler height limitation: 170mm
VGA length limitation: 380mm (Radiator thickness under 30mm without fan)
PSU length limitation: 180mm
Radiator Width Limitation: 122mm
