Thermaltake AH T200 Tempered Glass Micro Case Black Edition NO POWER Model: CA-1R4-00S1WN-00 casTHaht200_black

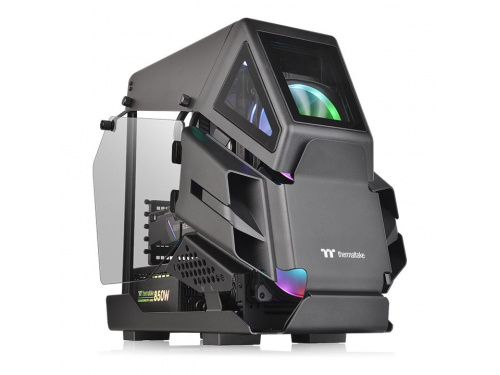

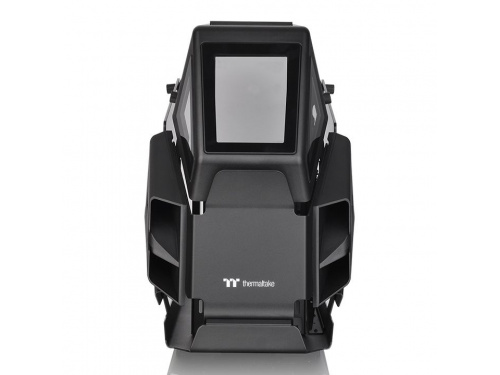

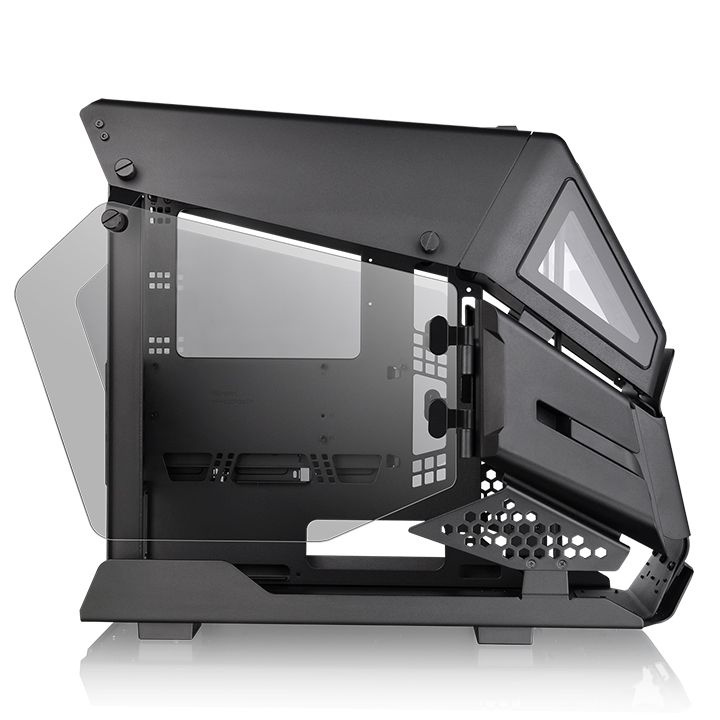

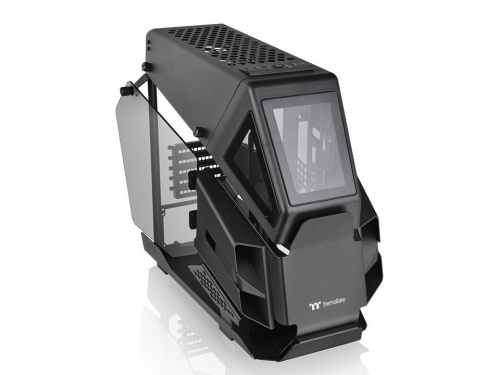

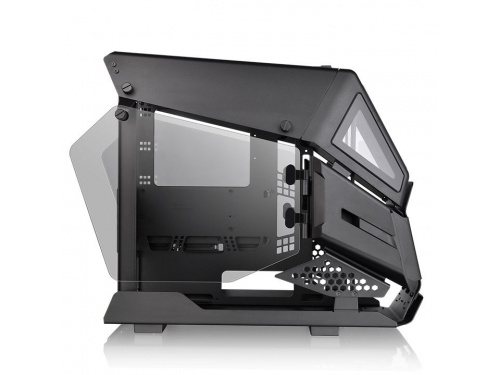

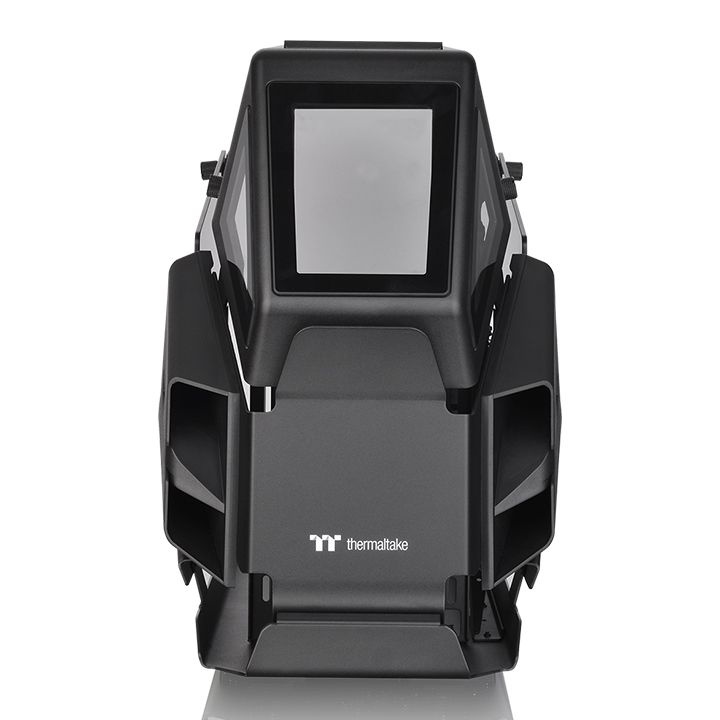

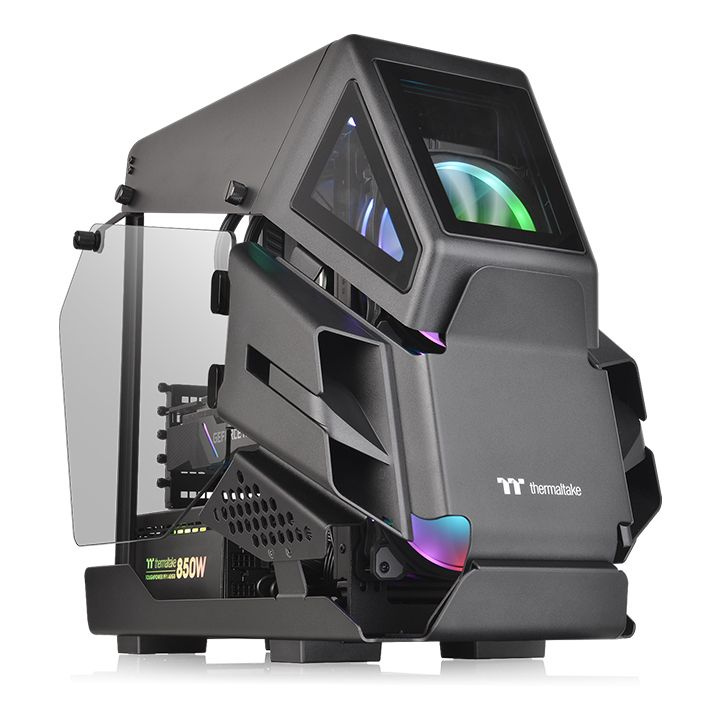

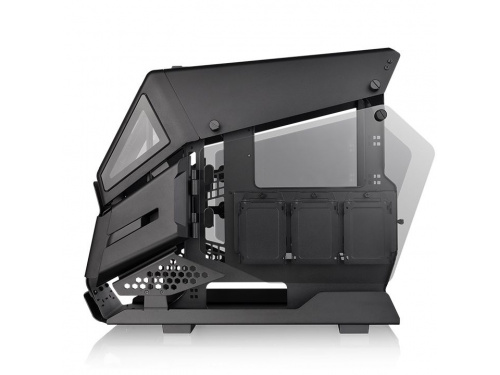

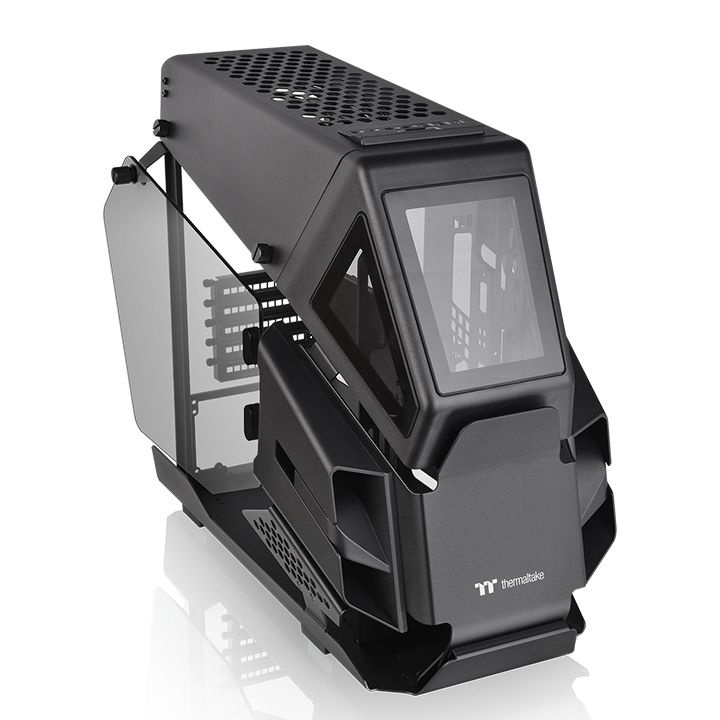

The AH T200, a smaller version of the AH T600, is the first micro case from the AH Series which is forged with a sturdy, air-force styled architecture with two large 4mm tempered glass panels on the left and right sides, and three 3mm tempered glass windows on the front. I/O ports are located at the top-front panel with a futuristic power button. Not only ensures outstanding ventilation but enables users to demonstrate their handwork and showcase their internal components. The AH T200 can hold up to two 140mm fans at the front and on top, 240mm or 280mm All-In-One CPU cooler at the front. The AH T200 Micro Chassis is one-of-a-kind that all users will notice, love, and desire.

P/N	CA-1R4-00S1WN-00
Series	AH Series
Model	AH T200
Case Type	Micro Case
Dimension (H x W x D)	444.2 x 282 x 551.5 mm (17.5 x 11.1 x 21.7 inch)
Net Weight	10.8 kg / 23.8 lb
Side Panel	Tempered Glass x 2
Color	Black
Material	SPCC
Cooling System	N/A

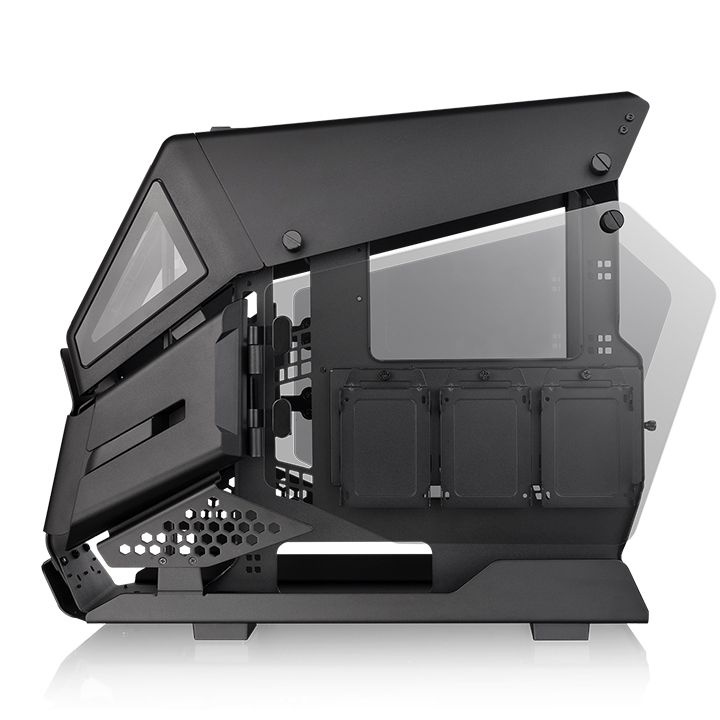

Drive Bays -Accessible -Hidden	2 x 3.5" or 3 x 2.5” (3.5” HDD thickness limitation: 22mm) -

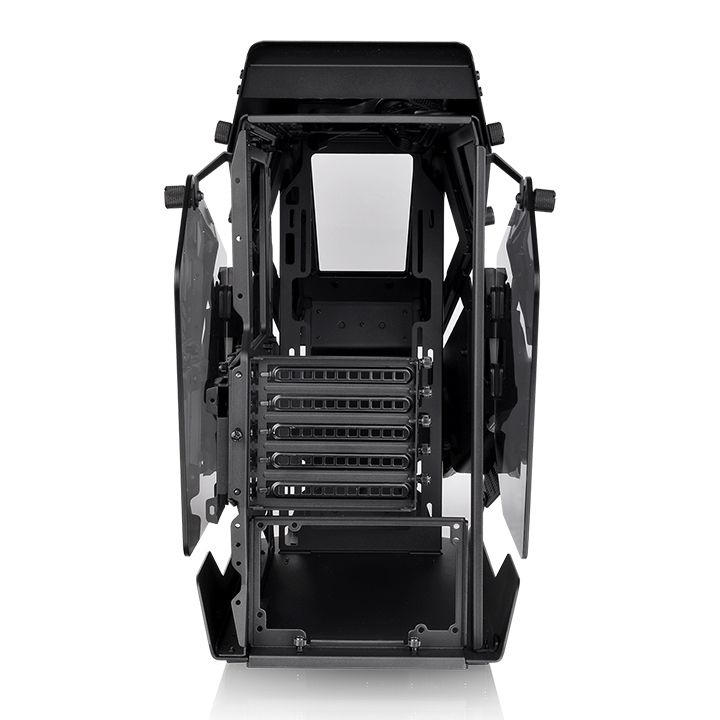

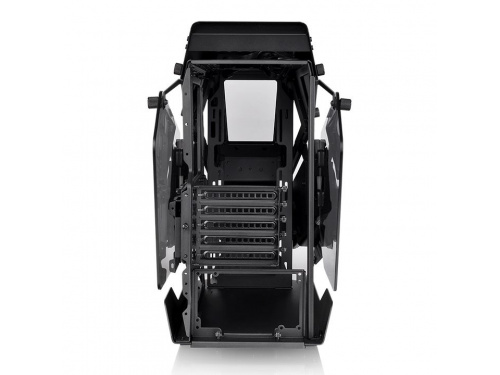

Expansion Slots	5
Motherboards	6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX)
I/O Port	USB 3.1 (Gen 2) Type C x 1, USB 3.0 x 2, HD Audio x 1
PSU	Standard PS2 PSU (optional)
Fan Support	Front: 2 x 120mm or 1 x 120mm 2 x 140mm or 1 x 140mm Top: 2 x 120mm or 1 x 120mm 2 x 140mm or 1 x 140mm
Radiator Support	Front: 1 x 240mm or 1 x 120mm 1 x 280mm or 1 x 140mm
Clearance	CPU cooler max height: 150mm VGA max length: 320mm PSU max length: 180mm 3.5” HDD thickness limitation: 22mm

Radiator Support List

All-in-One Compatibility List
(Water 3.0 and Floe series)

	120 Series	240 Series	140 Series	280 Series
Front	●	●	●	●





Fan Support List

Fan Compatibility List

	120mm	140mm	200mm
Front	2	2	-
Top	2	2	-



Thermaltake Compatible Fan

	120mm	140mm	200mm
PURE FAN Series	●	●	-
Riing FAN Series	●	●	-
