1TP04

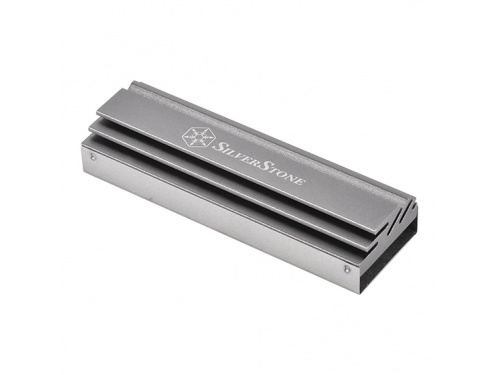

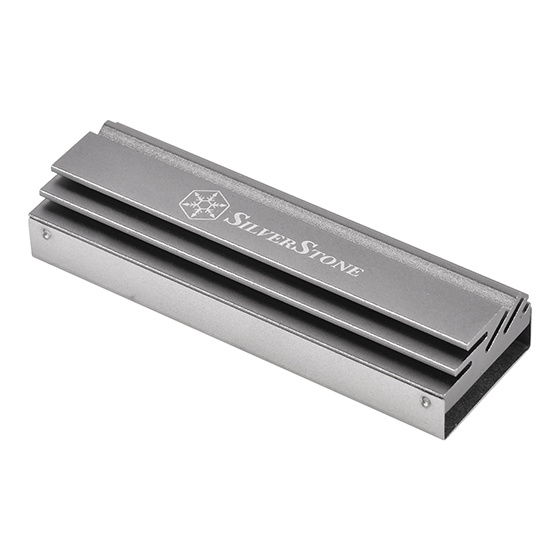

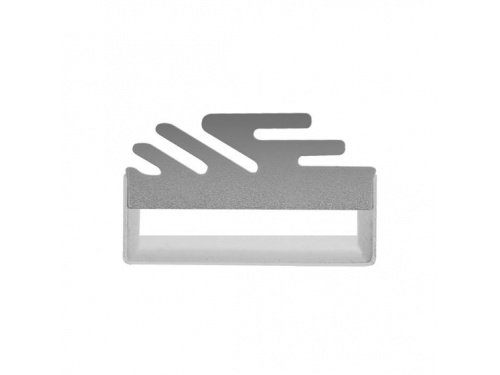

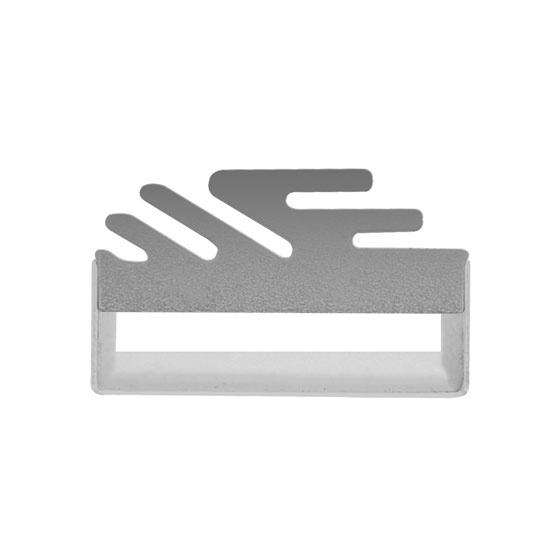

Aluminum alloy M.2 SSD cooling kit
￭ Aluminum alloy heatsink increases M.2 SSD cooling area
￭ Efficient heat conduction pad for reducing temperature
￭ Double layer design enhances SSD cooling for stability and efficiency
￭ Supports 2280 length M.2 SSD
￭ Easy to install with included thermal pads and cover without damaging M.2 SSD
SPECIFICATIONS
| Model No. |
SST-TP04T |
| Color |
Titanium grey |
| Material |
Aluminum, stainless steel |
| M.2 length support |
2280 (22mm x 80mm) |
| Thermal pad thickness |
1.0mm
1.5mm |
| Thermal conductivity |
1.5W/m.k |
| Net Weight and dimension |
Gross weight: 70mm (W) x 13.4mm (H) x 22.8mm (D), 40g
Blue pad 1: 70mm (W) x 1.5mm (H) x 20mm (D), 3.25g
Blue pad 2 : 70mm (W) X 1mm (H) X 20mm (D), 2.8g |
| Remark : |
* Includes two blue colored thermal pads with different thickness. For single sided M.2 SSD (flat back without component), please use 1.5mm thick pad; for double sided M.2 SSD (both sides with components), please use 1mm thick pad.
** If the M.2 slot on the motherboard is situated next to a PCIe slot, the height of the TP04 ‘s heat sink may interfere with graphic card or expansion card installation, we recommended installing TP04 onto other available M.2 slots on the motherboard to avoid interference issue. |
