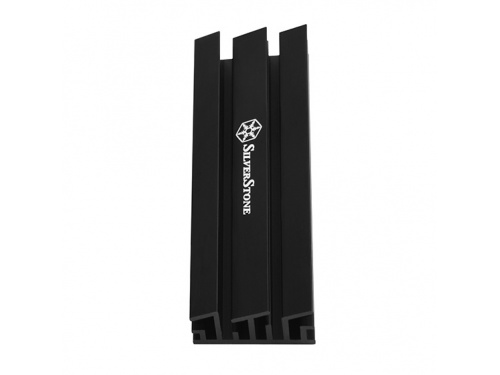

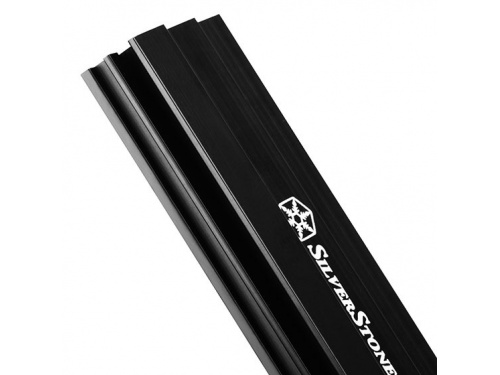

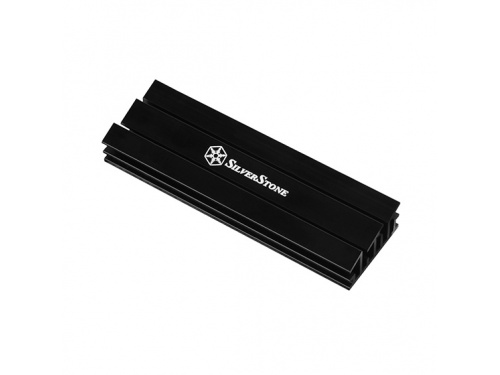

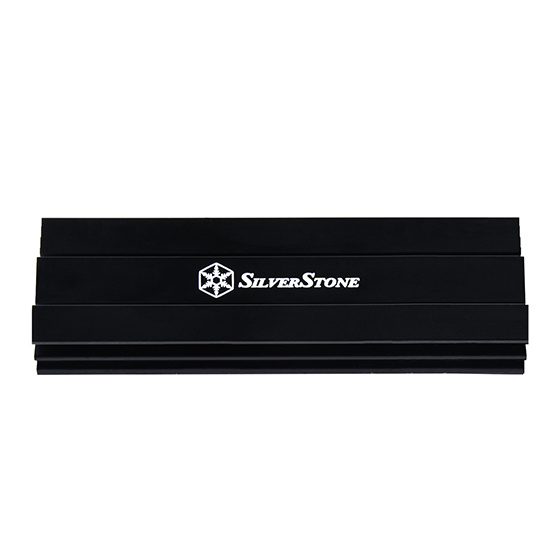

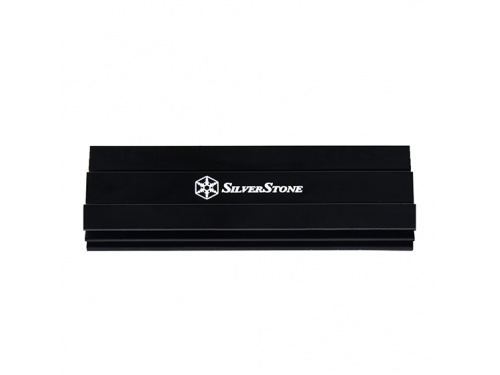

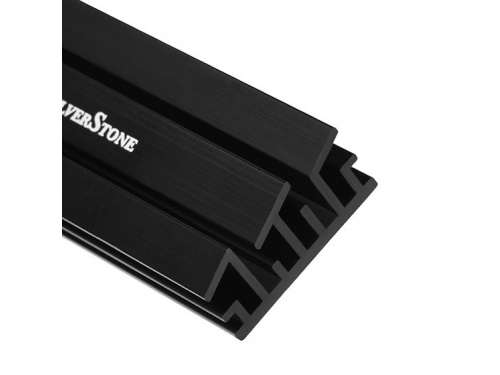

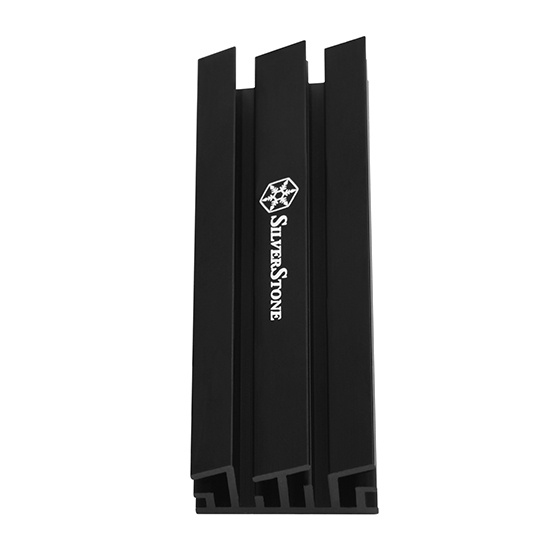

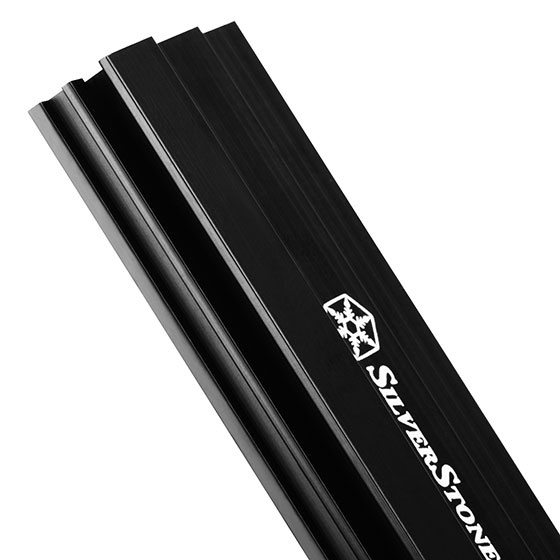

1 ￭ Aluminum alloy heatsink increases M.2 SSD cooling area
￭ Efficient heat conduction pad for reducing temperature
￭ Double layer design enhances SSD cooling for stability and efficiency

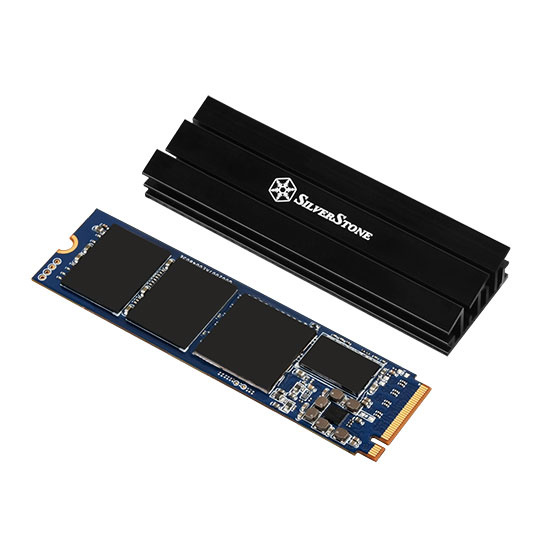

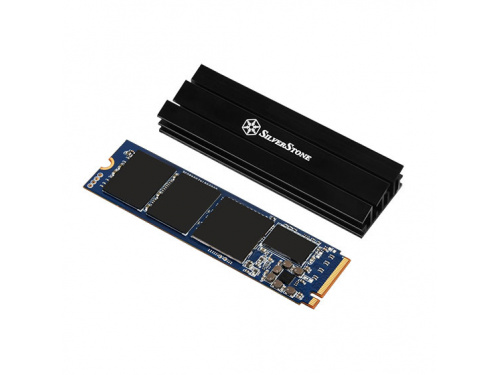

￭ Supports 2280 length M.2 SSD
￭ Easy to apply and affix with silicone bands without damaging M.2 SSD
The following SSD models have been tested and verified by SilverStone to work optimally with the product presented on this page.
Adata XPG GAMMIX S50 Series
Corsair Force Series MP600
Gigabyte AORUS NVMe Gen4 M.2
Inte NVMe SSD 660p series
Intel NVMe SSD 760p Series
Pioneer APS-SE20G series
Samsung NVMe SSD 970 EVO M.2
Samsung NVMe SSD 970 PRO M.2
Samsung NVMe SSD SM951/961 M.2
Samsung NVMe SSD 960 EVO M.2
Samsung NVMe SSD 960 PRO M.2
Samsung 980 PRO PCIe 4.0 NVMe SSD
Samsung 980 PCIe 3.0 NVMe SSD
WD_BLACK SN850 NVMe SSD
WD_BLACK SN750 NVMe SSD
SPECIFICATIONS
| Model No. |
SST-TP02-M2 |
| Color |
Black |
| Material |
Aluminum, silicone |
| M.2 length support |
2280 (22mm x 80mm) |
| Operating temperature |
-20 °C ~ 180 °C |
| Thermal pad thickness |
1.0mm
1.5mm |
| Thermal conductivity |
1.5W/m.k |
| Net Weight and dimension |
Heatsink : 70mm (W) x 10mm (H) x 20mm (D),16.1g
Blue Pad : 70mm (W) x 1mm (H) x 20mm (D), 3.25g
Gray Pad 1 : 60mm(W) X 1mm(H) X 20mm(D), 2.8g
Gray Pad 2 : 60mm(W) X 1.5mm(H) X 20mm(D),3.7g |
| Remark : |
|

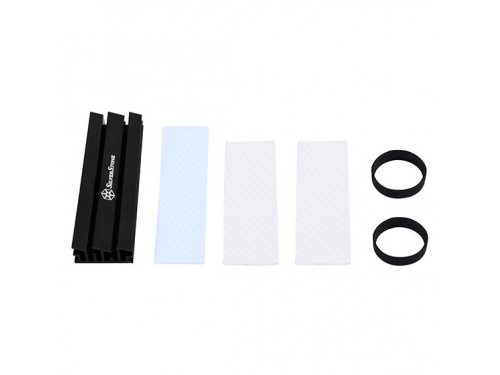

* Includes two gray colored thermal pads with different thickness. For single sided M.2 SSD (flat back without component), please use 1.5mm thick pad; for double sided M.2 SSD (both sides with components), please use 1mm thick pad.
** If one gray pad is not thick enough to make contact with both M.2 SSD and your motherboard or adapter card, then you should carefully attach both included pads in your TP02-M2 kit together (make sure to avoid trapping air bubbles between them). Your goal is to create enough thickness to enable solid contacts so the heat from M.2 SSD can be transferred through to the motherboard or adapter card
*** If the M .2 slot on the motherboard is situated next to a PCIe slot, the height of the TP02-M2 ‘s heat sink may interfere with graphic card or expansion card installation, we recommended installing TP02-M2 onto other available M.2 slots on the motherboard to avoid interference issue.
|
