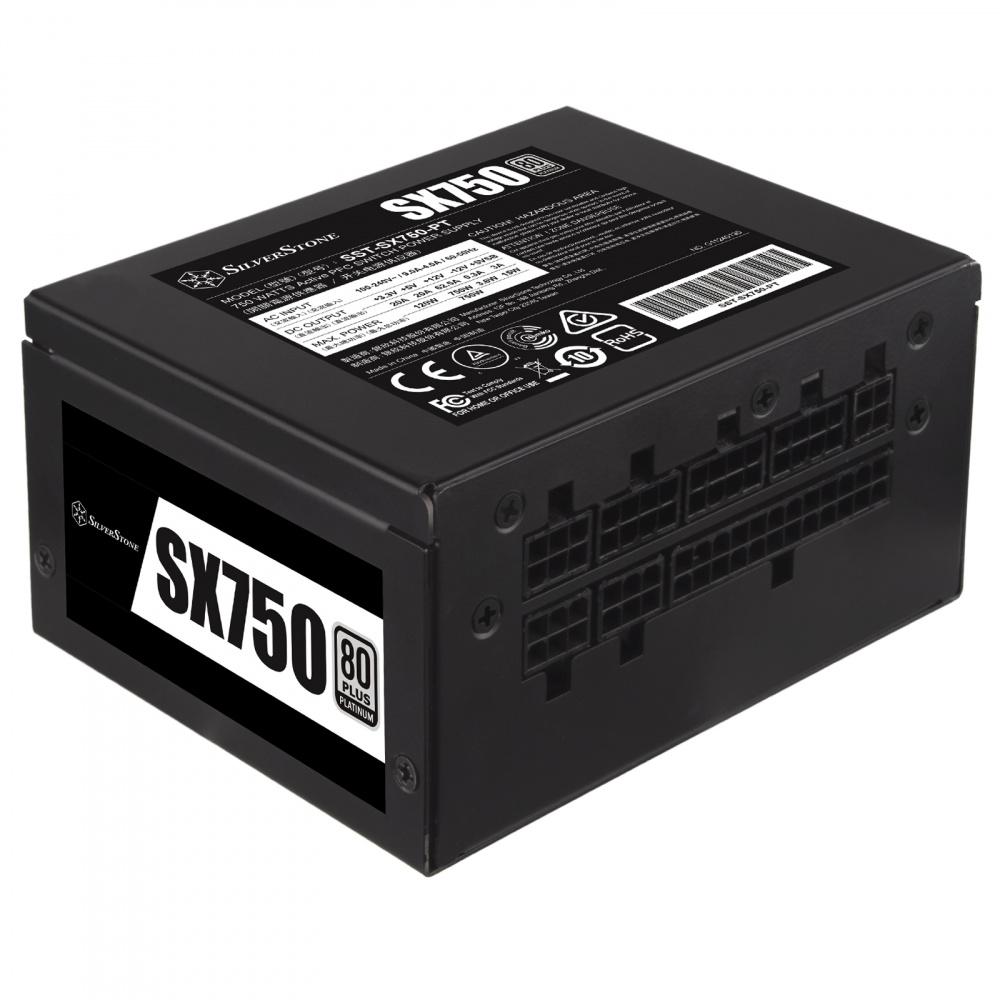

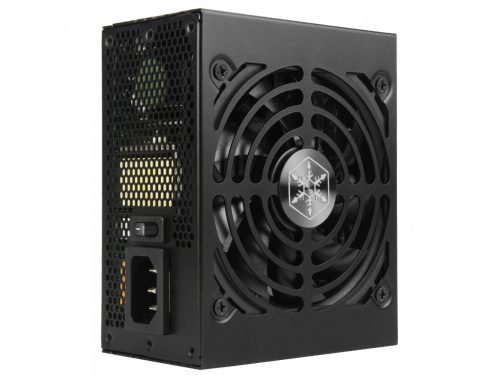

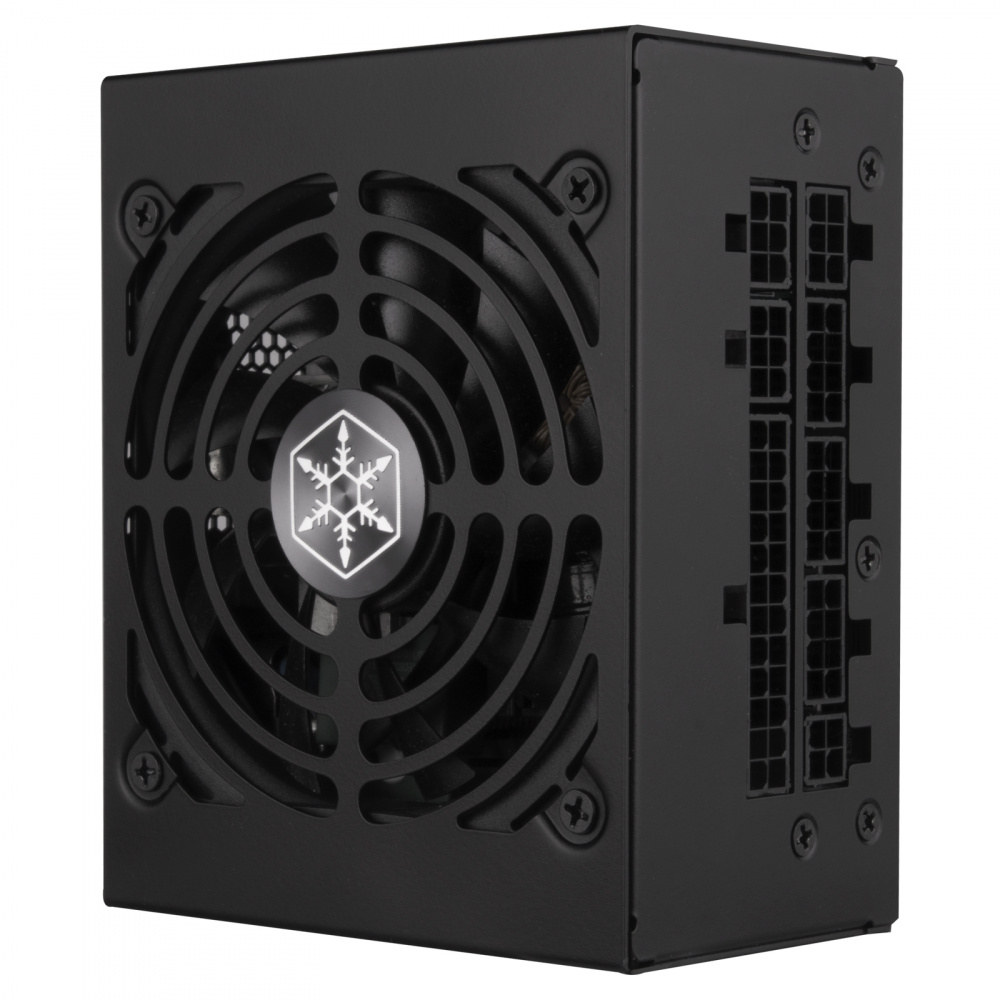

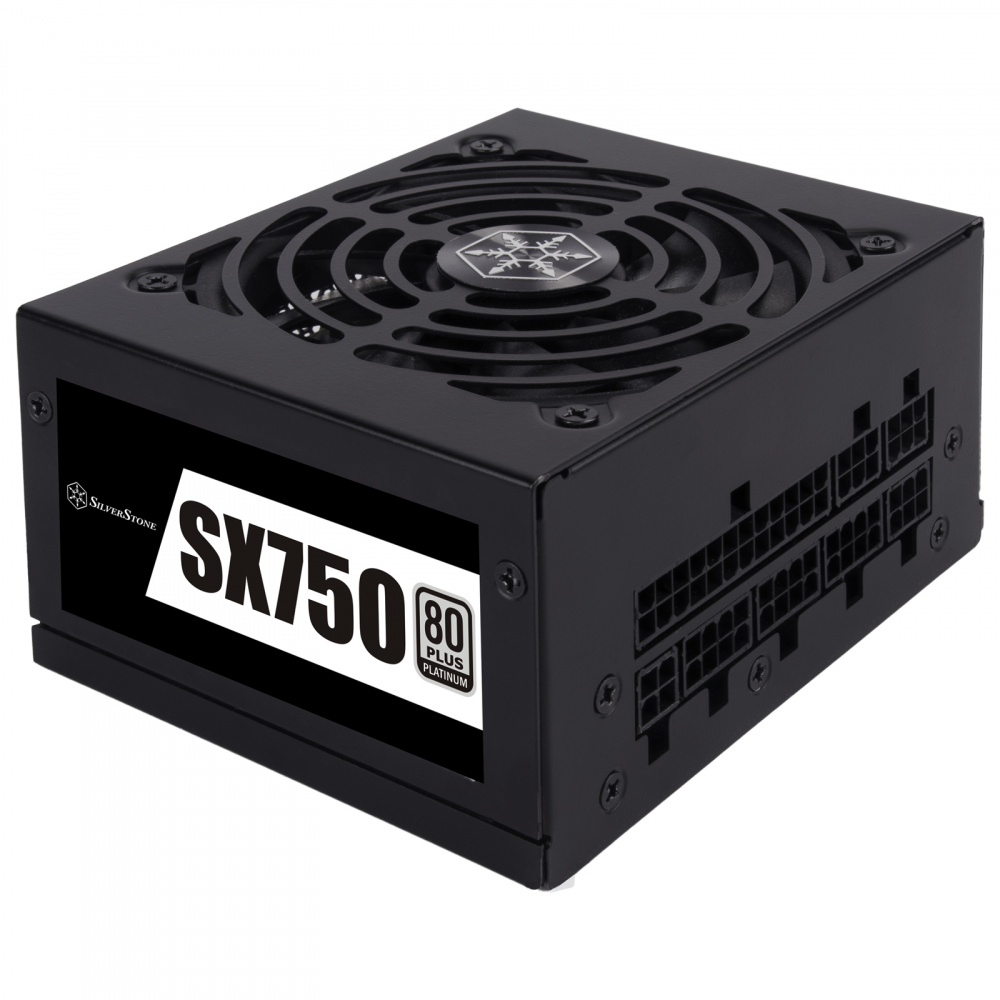

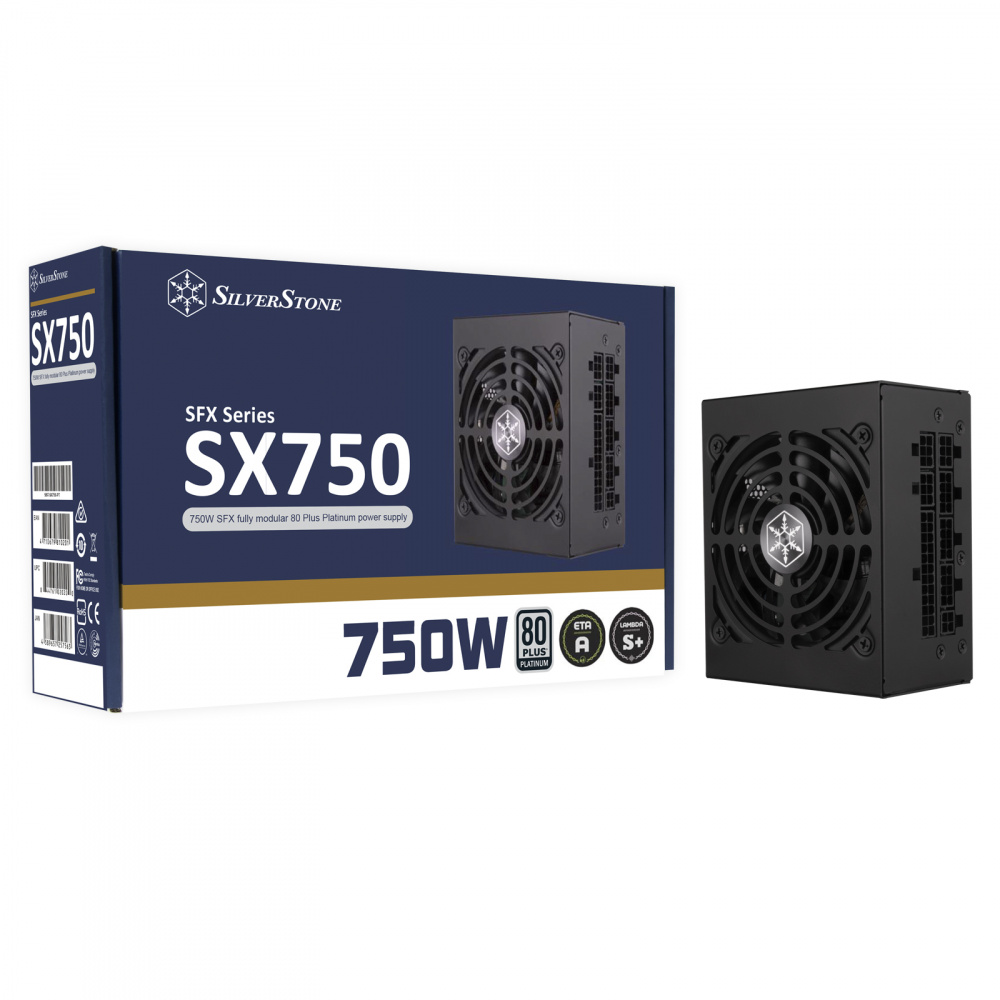

SILVERSTONE SX750 Fully Modular SFX Power Supply 80plus Platinum - SST-SX750-PT psSI750_sx750_pt

￭ Standard SFX form factor

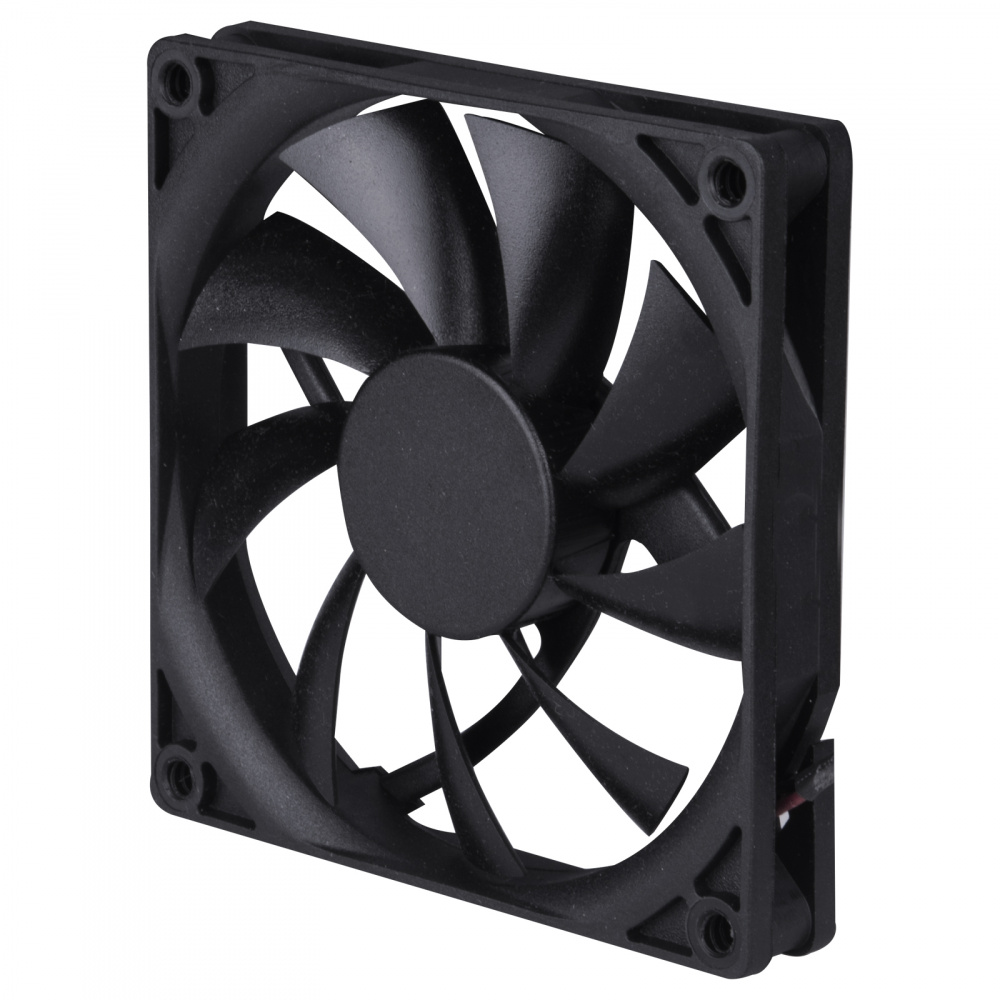

￭ Silent running 92mm dual ball bearing fan with minimum 0dBA

￭ All Japanese capacitors

￭ High efficiency with 80 PLUS Platinum certification

￭ Class-leading single +12V rail

￭ Strict ±3% voltage regulation and low ripple & noise

￭ 100% modular cables

￭ All cables with flexible flat arrays

SPECIFICATIONS

Product No.	SST-SX750-PT
Max. DC Output	750W
Power density	882W per liter
Load Range
+3.3V +5V +12V +5VSB -12V Max.(Amps) 20A 20A 62.5A 3A 0.3A Peak (Amps) / / / / / Min.(Amps) 0A 0A 0A 0A 0A Range (%) ±3% ±3% ±3% ±5% ±10% Line Reg.(%) ±1% ±1% ±1% ±1% ±1% Ripple(mVp-p) 40mV 40mV 80mV 50mV 80mV
Model (on safety)	SST-SX750-PT
Color	Black（Lead-Free Paint）
Combined +3.3V & +5V	120W
Combined +12V	750W
Input Voltage	90V ~ 264V
Input Frequency Range	47Hz ~ 63Hz
PFC	Active PFC（PF>0.9 at full load）
Efficiency	89% ~ 92% at 20% ~ 100% loading
MTBF	100,000 hours
Operating temperature	0°C ~ 40°C
Protection	Over Power Protection Over Voltage Protection Short Circuit Protection Over Temperature Protection Over Current Protection

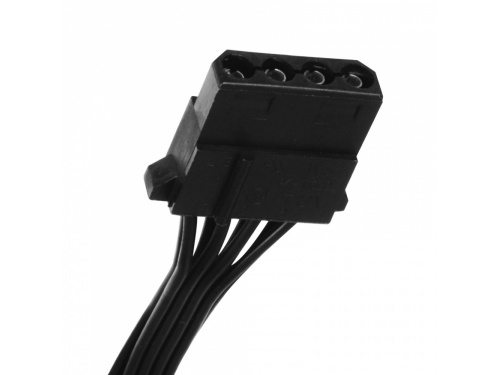

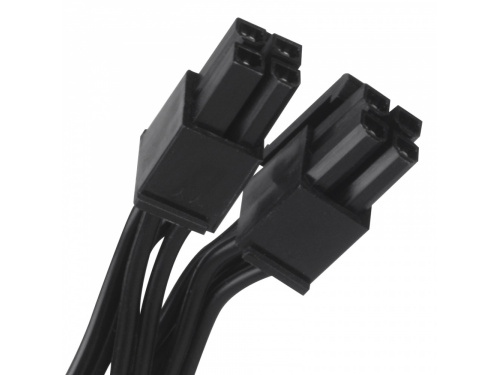

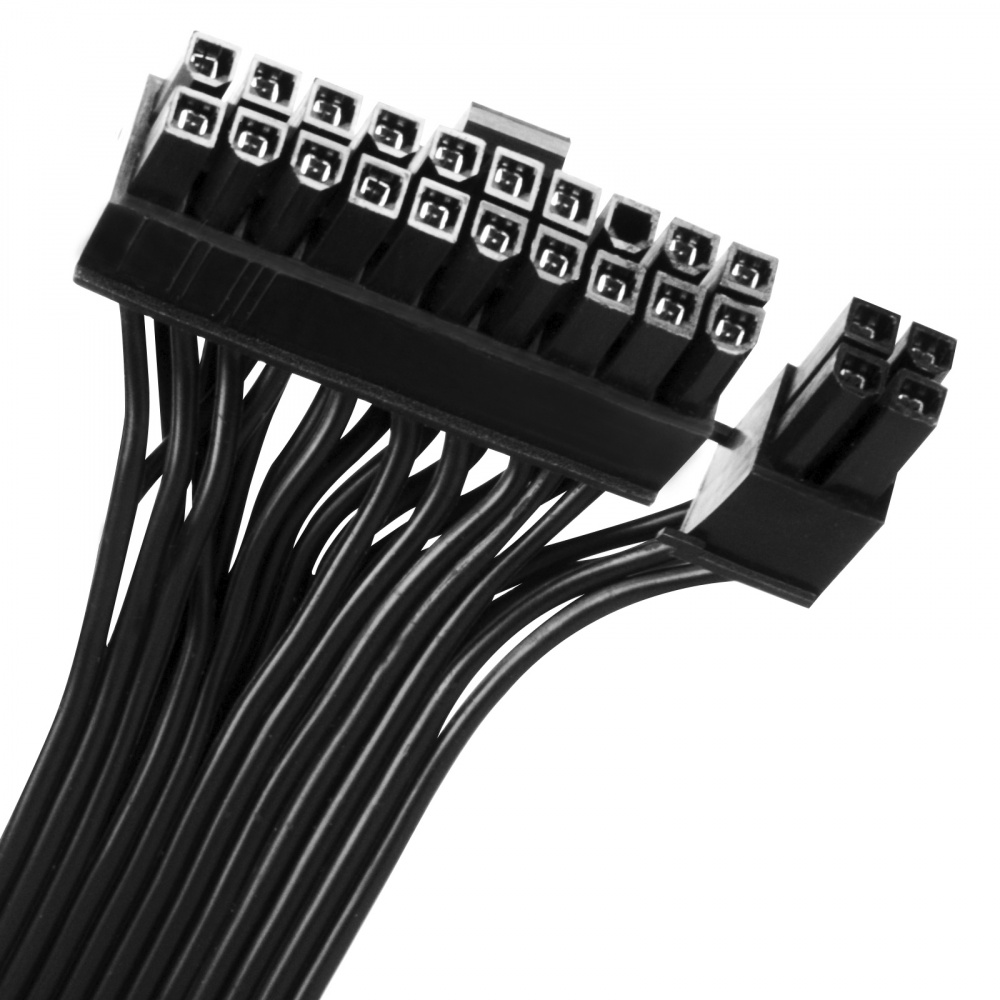

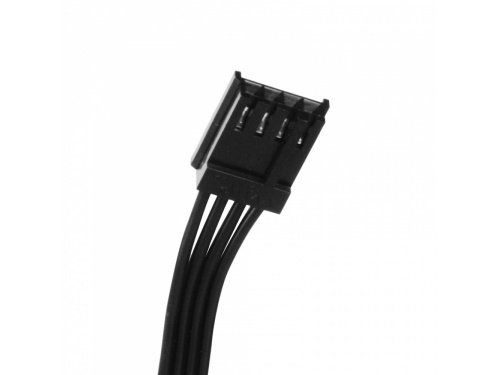

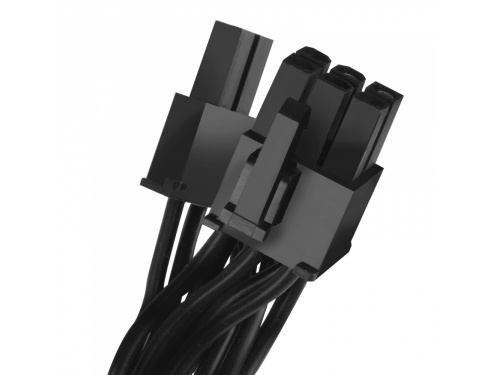

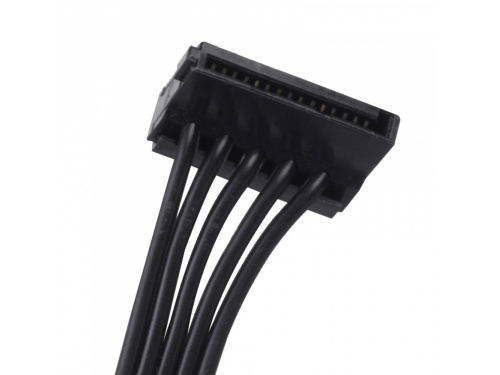

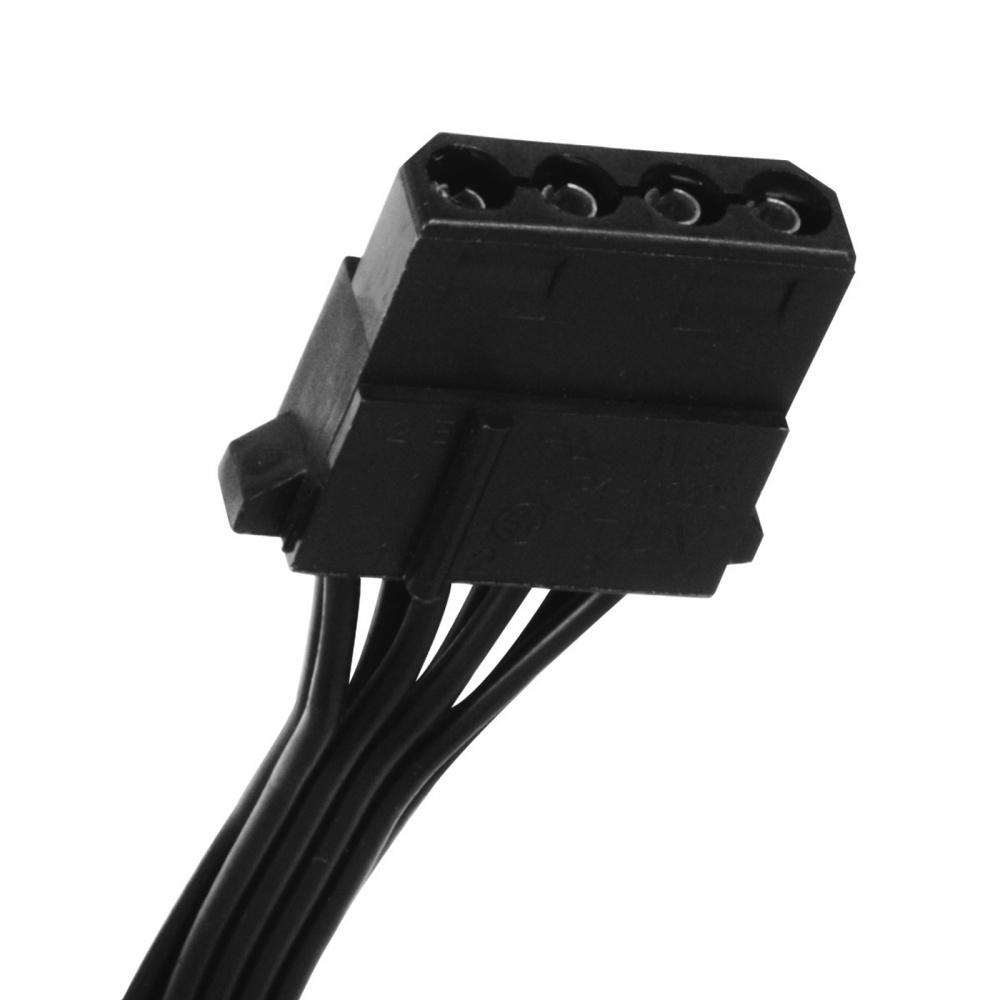

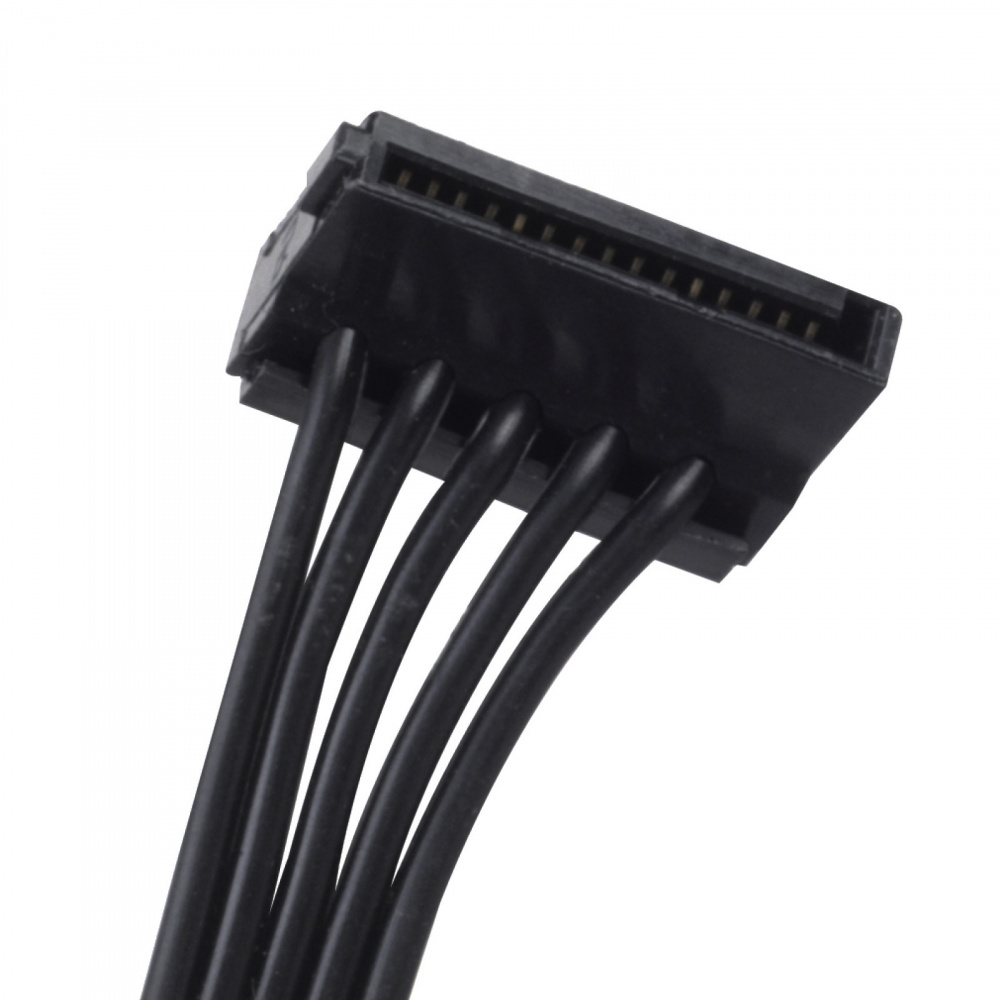

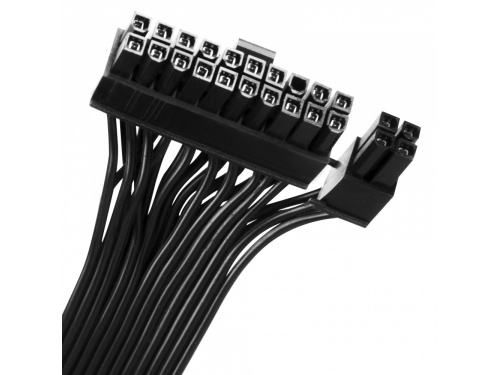

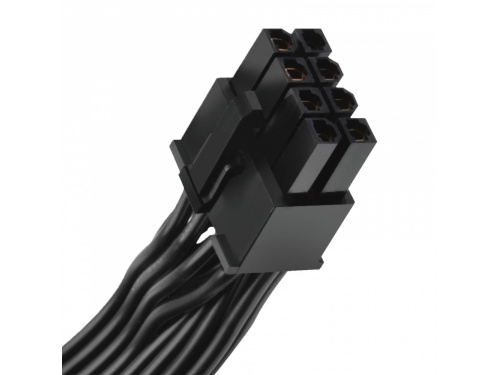

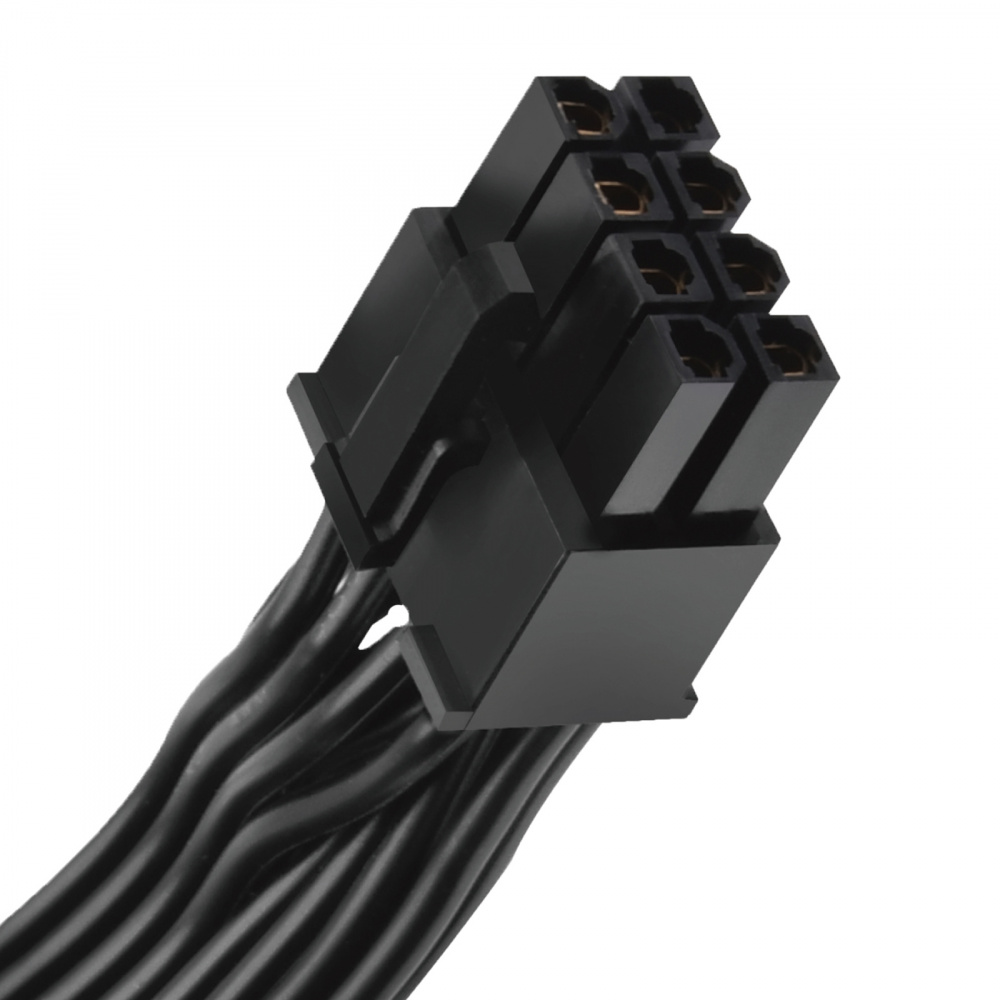

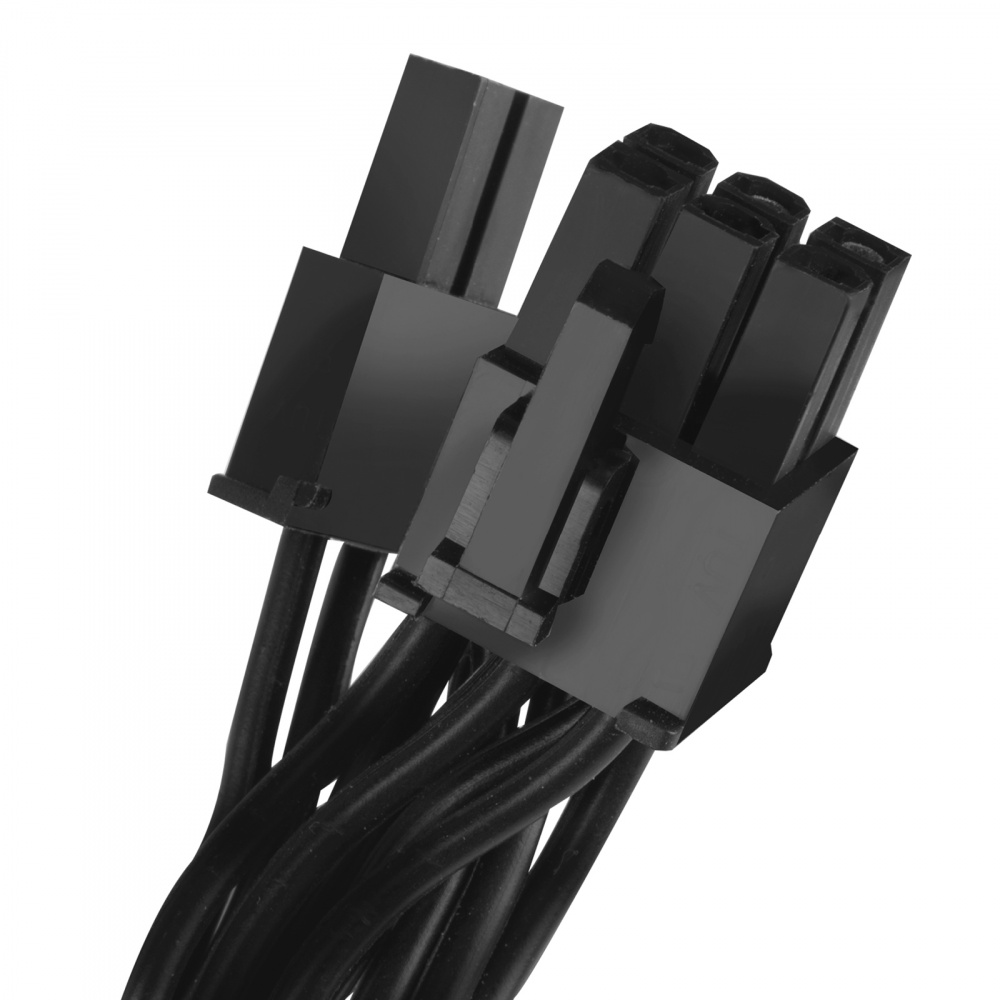

Connectors	1 x 24 / 20-Pin motherboard connector（300mm） 1 x 8 / 4-Pin EPS / ATX 12V connector（400mm） 2 x 8 / 4-Pin EPS / ATX 12V connector（400mm / 150mm） 4 x 8 / 6-Pin PCIE connector（”400mm / 150mm” x 2） 8 x SATA connector（”300mm / 200mm / 100mm / 100mm” x 2） 3 x 4-Pin Peripheral connector（300mm / 200mm / 200mm）

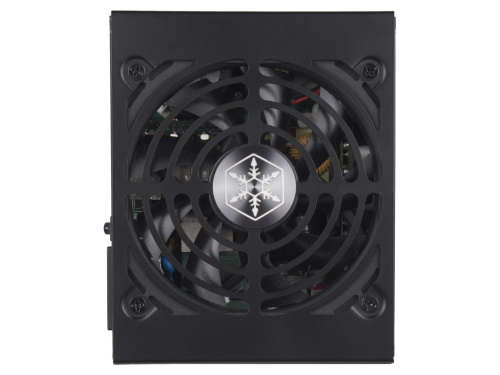

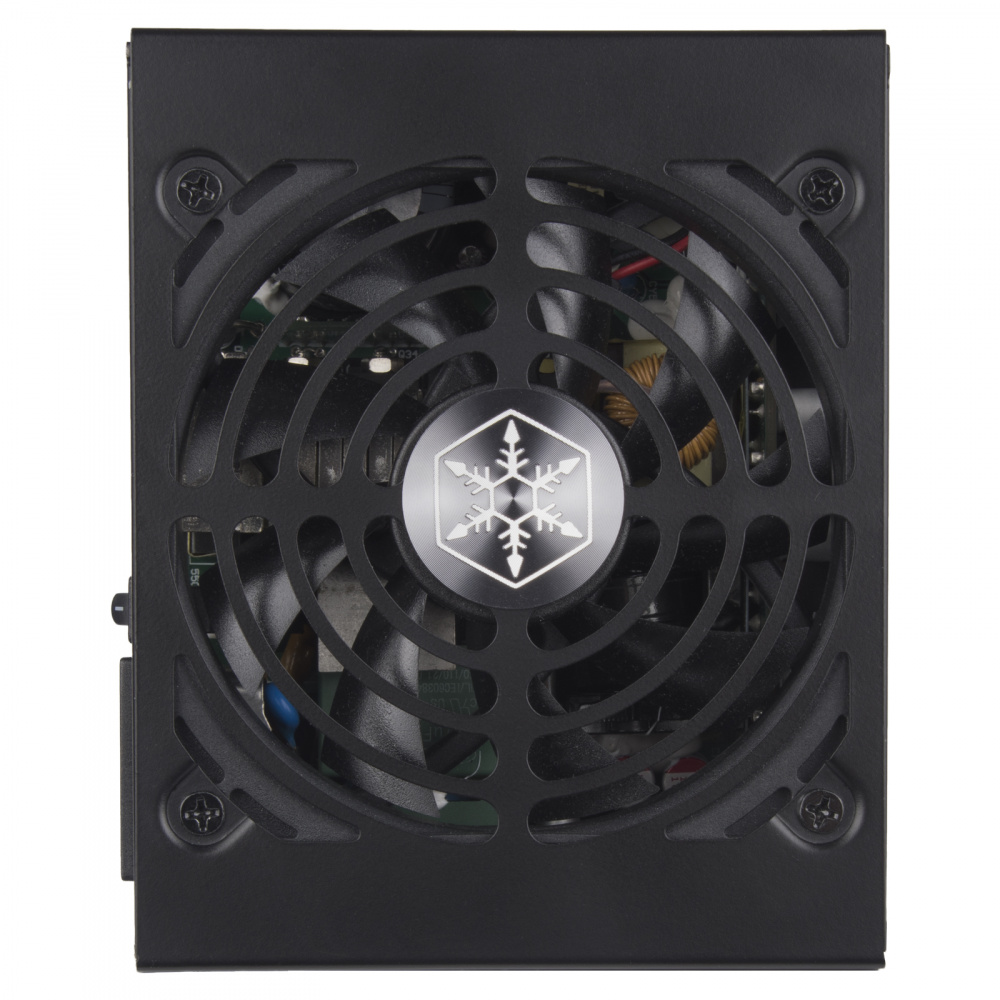

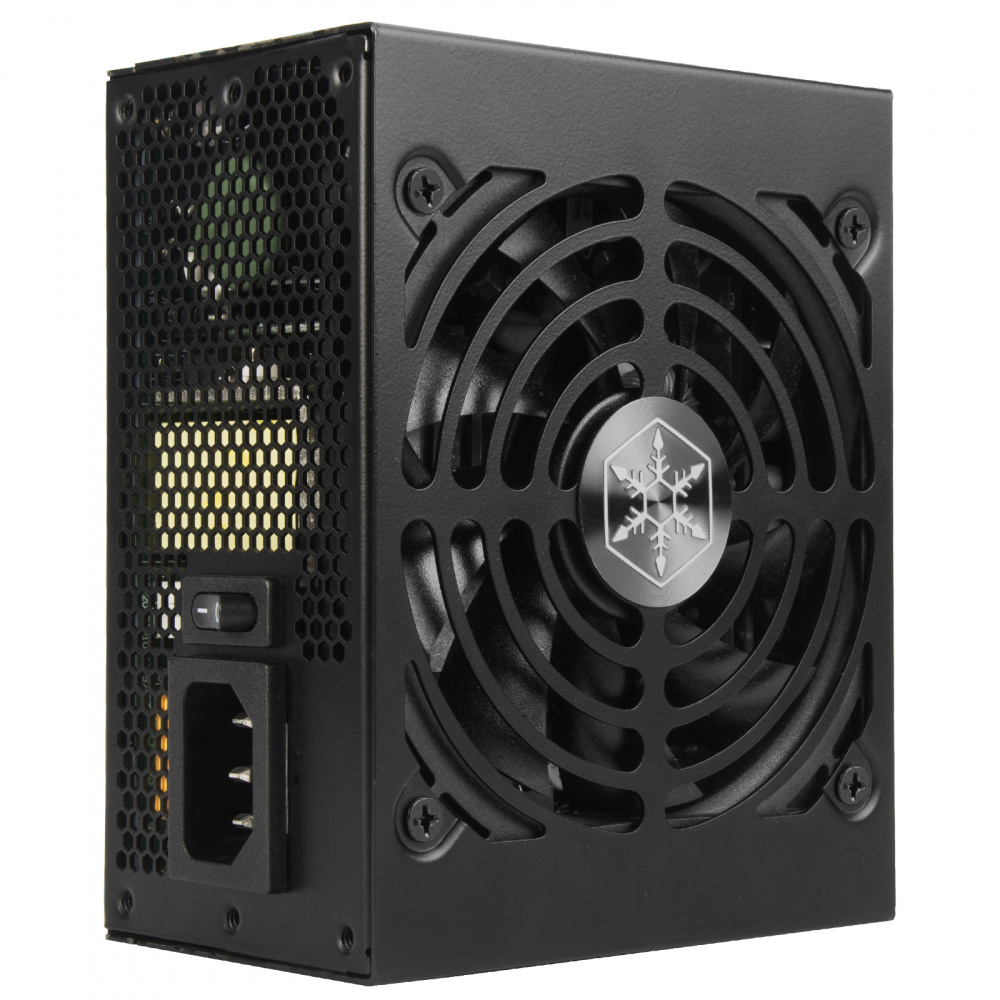

Cooling System	Single 92mm dual ball bearing fan
Form factor	SFX
Noise Level	0 dBA minimum
Dimension	125 mm (W) x 63.5 mm (H) x 100 mm (D) 4.92" (W) x 2.5" (H) x 3.94" (D)
Weight	1.01 Kg
Certification	80 PLUS Platinum
Other	GPU Support list Compatible with ATX12V v2.4

● Specifications presented on this page contains most recent revisions and may differ from those printed on retail boxes or manuals.

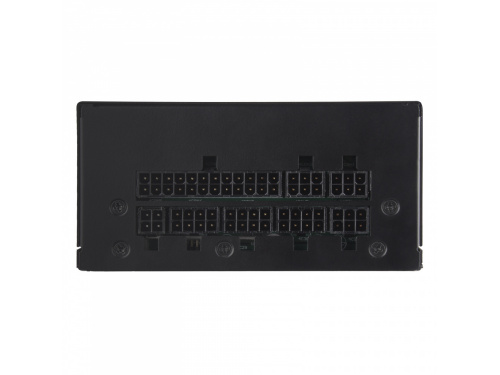

This PSU’s motherboard connector includes a 4pin sense wire that needs to be connected to the PSU’s modular interface as shown.
