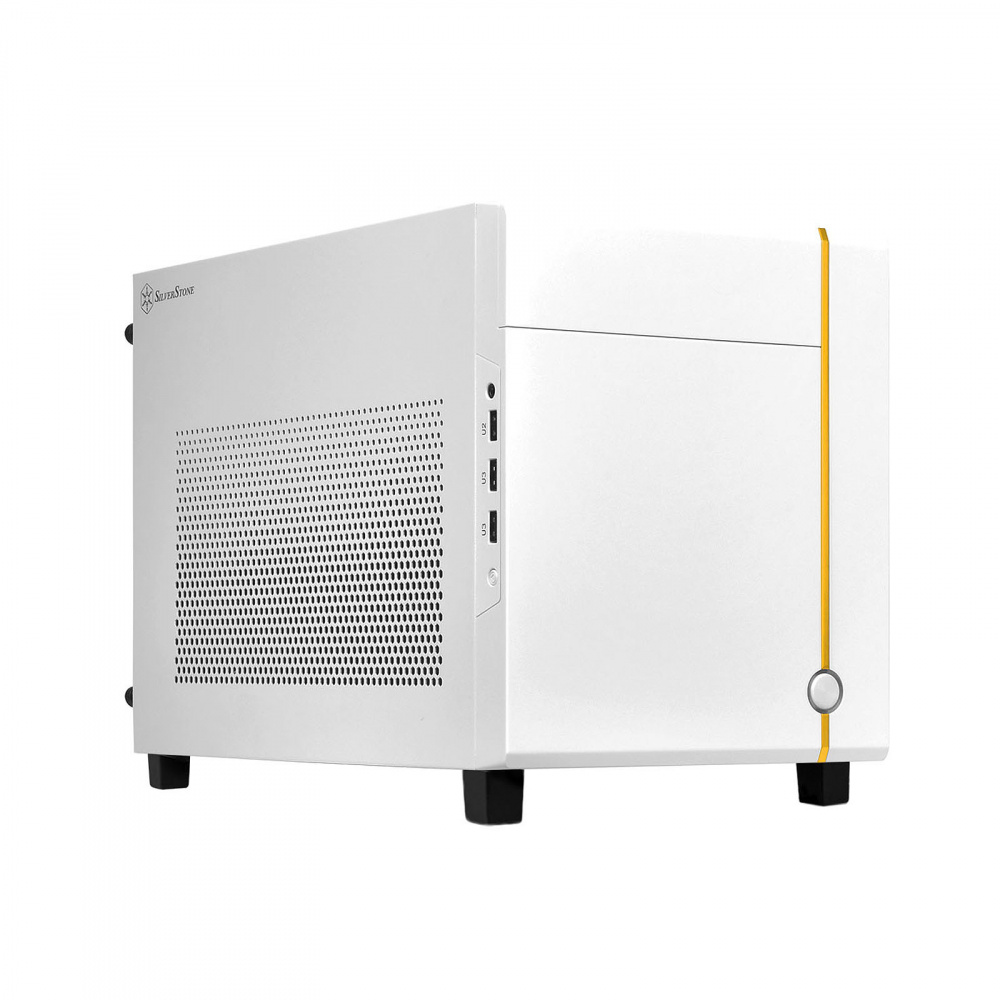

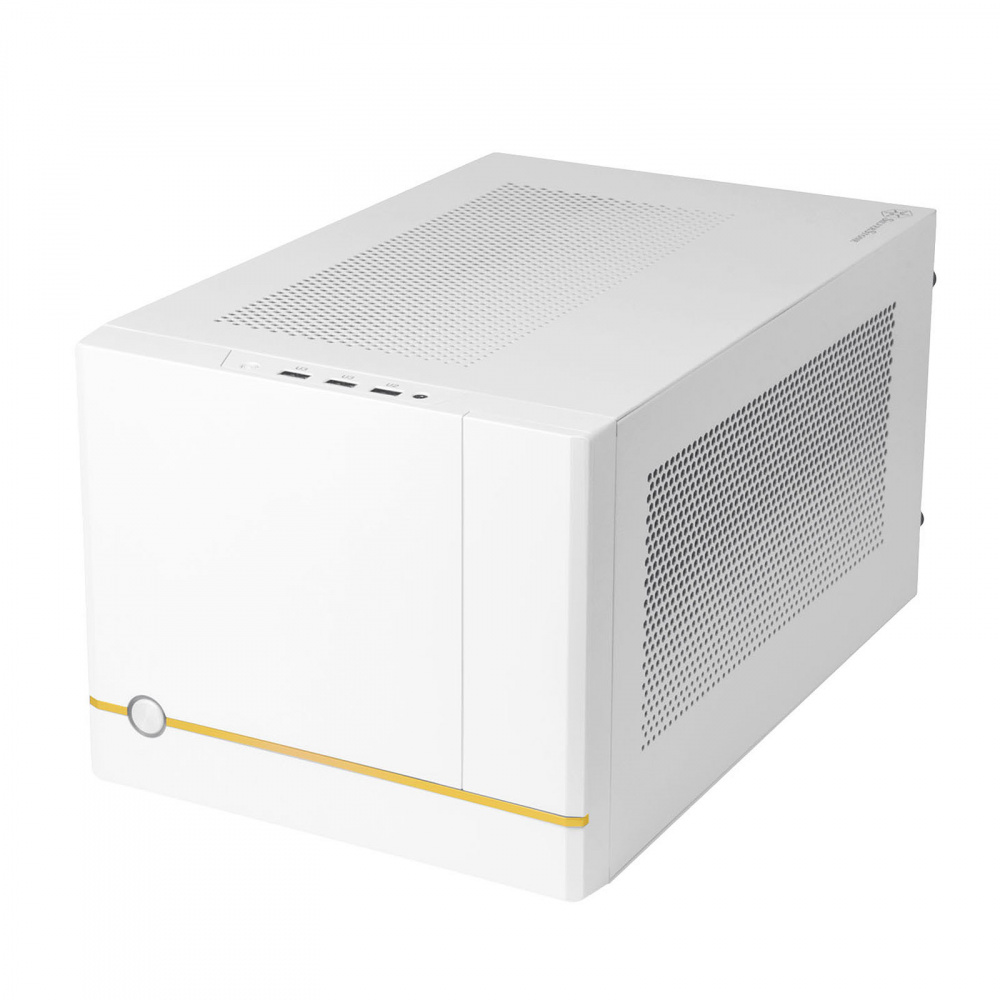

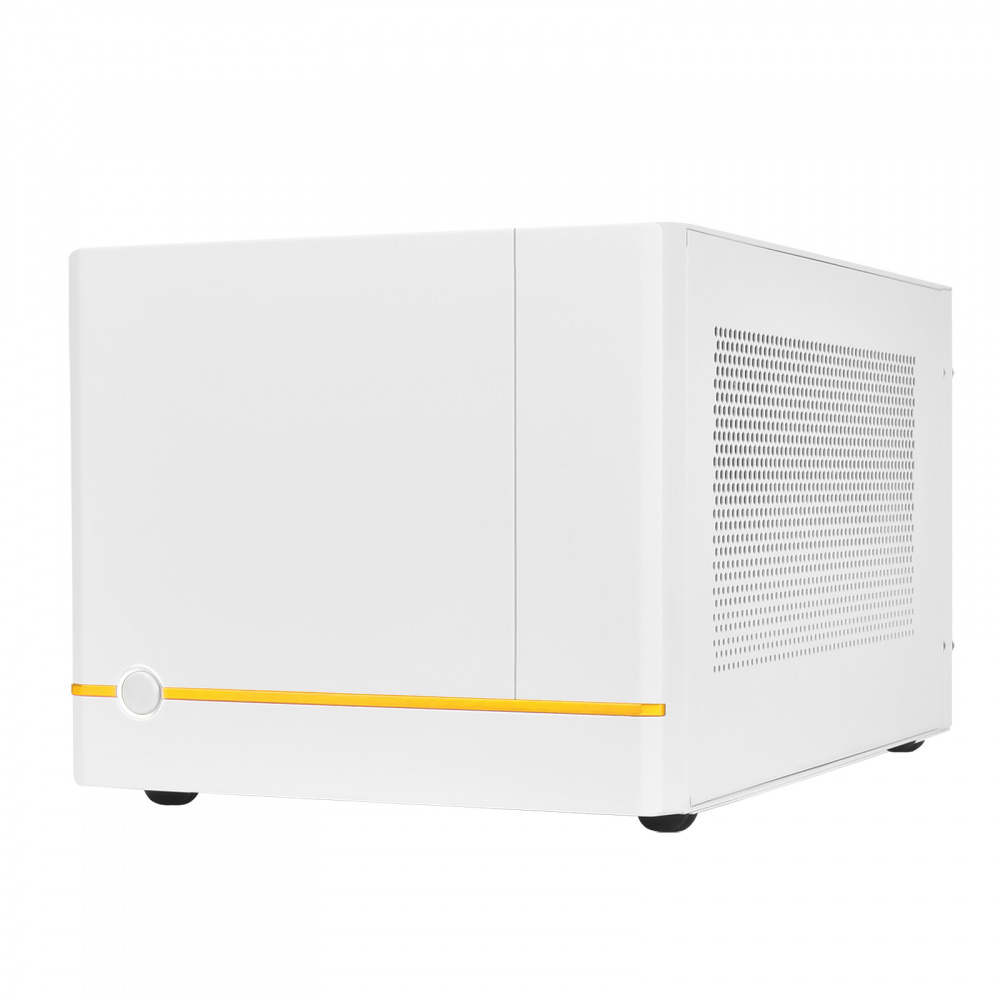

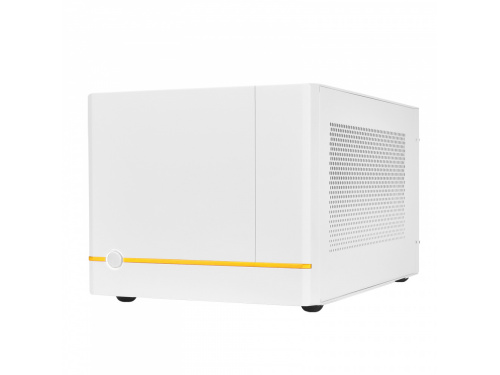

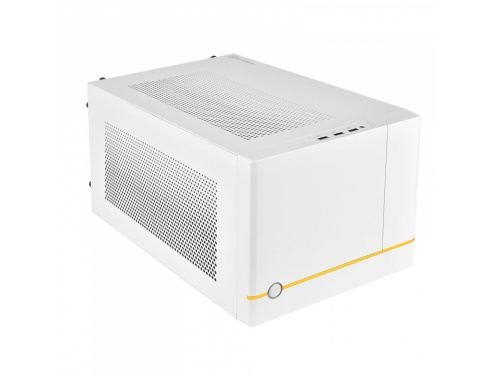

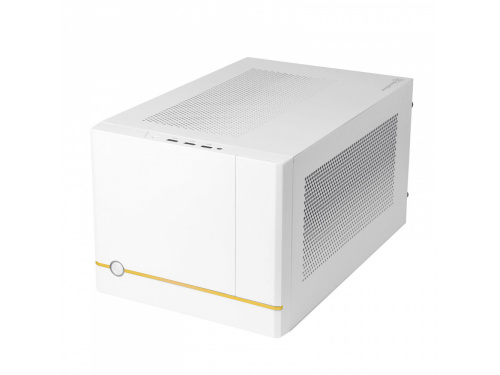

SUGO 14

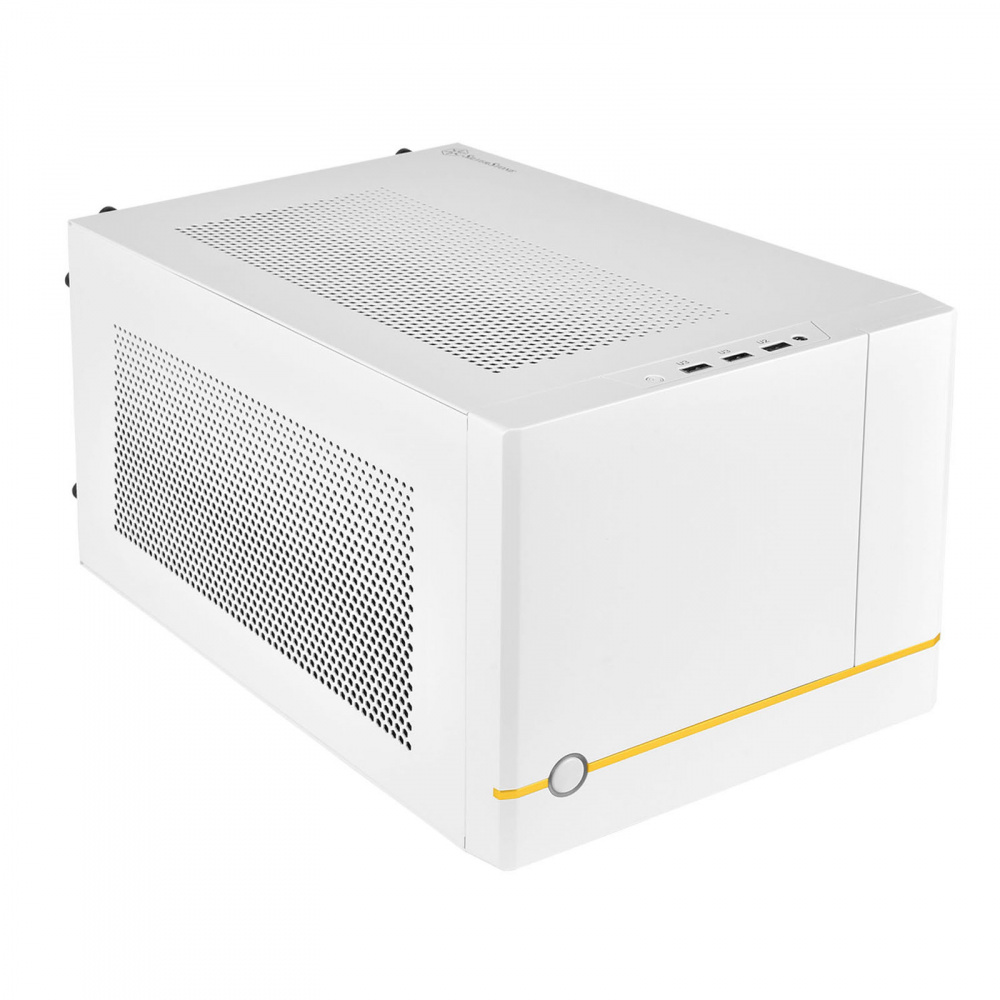

Mini-ITX cube chassis with powerful accommodation

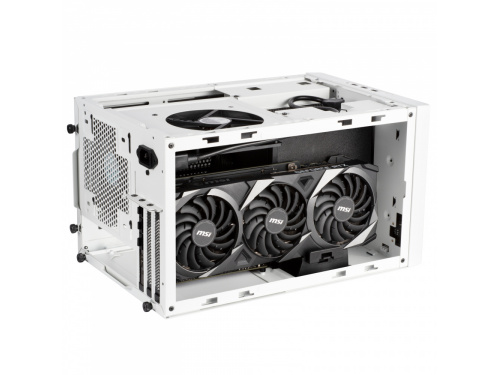

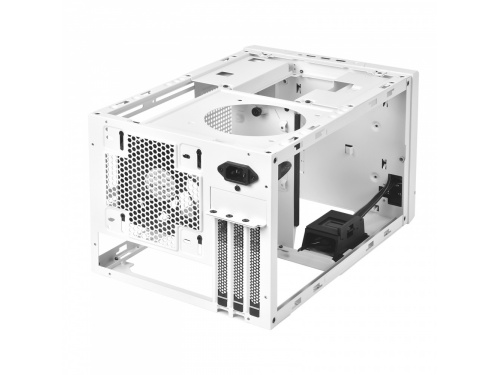

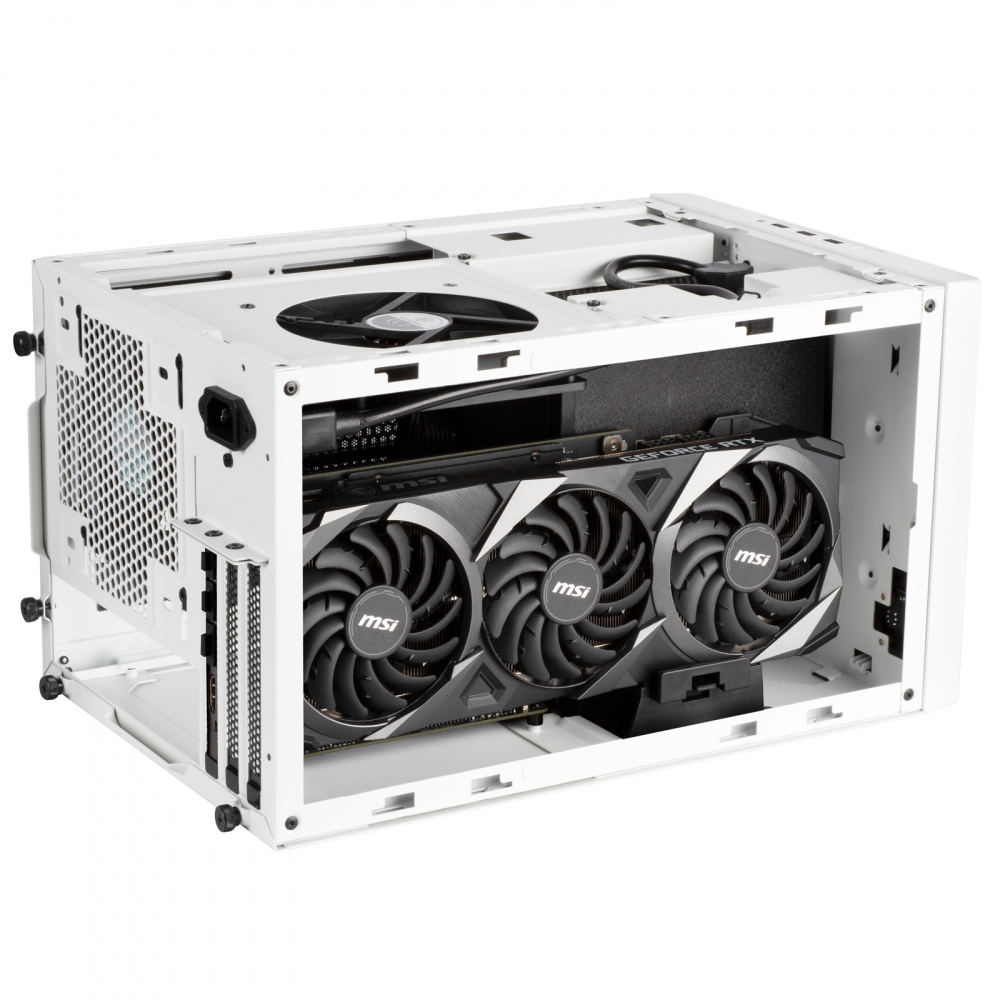

￭ Supports 3 slot full length graphics cards with adjustable graphics card holder
￭ Compatible with Mini-DTX / Mini-ITX motherboard & ATX PSU
￭ Supports up to 240mm radiators

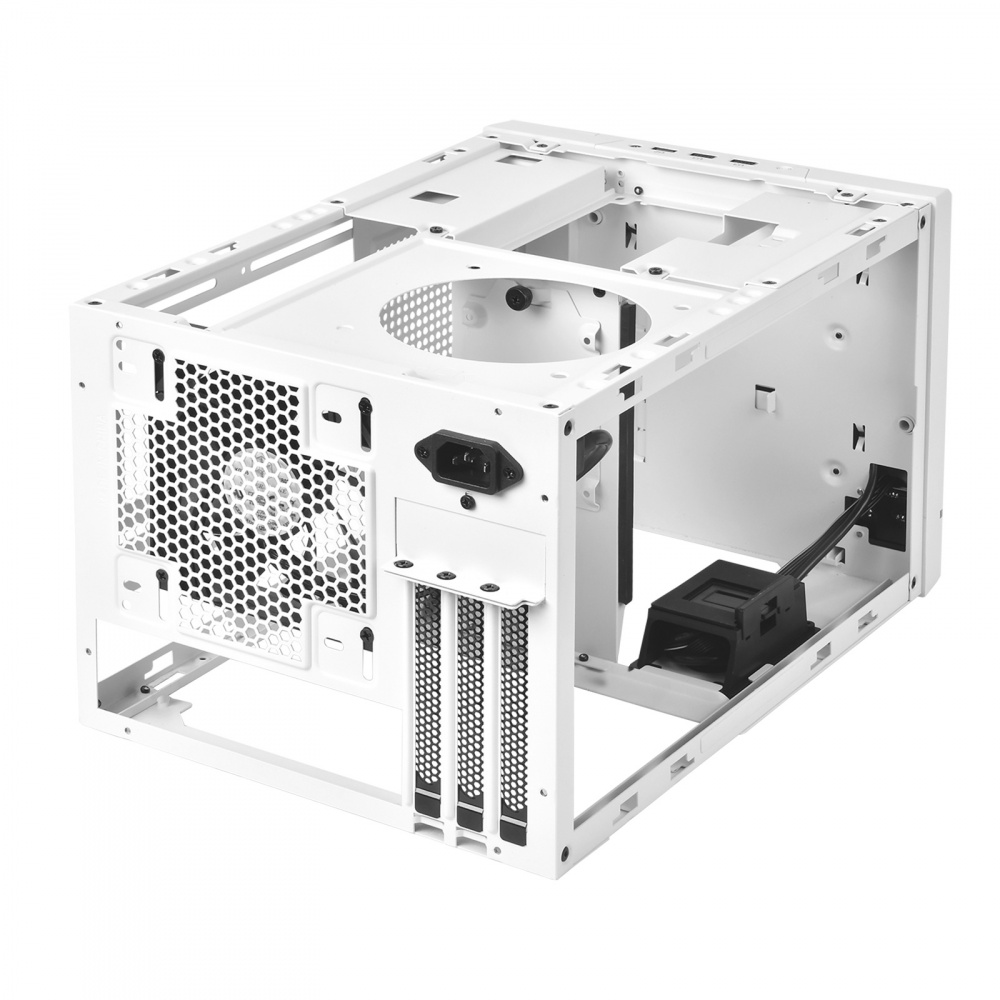

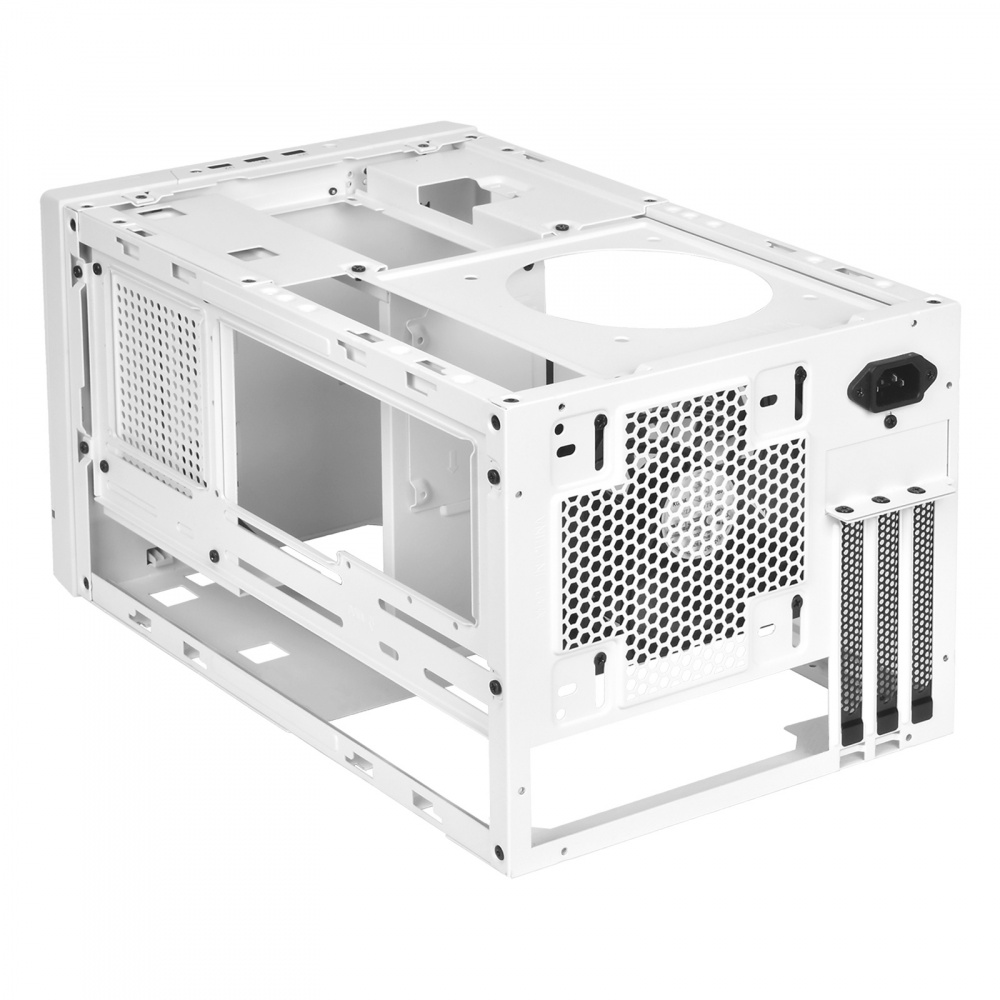

￭ Modular design with 4 removable panels (top, left, right, bottom)
￭ Different configurations support various storage components for 5.25", 3.5" and 2.5"

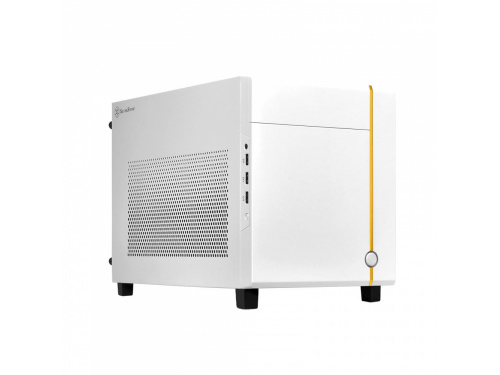

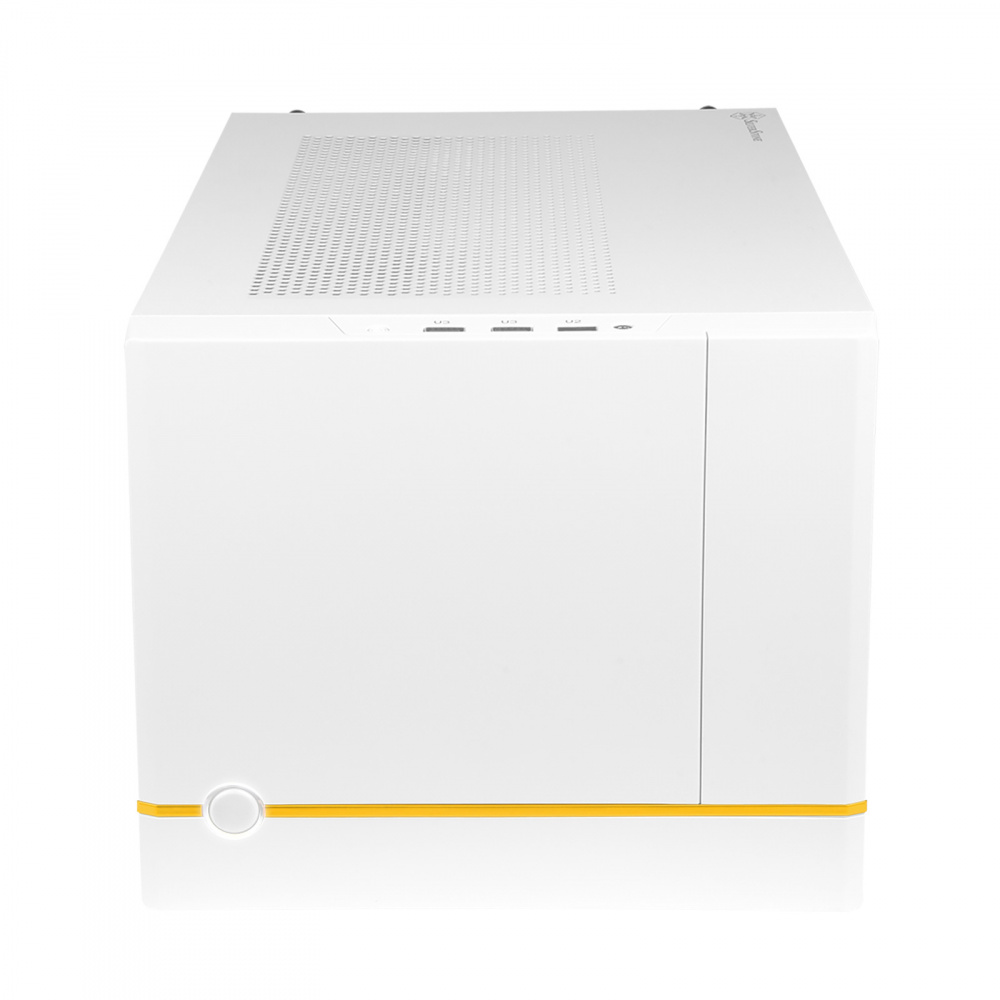

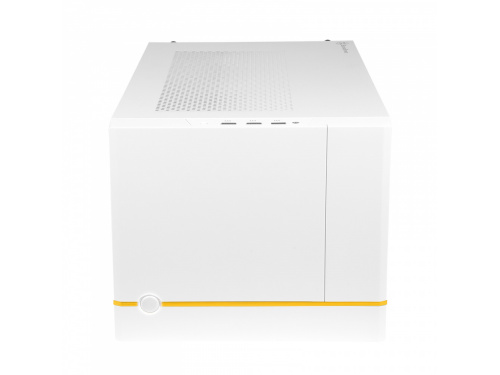

￭ Front I/O port includes: USB 3.0 x 2, USB 2.0 x 1, combo audio x 1
SPECIFICATIONS
| Model No. |
SST-SG14B (black)
SST-SG14W (white) |
| Material |
Plastic front panel, steel body |
| Motherboard |
Mini-DTX, Mini-ITX |
| Drive bay |
External |
5.25" x 1 (without radiator and 3.5" x 1 installed) |
| Internal |
3.5" x 2 (without radiator and 5.25" installed)
2.5" x 3 |
| Cooling system |
Front |
-- |
| Rear |
120mm / 140mm x 1 (120mm black fan x 1 included) |
| Side |

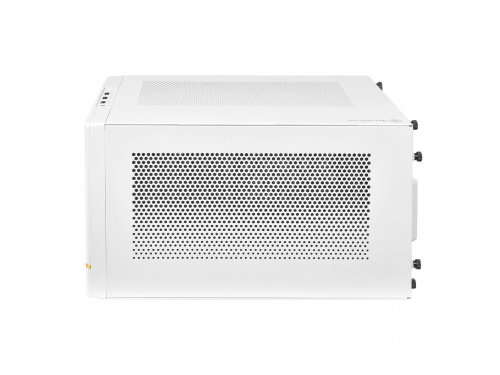

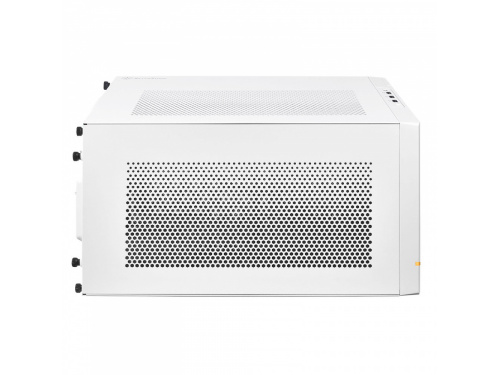

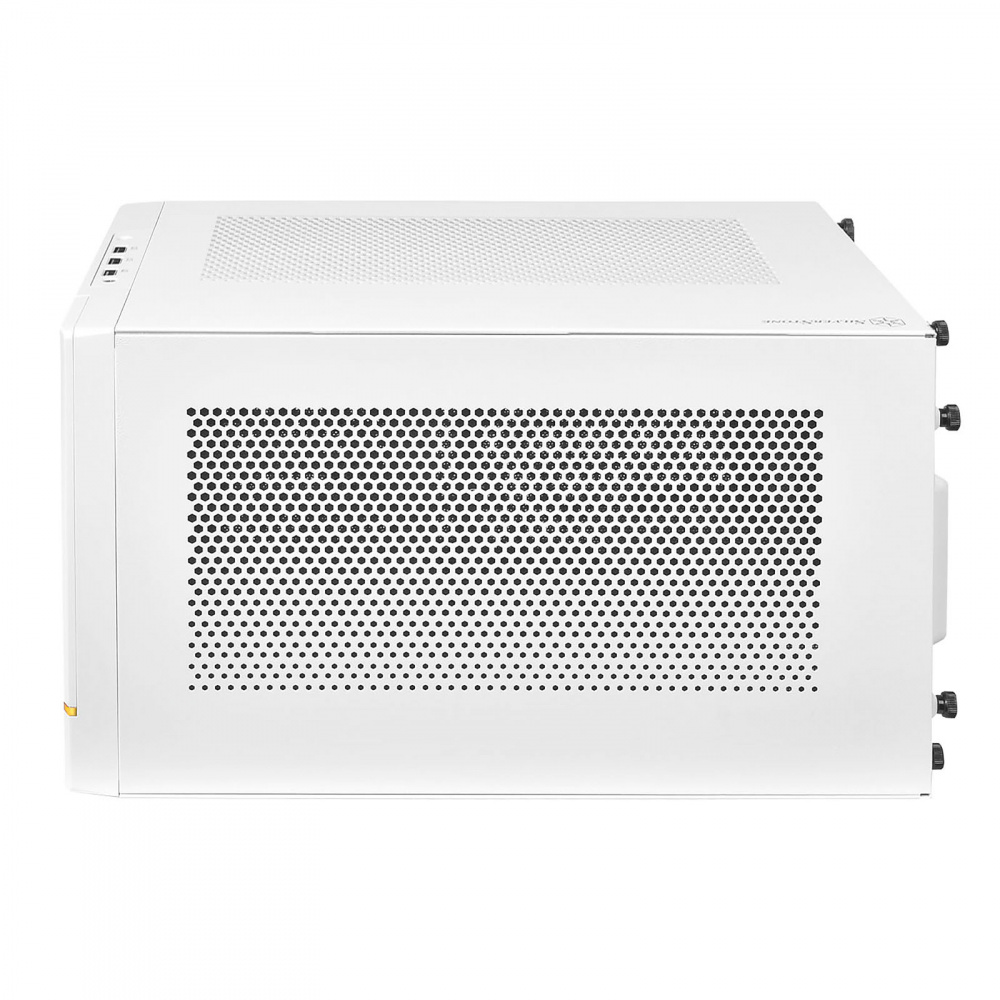

120mm / 140mm x 2 |
| Top |
-- |
| Bottom |
-- |
| Internal |
-- |
| Radiator support |
Front |
-- |
| Rear |
120mm |
| Side |
120mm / 240mm |
| Bottom |
-- |

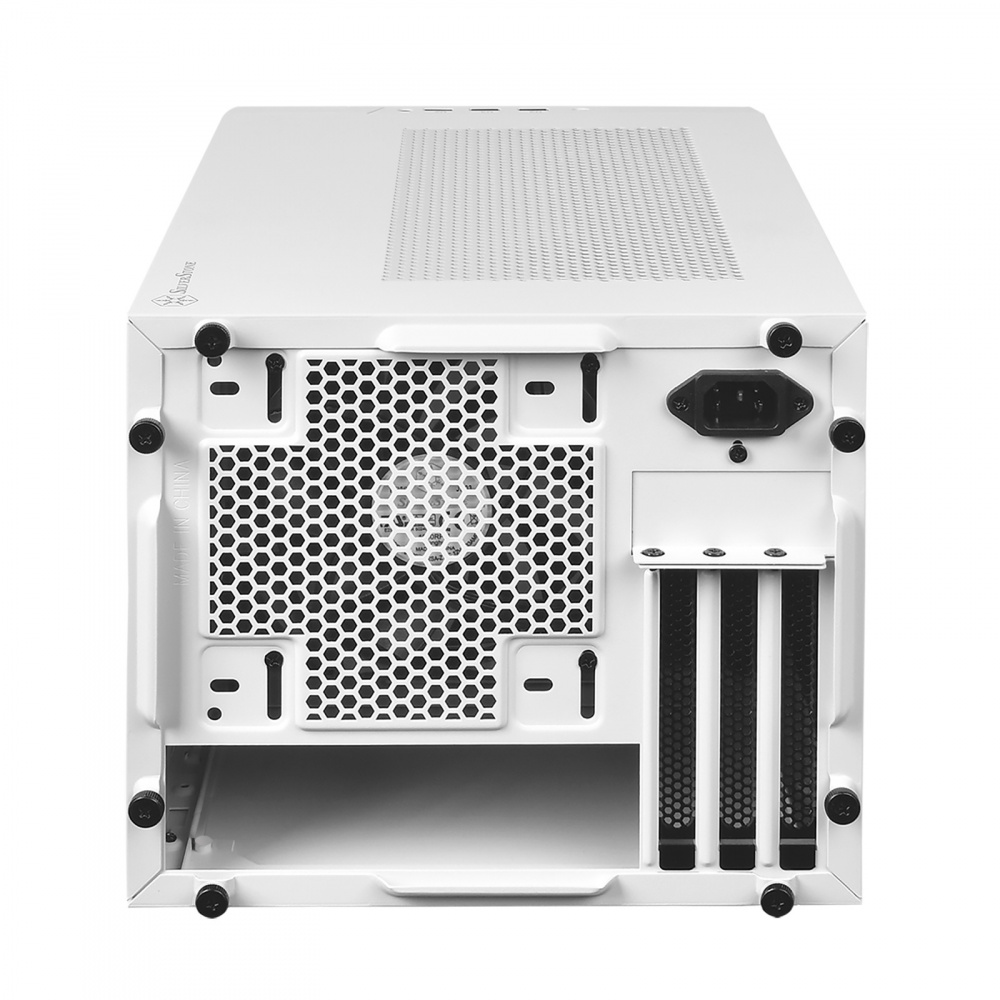

| Expansion slot |
3 |
| Front I/O port |
USB 3.0 x 2
USB 2.0 x 1
Combo audio x 1 |
| Power supply |
Standard PS2(ATX) |
| Limitation of VGA card |
Length: 330mm
Width: 148mm |
| Limitation of CPU cooler |
Air cooler: 182mm (without top fan)
240mm AIO water block: 55mm |
| Limitation of PSU |
150mm |
| Net weight |
4.89 kg |
| Dimension |
247mm (W) x 215mm (H) x 368.1mm (D), 19.55 liters
9.72" (W) x 8.46" (H) x 14.49" (D), 19.55 liters |
