* Your system must have a SAS controller to use SAS hard drives
- Supports up to five 12 Gbit/s 3.5" SAS / SATA drives with tray-free & screw-less design
- Drive tray features anti-theft lock design to keep confidential information secured
- Supports hot-swap function
- Supports up to SSI-CEB motherboard
- Supports 7 standard size PCI / PCIe expansion slots
- Three 5.25" drive bays for a more flexible installation of 5.25" devices
- Front I/O with 5Gbps USB 3.1 Gen1 ports, backward compatible with USB 2.0 / 1.1
- Pre-drilled mounting holes for easy sliding rails installation

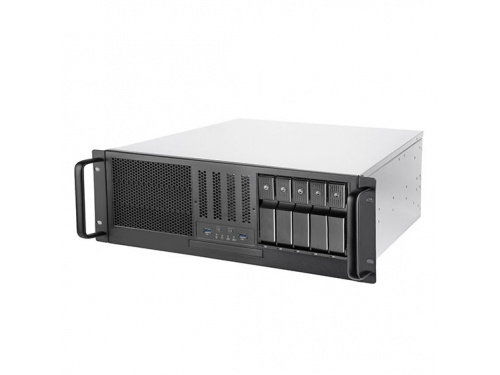

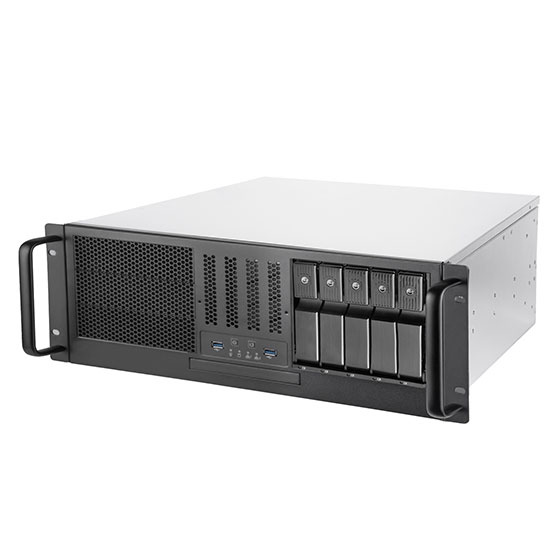

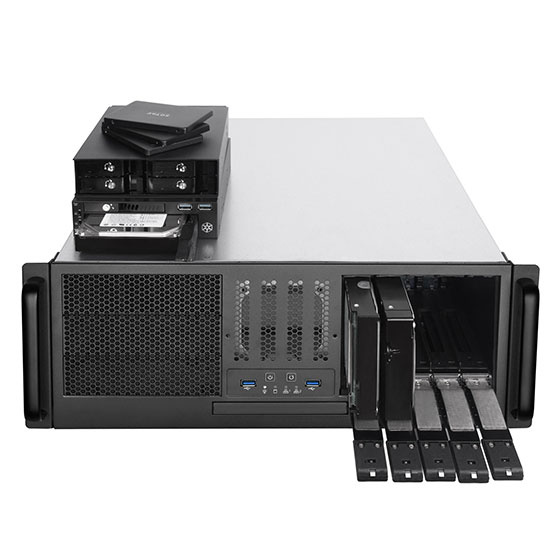

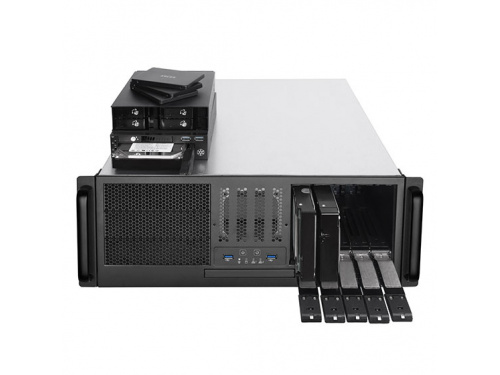

Distinctive exterior

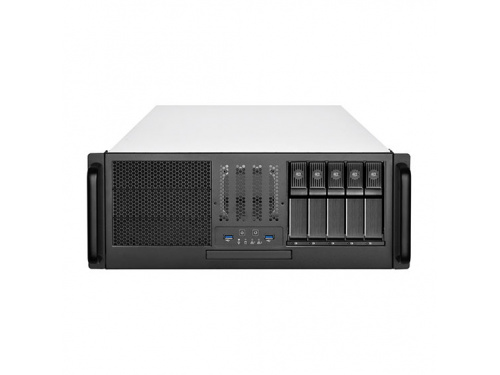

Distinctive front panel features a handle design allowing for easy accessibility to the internal components, along with two USB 3.0 data transfer ports
Storage device performance
Supports SAS 12G/ SATA 6Gb/s high-speed transfer with a hot-swappable and tray-free design
Storage bays
Offers users a wide range of hard drive options including support for 5.25"/3.5"/2.5" hard drives and slim optical drives

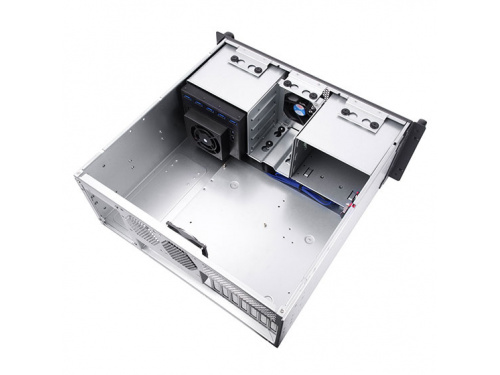

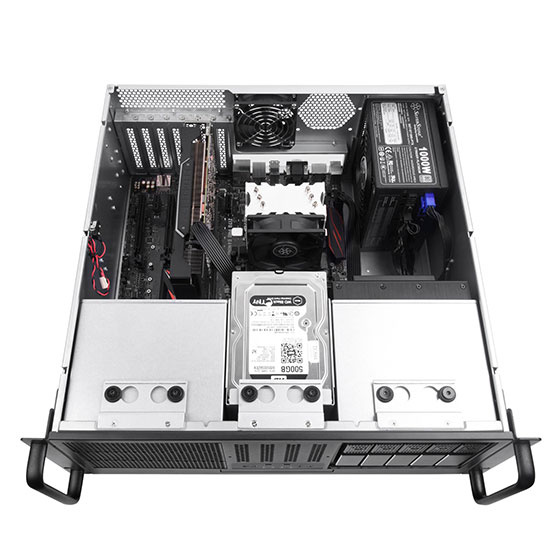

Internal configurations
Length limitation: 7.87” (200mm)
Supports ATX (PS2) / Mini Redundant
Supports up to SSI-CEB (12" x 10.5") motherboards
Cooling capabilities

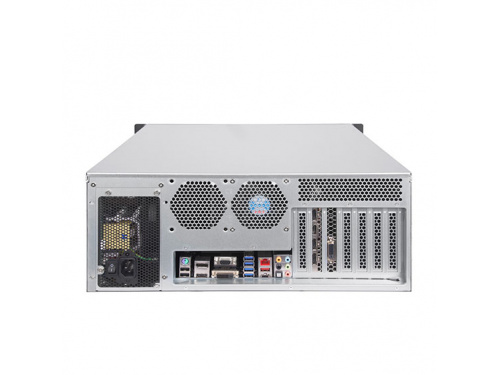

Utilizing the typical front-to-back directional airflow, RM41-H08 comes pre-installed with two 80mm PWM fans for exhaust, designed to achieve a rapid heat dissipation effect that does not easily accumulate hot air inside

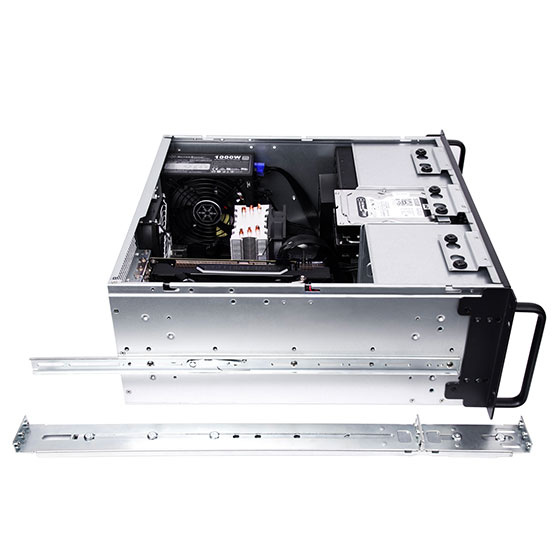

Sliding rail compatibility
Reserved mounting holes for sliding rails which can be easily installed. Can be used with the RMS06-22 rail
SPECIFICATIONS
Model No.
- SST-RM41-H08
Chassis form factor
- 4U
Material
- SGCC
Motherboard
- SSI-CEB (12" x 10.5"), ATX (12" x 9.6"), Micro ATX (9.6" x 9.6"), Mini-ITX (6.7" x 6.7")
Drive Bay
- External: 5.25" x 3, 3.5" x 5 (Hot-swappable)
- Internal: 3.5" x 4, 2.5" x 2 (Support up to 15mm), 2.5" x 1 (Support up to 15mm) or slim optical drive (Support up to 12.7mm)
Cooling System
- Front: 80 x 25mm fan slot x 1
- Rear: 80 x 25mm fan slot x 2 (both fans included), 80mm fan x 1, 3000rpm (on hot-swap cage)
Power Supply
- PS2 / ATX / Mini Redundant (supports up to 200mm)
Expansion card
- Compatible up to 7.87” (200mm) long
Limitation of CPU cooler
- 148mm
Expansion Slot
- 7 standard PCI / PCIe expansion slots
Front I/O Port
- USB 3.1 Gen1 Type-A x 2
Front buttons
- Power On / Off, restart
Indicators
- Power status x 1, system reset x 1, network status x 2
Main metal thickness
- 1.2mm
Net Weight
- 10.7 kg
Dimension
- 430mm (W) x 176mm (H) x 446mm (D)
- 16.93" (W) x 6.93" (H) x 17.56" (D)
* Your system must have a SAS controller to use SAS hard drives
** For maximum supported capacity and drive array, please consult with your SAS or SATA drive manufacturer
*** RM41-H08 has 2 rows of slide rail locking holes. If you wish to fix it in the positive U position of the rack, please lock the rails in the sliding rail locking holes of the lower row of RM41-H08
