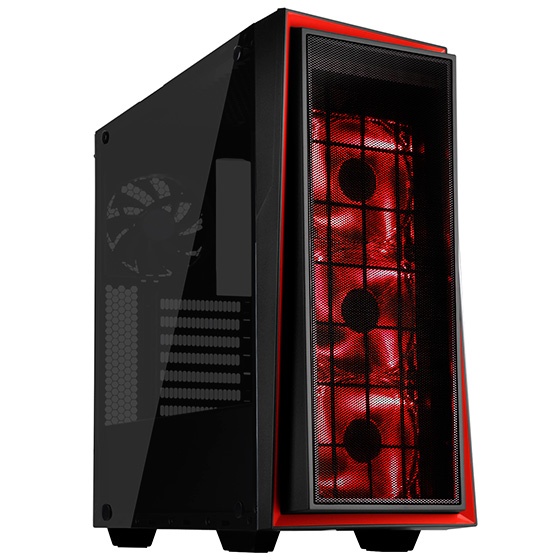

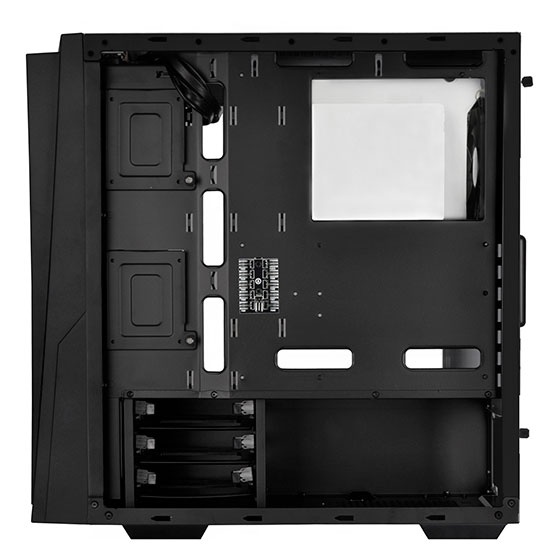

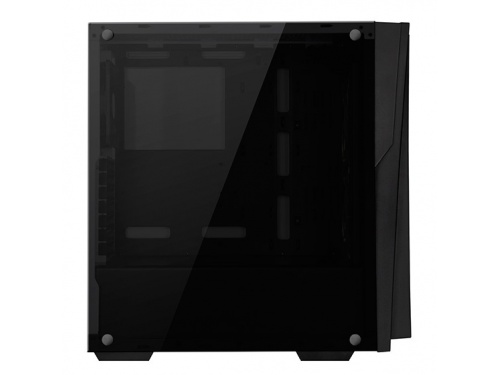

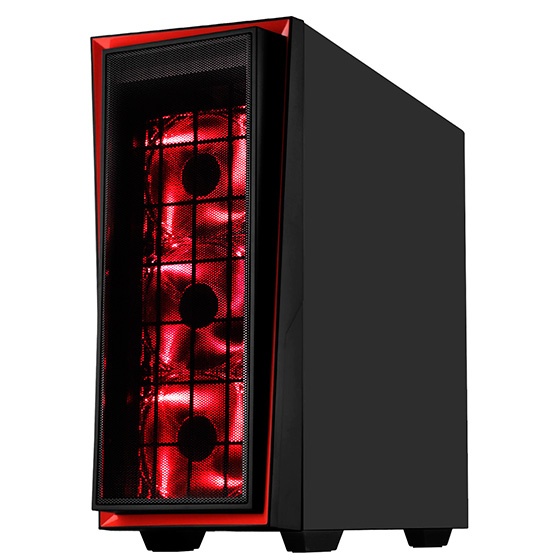

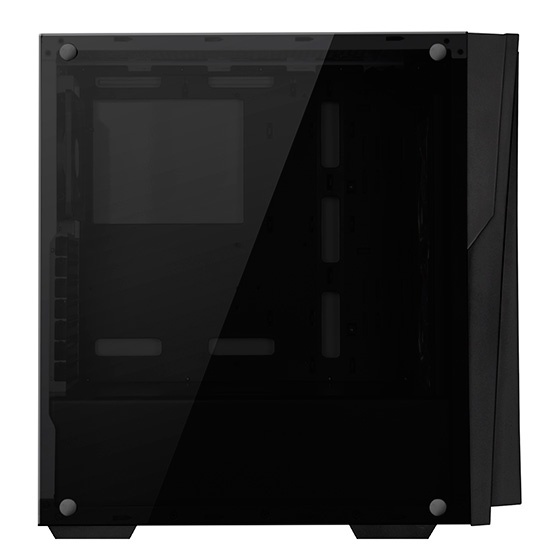

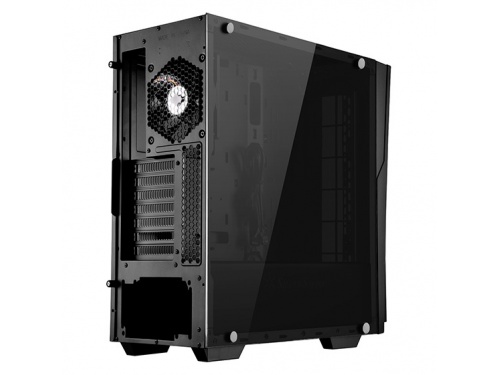

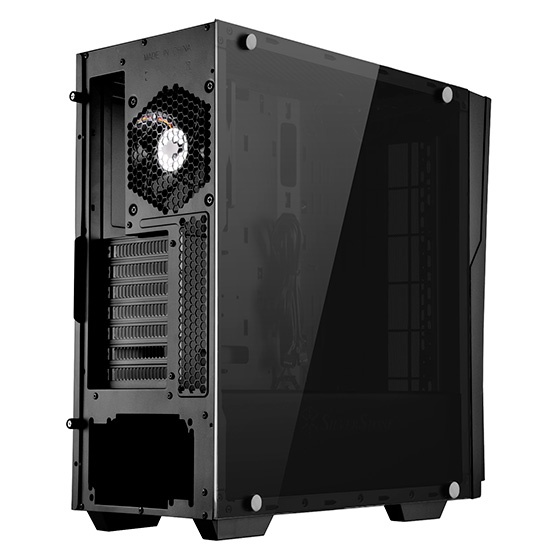

- Stunning exterior styling with fine details - Super clean internal look with PSU and drive bay cover - Quick access filters for easy cleaning - Motherboard back plate opening for quick CPU cooler assembly - All black painted interior for stylish look - Supports graphics cards up to 13.7" (348mm) - Full tempered-glass side panel (G & GP versions only)

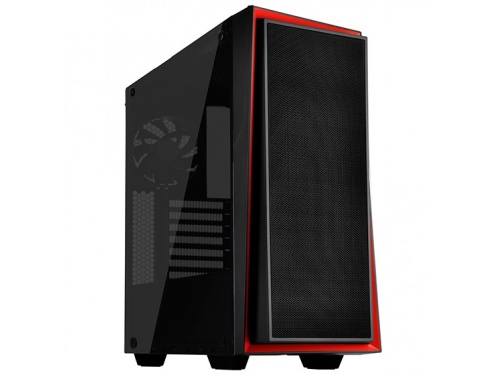

The Redline RL06 was created with the goal of exceeding user experience and expectation for affordable PC chassis. By strengthening the character line of the exterior with simple and detailed styling elements inside and out that traces its roots to the rest of the aggressive Redline series; the RL06 has stunning looks that is often only available on cases costing much more. Functionally, the RL06 does not disappoint with oversized intake mesh panel, top magnetic filter, easily accessible front filter, PSU and drive bay cover, abundant room for cable management, and plethora of fan mounting options. Advanced users will also find support for front, top and rear radiator mounting positions and water tank mounting holes to be highly useful for building liquid cooled PCs.

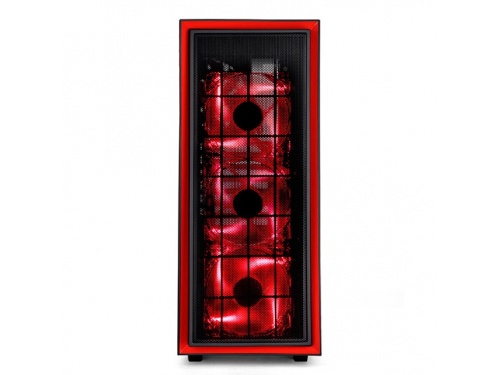

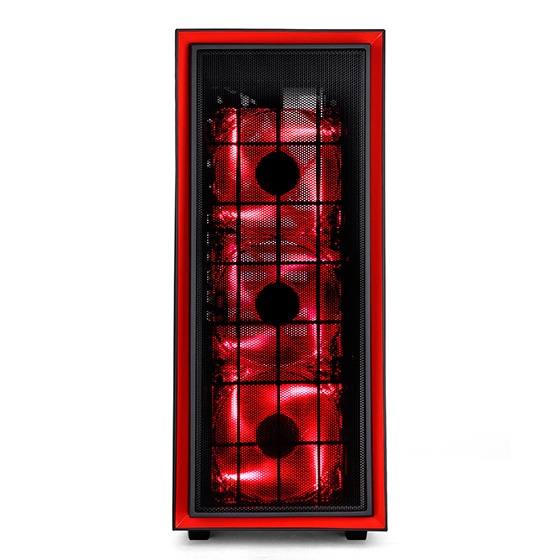

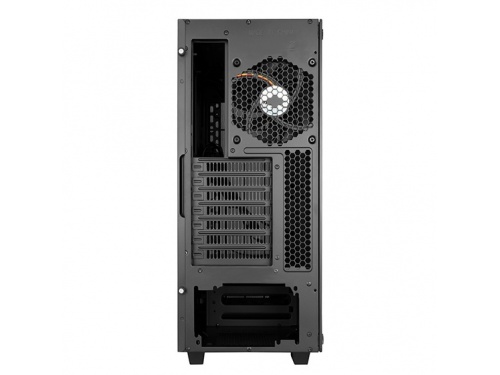

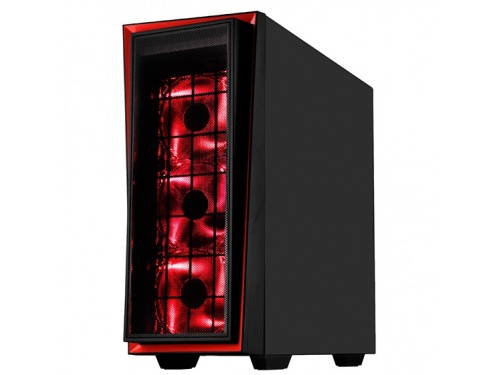

Model No. - SST-RL06BR-GP (black with red trim + LED fans + tempered glass window)Material - Plastic panel, steel body, tempered glass side panel (G & GP versions only)*Motherboard - ATX (up to 12" x 10.2"), Micro-ATXDrive bay - External None - Internal 3.5" x 3 (compatible with 2.5"), 2.5" x 2Cooling system - Front 120mm LED fan x 3 (PRO & GP versions only) or 140mm fan slot x 2Rear - 120mm fan x 1 - Side -- - Top 120 / 140mm fan slot x 2 - Bottom -- - Internal --Radiator support - Front 120mm / 140mm / 240mm x 1 - Rear 120mm x 1 - Top 120mm / 240mm x 1 (1<30mm)** - Bottom N/AExpansion slot - 7Front I/O port - USB 2.0 x 2 - USB 3.0 x 2 - Audio x 1 - MIC x 1Power supply - Standard PS2(ATX)Expansion card - Support graphics card up to 13.7" (348mm), width restriction - 6" (152mm)Limitation of CPU cooler - 158mmLimitation of PSU - 200mmNet weight - 6 kg (standard version) - 6.3 kg (PRO version) - 6.87 kg (G version) - 7.17 kg (GP version)Dimension - 200mm (W) x 477mm (H) x 455mm (D), 43.4 Liters - 7.87" (W) x 18.78" (H) x 17.91" (D), 43.4 Liters
Remark* When removing tempered glass panel, please do so by placing the case horizontally on a flat surface to avoid accidentally drop. When reinstalling tempered glass, make sure it is aligned to mounting posts before securing with screws. Do not over tighten screws during installation** For 120mm / 240mm radiators and fans, total thickness may not exceed 30mm depending on motherboard component clearance
