- Super small at only 7 liters - Aluminum front panel with premium styling - Supports up to two 80mm fans - Multipurpose 4-in-1 bracket - Supports Mini-ITX motherboard and SFX power supply - Supports four 2.5" HDD/SSD

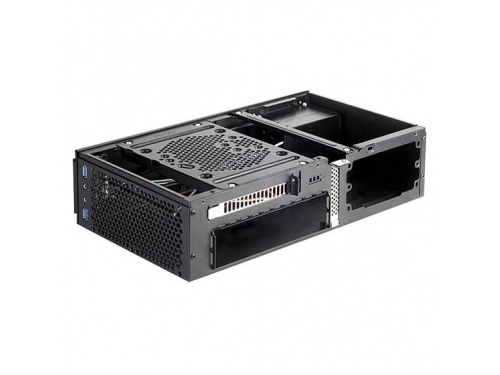

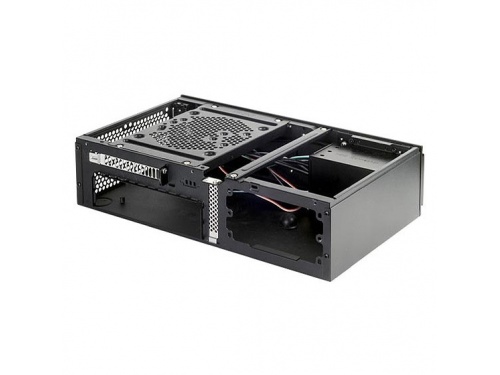

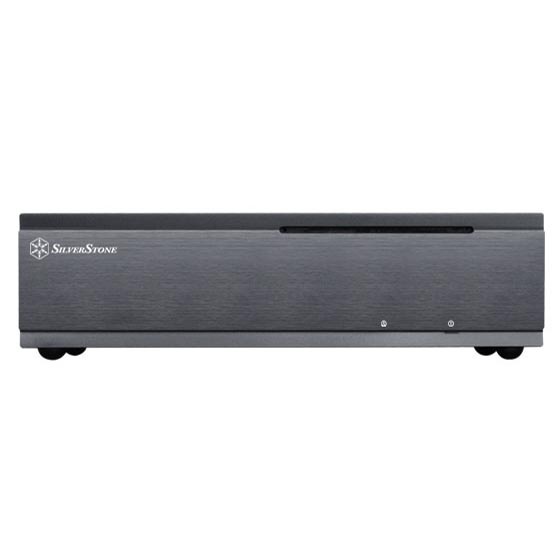

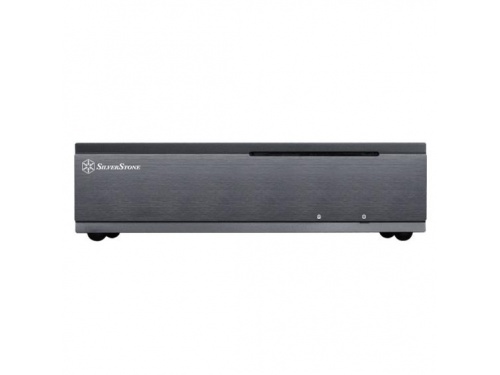

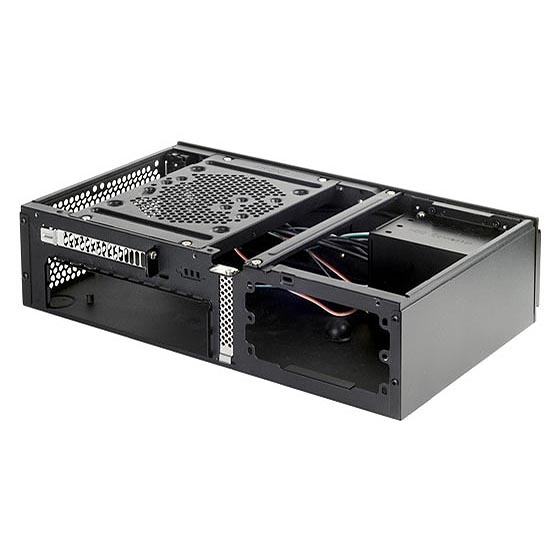

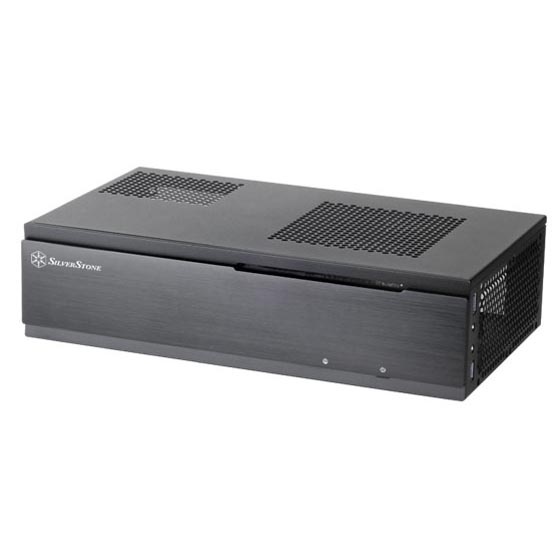

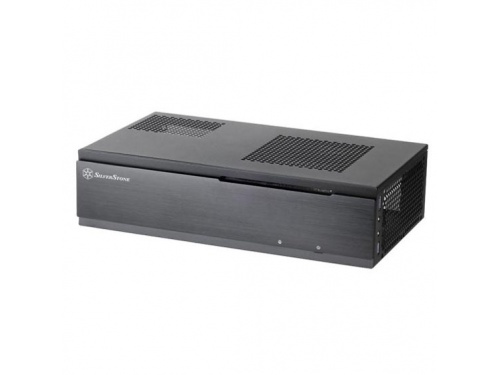

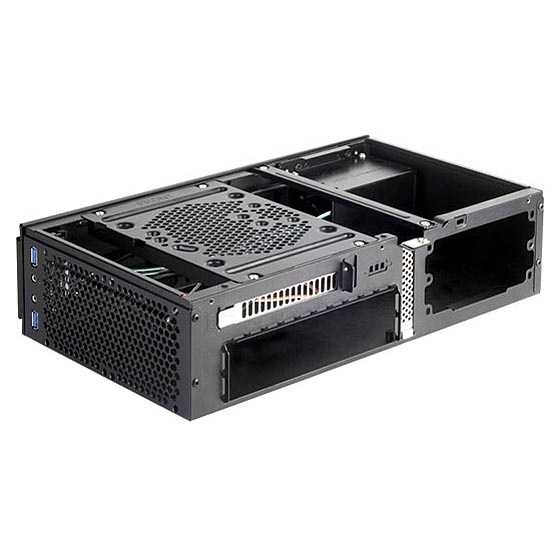

Continuing with the popular slim form factor HTPC, the Milo ML06 HTPC case is the smallest in the Milo series to-date and yet still able to fit modern day components. Although measuring only 7 liters in size (half the size of Micro-ATX based ML03), it can accommodate Mini-ITX motherboard, SFX power supply and install up to four 2.5" hard drives. An innovative multipurpose 4-in-1 bracket also allows installation of a slim optical drive, a 3.5" hard drive, two 2.5" drives, or a 120mm fan depending on user’s requirement. Complementing a superbly compact design is a beautiful aluminum front panel finished with hairline brush pattern that seamlessly integrates into home theater environments, making ML06 the best petite HTPC case on the market.

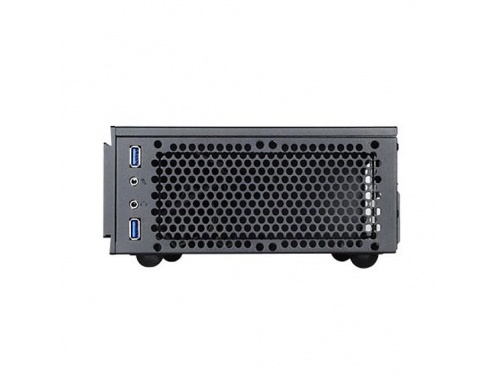

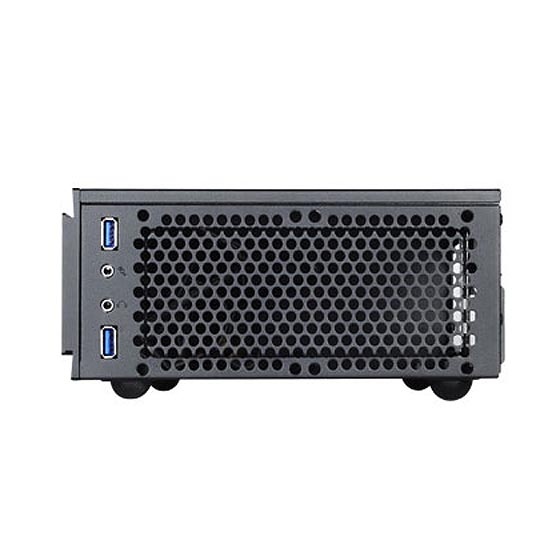

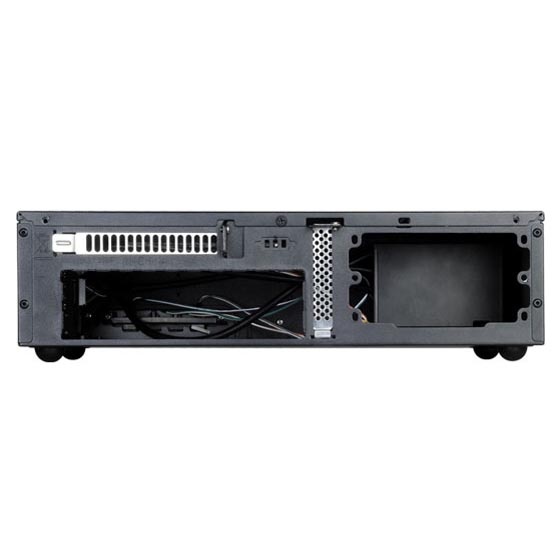

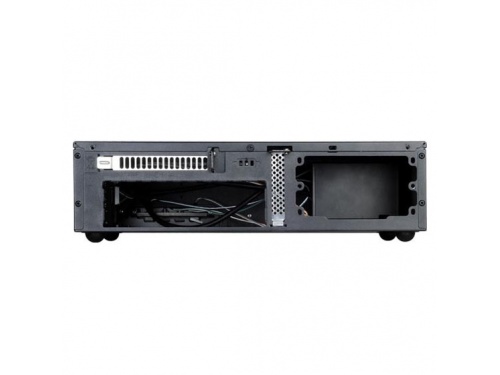

Model No. - SST-ML06B (black)Material - 7mm aluminum front panel, 0.8mm steel bodyMotherboard - Mini-ITXDrive bay - External: 9.5mm/12.7mm slim slot-loading optical drive x 1 (replaceable with 3.5" HDD x 1 or 2.5" HDD x 2 or 120mm fan x 1)Internal - 2.5" x 4Cooling system - Front: -- - Rear: -- - Side Right: 2 x 80mm fan slot - Top: 120mm fan slot / oversized PSU vents - Bottom -- - Internal --Expansion slot - 1Front I/O port - USB 3.0 x 2 - audio x 1 - MIC x 1Power supply - 1 x Optional standard SFXExpansion card - 1x low profile, width restriction-2.95" (74mm)Limitation of CPU cooler - 37~70mmLimitation of PSU - SFXNet weight - 2.4kgDimension - 350mm (W) x 99 mm (H) x 205 mm (D), 7 liters - 13.78" (W) x 3.9" (H) x 8.07" (D), 7 litersExtra - support Kensington lock
Remark*Depends on multipurpose bracket
