SilverStone HELA 850R Platinum 850W Power Supply Model: SST-HA850R-PM psSI850_hela*

tweet_button SilverStone HELA 850R Platinum 850W Power Supply Model: SST-HA850R-PM - GameDude Computers
SilverStone HELA 850R Platinum 850W Power Supply Model: SST-HA850R-PM
pro_20220721061127_3pro_20220721061127_0pro_20220721061127_5pro_20220721061127_6
$289.00 each
Brand: SilverstoneSilverstone

HELA 850R Platinum
Cybenetics Platinum 850W PCIe 5.0 fully modular ATX PSU
  • 100% modular cables
  • Super flexible black flat cables
  • All Japanese electrolytic capacitors
  • Supports 12VHPWR PCIe connector with ATX 3.0 and PCIe Gen 5 standard
  • 24/7 continuous power output with 50℃ operating temperature
  • 180° angled SATA connectors designed for stack mounted hard drives
  • Ultra silent 135mm FDB fan with semi-fanless and delayed shut-off function
Product Specifications
Product No.
- SST-HA850R-PM
Model (safety certification)
- SST-AX0850MCPT-A
Color
- Black (lead-free paint)
Max. DC Output
- 850W
Power density
- 439W per liter
Load Range
Output +3.3V +5V +12V +5VSB -12V
Max.(Amps) 22A 22A 70.8A 3.0A 0.3A
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±5% ±5% +5/-7% ±10% ±5%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 40mV 40mV 80mV 40mV 80mV
Combined +3.3V & +5V
- 120W
Combined +12V
- 849.6W
Input Voltage
- 90 ~ 264 Vrms
Input Frequency Range
- 47Hz ~ 63Hz
PFC
- Active PFC (PF>0.9 at full load)
Efficiency
- ≥89% & <91% overall efficiency
MTBF
- 100,000 hrs
Operating temperature
- 0°C ~ 50°C
Protection
- Over Current Protection
- Over Power Protection
- Over Voltage Protection
- Over Temperature Protection
- Short Circuit Protection
- Under Voltage Protection

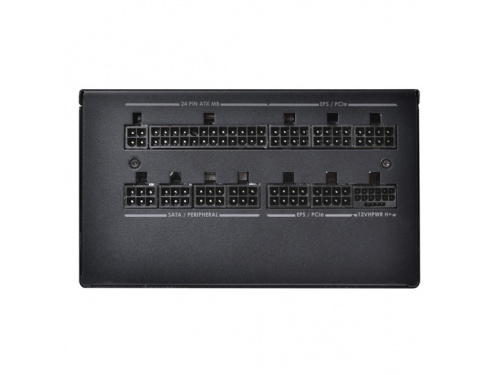

Connectors
- 1 x 24 / 20-Pin motherboard connector
- 2 x 8 / 4-Pin EPS / ATX 12V connectors
- 1 x 12+4-Pin 12VHPWR connector
- 5 x 8 / 6-Pin PCIe connectors
- 8 x SATA connectors
- 6 x 4-Pin Peripheral connectors
- 2 x 4-Pin Floppy connectors
Cooling System
- Silent 135mm FDB fan
Noise Level
- 0 dBA minimum
Certification
- Cybenetics Platinum
Form factor
- ATX (PS2)
Dimension
- 150 mm (W) x 86 mm (H) x 150 mm (D)
- 5.91" (W) x 3.39" (H) x 5.91" (D)
Weight
- 2.56 kg
Other
GPU Support list
● Specifications presented on this page contains most recent revisions and may differ from those printed on retail boxes or manuals.
This PSU’s motherboard connector includes a 4pin sense wire that needs to be connected to the PSU’s modular interface as shown. Sense wire helps improve PSU’s regulation performance by around 1%-2%.
4pin-sense SilverStone HELA 850R Platinum 850W Power Supply Model: SST-HA850R-PM - GameDude Computers


ha850r-pm-dimension SilverStone HELA 850R Platinum 850W Power Supply Model: SST-HA850R-PM - GameDude Computers
