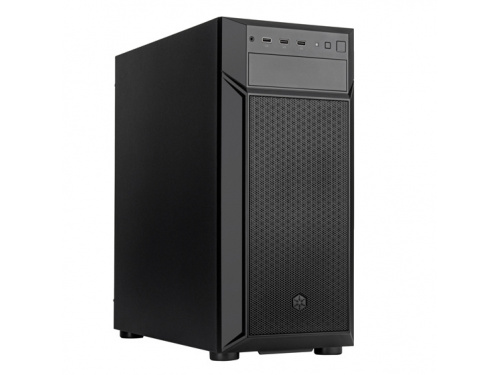

FARA 513
High airflow ATX chassis with excellent hardware compatibility

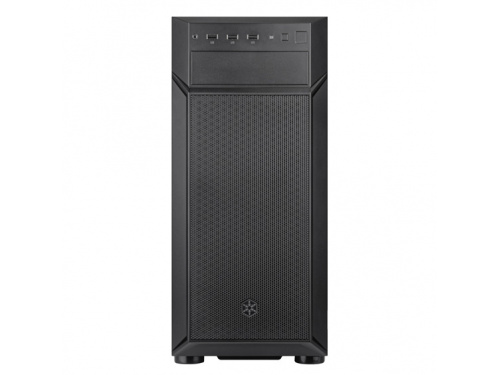

- Modest aesthetics with large perforated mesh front panel design.
- Excellent cooling potential with 280mm radiator support
- Highly flexible storage options for 5.25", 3.5" and 2.5" drives
- Front I/O includes USB 3.0 x 2, USB 2.0 x 1, combo audio x 1
- Superb active cooling potential
Product Specifications
Model No.
- SST-FA513-B (Black)
Material
- Steel, plastic
Motherboard
- ATX (12" x 11"), Micro-ATX (9.6" x 9.6"), Mini-ITX (6.7" x 6.7")
Cooling system
Rear
- 120mm x 1
(120mm x 1 black fan included)
Radiator support
Front
- 120mm / 140mm / 240mm / 280mm
Limitation of CPU cooler
- 161.5mm
Limitation of expansion card
- Length : 390mm (with 25mm thick front fan installed)
- 380mm (front fans installed between chassis and front panel)
- Width : 167mm
Limitation of PSU
- 186mm

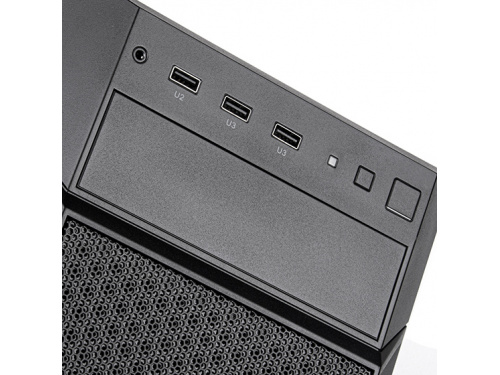

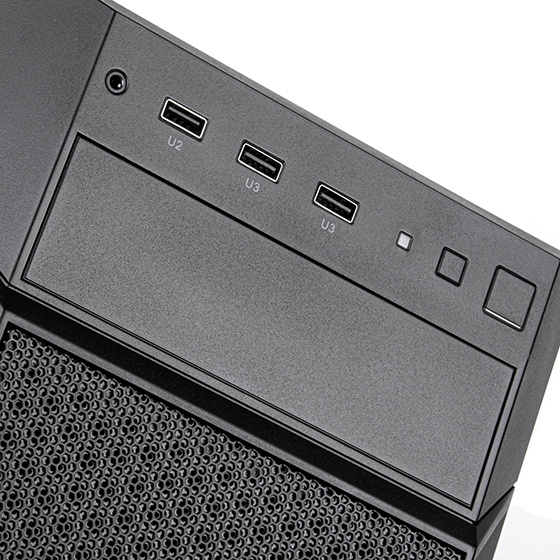

Front I/O port
- USB 3.0 x 2
- USB 2.0 x 1 (SST-FA513-B)
- Combo audio x 1
Dimension
- 204mm (W) x 452mm (H) x 438.3mm (D), 40.4 liters
- 8.03" (W), x 17.8" (H), x 17.26" (D), 40.4 liters
*When 2 x 2.5" SSDs are installed on the front of the motherboard tray, the front panel then only supports 120mm fans.
