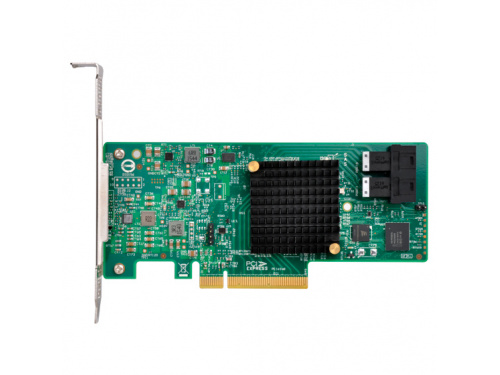

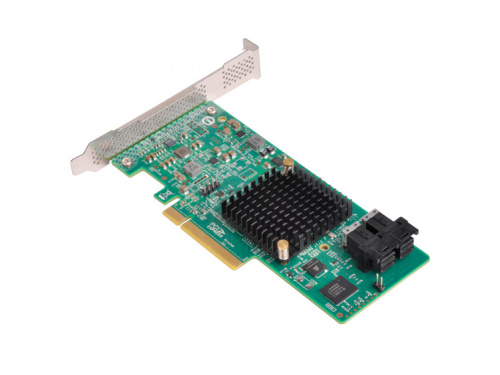

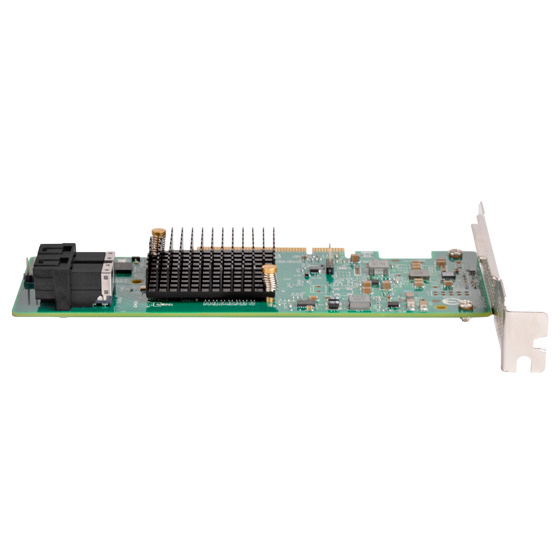

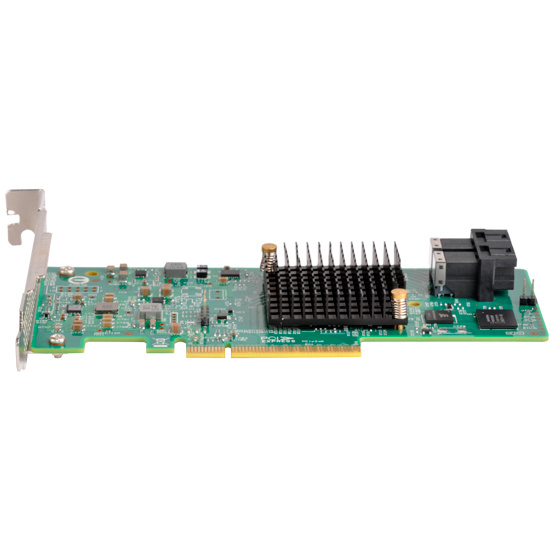

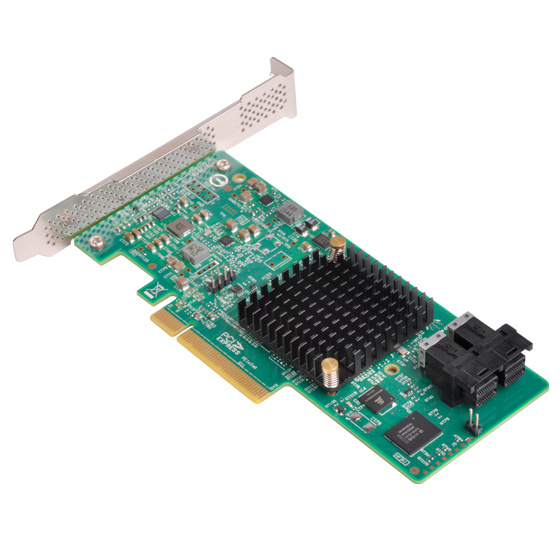

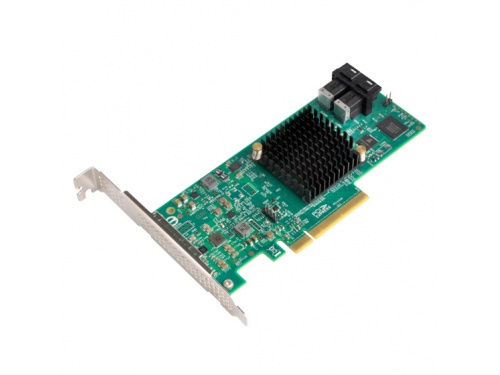

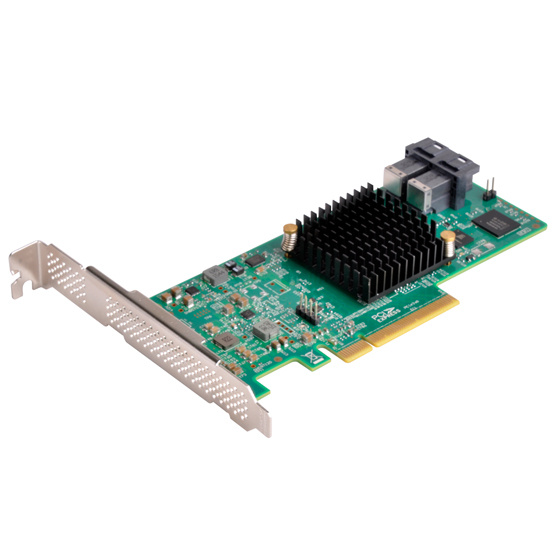

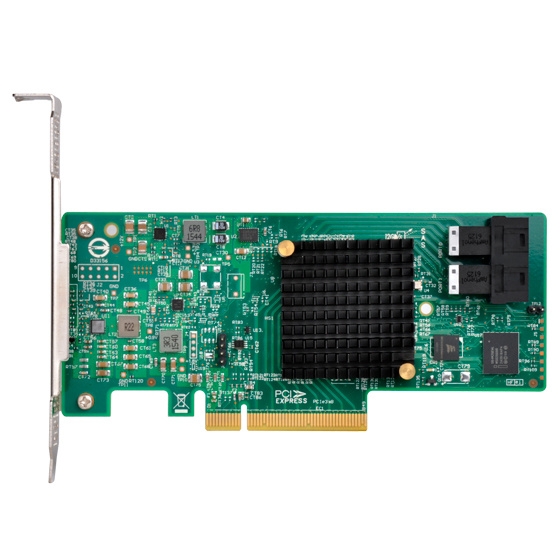

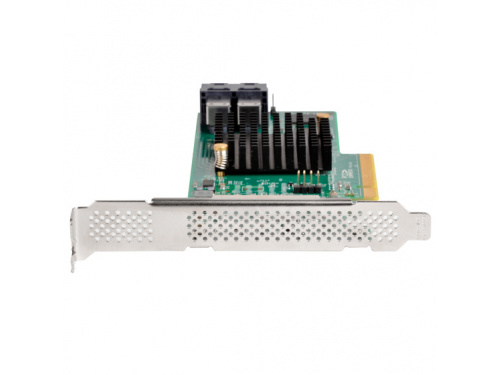

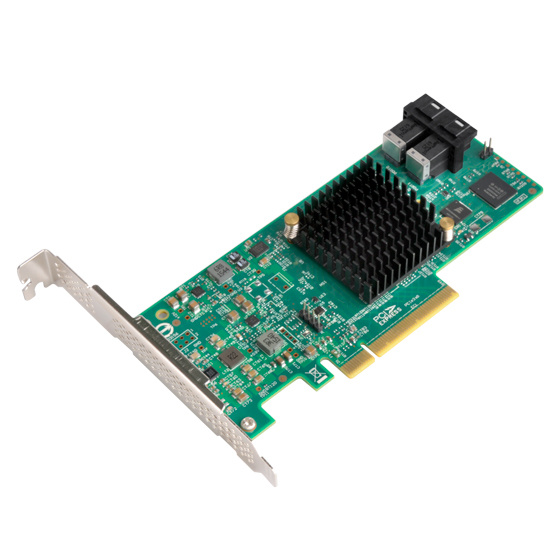

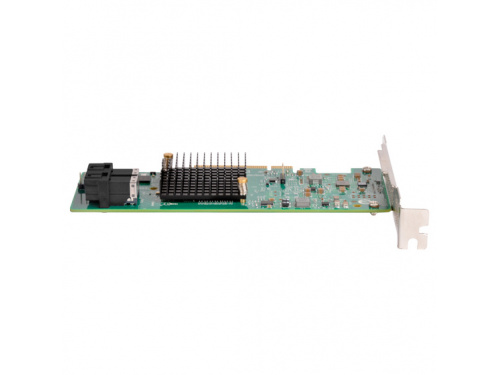

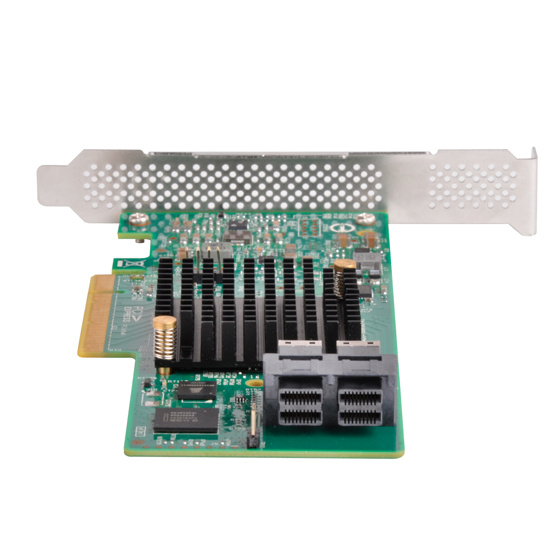

0ECS05
■ 8 x SAS/SATA ports
■ Supports SAS 12Gb/s, SATA 6Gb/s
■ PCI-E Gen 3.0 x8 throughput 64 Gbps
■ Low profile design
■ Supports RAID 0, 1, 1E, 10
SPECIFICATIONS
Model No. |
SST-ECS05 |
Interface |
Mini-SAS HD SFF-8643 x 2 |
Form factor |
Low profile - PCI Express 3.0 x8 throughput 64 Gbps |
Drive Support |
SAS up to 12Gb/s, SATA up to 6Gb/s (up to 1024 SAS/SATA devices) |
Controller |
LSISAS3008 RAID-on-chip |
RAID function |
0, 1, 1E, 10 |
PCI Card Type |
3.3V Add-in Card |
Operating Voltage |
+12V +/- 8% ; 3.3V +/- 9% |

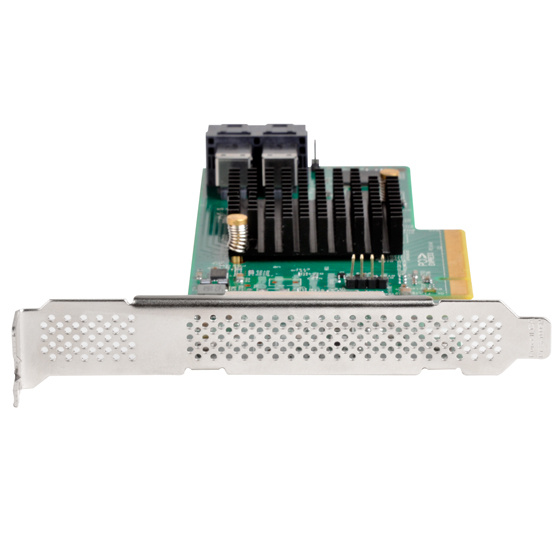

Brackets |
Full height and low profile bracket |
Net weight |
91g |
Dimension |
120mm (W) x 23mm (H) x 154mm (D) 4.72" (W) x 0.91" (H) x 6.06" (D) |
