- Converts one M.2 port (M key) into one PCIe x 4 interface
- Only 31mm tall when installed, easily fits in 1U chassis
- Built-in LED indicator for showing PCIe NVMe status
- Supports 2230, 2242, 2260, 2280, 22110 length M.2 SSD
- No driver installation required
Only 31mm tall when installed, easily fits in 1U chassis

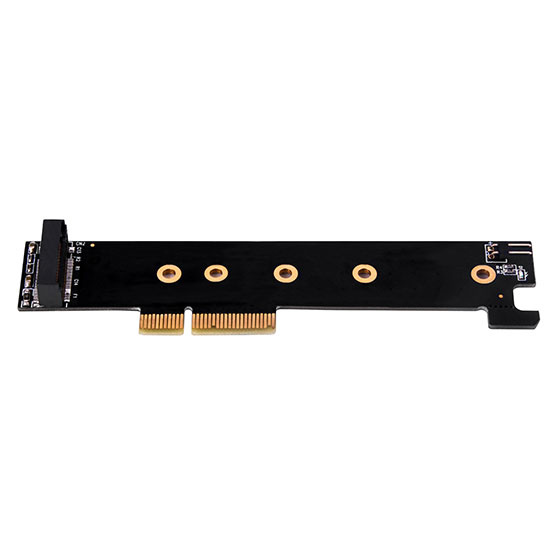

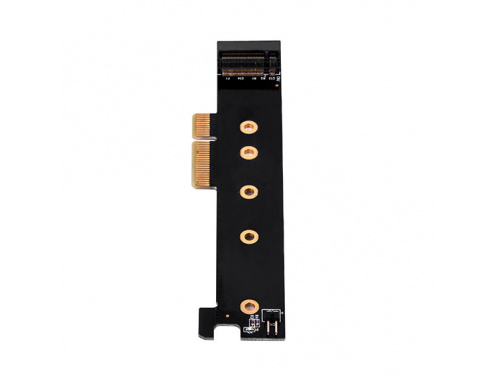

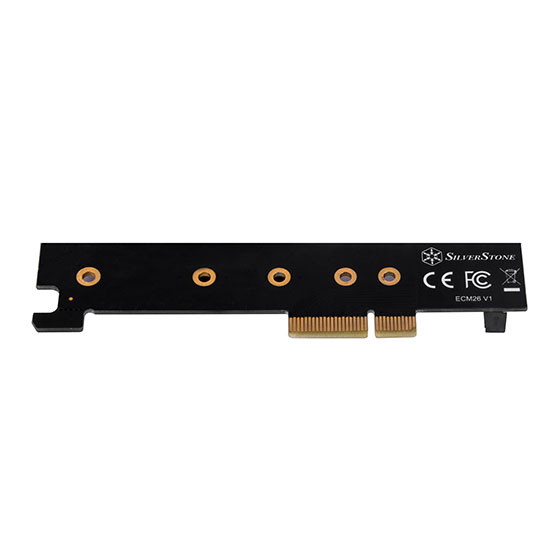

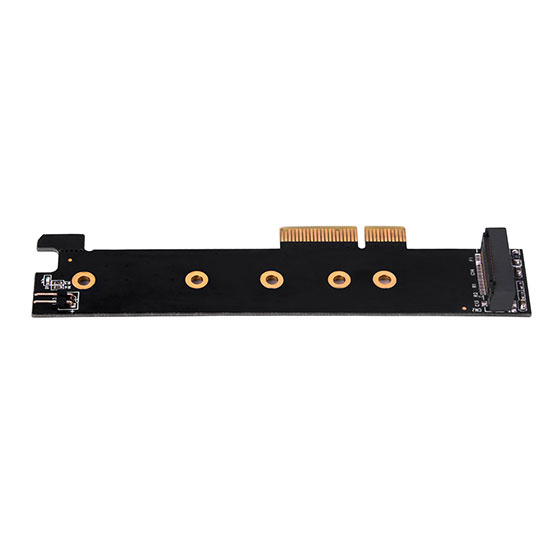

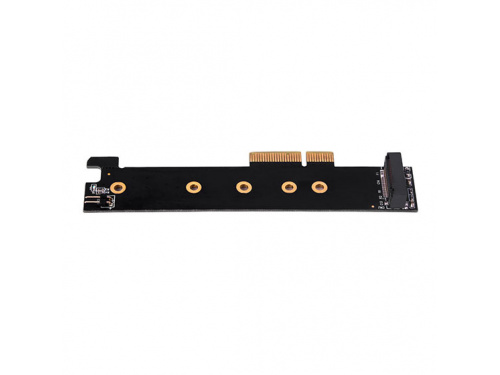

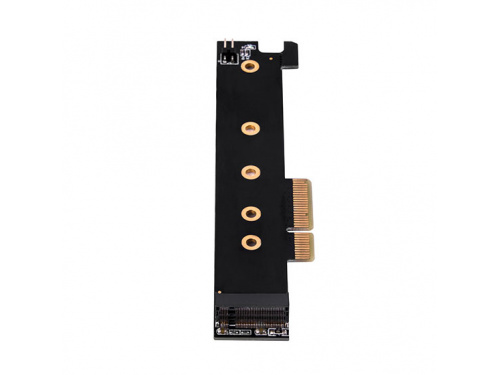

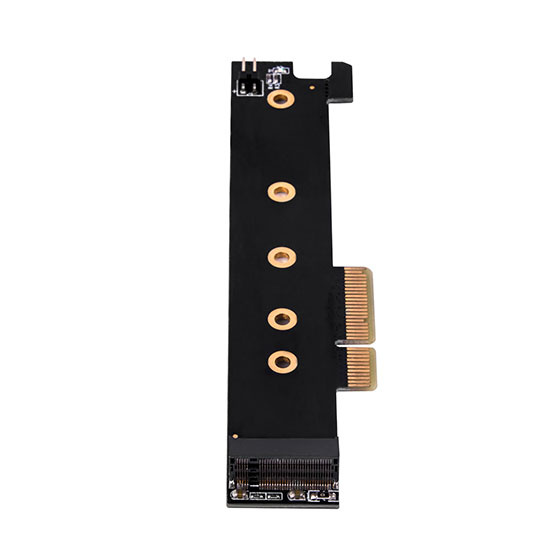

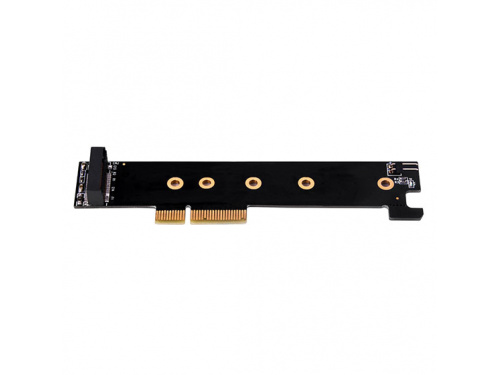

SilverStone’s ECM26 is an 1U adapter card designed for users wanting to utilize or add speedy M.2 devices such as SSD onto their existing PC or motherboard

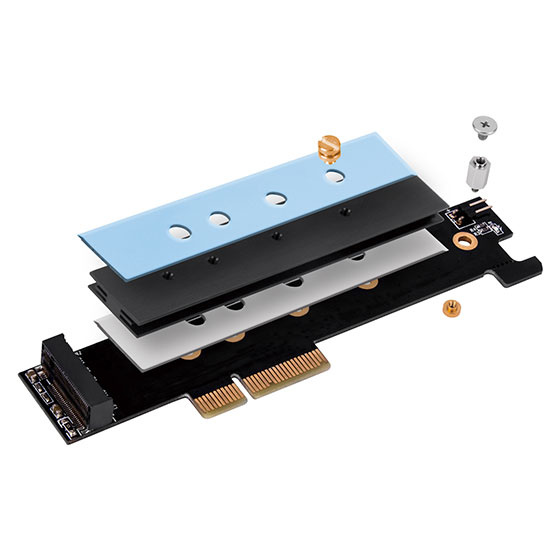

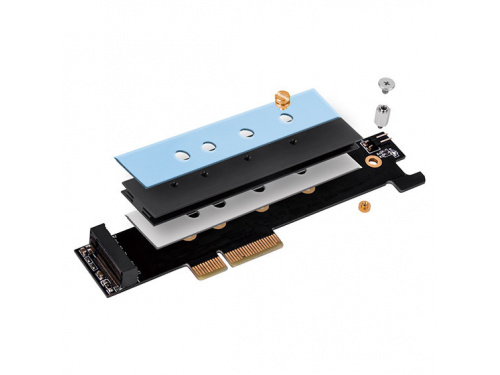

Includes aluminum heatsink and thermal pad for enhanced M.2 SSD cooling
SPECIFICATIONS
Model No.
- SST-ECM26
LED indicator
- PCIe M.2 SSD Read / Write LED: Blue blinking
Interface
- PCI Express x4
SSD Interface
- M.2 (NGFF)
Module Key
- PCIe x 4 NVMe-based M key
Operating system support
- Microsoft Windows 10 (32bit/64bit)/8.1/8/7 (32bit/64bit) or future release version
- Mac OS 10.2.8 or above
- Linux
Net weight
- 34.15g
Support Length of M.2 SSD
- 30mm, 42mm, 60mm, 80mm, 110mm
Dimension
- 31mm (W) x 10.2mm (H) x 130mm (D)
- 1.22" (W) x 0.4" (H) x 5.12" (D)
Heatsink
Material
- Aluminum
Net Weight and dimension
- Heatsink : 22mm (W) x 4.65mm (H) x 100mm (D), 17 g
Thermal Pad
Thermal conductivity
- 1.5W/m.k
Operating temperature
- -40 °C ~ 180 °C
Thermal pad thickness
- 0.75mm, 1.5mm
Net Weight and dimension
- Blue Pad：20mm (W) x 1.5mm (H) x 700mm (D), 6g
- Gray Pad：20mm (W) x 0.75mm (H) x 700mm (D), 2g
Remark :
* If you wish to boot off using M.2 SSD, your motherboard needs to support it. Due to BIOS limitations, not all motherboards support booting off M.2 SSD so please consult your motherboard manual or vendor for more details on how to enable this function.
* M.2 PCIe-NVMe mode SSD requires the use of Intel® 9 series (Z97 H97 Z170 X99) or higher version chipset motherboard with Windows 8 or higher version operating system.
