SilverStone EC04-E PCIe USB3.0 Card 2 x External 1 x Internal MODEL : SST-EC04-E usbSIpcie_usb31_ec04_e

tweet_button SilverStone EC04-E  PCIe USB3.0 Card2 x External 1 x Internal MODEL : SST-EC04-E - GameDude Computers

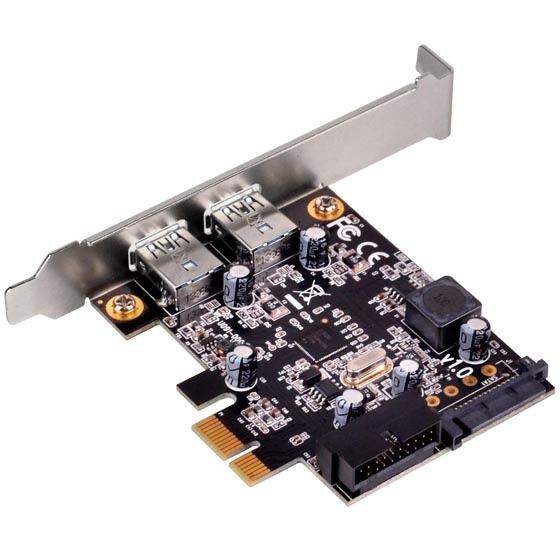

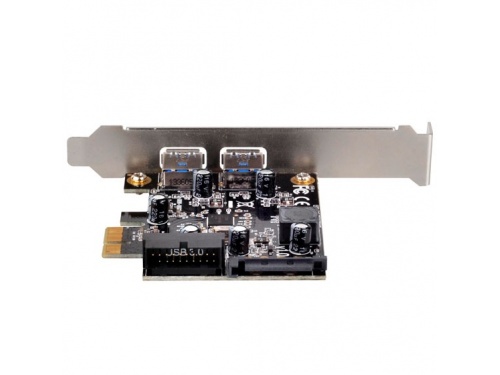

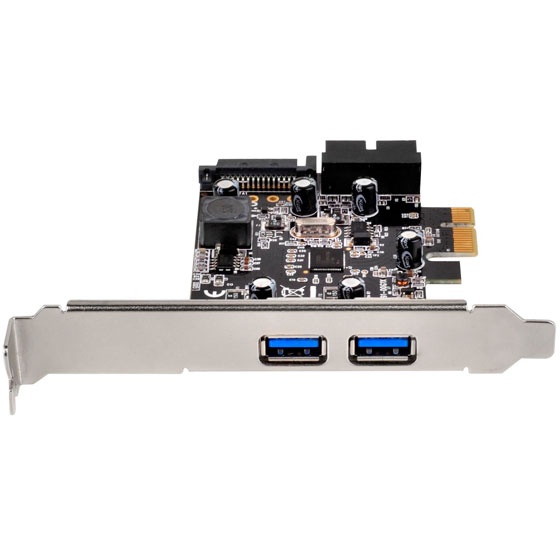

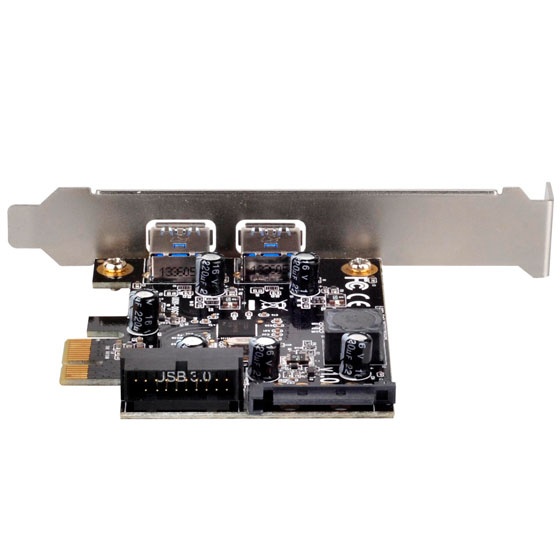

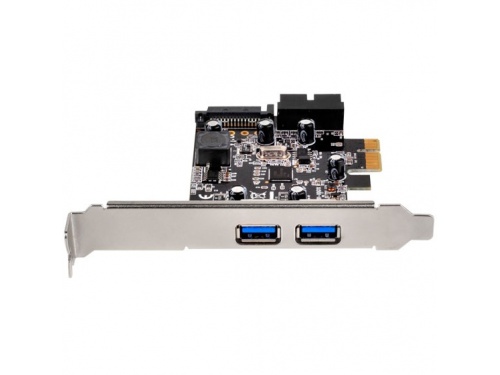

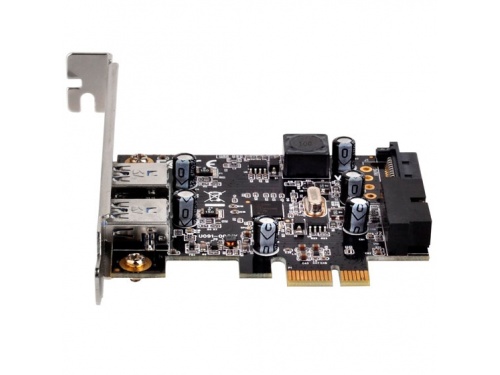

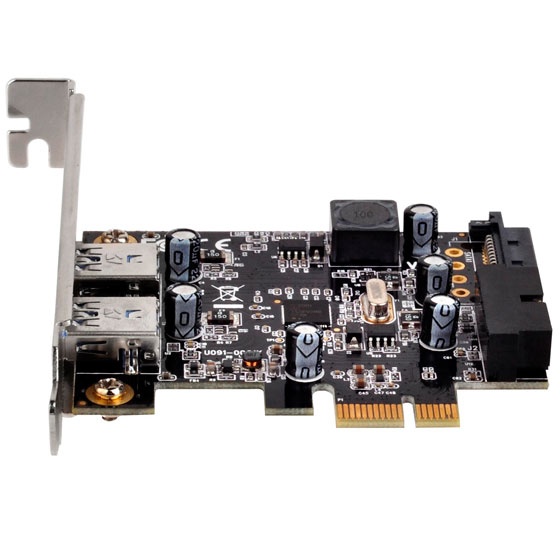

SilverStone EC04-E PCIe USB3.0 Card 2 x External 1 x Internal MODEL : SST-EC04-E
ec04-e-side-leftec04-e-side-rightec04-e-frontec04-e-34
$45.00 each
Brand: SilverstoneSilverstone

- USB 3.0 with two external standard Type-A ports and one dual port internal connector
- PCI Express 2.0 with single lane (x1) throughput 5Gbit/s
- Supports simultaneous operation of multiple USB 3.0/2.0/1.1 devices
- Adds four total USB 3.0 ports to your system
- Built-in power connector to receive extra power from system power supply

SilverStone created an excellent extension card product, the EC04-E, which connects to the motherboard via single lane PCI Express 2.0 to support two external and a dual port USB 3.0 connector for maximum compatibility and flexibility. This card is a great add-on for systems that require connections to multiple USB 3.0 devices such as SilverStone’s own USB 3.0 enclosures RVS02 and TS07.

Model No.
- SST-EC04-E
Power requirement
- 5Vdc via peripheral 15pin SATA power connector
Form factor
- Low profile single lane (X1) PCI Express 2.0
USB 3.0 controller
- NEC uPD720201
USB Ports
- Two external ports and one internal dual port
USB bus power output
- 5Vdc
Signal Reception Angle
- USB 3.0 (5Gbit/s), USB 2.0 (480Mbit/s), USB 1.1 (12Mbit/s)
OS Support
- Microsoft Windows 10/8.1/8/7/Vista (32-bit, 64-bit), or future release versions
Port Interface
- USB 3.0 (Max. 5Gbit/s) backwards compatible with USB 2.0
Remark :
* If your operating system is incompatible with the expansion cards developed by SilverStone, such that your device can not be detected or recognized, please update your motherboard’s driver or BIOS to the latest version. You may also try executing compatible mode in your operating system and select previous versions of operation system to install driver required by the expansion cards.
