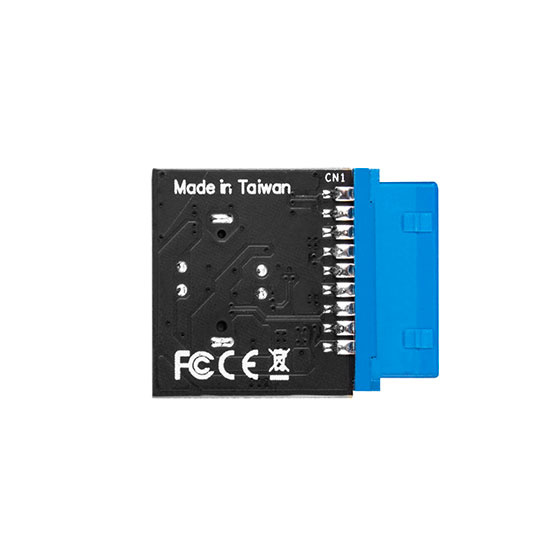

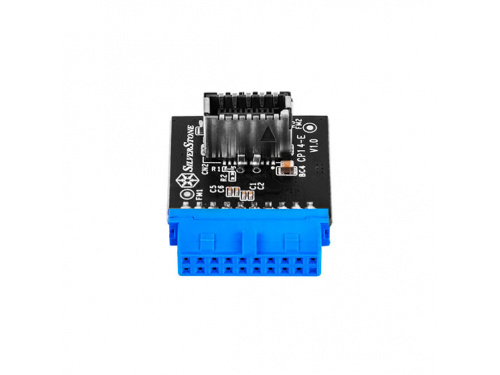

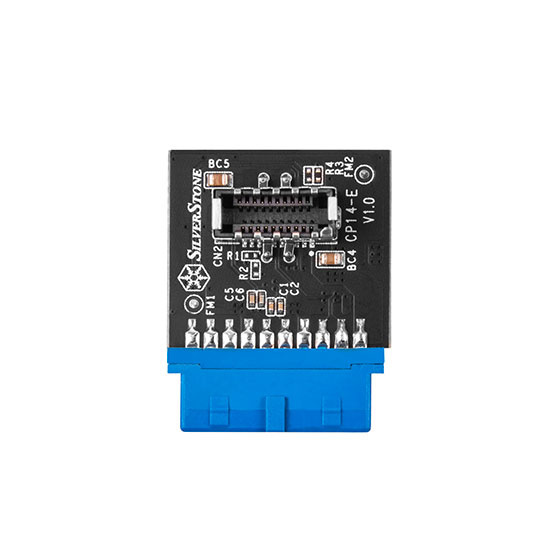

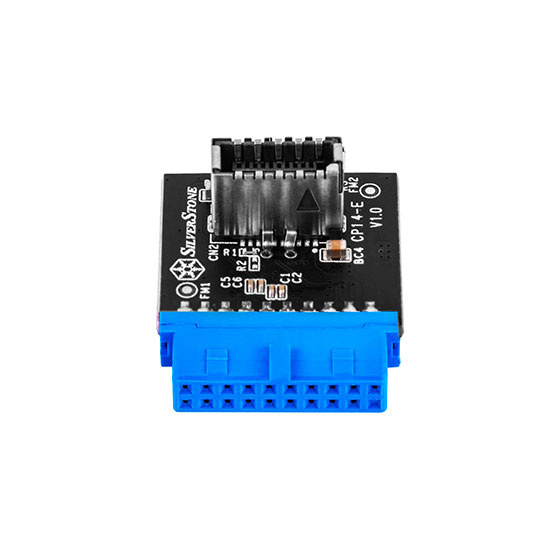

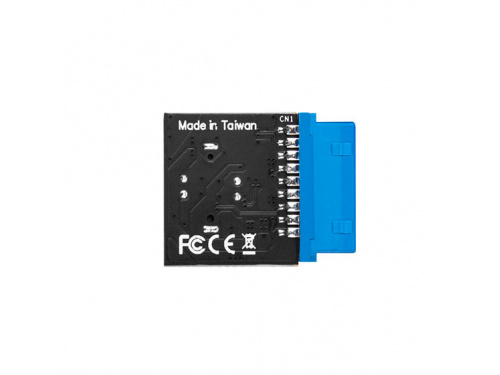

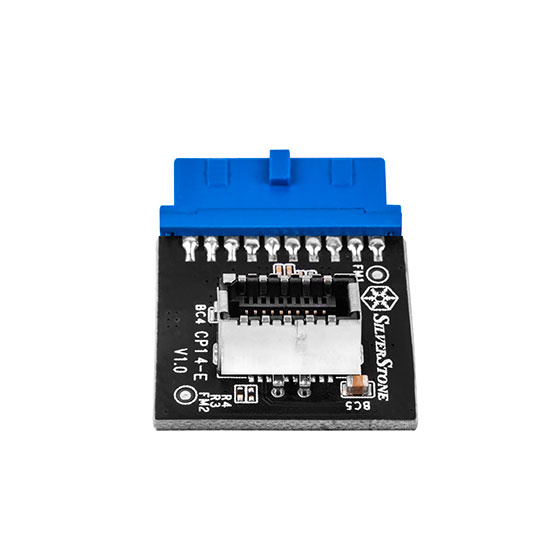

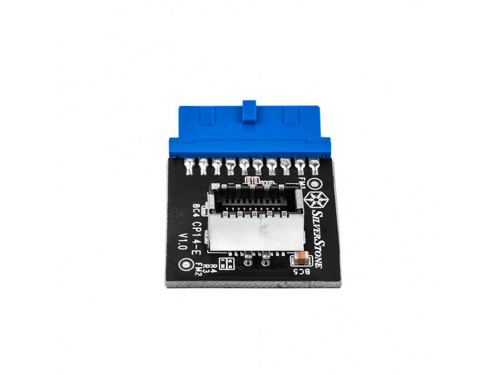

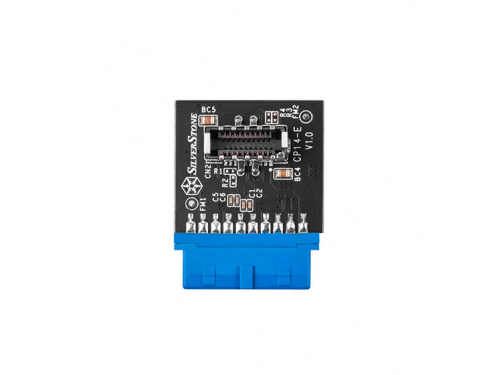

1- USB 3.0 internal (19-pin) header to USB 3.1 / 3.2 Type-C (20-pin) Key A adapter
- Supports all motherboards with USB 3.0 / 3.1 19-pin header
- Adds internal 20-pin Key A connector for supporting corresponding front USB Type-C port
- USB 3.0 internal (19-pin) to USB 3.1 / 3.2 internal Type-C 20-pin (Key A)
- Internal Type-C 20-pin (Key A) port supports USB 3.1 / 3.2 (Gen2 / Gen1), USB 3.0, USB 2.0 and USB1.1 devices
- No driver installation required
Reactivate your motherboard
CP14 turns your 19pin motherboard header into the latest 20pin Key A standard for use with latest case front port standard.
Designed for Type-C
Adds internal 20-pin Key A connector for supporting corresponding front USB Type-C port
Speedy transfer rate
Use in combination with SilverStone’s ECU04-E to obtain transfer rate up to 10Gbps (true speed varies depending on host transfer rate)
SPECIFICATIONS
Model No.
- SST-CP14-E
Color
- Black
Connectors
- Internal 19-pin male x 1 (host)
- Internal 20-pin Key-A female x 1 (target)
Transmitting Speed
- Up to USB 3.1 / 3.2 Gen 2 10 Gbps (depends on host transfer rate)
Dimension
- 24mm (W) x 10mm (H) x 30mm (D)
- 0.94" (W) x 0.39" (H) x 1.18" (D)
Weight
- 4.5g
