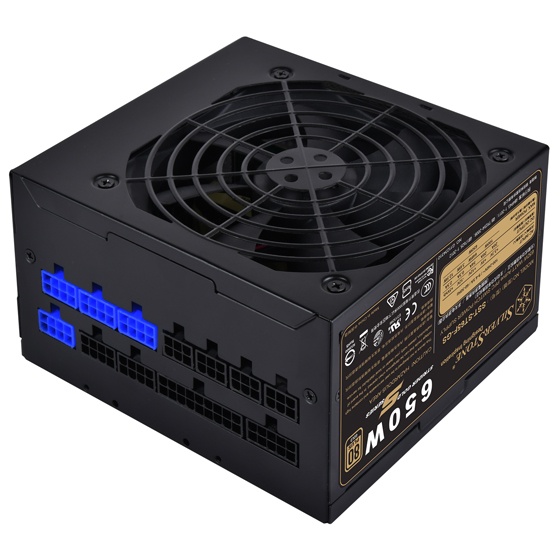

- Compact design with a depth of 140mm for easy integration - 80 PLUS Gold certification - 100% modular cables - 24/7 continuous power output with 40℃ operating temperature - Class-leading single +12V rail - Strict ±3% voltage regulation and low ripple & noise - Silent running 120mm fan with 18dBA minimum

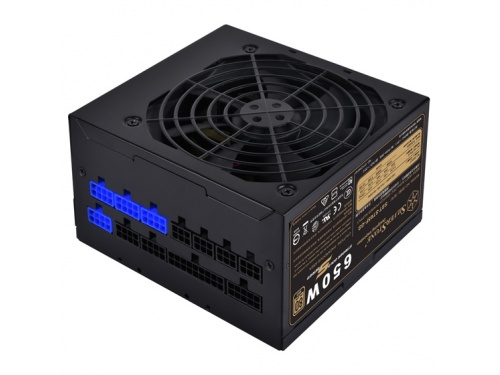

To meet the requirements of current and future desktop computers, SilverStone created the Strider Gold S series power supplies. The Strider Gold S models are all new designs engineered to be the smallest, full-modular ATX power supplies at any wattage levels. The Strider Gold S series includes wattage range from 550W to 1500W for a great variety of applications. With short depth designs, all models in the series are among the world’s smallest full-modular ATX PSUs. In addition to 80 PLUS Gold level efficiency, the Strider Gold S PSUs are built to meet very high standards in electrical performance with ±3% voltage regulation, ±3% ripple & noise, and high amperage single +12V rail. Other notable features included are 24/7 40°C continuous output capability, low-noise fan, and multiple sets of PCIe cables. For users looking for a power supply with faultless combination of compact size, performance, efficiency, and quality, the Strider Gold S Series is the only choice.

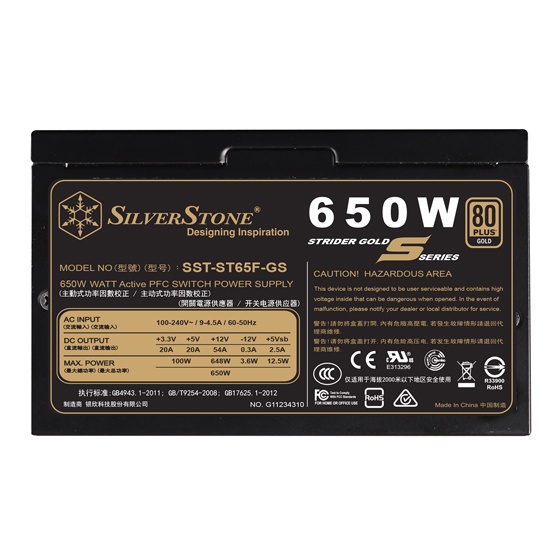

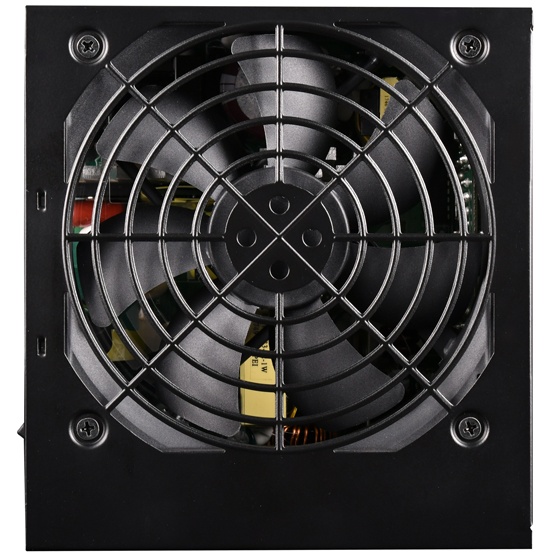

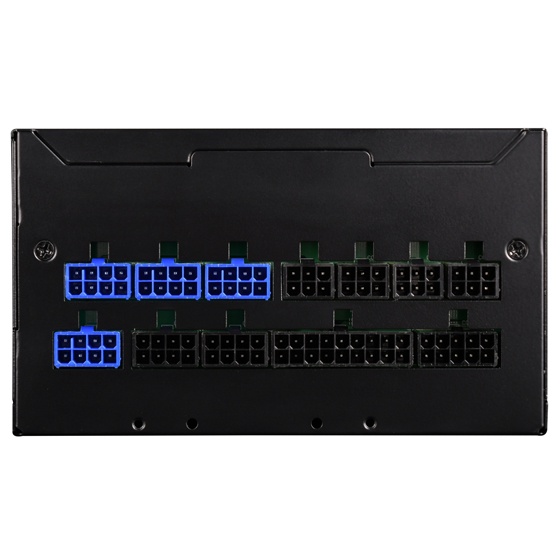

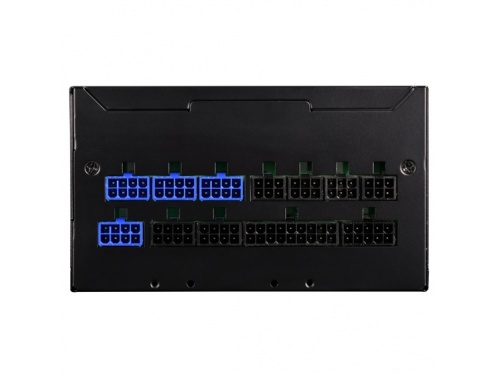

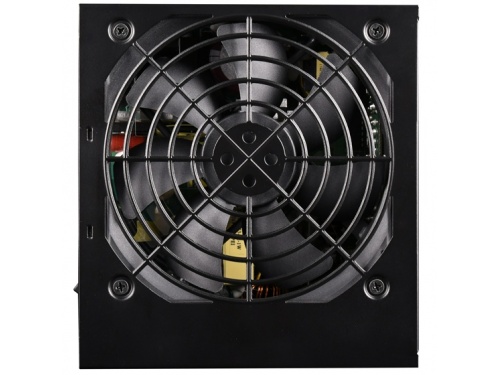

Model No. - SST-ST65F-GSMax. DC Output - 650WPower density - 360W per liter Color - Black (lead-free paint)Combined +3.3V & +5V - 100WCombined +12V - 648WInput Voltage - 90V~264VInput Frequency Range - 47Hz ~ 63HzPFC - Active PFC.(PF>0.9 at Full Load)Efficiency - 87%~90% at 20%~100% loadingMTBF - 100,000 hoursOperating temperature - 0°C ~ 40°CProtection - Over power protection - Over current protection - Over voltage protection - Over temperature protection - Under voltage protection - Short circuit protectionConnectors - 1 x 24 / 20-Pin motherboard connector(600mm) - 1 x 8 / 4-Pin EPS / ATX 12V connector(550mm) - 4 x 8/6-Pin PCIE connector(550mm) - 8 x SATA connector("600mm / 150mm / 150mm / 150mm " x 2) - 6 x 4-Pin Peripheral connector(”600mm / 150mm / 150mm” x 2) - 2 x 4-Pin Floppy connector(”150mm” x 2)Cooling System - Single 120mm silent fanForm factor - ATXNoise Level - 18 dBA minimumDimension - 150 mm (W) x 86 mm (H) x 140 mm (D) - 5.91" (W) x 3.39" (H) x 5.51" (D)Weight - 1.28 kgCertification - 80 PLUS GoldOther - Compatible with ATX12V v2.4
