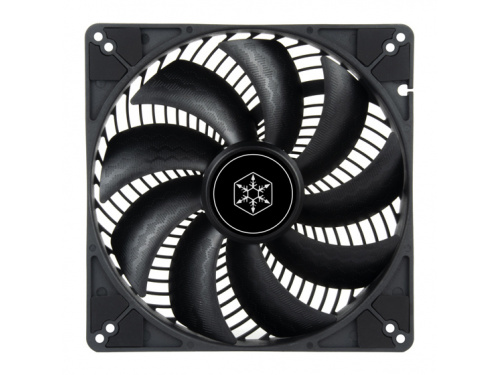

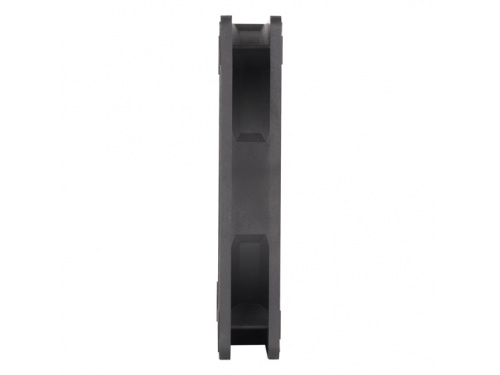

Air Penetrator 184i PRO
Enhanced 180mm PWM controlled air channeling fan
￭ Industry leading air channeling fan

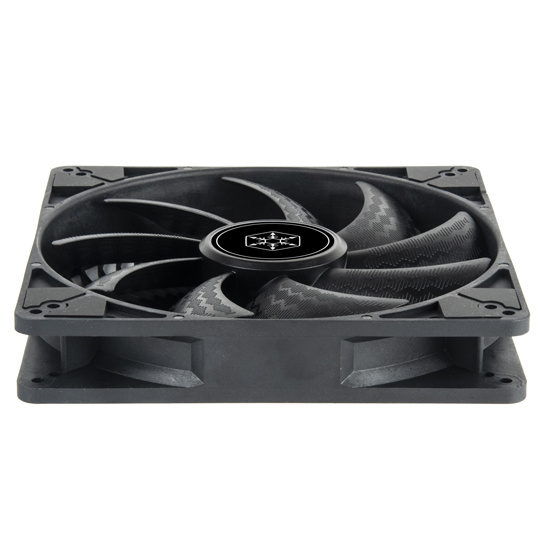

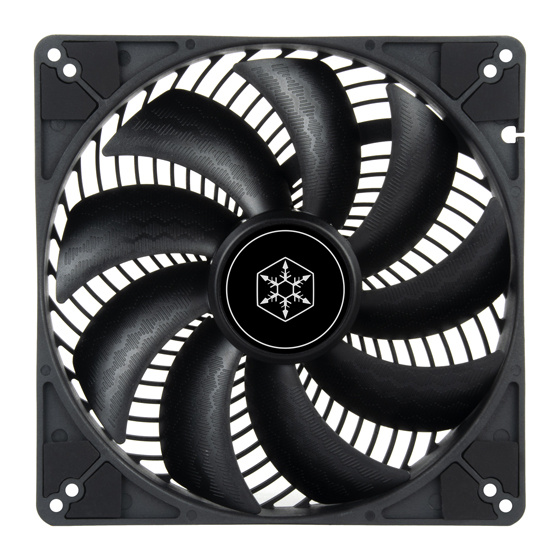

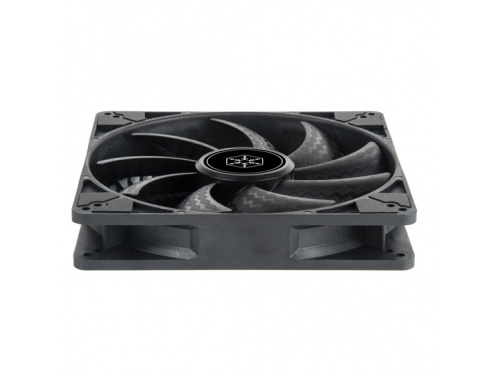

￭ Distinctive “Shark Force” fan blade design for lower noise and higher performance
￭ Dual ball bearing for long lifetime
￭ Wide 0 ~ 1,200 RPM speed range via PWM control

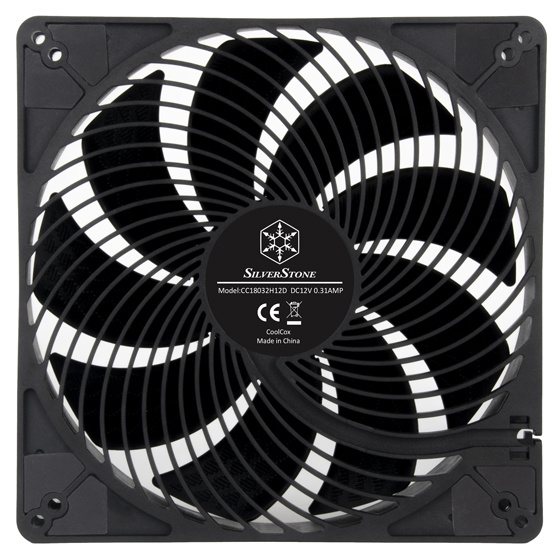

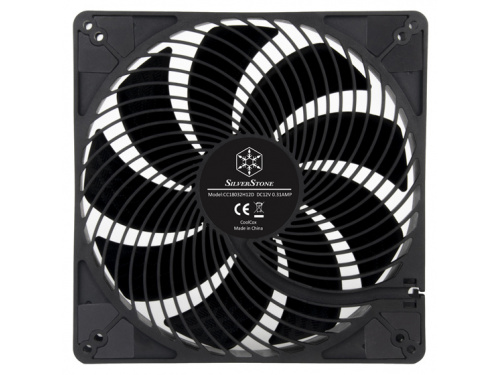

￭ Integrated air channeling grille double as fan guard for extra protection
￭ High air pressure and optimal system cooling performance
SPECIFICATIONS
| Model No. |
SST-AP184i-PRO |
| Material |
Polycarbonate fan blades, PBT frame |
| Application |
180mm, 200mm* |
| Color |
Black |
| Bearing |
Dual ball bearing |
| Connectors |
4 pin PWM |
| Rated Voltage |
12V |
| Starting Voltage |
5V |
| Rated Current |
0.31 ±0.04A |
| Rated Power |
3.7W |
| Speed |
0 ~ 1200 RPM |
| Airflow |
0 ~ 143.21 CFM |
| Static Pressure |
0 ~ 2.22 mmH2O |
| Noise Level |
0 ~ 34.5 dBA |
| Dimension |

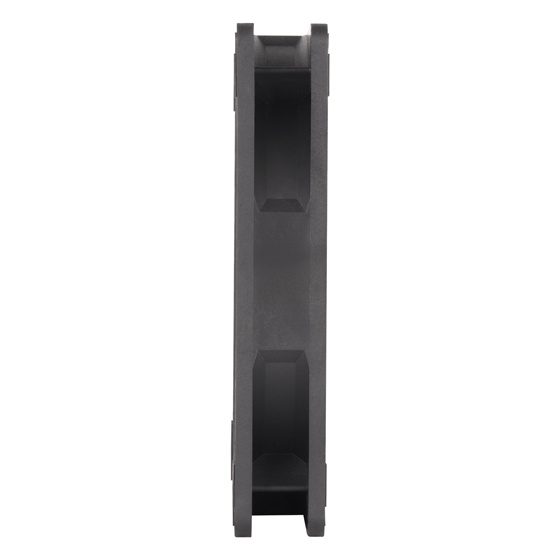

180mm (W) x 32mm (H) x 180mm (D)
7.09" (W) x 1.26" (H) x 7.09" (D) |
| Weight |
410g |
| Remark: |
*Please ensure fan location has sufficient space of at least 32mm to account for the thickness of the fan.
**Some motherboards may not display fan speed properly below certain RPM range (e.g. 300rpm or below). Please inquire with motherboard manufacturers for more detail. |
