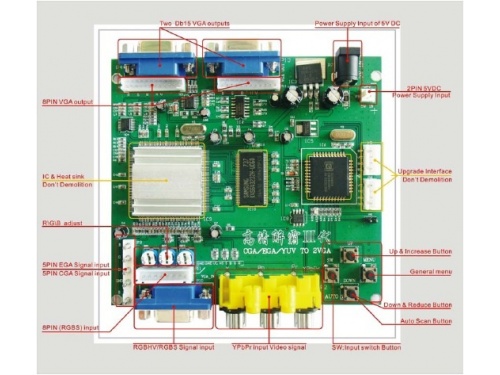

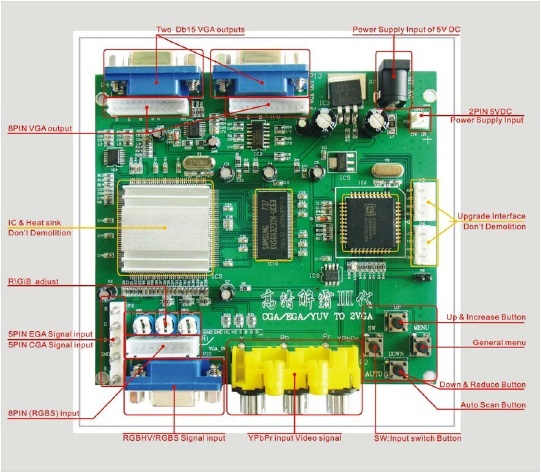

Multi input to VGA PCB Model GBS 8220
FEATURES
- Supports .
- Supports VGA output 640*480,800*600,1024*768,1360*768
- CGA/EGA signal auto scan(15K,24K,31K)
- YUV signal auto scan(480i,576i,720i,1080i,480p,576p,720p,1080p)
- Chinese and English OSD.
- Supports position control & zoom control.
- True digital 24-bit A/D converter for true 16.7-million color conversion.
- Supports all VGA monitor (CRT、LCD、PDP、PROJECT……)
MENU CONTROL
- “MENU” open OSD menu, and enter.
- “UP” up and increase.
- “DOWN/AUTO” down and reduce. Press this key auto scan CGA/EGA signal
Press this key over 5 second and release reset system
** (this operation is invalid when you open OSD menu)
- “SW” switch input signal Ypbpr/RGBS/RGBHV.
** (this operation is invalid when you open OSD menu)
- “Clamp sp” & “Clamp” please don’t adjust this button , excepting the monitor have black item.
- More functions control please look to OSD to operation.

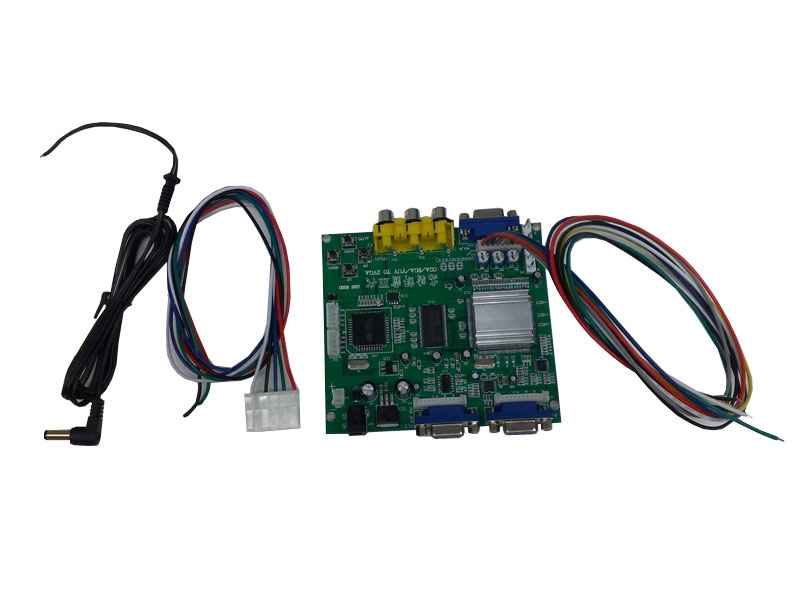

PSU not included
