MSI PRO Z790-P DDR4 Motherboard LGA1700 INTEL Z790, Socket 1700, ATX, DDR4, LAN mbMSz790_p_d4

tweet_button MSI PRO Z790-P DDR4 Motherboard LGA1700 INTEL Z790, Socket 1700, ATX, DDR4, LAN - GameDude Computers
MSI PRO Z790-P DDR4 Motherboard LGA1700 INTEL Z790, Socket 1700, ATX, DDR4, LAN
pro_z790-p_ddr4_01pro_z790-p_ddr4_03pro_z790-p_ddr4_02pro_z790-p_ddr4_04pro_z790-p_ddr4_05pro_z790-p_ddr4_06
$275.00 each
Brand: MSIMSI

SPECIFICATIONS & DETAILS
Model Name
  PRO Z790-P DDR4
Specifications
CHIPSET INTEL Z790
CPU SUPPORT Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1700
MEMORY 4x DDR5, Maximum Memory Capacity 128GB
Memory Support 7000+(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7000+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Intel® XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
ONBOARD GRAPHICS 1x HDMI™
1x DisplayPort
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT 3x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 PCIe 3.0 supports up to x1 (From Chipset)
STORAGE 4x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
6x SATA 6G port
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
4x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN Intel® 2.5Gbps LAN
AUDIO Realtek® ALC897 Codec
7.1-Channel High Definition Audio
INTERNAL I/O 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0
4x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C
LED FEATURE 4x EZ Debug LED

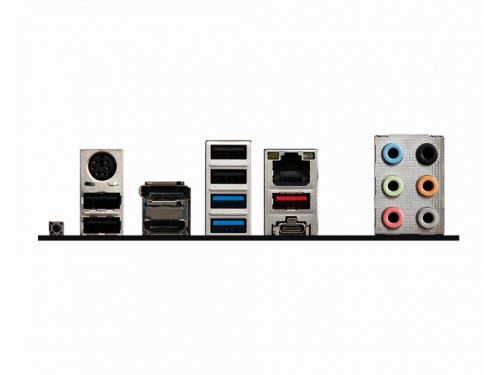

BACK PANEL PORTS Keyboard / Mouse
DisplayPort
USB 2.0
2.5G LAN
Audio Connectors
Flash BIOS Button
USB 2.0
HDMI™
USB 3.2 Gen 1 5Gbps (Type-A)
USB 3.2 Gen 2x2 20Gbps (Type-C)
USB 3.2 Gen 2 10Gbps (Type-A)
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB DIMENSION ATX
243.84mmx304.8mm
