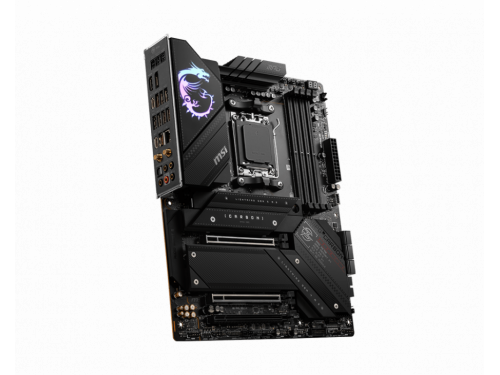

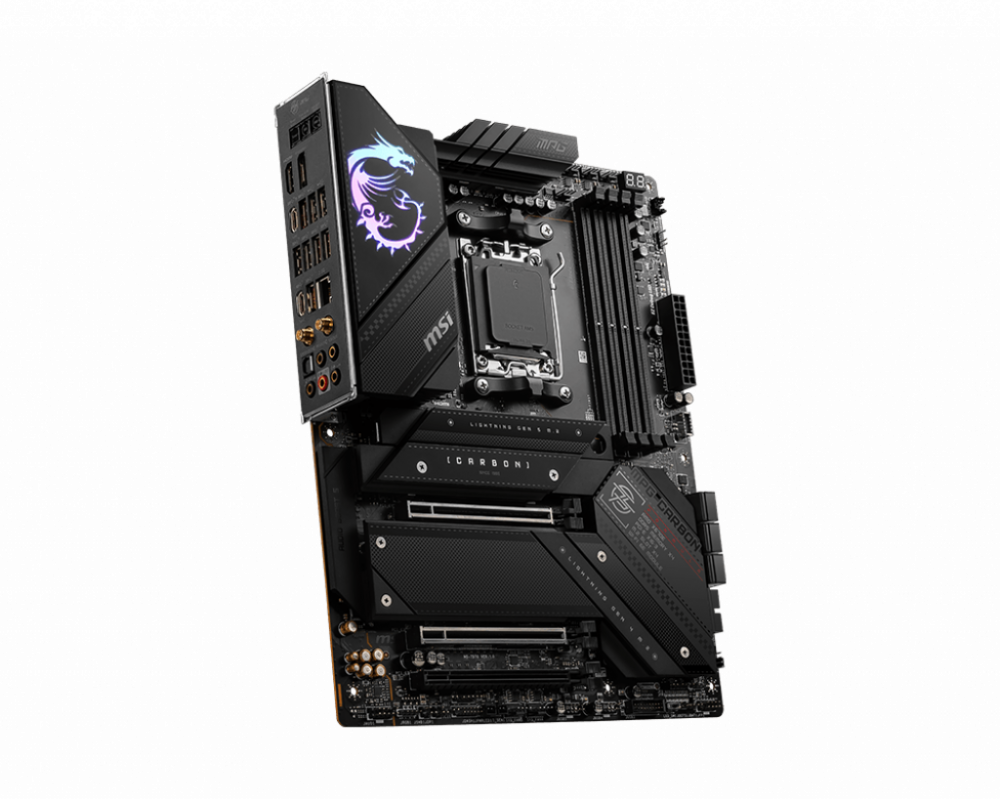

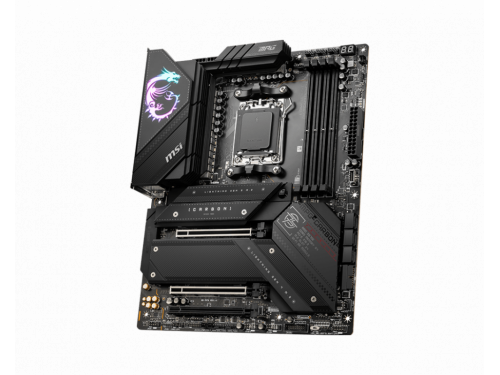

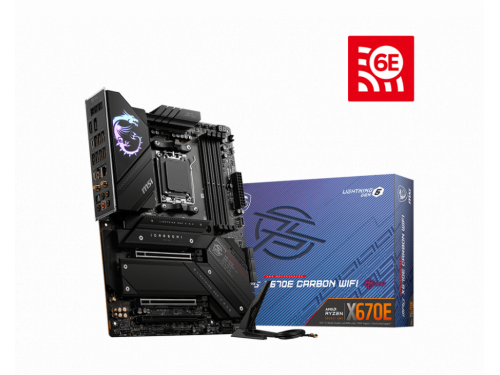

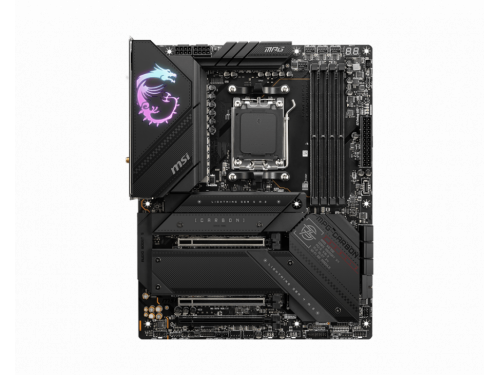

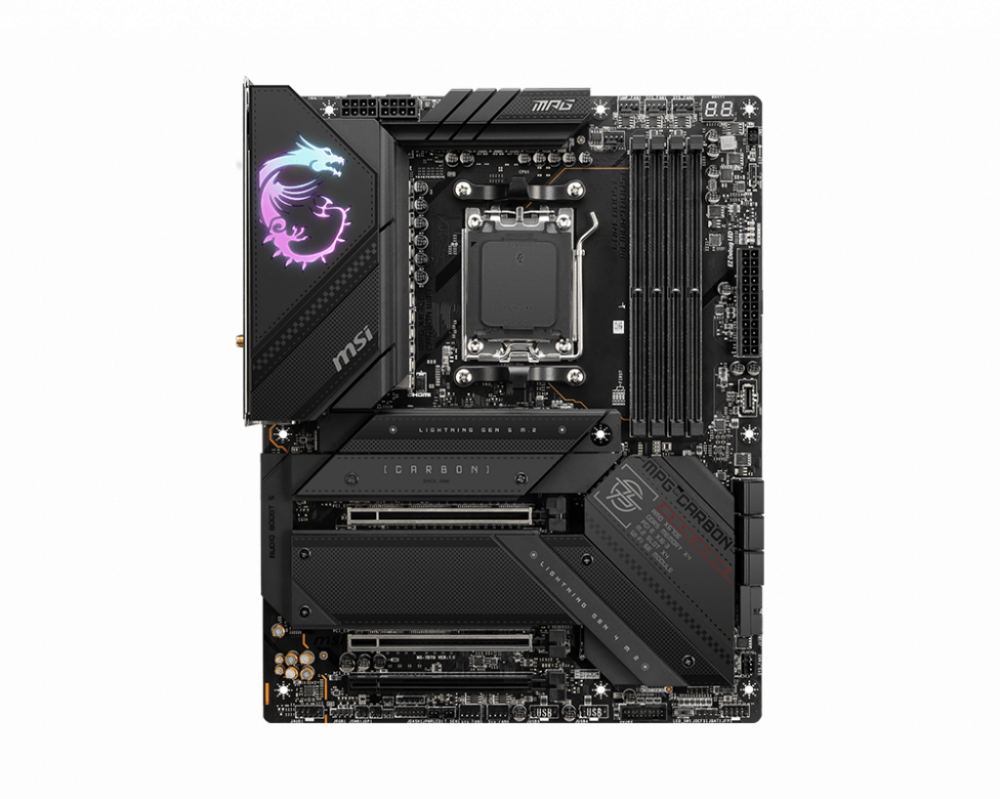

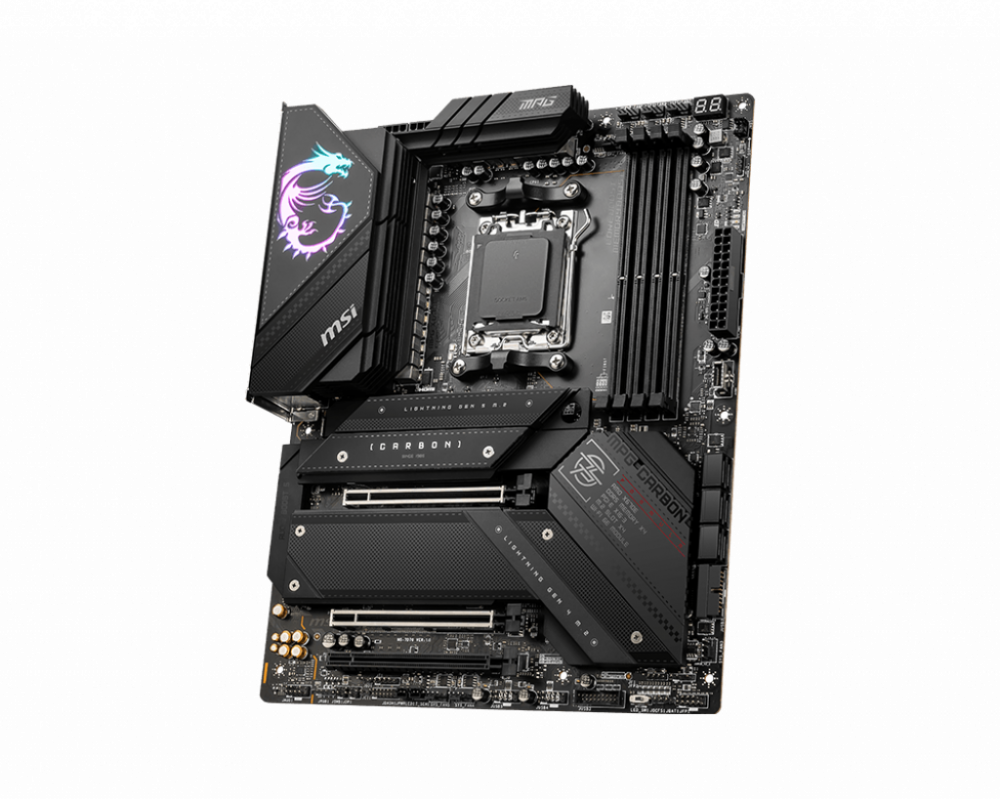

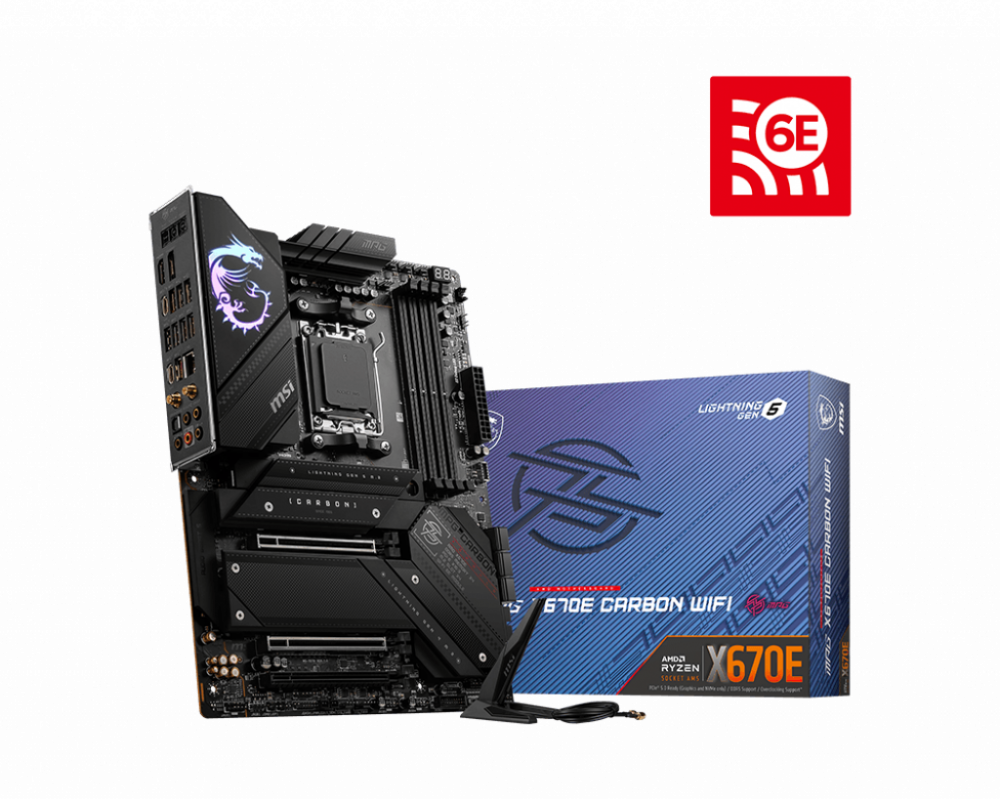

MSI MPG X670E CARBON WIFI Motherboard DDR-5 - Socket: AM5 mbMSmpg_x670e_carbon_wifi

$759.00 each
Brand: MSI

OVERVIEW
SPECIFICATIONS

OVERVIEW

MPG X670E CARBON WIFI

Supports AMD Ryzen™ 7000 Series Desktop Processors
Supports DDR5 Memory
Enhanced Power Design: 18+2+1 Duet Rail Power System, Dual 8-pin CPU power connectors, Core Boost, Memory Boost
Premium Thermal Solution: Extended Heatsink with Direct Touched Heat-pipe, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and Double-sided M.2 Shield Frozr are built for high performance system and non-stop gaming experience
High Quality PCB: 8-layer PCB made by 2oz thickened copper and server grade level material
DIY Friendly Design: Patented Screwless M.2 Shield Frozr, EZ M.2 Clips, Smart Button, Pre-installed I/O Shield, Steel Armor
Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2x2
2.5G LAN and Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
MYSTIC LIGHT: 16.8 million colors / fancy lighting effects controlled in one click. MYSTIC LIGHT SYNC supports latest ARGB Gen2 strips, RGB strips and Ambient devices
AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

SPECIFICATIONS

Chipset	AMD X670
CPU SUPPORT	Supports AMD Ryzen™ 7000 Series Desktop Processors Socket AM5
Onboard Graphics	1x HDMI™ Support HDMI^TM 2.1 FRL, maximum resolution of 4K 120Hz* 1x Display Port Support DP 1.4, maximum resolution of 4K 60Hz* 1x Type-C Display port Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Memory	4x DDR5, Maximum Memory Capacity 128GB
EXPANSION SLOT	3x PCI-E x16 slot Supports x16/x0/x4, x8/x8/x4 PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 5.0 supports up to x8 (From CPU) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
Multi-GPU	Supports AMD MULTI-GPU
Storage	4x M.2 slot M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G port
RAID	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
LAN	Realtek^® RTL8125BG 2.5Gbps LAN
WIRELESS / BLUETOOTH	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth^® 5.2** * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11. ** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.

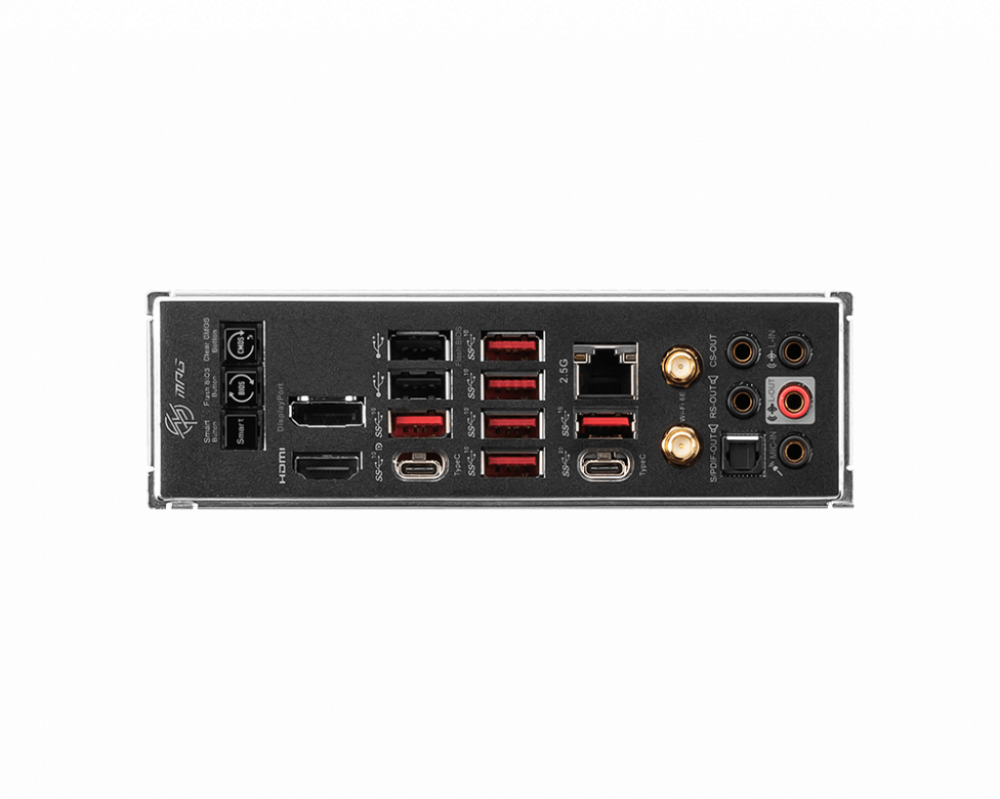

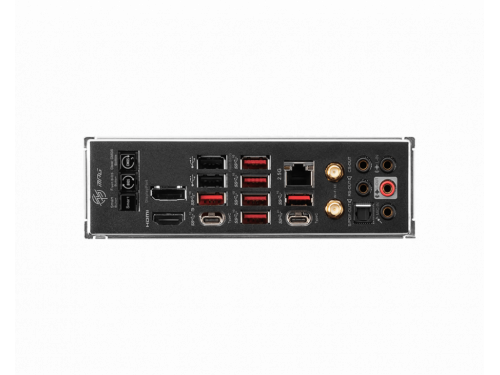

USB	2x USB 2.0 ports (Rear) 4x USB 2.0 ports (Front) 4x USB 3.2 Gen1 Type A ports (Front) 6x USB 3.2 Gen2 Type A ports (Rear) 1x USB 3.2 Gen2 Type C ports (Rear) 1x USB 3.2 Gen2 Type C ports (Front) 1x USB 3.2 Gen2x2 Type C ports (Rear)
Audio	Realtek^® ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel
