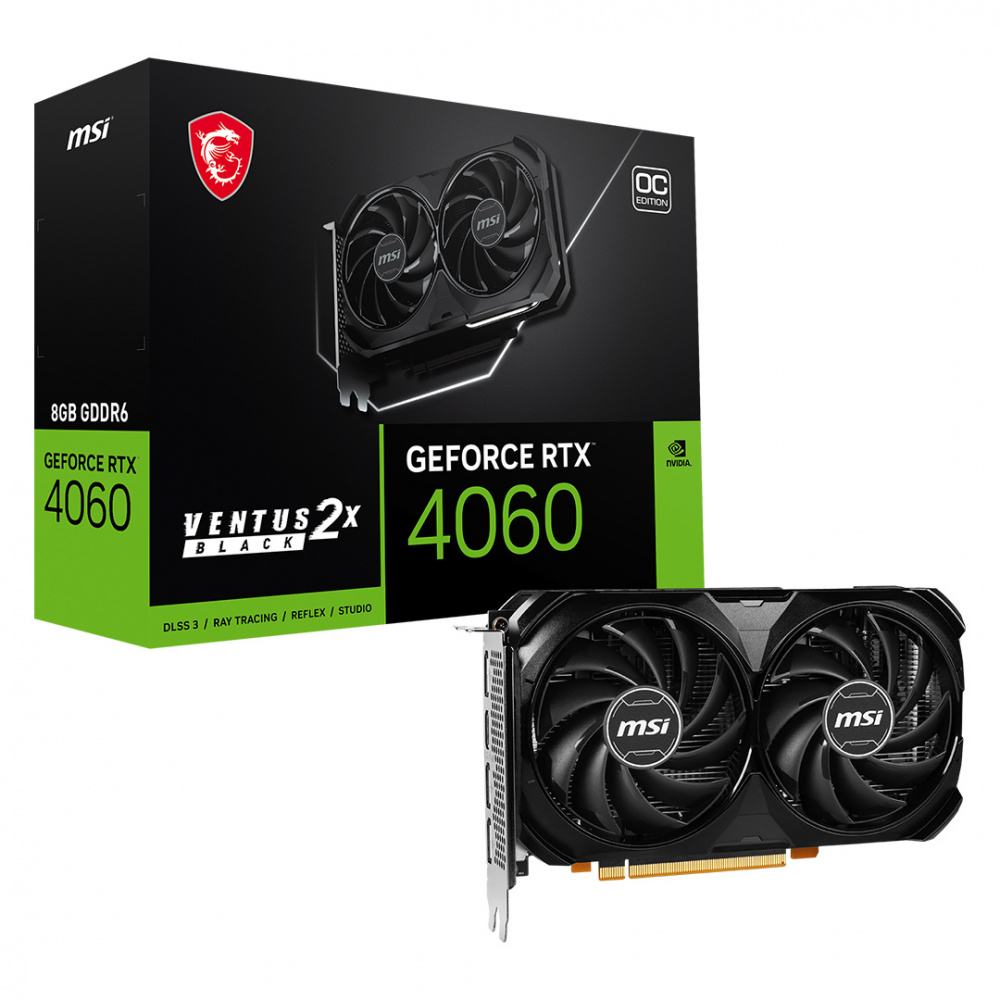

GeForce RTX™ 4060 Ventus 2X Black 8G OC
With DLSS 3
Game, stream, create. The GeForce RTX™ 4060 lets you take on the latest games and apps with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience immersive, AI-accelerated gaming with ray tracing and DLSS 3, and supercharge your creative process and productivity with NVIDIA Studio.
Boost Clock / Memory Speed
- 2505 MHz / 17 Gbps
- 8GB GDDR6

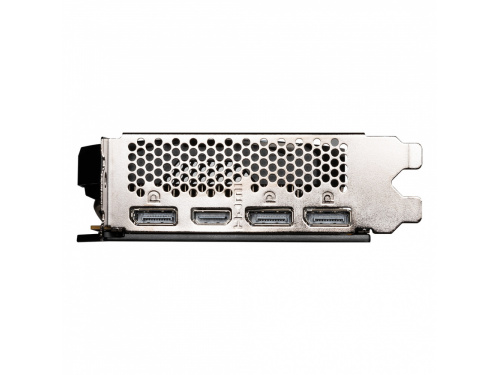

- DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)

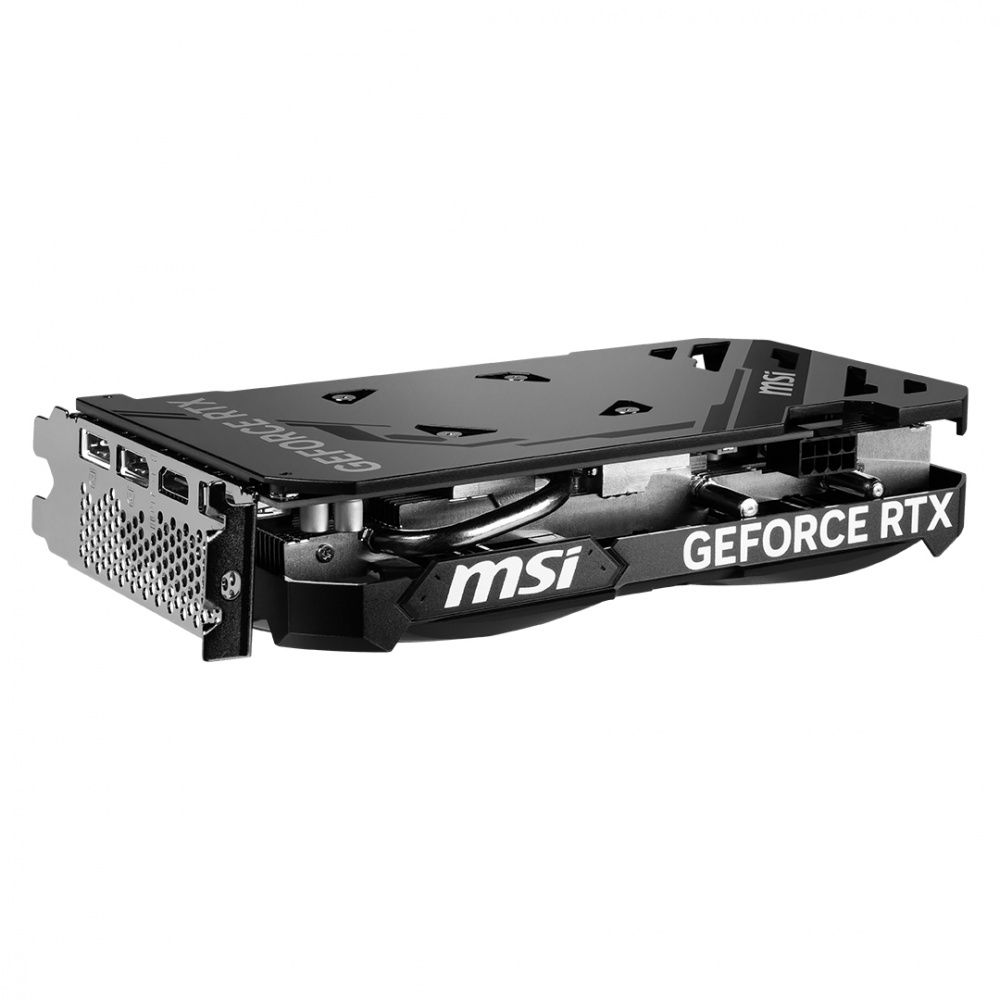

Dual Fan Thermal Design
- TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
- Zero Frozr: The fans completely stop when temperatures are relatively low, eliminating all noise.

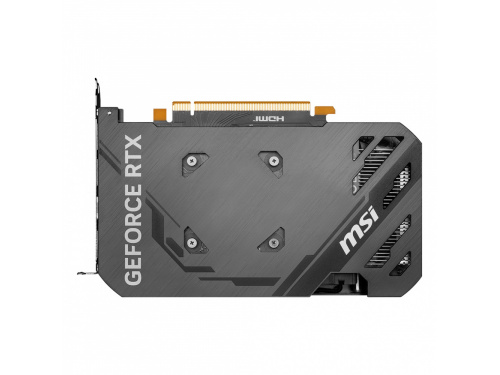

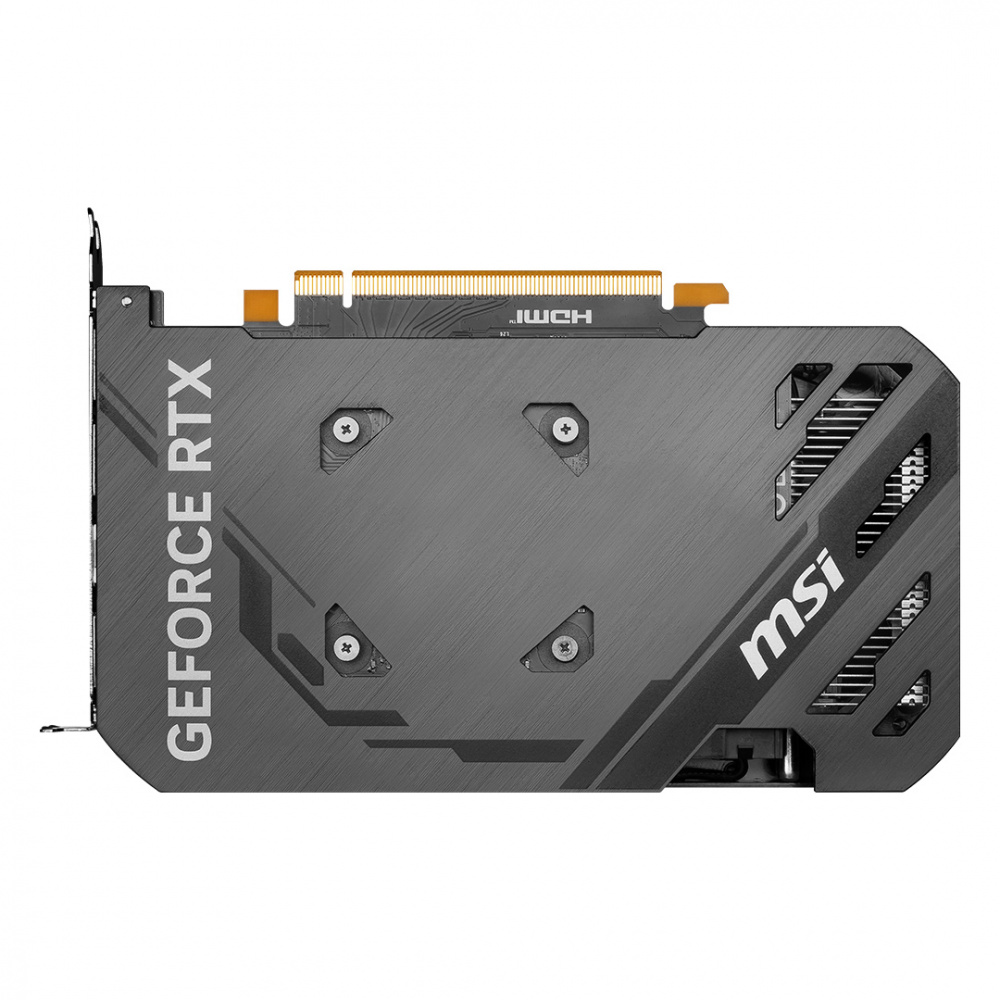

Reinforcing Backplate
The reinforcing backplate features a flow-through design that provides additional ventilation.
MSI Center
The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.
Specifications
| |
|---|
| Model Name |
GeForce RTX 4060 Ventus 2X Black 8G OC |
| Graphics Processing Unit |
NVIDIA GeForce RTX 4060 |
| Interface |
PCI Express Gen 4 x 8 |
| Core Clocks |
Extreme Performance: 2505MHz (MSi Center)
Boost: 2490MHz |
| CUDA® CORES |
3072 Units |
| Memory Speed |
17 Gbps |
| Memory |
8G GDDR6 |
| Memory Bus |
128-bit |
| Output |
DisplayPort x 3 (1.4a)
HDMI x 1 (Supports 4K @ 120Hz HDR and 8K @ 60Hz and Variable Refresh Rate (VRR) as specified in HDMI 2.1a. |
| HDCP Support |
Y |
| Power consumption |
115 W |
| Power connectors |
8-pin x 1 |
| Recommended |
550W |
| Card Dimension (mm) |
199 x 120 x 41mm |
| Weight (Card / Package) |
546 g / 783 g |
| DirectX Version Support |
12 Ultimate |
| OpenGL Version Support |
4.6 |
| Maximum Displays |
4 |
| G-SYNC® technology |
Y |
| Digital Maximum Resolution |
7680 x 4320 |
