GPU Support
The MPG gaming power supply can support the NVIDIA GeForce RTX™ 30 Series GPUs. Prepared for the highest of requirements, the MPG power supply’s IO supports can support different and versatile ways of connection according to the power connector design of different graphics cards.
- Supports the NVIDIA GeForce RTX™ 30 Series GPUs
- Full modular cable design
- Flat cable equipment
- 10-year warranty
- 80 Plus Gold certified for high efficiency
- 100% all Japanese 105oC capacitor
- Active PFC design
- Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
- LLC Half Bridge Topology with DC-DC module design

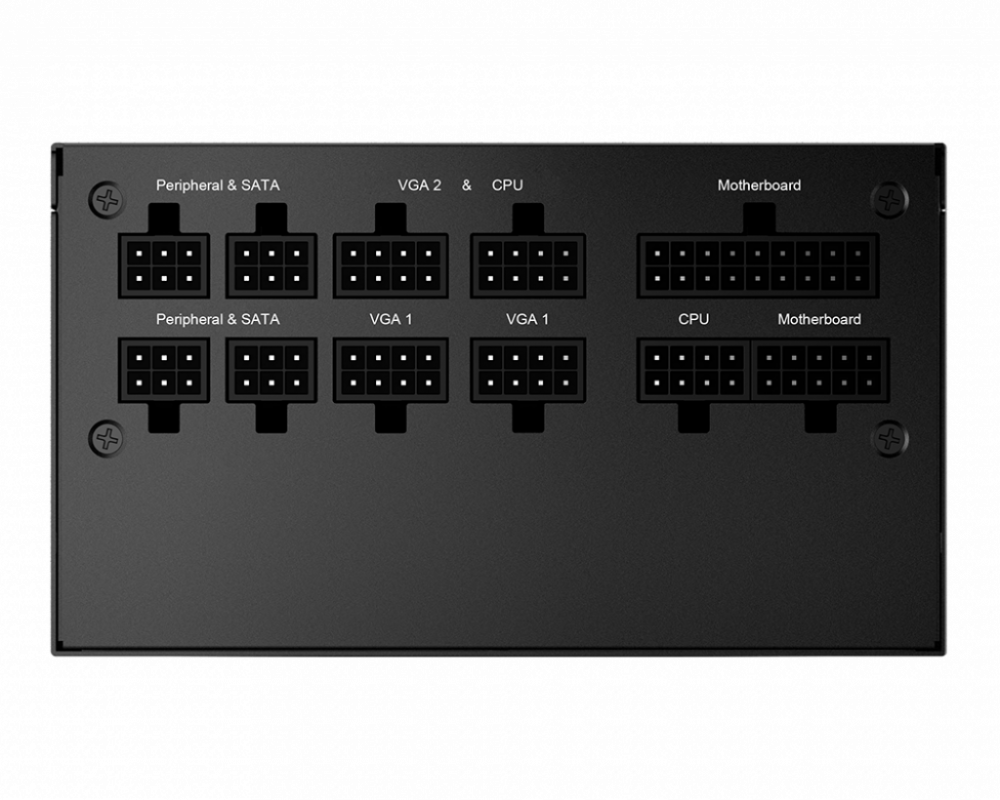

1 VGA Power Connector
2 VGA Power Connector
ALLOY COPPER CONNECTOR TERMINALS
The MPG gaming power supply’s CPU, VGA, and MB connectors utilize alloy copper terminals that can withstand higher current ratings than traditional phosphor bronze cable terminals.
x1 ATX Connector
24-PIN
600mm ± 10mm
x4 PCI-E Connector
8-PIN (6+2)
500mm ± 10mm
x8 SATA Connector
(SATA)
950mm ± 10mm
x2 EPS Connector
8-PIN (4+4)
700mm ± 10mm
x5 Peripheral /
FDD Connector
4-PIN
1100mm ± 10mm
| SPECIFICATION |
|---|
| AC Input |
100V~240V |
| DC Output |
+5V |
+3.3V |
+12VMBPH |
+12VCPU |
+12VVGA1 |
+12VVGA2 |
-12V |
+5VSB |
| 20.0A |
20.0A |
25.0A |
25.0A |
30.0A |
30.0A |
0.3A |
2.5A |
| Total Power |
100W |
650W |
|
| 650W |
