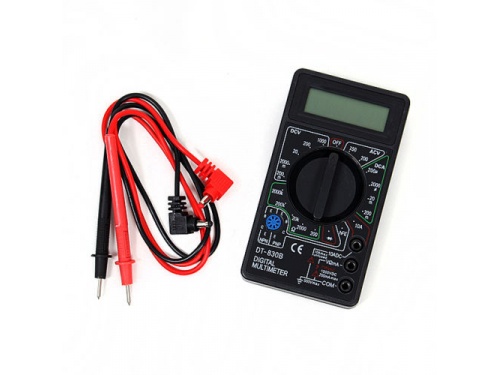

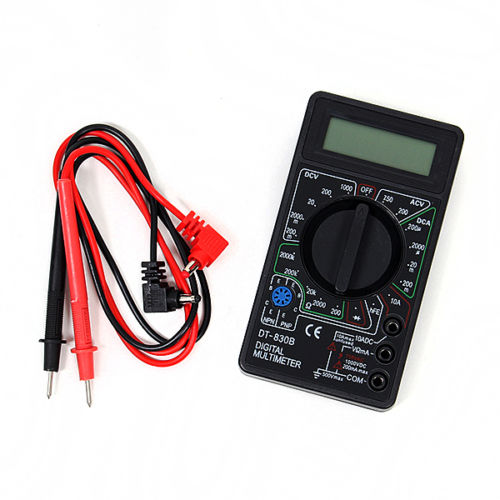

Low Cost Digital Multimeter (DMM)
19 Range
3.5 Digit
Transistor Test
Diode Test
10A DC Current
Ideal First Meter
Compact Size
This is a full featured meter with plug-in 4mm probes AND transistor tester. This is the ideal first multimeter, and will give years of faithful service, in fact, you will only need to replace this meter if you require a unit with very high input impedance
Specifications:
*DC Voltage: 200mV, 2000mV, 20V, 200V, 1000V
*Max Input: 1000V DC -/+0.5
*DC Amps: 200uA, 2000uA, 20mA, 200mA, 10A
Overload Protected
*AC Volts: 200V, 750V, max input 750V rms input
imped. 1Meg +/-1.2%
*Resistance: 200, 2k, 20k, 200kohms
2Mohms +/- 1.2%
*Size: 125(H) x 68(W) x 23(D) mm
