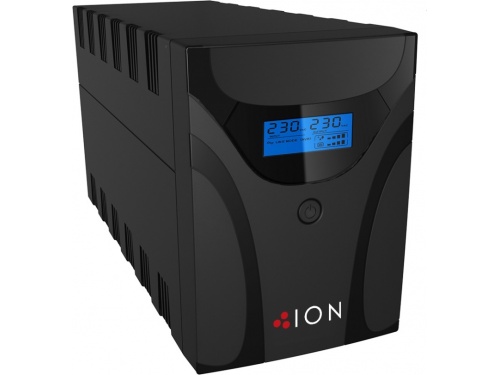

ION F11 is a general purpose line interactive UPS that offers protection from power surges and failures in the home, office or small business. Ideally suited to protecting computers and POS devices the ION F11 provides clean, reliable power delivery. Presented in a stylishly engineered unit, it is compact to fit in tight spaces and provides multiple power receptacles and USB communications ports.
Output
Output power capacity
360Watts / 650VA
600Watt/ 1200VA
1200Watts / 2200VA
Max Configurable Power (Watts)
600Watts / 1200VA
Nominal Output Voltage
230V
Output Voltage Distortion
Less than 5% at full load
Output Frequency (sync to mains)
47 – 53 Hz for 50 Hz nominal, 57 – 63 Hz for 60 Hz nominal
Topology
Line Interactive
Output Connections
(2) Australian 3 pin 10Amp
(4) Australian 3 pin 10Amp
Transfer Time
2ms typical
Input
Nominal Input Voltage
Input frequency
2m IEC to Australian 3 pin plug
Input Connections
IEC-320 C14
Input voltage range for main operations
170 – 280V
Batteries & Runtime
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
3 hour(s)
Expected Battery Life (years)
3- 5 years
Communications & Management
Interface Port(s)
USB
Control panel
LCD status display with On Line : On Battery : Replace Battery and Overload indicators
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating
320Joules
Data Line Protection
RJ-11 Surge Protection
Physical
Maximum Height
143mm
195mm
Maximum Width
100mm
139mm
Maximum Depth
290mm
364mm
Net Weight
4.4kg
8.9kg
10.4kg
Shipping Weight
5.5kg
10kg
11.5kg
Shipping Height
220mm
Shipping Width
140mm
Shipping Depth
340mm
Color
Black
Environmental
Operating Environment
0 – 40 °C
Operating Relative Humidity
0 – 95 %
Operating Elevation
0-3000meters
Storage Temperature
-15 – 45 °C
Storage Relative Humidity
Storage Elevation
0-15000meters
Audible noise at 1 meter from surface of unit
40.0dBA
45.0dBA
Conformance
Approvals
CE
Standard warranty
3 Year Advance Replacement*
